| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLCF5020T-3R3N2R0-3FIXED IND 3.3UH 2.02A 65MOHM SMD TDK Corporation |
7,258 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.02 A | 2.02A | Shielded | 65mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.079" (2.00mm) |
|
VLS3012HBX-100MFIXED IND 10UH 1.48A 415MOHM SMD TDK Corporation |
3,683 |
|
规格书 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.48 A | 1.7A | Shielded | 415mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
TFM252012ALVA3R3MTAAFIXED IND 3.3UH 2A 140 MOHM SMD TDK Corporation |
2,229 |
|
规格书 |
TFM-ALVA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 3.3 µH | ±20% | 2 A | 2.1A | Shielded | 140mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|

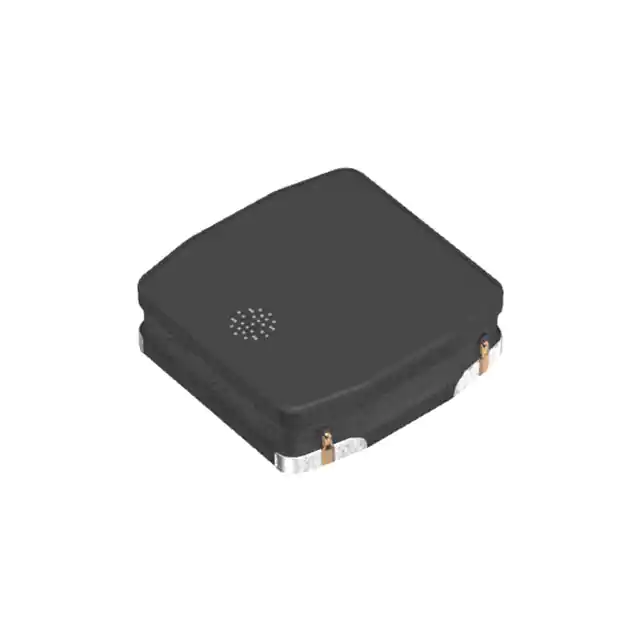

VLS4012HBX-100MFIXED IND 10UH 1.82A 338MOHM SMD TDK Corporation |
4,348 |
|
规格书 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 1.82 A | 2.36A | Shielded | 338mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|

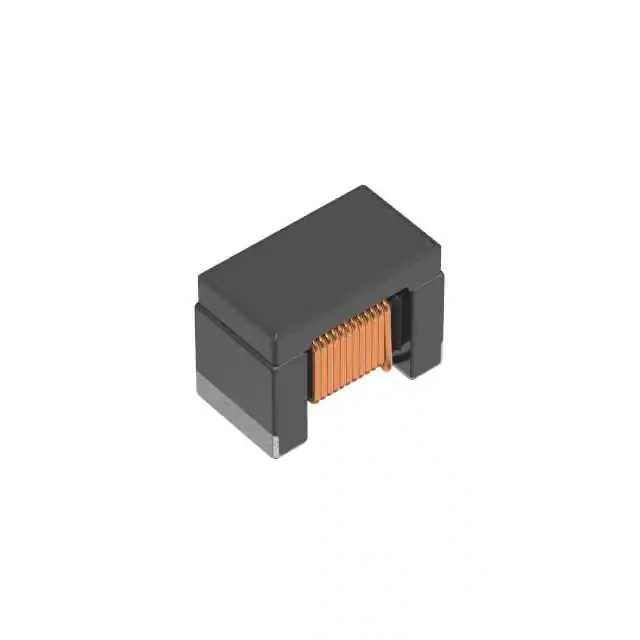

ADL2012-1R5M-T01INDUCTORS FOR DECOUPLING CIRCUIT TDK Corporation |
4,095 |
|
规格书 |
ADL | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 620 mA | 1.2A | Unshielded | 210mOhm Max | - | 450MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.087" L x 0.049" W (2.20mm x 1.25mm) | 0.069" (1.75mm) |
|
TFM201210ALMA1R0MTAAINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
1,933 |
|
规格书 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 2.2 A | 2.7A | Shielded | 81mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|

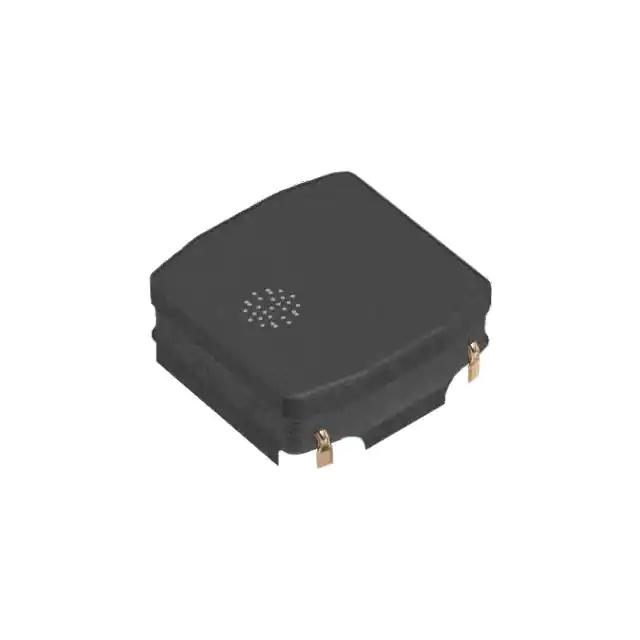

VLS3012HBX-1R0M-NINDUCTORS FOR POWER CIRCUITS, WO TDK Corporation |
1,650 |
|
规格书 |
VLS-HBX | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 4.62 A | 5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1212 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
VLS3012HBX-150MFIXED IND 15UH 1.23A 636MOHM SMD TDK Corporation |
91,658 |
|
规格书 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 15 µH | ±20% | 1.23 A | 1.37A | Shielded | 636mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|
|
TFM201210ALMA2R2MTAAINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
4,317 |
|
规格书 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 2.2 µH | ±20% | 1.1 A | 1.2A | Shielded | 282mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
TFM201210ALMA1R5MTAAINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
3,460 |
|
规格书 |
TFM-ALMA | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1.5 µH | ±20% | 1.8 A | 2A | Shielded | 130mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 1 MHz | Soft Termination | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
