购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS4012ET-1R0NFIXED IND 1UH 2.5A 60 MOHM SMD TDK Corporation |
25,801 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.5 A | 2.5A | Shielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-220M-HFIXED IND 22UH 1.9A 105MOHM SMD TDK Corporation |
25,669 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.4A | Shielded | 105mOhm | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS3012HBX-1R0MFIXED IND 1UH 5.13A 47 MOHM SMD TDK Corporation |
16,924 |
|
规格书 |
VLS-HBX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.13 A | 5.5A | Shielded | 47mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.047" (1.20mm) |
|

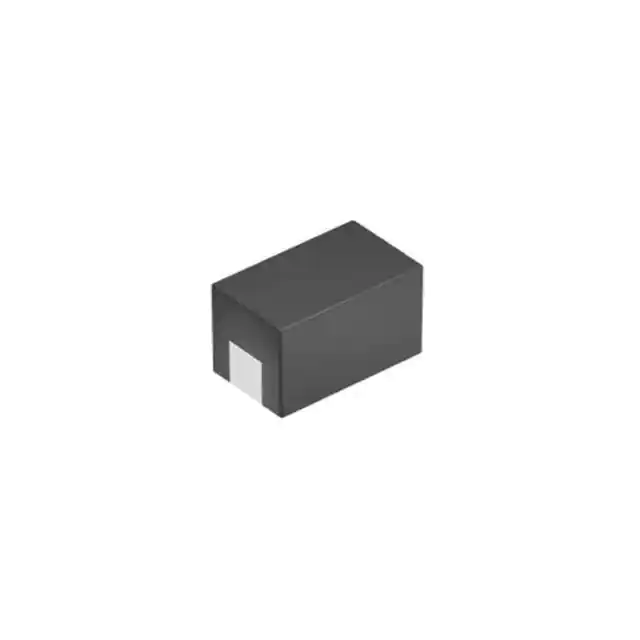

PLEA67BBA1R0M-1PT00INDUCTORS FOR POWER CIRCUITS, CO TDK Corporation |
16,290 |
|
- |
PLE | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 1 µH | ±20% | 1 A | 800mA | Shielded | 265mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.031" (0.80mm) |
|

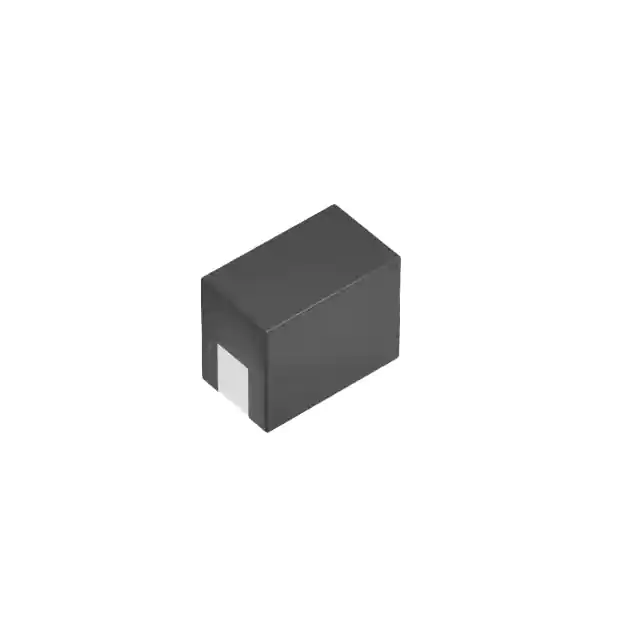

PLEA67BCA4R7M-1PT00INDUCTORS FOR POWER CIRCUITS, CO TDK Corporation |
9,735 |
|
规格书 |
PLE | 0402 (1006 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 4.7 µH | ±20% | 400 mA | 300mA | Unshielded | 1.08Ohm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0402 | 0.039" L x 0.024" W (1.00mm x 0.60mm) | 0.031" (0.80mm) |
|
VLS6045AF-6R8MFIXED IND 6.8UH 3.9A 37MOHM SMD TDK Corporation |
2,712 |
|
规格书 |
VLS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 3.9 A | 3.5A | Shielded | 37mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLCF4020T-220MR56FIXED IND 22UH 560MA 431MOHM SMD TDK Corporation |
10,825 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 560 mA | 560mA | Shielded | 431mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS6045EX-2R2N-HFIXED IND 2.2UH 5.1A 24.7MOHM SM TDK Corporation |
3,545 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 7.5A | Shielded | 24.7mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|

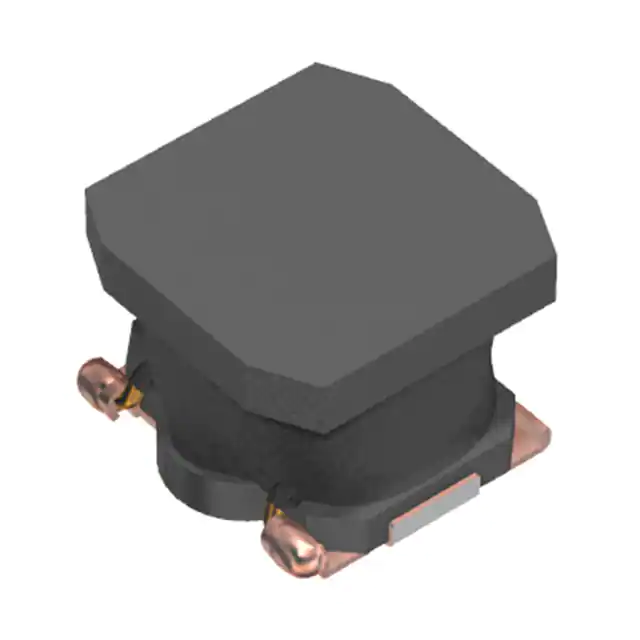

VLS6045EX-330M-HFIXED IND 33UH SMD TDK Corporation |
2,204 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | - | - | Shielded | - | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS6045EX-151M-HFIXED IND 150UH 700MA 988MOHM SM TDK Corporation |
5,255 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 700 mA | 900mA | Shielded | 988mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.248" L x 0.236" W (6.30mm x 6.00mm) | 0.177" (4.50mm) |
