购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS252012CX-4R7M-1FIXED IND 4.7UH 1.24A 210MOHM SM TDK Corporation |
4,636 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.24 A | 1.1A | Shielded | 210mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLS6045EX-221MFIXED IND 220UH 500MA 1.495 OHM TDK Corporation |
3,499 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | 800mA | Shielded | 1.15Ohm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
VLS5045EX-151MFIXED IND 150UH 610MA 949MOHM SM TDK Corporation |
6,861 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 560mA | Shielded | 949mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
VLS5045EX-3R3N-HFIXED IND 3.3UH 4.2A 35.1MOHM SM TDK Corporation |
6,264 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 4.2 A | 5.2A | Shielded | 35.1mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|

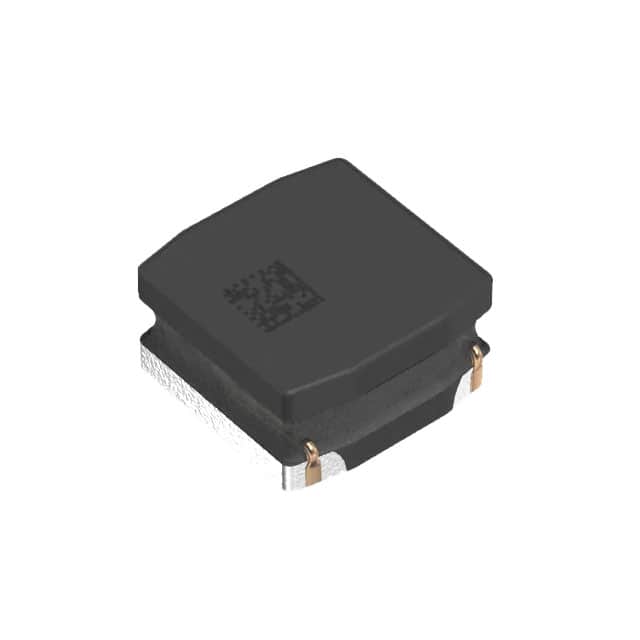

VLS4020CX-680M-HINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
4,847 |
|
规格书 |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 68 µH | ±20% | 590 mA | 650mA | Shielded | 1.36Ohm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|
|
VLS5045EX-151M-HFIXED IND 150UH 610MA 949MOHM SM TDK Corporation |
2,922 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 610 mA | 560mA | Shielded | 949mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLS5045EX-680MFIXED IND 68UH 900MA 533MOHM SMD TDK Corporation |
2,591 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 900 mA | 1.1A | Shielded | 533mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLS4020CX-6R8M-HINDUCTORS FOR POWER CIRCUITS, AU TDK Corporation |
2,071 |
|
规格书 |
VLS-CX-H | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±20% | 1.84 A | 2.07A | Shielded | 156mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1616 | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
|

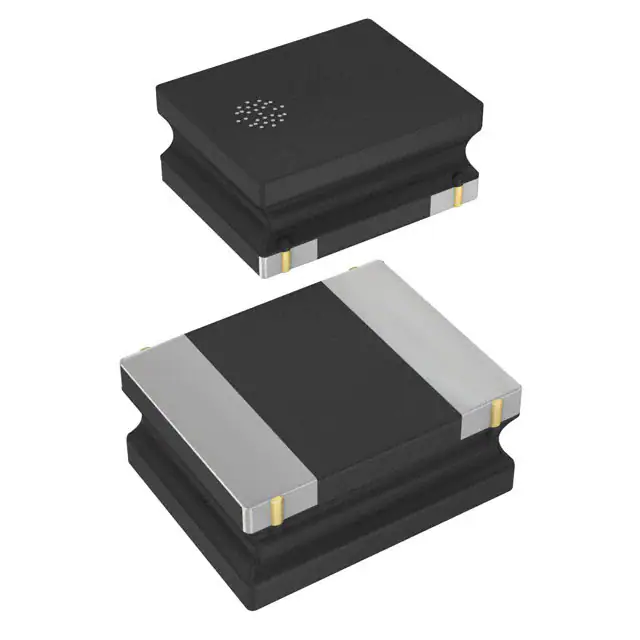

VLS252012HBU-4R7MFIXED IND 4.7UH 1.36A 295MOHM SM TDK Corporation |
28,262 |
|
规格书 |
VLS-HBU | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 1.36 A | 1.67A | Shielded | 295mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
VLCF4020T-3R3N1R5FIXED IND 3.3UH 1.52A 78MOHM SMD TDK Corporation |
27,746 |
|
规格书 |
VLCF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.52 A | 1.52A | Shielded | 78mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
