购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VLS201612CX-150M-1FIXED IND 15UH 590MA 913MOHM SMD TDK Corporation |
2,109 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 590 mA | 490mA | Shielded | 913mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
|
VLS201610CX-4R7M-1FIXED IND 4.7UH 1A 365 MOHM SMD TDK Corporation |
25,413 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1 A | 820mA | Shielded | 365mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
VLS6045EX-220MFIXED IND 22UH 1.9A 137 MOHM SMD TDK Corporation |
8,087 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.9 A | 2.4A | Shielded | 105mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
VLS6045EX-1R0NFIXED IND 1UH 6A 16 MOHM SMD TDK Corporation |
3,341 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 6 A | 12A | Shielded | 12mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
TFM160810ALTA33NNTAAIND 33NH 10.0A 9.0MOHM -40~125 TDK Corporation |
3,326 |
|
规格书 |
TFM-ALTA | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Thin Film | Metal | 33 nH | ±30% | 4.7 A | 7.5A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 MHz | Soft Termination | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|

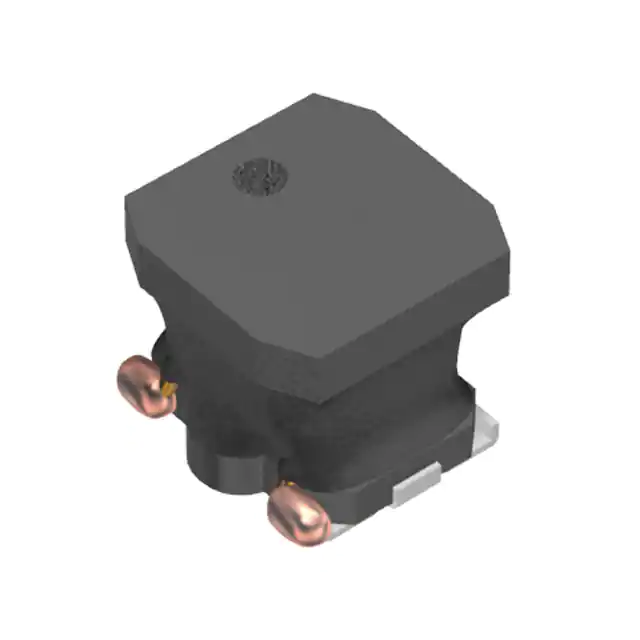

VLS5045EX-220M-HFIXED IND 22UH 1.8A 162.5MOHM SM TDK Corporation |
3,253 |
|
规格书 |
VLS-EX-H | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.8 A | 2A | Shielded | 162.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.209" L x 0.197" W (5.30mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLS201610CX-6R8M-1FIXED IND 6.8UH 790MA 582MOHM SM TDK Corporation |
2,000 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 790 mA | 650mA | Shielded | 582mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
VLS201612CX-6R8M-1FIXED IND 6.8UH 930MA 368MOHM SM TDK Corporation |
1,500 |
|
规格书 |
VLS-CX-1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 930 mA | 730mA | Shielded | 368mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 2016 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.047" (1.20mm) |
|
VLS5045EX-101MFIXED IND 100UH 700MA 754MOHM SM TDK Corporation |
9,562 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 700 mA | 800mA | Shielded | 754mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.177" (4.50mm) |
|
|
VLS6045EX-2R2NFIXED IND 2.2UH 5.1A 25 MOHM SMD TDK Corporation |
9,289 |
|
规格书 |
VLS-EX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 5.1 A | 7.5A | Shielded | 19mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
