购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

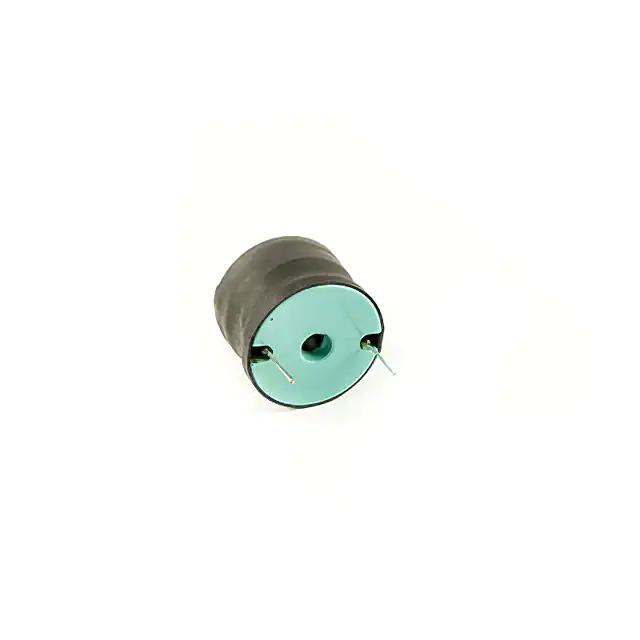

RDC30-471K-RC470UH 10% Radial Drum Core Allied Components International |
3,980 |
|
规格书 |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 4 A | 6A | Unshielded | 187mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|

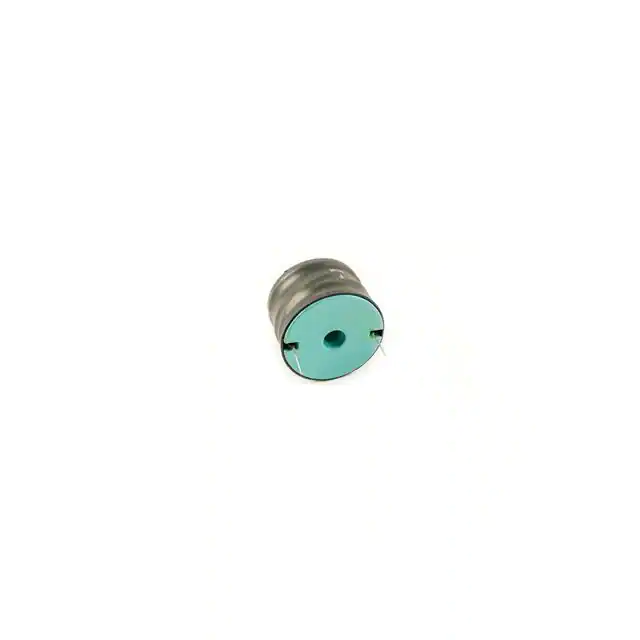

RDC40-390K-RC39UH 10% Radial Drum Core Allied Components International |
3,254 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 39 µH | ±10% | 21 A | 28A | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
PCSFW630B-2R2M2.2UH 20% SMD Flat Wire Coils Allied Components International |
1,882 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 8 A | 14A | Shielded | 20mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.268" W (7.60mm x 6.80mm) | 0.118" (3.00mm) |
|

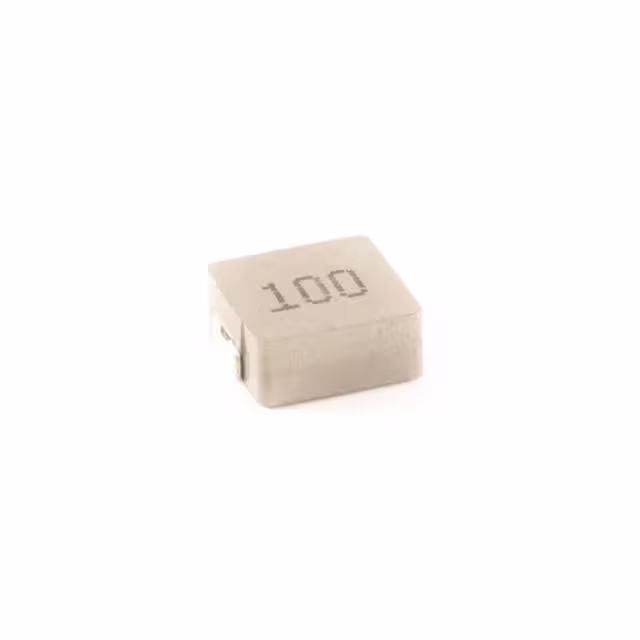

PCSFW630-100M10.0UH 20% SMD Molded Pwr Choke Allied Components International |
2,424 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 4.5 A | 5.5A | Shielded | 67mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|

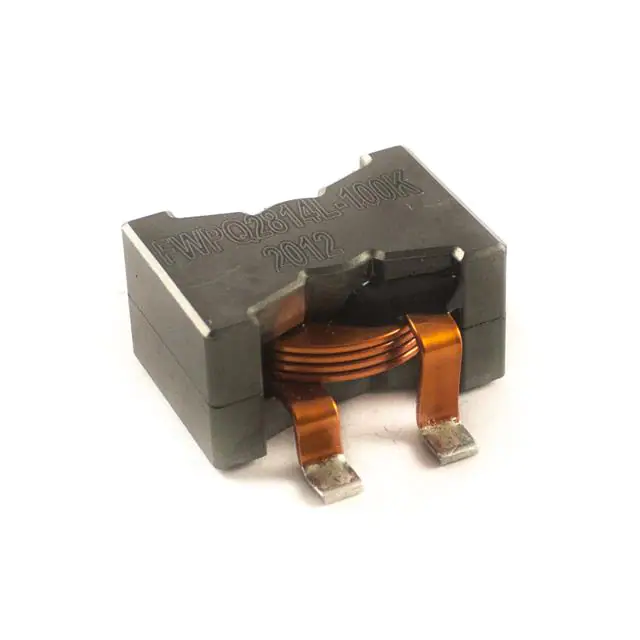

FWPQ2814L-100K10UH 10% Flat Wire SMD Pwr Ind Allied Components International |
1,477 |
|
规格书 |
- | 2-SMD, Gull Wing | Tray | Active | Wirewound | - | 10 µH | ±10% | 30 A | 17.6A | Unshielded | 1.62mOhm Max | - | 20MHz | - | -40°C ~ 85°C | 500 MHz | - | Surface Mount | SMD | 1.102" L x 1.102" W (28.00mm x 28.00mm) | 0.571" (14.50mm) |
|
PCSE15Q8-1R0M-RC1.0UH 20% SMD Power Inductor Allied Components International |
3,112 |
|
规格书 |
* | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 3 A | 3.7A | Shielded | 53mOhm Max | - | - | - | -40°C ~ 125°C | 2 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
PCXA503-R80M.80uH 20% Shielded High Current Allied Components International |
2,129 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 800 nH | ±20% | 13.1 A | 18A | Shielded | 5.65mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-1R5M1.5uH 20% Shielded High Current Allied Components International |
4,308 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 10.5 A | 12.5A | Shielded | 11.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-3R3M3.3uH 20% Shielded High Current Allied Components International |
2,154 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 8.1 A | 8.7A | Shielded | 23.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PCXA503-2R2M2.2uH 20% Shielded High Current Allied Components International |
4,848 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 µH | ±20% | 9.7 A | 9A | Shielded | 14.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
