购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDC40-332K-RC3300UH 10% Radial Drum Core Allied Components International |
3,860 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 3.3 mH | ±10% | 2.8 A | 3.4A | Unshielded | 773mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

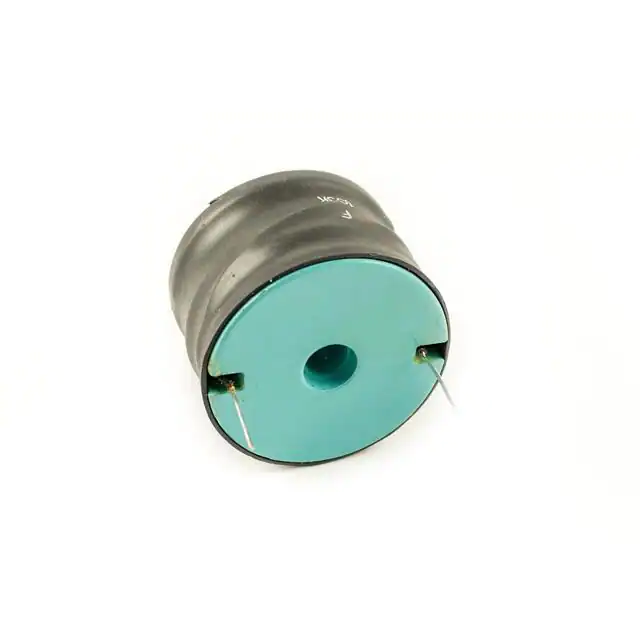

RDC40-100K-RC10UH 10% Radial Drum Core Allied Components International |
1,765 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 10 µH | ±20% | 27 A | 61A | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-122K-RC1200UH 10% Radial Drum Core Allied Components International |
4,246 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 1.2 mH | ±10% | 5.5 A | 5.7A | Unshielded | 232mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

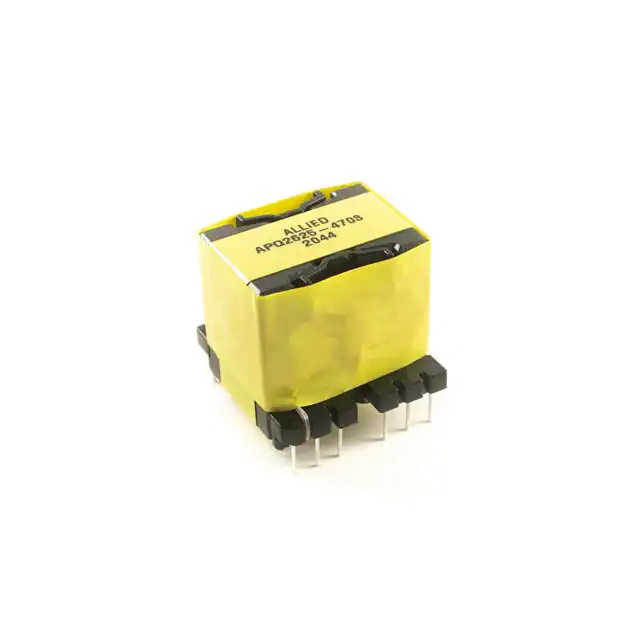

APQ2625-4703160UH, PQ2625 LC Resonant Induct Allied Components International |
2,937 |
|
规格书 |
- | Radial, Vertical 12 Leads | Box | Active | - | - | 160 µH | ±10% | 7 A | - | Unshielded | 75mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Through Hole | Radial | 1.220" L x 1.142" W (31.00mm x 29.00mm) | 1.063" (27.00mm) |
|

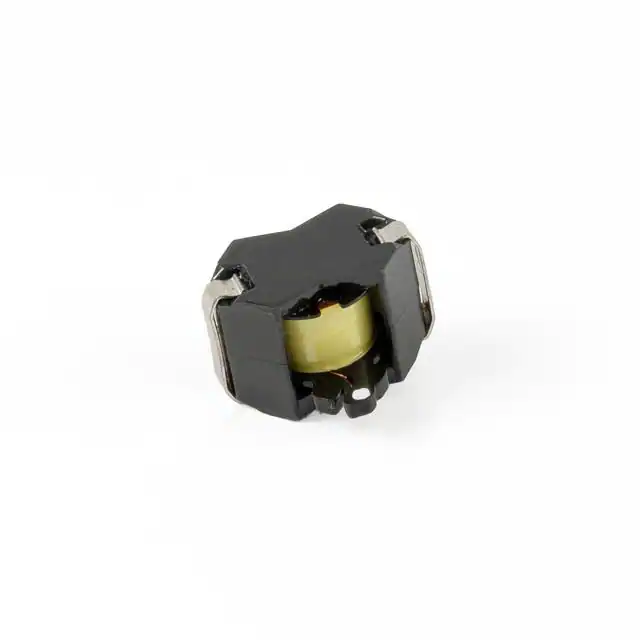

ARM6-4102570mH 10% Inductor Allied Components International |
4,948 |
|
规格书 |
- | Nonstandard | Box | Active | - | - | 570 mH | ±10% | 100 mA | - | Unshielded | 40Ohm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.531" (13.50mm) |
|
|
RDC40-102K-RC1000UH 10% Radial Drum Core Allied Components International |
2,926 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 5.5 A | 6.2A | Unshielded | 216mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
RDC30-331K-RC330UH 10% Radial Drum Core Allied Components International |
2,790 |
|
规格书 |
RDC30 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 330 µH | ±10% | 4.5 A | 7.1A | Unshielded | 122mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Radial | 1.100" Dia (27.94mm) | 0.840" (21.34mm) |
|
|
RDC40-103K-RC10000UH 10% Radial Drum Core Allied Components International |
4,169 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 10 mH | ±10% | 1.3 A | 1.8A | Unshielded | 2.76Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-272K-RC2700 UH 10% Radial Drum Core Allied Components International |
3,478 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 2.7 mH | ±10% | 4 A | 3.8A | Unshielded | 555mOhm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|
|
RDC40-822K-RC8200UH 10% Radial Drum Core Allied Components International |
3,883 |
|
规格书 |
RDC40 | Radial, Vertical Cylinder | Box | Active | Drum Core, Wirewound | - | 8.2 mH | ±10% | 1.6 A | 2A | Unshielded | 1.95Ohm Max | - | - | - | -55°C ~ 125°C | - | - | Through Hole | Radial | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
