购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCXA503-1R0M1.0uH 20% Shielded High Current Allied Components International |
4,776 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|

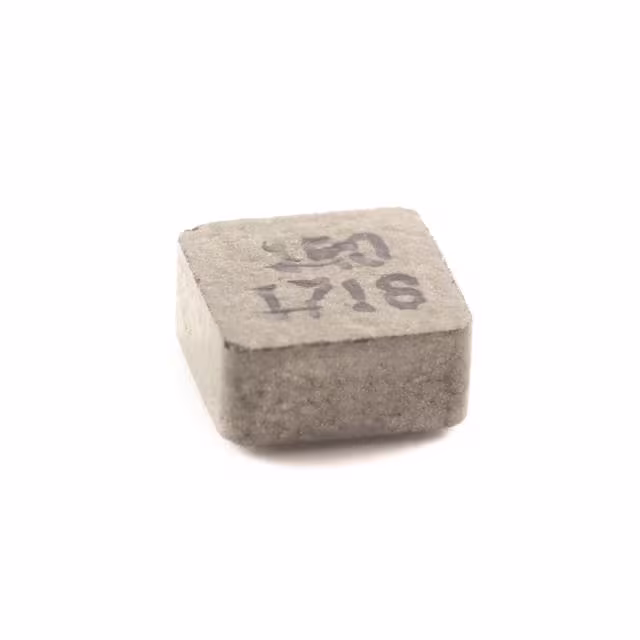

PCXA402-R72M.72uH 20% Shielded High Current Allied Components International |
4,337 |
|
规格书 |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | 720 nH | ±20% | 10.5 A | 10.6A | Shielded | 11.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
PCXA402-1R5M1.5uH 20% Shielded High Current Allied Components International |
2,358 |
|
规格书 |
* | Nonstandard | Tape & Reel (TR) | Active | - | - | 1.5 µH | ±20% | 7.6 A | 7.4A | Shielded | 23.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

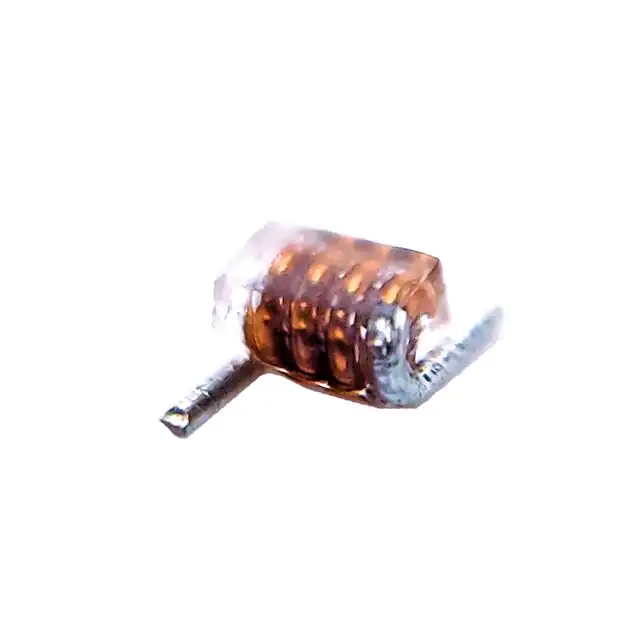

SMAC10-2K-RC1.65nH 10% SMD AirCore Inductor Allied Components International |
1,778 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 1.65 nH | ±10% | 1.6 A | - | Shielded | 4mOhm Max | 100 @ 800MHz | 10.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SMAC10-3J-RC2.55nH 5% SMD Air Core Inductor Allied Components International |
4,818 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 2.55 nH | ±5% | 1.6 A | - | Shielded | 5mOhm Max | 100 @ 800MHz | 8.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
|
SMAC10-4G-RC3.85nH 2% SMD Air Core Inductor Allied Components International |
1,755 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 3.85 nH | ±2% | 1.6 A | - | Shielded | 6mOhm Max | 100 @ 800MHz | 7.5GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.087" L x 0.056" W (2.20mm x 1.42mm) | 0.060" (1.52mm) |
|
SMAC15-9J-RC9.85nH 5% SMD Air Core Inductor Allied Components International |
1,324 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 9.85 nH | ±5% | 1.6 A | - | Shielded | 13mOhm Max | 100 @ 800MHz | 5.2GHz | - | -40°C ~ 125°C | 800 MHz | - | Surface Mount | - | 0.159" L x 0.056" W (4.04mm x 1.42mm) | 0.060" (1.52mm) |
|
SMAC60-R10L-RC100NH 15% SMD AIR COIL INDUCTOR Allied Components International |
4,355 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 100 nH | ±15% | - | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 125°C | 200 MHz | - | Surface Mount | - | 0.465" L x 0.190" W (11.80mm x 4.83mm) | 0.140" (3.55mm) |
|
SMAC25-33J-RC33NH 5% SMD AIR CORE INDUCTOR Allied Components International |
4,803 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 33 nH | ±5% | 3 A | - | Unshielded | 4.8mOhm Max | 100 @ 150MHz | 2.5GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
|
|
SMAC25-27G-RC27NH 2% SMD AIR CORE INDUCTOR Allied Components International |
1,950 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 27 nH | ±2% | 3.5 A | - | Unshielded | 4mOhm Max | 100 @ 150MHz | 2.7GHz | - | -40°C ~ 125°C | 150 MHz | - | Surface Mount | - | 0.190" L x 0.150" W (4.83mm x 3.81mm) | 0.165" (4.20mm) |
