购物车固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SQAC0806-5N5J-RC5.5nH 5% Square Wound Coil Allied Components International |
4,439 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 5.5 nH | ±5% | 2.9 A | - | Unshielded | 3.4mOhm Max | 60 @ 400MHz | 4.9GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.053" L x 0.072" W (1.35mm x 1.83mm) | 0.059" (1.50mm) |
|
SQAC0807-14NJ-RC13.7nH 5% Square Air Coil Allied Components International |
2,563 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 13.7 nH | ±5% | 2.7 A | - | Unshielded | 8mOhm Max | 100 @ 400MHz | 4.3GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.076" L x 0.072" W (1.93mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-6N9J-RC6.9nH 5% Square Air Coil Allied Components International |
2,501 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 6.9 nH | ±5% | 2.7 A | - | Unshielded | 6mOhm Max | 100 @ 400MHz | 4.6GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.051" L x 0.072" W (1.30mm x 1.83mm) | 0.070" (1.78mm) |
|
|
SQAC0807-22NJ-RC22nH 5% Square Air Coil Allied Components International |
3,816 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | Air | 22 nH | ±5% | 2.7 A | - | Unshielded | 10mOhm Max | 100 @ 400MHz | 3.5GHz | - | -40°C ~ 125°C | 400 MHz | - | Surface Mount | - | 0.102" L x 0.072" W (2.59mm x 1.83mm) | 0.070" (1.78mm) |
|
PCS125-151M-RC150uH 20% Power Chip Shielded Allied Components International |
2,579 |
|
规格书 |
- | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 µH | ±20% | 1 A | - | Shielded | 230mOhm Max | - | - | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
AHC50-251M-RC250UH 20% AXIAL HASH CHOKE Allied Components International |
4,456 |
|
规格书 |
- | Axial | Tray | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±20% | 2.5 A | - | Unshielded | 170mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.453" Dia x 1.380" L (11.51mm x 35.05mm) | - |
|
|
AHC50-3R35M-RC3.5UH 20% AXIAL HASH CHOKE Allied Components International |
4,898 |
|
规格书 |
- | Axial | Tray | Active | Drum Core, Wirewound | Iron | 3.35 µH | ±20% | 20 A | - | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial | 0.600" Dia x 0.790" L (15.24mm x 20.07mm) | - |
|

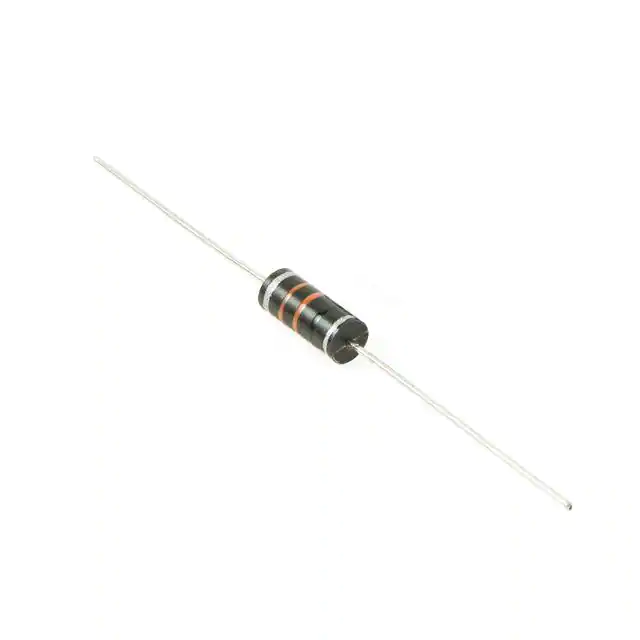

AM30-470J-RC47UH 10% AXIAL MOLDED INDUCTOR Allied Components International |
2,124 |
|
规格书 |
- | Axial | Bag | Active | Molded | - | 47 µH | ±5% | - | 193mA | Unshielded | 2.75Ohm Max | 55 @ 2.5MHz | 13MHz | - | -55°C ~ 125°C | 2.5 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R56K-RC.56UH 10% AXIAL MOLDED INDUCTOR Allied Components International |
2,925 |
|
规格书 |
- | Axial | Bag | Active | Molded | - | 560 nH | ±10% | - | 1.29A | Unshielded | 135mOhm Max | 50 @ 25MHz | 280MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
|
AM30-R68K-RC.68UH 10% AXIAL MOLDED INDUCTOR Allied Components International |
3,252 |
|
规格书 |
- | Axial | Bag | Active | Molded | - | 680 nH | ±10% | - | 1.22A | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | Axial | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
