购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K3G097-AK28-20FAN BLOWER CF 139.5X351MM 26VDC |
1,403 |
|
- |
K3G097AK | Bulk | Active | 26VDC | Rectangular/Rounded - 139.5mm L x 170.5mm H | 351.0mm | 505.0 CFM (14.30m³/min) | - | Ball | Blower, Centrifugal (Dual) | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | - | 345 W | 3500 RPM | 6 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | - | 4.7 lbs (2.1 kg) |
|
G1G120-AB71-02DC CENTRIFUGAL BLOWER |
2,041 |
|
- |
G1G120 | Bulk | Active | 48VDC | Rectangular/Rounded - 184mm L x 178mm H | 115.0mm | 150.0 CFM (4.20m³/min) | - | Ball | Blower, Centrifugal | PWM Control, Speed Sensor (Tach) | - | 40 W | 2200 RPM | 4 Wire Leads | IP22 | -13 ~ 140°F (-25 ~ 60°C) | CCC | - |
|
|
R1G280-AE47-52DC BACKWARD-CURVED MOTORIZED IMP |
4,996 |
|
- |
R1G280 | Bulk | Active | 48VDC | Round - 281.5mm Dia | 125.0mm | - | - | Ball | Motorized Impellers | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | - | 95 W | 1710 RPM | 4 Wire Leads | IP42 | 140°F (60°C) | CCC, CSA, UL | - |
|
|
D1G133-DC17-09FAN BLOWER 171.5X254.0MM 48VDC |
1,858 |
|
规格书 |
D1G133 | - | Obsolete | 48VDC | Rectangular/Rounded - 171.5mm L x 180mm H | 254.0mm | 656.0 CFM (18.37m³/min) | - | Ball | Blower | Locked Rotor Protection | 60.0dB(A) | 115 W | - | 2 Wire Leads | - | 122°F (50°C) | - | 7 lbs (3.2 kg) |
|
|
G1G140-AW13-18DC CENTRIFUGAL BLOWER |
1,301 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R1G310-AA13-52FAN IMP MTRZD 312X154.0MM 24VDC |
3,932 |
|
规格书 |
R1G310 | - | Obsolete | 24VDC | Round - 312mm Dia | 154.0mm | 1200.0 CFM (33.60m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 110 W | - | 4 Wire Leads | - | - | - | 8 lbs (3.6 kg) |
|
|
R1G310-AA17-52FAN IMP MTRZD 312X154.0MM 48VDC |
2,760 |
|
规格书 |
R1G310 | - | Obsolete | 48VDC | Round - 312mm Dia | 154.0mm | 1200.0 CFM (33.60m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 67.0dB(A) | 110 W | - | 4 Wire Leads | - | - | - | 8 lbs (3.6 kg) |
|
|
D3G160-DA05-02FAN BLOWER 226X214.0MM 48VDC |
1,002 |
|
规格书 |
D3G160 | - | Obsolete | 48VDC | Rectangular/Rounded - 226mm L x 242mm H | 214.0mm | 424.0 CFM (11.87m³/min) | - | Ball | Blower | - | 58.0dB(A) | 85 W | - | 2 Wire Leads | - | - | - | 10 lbs (4.5 kg) |
|
|
W3G300-ER38-45EC AXIAL FAN |
3,731 |
|
规格书 |
W3G300 | Bulk | Obsolete | 27.5VDC | Round - 330mm Dia | 94.00mm | 1846.5 CFM (51.7m³/min) | 1.104 in H2O (275.0 Pa) | Ball | Tubeaxial | - | 94.0dB(A) | 335 W | 3320 RPM | 4 Position Rectangular Connector | - | -40 ~ 185°F (-40 ~ 85°C) | VDE | - |
|
|
W3G300-RQ28-56EC AXIAL FAN |
2,651 |
|
- |
W3G300 | Bulk | Active | 27.5VDC | Round - 300mm Dia | 94.00mm | 1861.2 CFM (52.11m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 76.0dB(A) | 320 W | 3380 RPM | 4 Position Rectangular Connector | IP66/IP69K - Dust Tight, Water Resistant, Waterproof | -40 ~ 185°F (-40 ~ 85°C) | VDE | - |
|
|
W3G280-EQ08-44FAN AXL 344X94MM 13VDC RECT CONN |
1,061 |
|
- |
W2G250 | Bulk | Active | 13VDC | Round - 344mm Dia | 94.00mm | 709.7 CFM (19.87m³/min) | - | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Thermal Overload Protector (TOP) | 68.0dB(A) | 152 W | 2830 RPM | 6 Position Rectangular Connector | - | -13 ~ 158°F (-25 ~ 70°C) | EAC | - |
|
|
9B1TP24P0H002270X99MM 24V, BRACKET-MOUNTED CE |
4,353 |
|
规格书 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

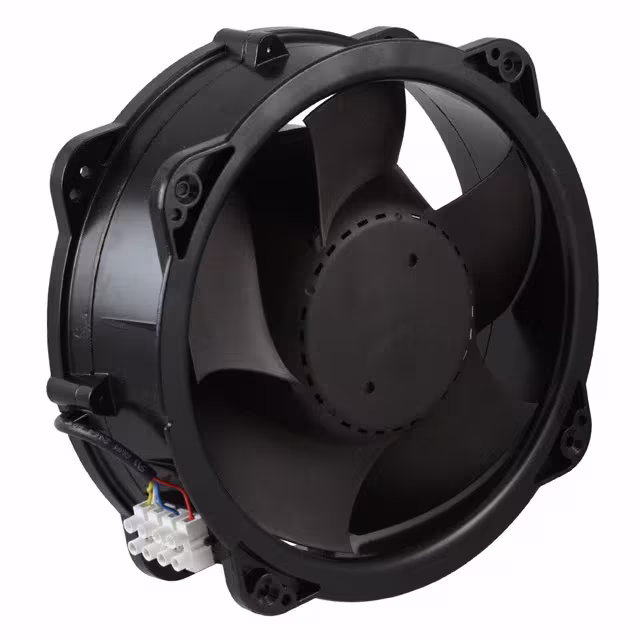

W1G208-BA35-52FAN AXIAL 232X80MM 24VDC TERM |
1,584 |
|
规格书 |
W1G208 | Box | Active | 24VDC | Round - 232mm Dia | 80.00mm | 618.0 CFM (17.30m³/min) | - | Ball | Tubeaxial | - | 74.0dB(A) | 96 W | 3500 RPM | 2 Terminals | - | -13 ~ 162°F (-25 ~ 72°C) | CSA, UL, VDE | 5.1 lbs (2.3 kg) |
|
|
K3G097-AK36-55EC CENTRIFUGAL BLOWER |
1,860 |
|
- |
K3G097 | Bulk | Active | 13VDC | Rectangular/Rounded - 170.5mm L x 139.5mm H | 351.0mm | 695.0 CFM (19.46m³/min) | - | Ball | Blower, Centrifugal | - | 76.0dB(A) | 385 W | 3740 RPM | 3 Wire Leads per Fan | - | -40 ~ 185°F (-40 ~ 85°C) | VDE | - |
|
W1G208-BA73-52FAN AXIAL 232X80MM 48VDC TERM |
3,550 |
|
规格书 |
W1G208 | Box | Active | 48VDC | Round - 232mm Dia | 80.00mm | 618.0 CFM (17.30m³/min) | - | Ball | Tubeaxial | - | 74.0dB(A) | 96 W | 3500 RPM | 2 Terminals | - | -13 ~ 162°F (-25 ~ 72°C) | CCC, CSA, UL, VDE | 5.1 lbs (2.3 kg) |
|
|
S1G200-AI01-52DC AXIAL FAN |
3,172 |
|
- |
S1G200 | Bulk | Active | - | Round - 200mm Dia | - | - | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 60.0dB(A) | - | - | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
S1G200-AH01-52DC AXIAL FAN |
4,207 |
|
- |
S1G200 | Bulk | Active | 48VDC | Round - 200mm Dia | 69.00mm | - | 0.482 in H2O (120.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 55 W | 2950 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
S1G250-AH37-52DC AXIAL FAN |
2,520 |
|
- |
S1G250 | Bulk | Active | 24VDC | Round - 300mm Dia | 72.00mm | - | 0.562 in H2O (140.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 105 W | 2750 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
A1G360-AB33-52DC AXIAL FAN |
2,980 |
|
- |
A1G360 | Bulk | Active | 48VDC | Round - 360mm Dia | - | 1471.0 CFM (41.19m³/min) | - | Ball | Tubeaxial | - | 58.0dB(A) | 100 W | 1410 RPM | 2 Wire Leads | - | 140°F (60°C) | CSA, VDE, UL | - |
|
W1G200-CH01-52FAN AXIAL 280X80MM 48VDC WIRE |
2,339 |
|
规格书 |
W1G200 | Bulk | Active | 48VDC | Round - 280mm Dia | 80.00mm | 588.0 CFM (16.46m³/min) | - | Ball | Tubeaxial | - | 60.0dB(A) | 55 W | - | 2 Wire Leads | - | - | CSA, UL | 3.3 lbs (1.5 kg) |
