购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

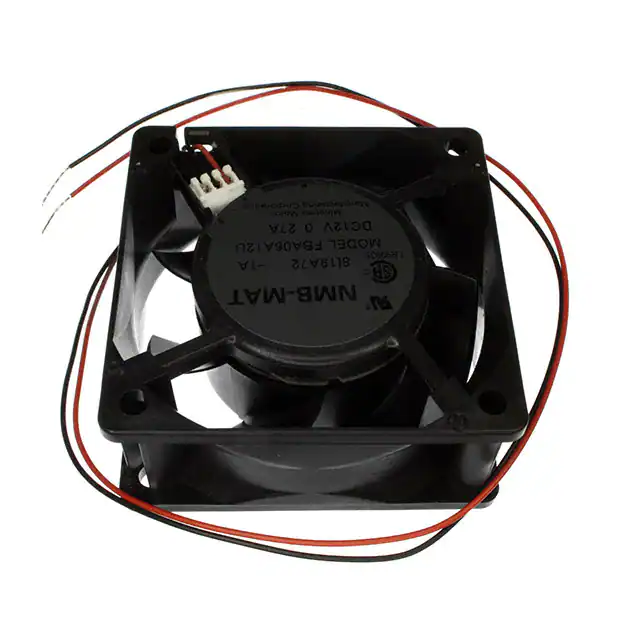

FBA06A12U1AFAN AXIAL 60X25.5MM 12VDC WIRE |
1,883 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 20.5 CFM (0.574m³/min) | 0.233 in H2O (58.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 58.0dB | 2.52 W | 4550 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

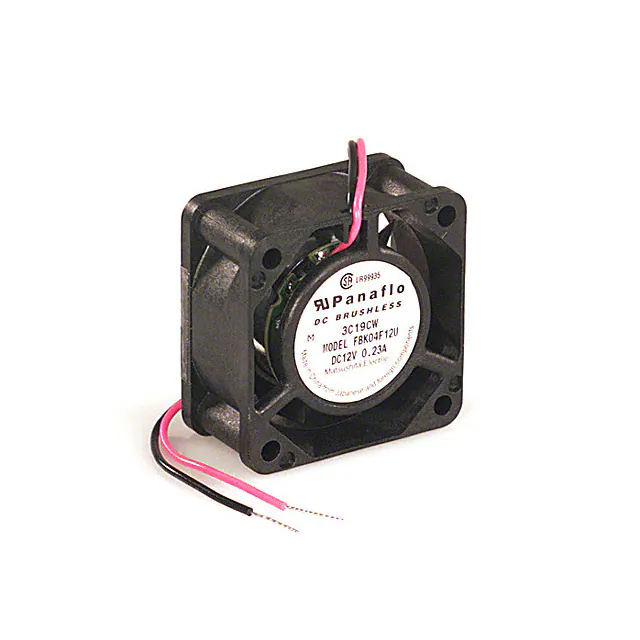

FBK04F12UFAN AXIAL 40X20MM 12VDC WIRE |
2,091 |
|
规格书 |
FBK | - | Obsolete | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 9.2 CFM (0.258m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 2.04 W | 9500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | UL | 0.088 lb (39.92 g) |
|

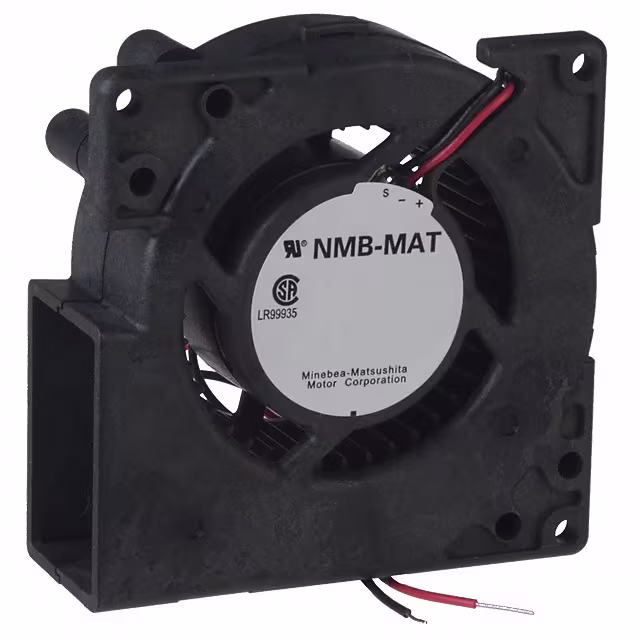

FAL5F12LHFAN BLOWER 76X28MM 12VDC WIRE |
3,806 |
|
规格书 |
FAL-5F | - | Obsolete | 12VDC | Square/Rounded - 76mm L x 76mm H | 28.00mm | 10.6 CFM (0.297m³/min) | 0.393 in H2O (98.0 Pa) | Hydro-wave (HWB) | Blower | - | 36.0dB | 2.4 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA06T12LFAN AXIAL 60X15MM 12VDC WIRE |
3,756 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.110 in H2O (27.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.06 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T12HFAN AXIAL 60X15MM 12VDC WIRE |
2,363 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 16.6 CFM (0.465m³/min) | 0.187 in H2O (46.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.74 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T24LFAN AXIAL 60X15MM 24VDC WIRE |
3,546 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.110 in H2O (27.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.34 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
|
FBA06T24HFAN AXIAL 60X15MM 24VDC WIRE |
1,643 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.6 CFM (0.465m³/min) | 0.187 in H2O (46.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.99 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.111 lb (50.35 g) |
|
FBA06A12L1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,578 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA06A12H1AFAN AXIAL 60X25.5MM 12VDC WIRE |
4,961 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 1.86 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|

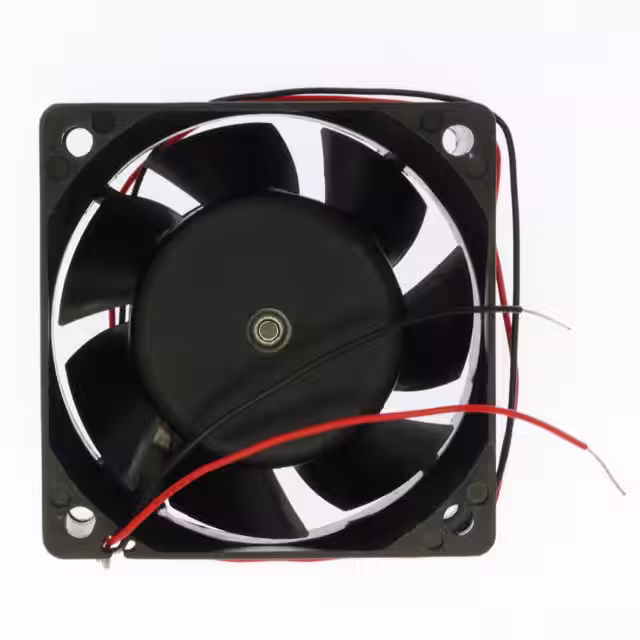

FBA06A24L1AFAN AXIAL 60X25.5MM 24VDC WIRE |
2,071 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 14.1 CFM (0.395m³/min) | 0.122 in H2O (30.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 24.0dB | 1.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
|
FBA06A24H1AFAN AXIAL 60X25.5MM 24VDC WIRE |
2,473 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.50mm | 19.1 CFM (0.535m³/min) | 0.204 in H2O (51.0 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.04 W | 4200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.198 lb (89.81 g) |
|
FBA08T12LFAN AXIAL 80X15MM 12VDC WIRE |
1,154 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.061 in H2O (15.2 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 23.0dB | 950 mW | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|
|
FBA08T12HFAN AXIAL 80X15MM 12VDC WIRE |
1,349 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 34.0dB | 2.4 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|

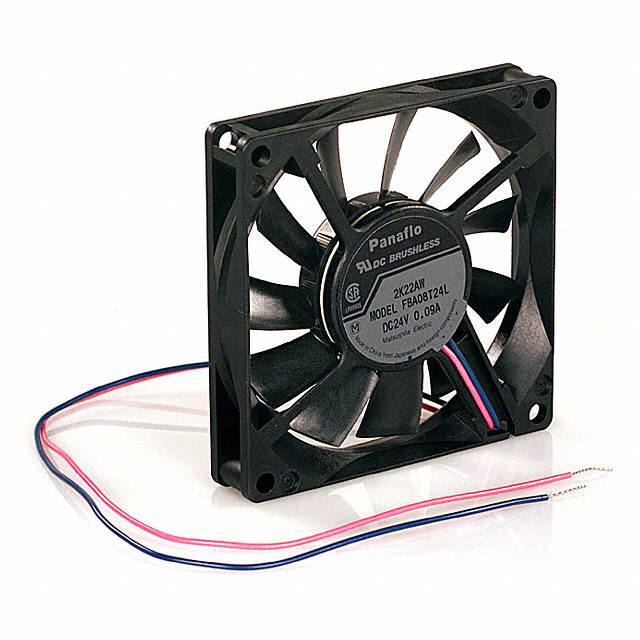

FBA08T24LFAN AXIAL 80X15MM 24VDC WIRE |
2,285 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 21.9 CFM (0.613m³/min) | 0.061 in H2O (15.2 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 23.0dB | 1.13 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|
FBA08T24HFAN AXIAL 80X15MM 24VDC WIRE |
2,376 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 15.00mm | 33.5 CFM (0.938m³/min) | 0.126 in H2O (31.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 34.0dB | 2.64 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.154 lb (69.85 g) |
|

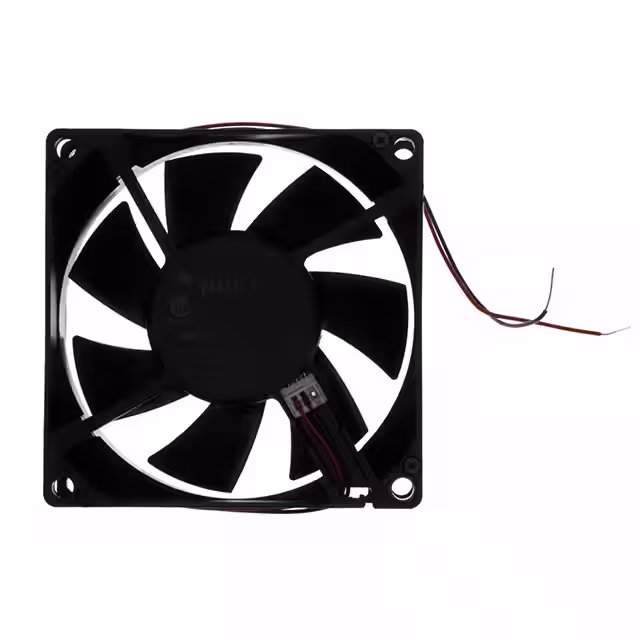

FBA08A12L1AFAN AXIAL 80X25.5MM 12VDC WIRE |
4,028 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 820 mW | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A12M1AFAN AXIAL 80X25.5MM 12VDC WIRE |
4,012 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.49 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|

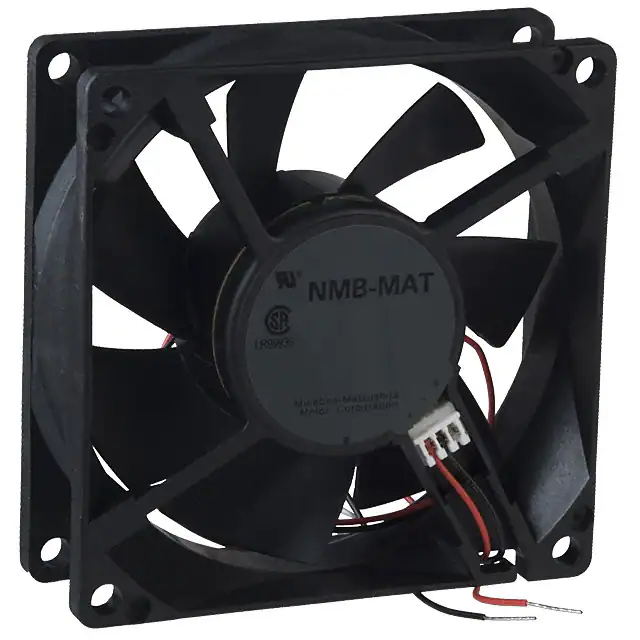

FBA08A12H1AFAN AXIAL 80X25.5MM 12VDC WIRE |
2,975 |
|
规格书 |
FBA | - | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.50mm | 39.6 CFM (1.11m³/min) | 0.149 in H2O (37.1 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 32.0dB | 2.08 W | 2950 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
|
FBA08A24L1AFAN AXIAL 80X25.5MM 24VDC WIRE |
1,840 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 24.0 CFM (0.672m³/min) | 0.062 in H2O (15.4 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 21.0dB | 1.3 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
|
FBA08A24M1AFAN AXIAL 80X25.5MM 24VDC WIRE |
3,276 |
|
规格书 |
FBA | - | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.50mm | 32.1 CFM (0.899m³/min) | 0.099 in H2O (24.6 Pa) | Hydro-wave (HWB) | Tubeaxial | - | 28.0dB | 1.7 W | 2450 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, UL | 0.22 lb (99.79 g) |
