购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

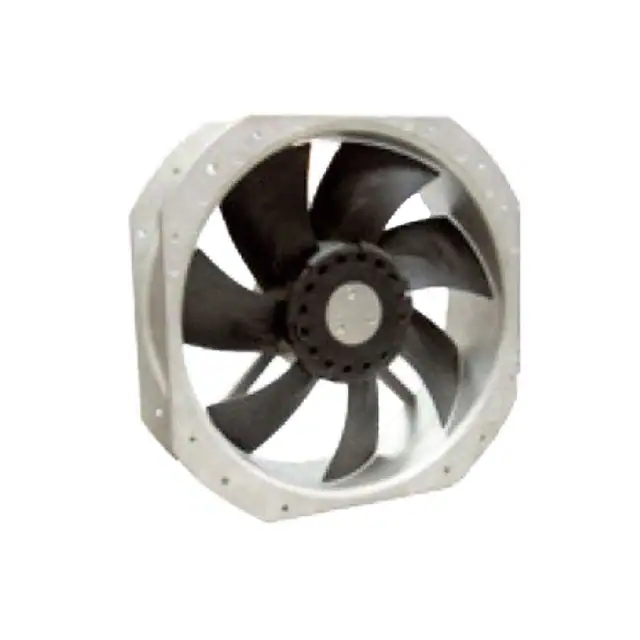

OD280-12MBFAN AXIAL 280X89MM 12VDC WIRE |
4,981 |
|
规格书 |
OD280 | Box | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 90 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-24HBFAN AXIAL 280X89MM 24VDC WIRE |
2,600 |
|
规格书 |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB | 104 W | 2550 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-24MBFAN AXIAL 280X89MM 24VDC WIRE |
1,057 |
|
规格书 |
OD280 | Box | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 60 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-12MTBDC FAN 12V 280X89MM |
4,485 |
|
规格书 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 90 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24MTBDC FAN 24V 280X89MM |
2,256 |
|
规格书 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 60 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24LTBDC FAN 24V 280X89MM |
4,825 |
|
规格书 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24LBDC FAN 24V 280X89MM |
4,359 |
|
规格书 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-12LBDC FAN 12V 280X89MM |
2,319 |
|
规格书 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 50 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-12LTBDC FAN 12V 280X89MM |
1,520 |
|
规格书 |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 50 W | 1800 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-24HTBDC FAN 24V 280X89MM |
3,643 |
|
规格书 |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 105 W | 2400 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280AN-24HBThermal Products |
4,654 |
|
- |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | Auto Restart | 72.0dB(A) | 105 W | 2400 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
K1G220-AA67-02ENERGY-SAVING CENTRIFIGUAL MODUL |
3,342 |
|
- |
K1G220 | Bulk | Active | 48VDC | Square - 270mm L x 270mm H | 92.00mm | 605.0 CFM (16.94m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 71.0dB(A) | 94 W | 3100 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|
|
K1G220-AA89-02ENERGY-SAVING CENTRIFIGUAL MODUL |
1,750 |
|
- |
K1G220 | Bulk | Active | 24VDC | Square - 270mm L x 270mm H | 92.00mm | - | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 68 W | 2800 RPM | 4 Wire Leads | IP42 | -13 ~ 140°F (-25 ~ 60°C) | CSA, EAC, UL | - |
|

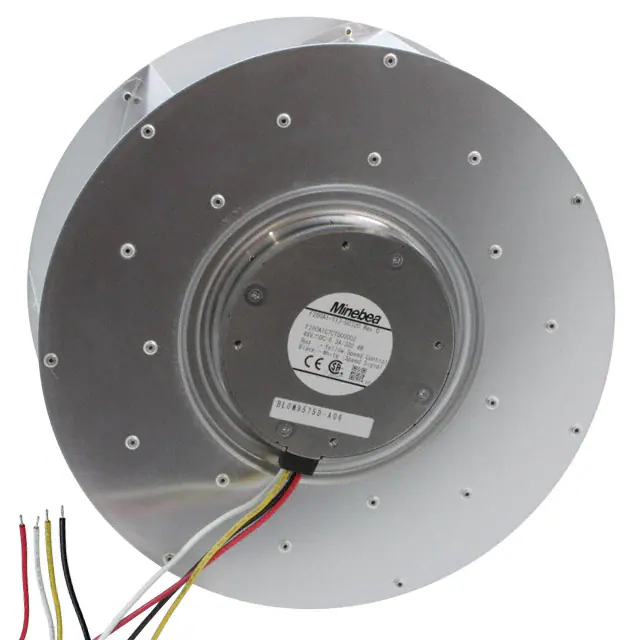

F280A2-113-D0720FAN IMP MTRZD 280X128.7MM 48VDC |
1,722 |
|
规格书 |
F280 | Bulk | Active | 48VDC | Round - 280mm Dia | 128.7mm | 1071.0 CFM (30.00m³/min) | 1.668 in H2O (415.5 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 75.0dB(A) | 134.4 W | 2000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|
|
F280A4-113-D0510FAN IMP MTRZD 280X128.7MM 24VDC |
2,363 |
|
规格书 |
F280 | Bulk | Active | 24VDC | Round - 280mm Dia | 128.7mm | 940.0 CFM (26.32m³/min) | 1.206 in H2O (300.4 Pa) | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 70.0dB | 93.6 W | 1700 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 4.6 lbs (2.1 kg) |
|
|
OD280AN-48HBFAN AXIAL 280X89MM 48VDC WIRE |
1,649 |
|
规格书 |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1200.0 CFM (33.60m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB | 104 W | 2550 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48MBFAN AXIAL 280X89MM 48VDC WIRE |
4,155 |
|
规格书 |
OD280 | Box | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1060.0 CFM (29.68m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB | 60 W | 2200 RPM | 2 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48LTBDC FAN 48V 280X89MM |
2,829 |
|
规格书 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 870.0 CFM (24.36m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 27 W | 1800 RPM | 2 Terminals | - | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | - |
|
|
OD280-48HTBDC FAN 48V 280X89MM |
4,683 |
|
规格书 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1180.0 CFM (33.04m³/min) | 0.900 in H2O (224.2 Pa) | Ball | Tubeaxial | - | 72.0dB(A) | 106 W | 2400 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280-48MTBDC FAN 48V 280X89MM |
1,925 |
|
规格书 |
OD280 | Bulk | Active | 48VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | - | 56.0dB(A) | 60 W | 2150 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
