购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

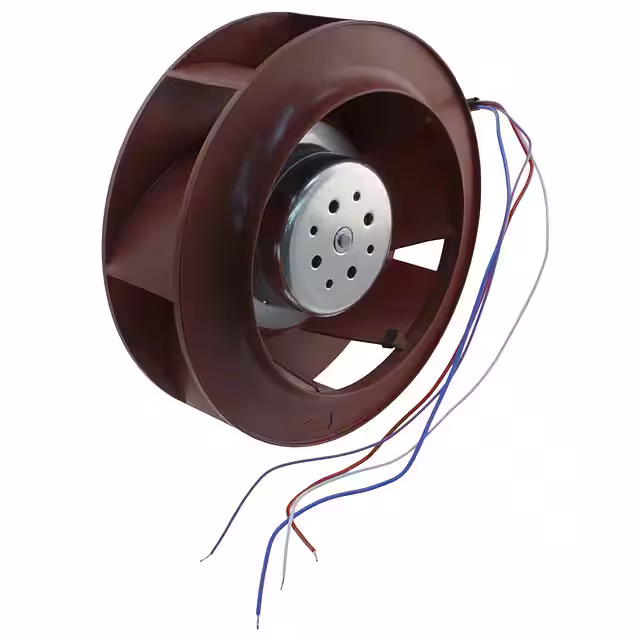

RER190-45/182TDPFAN IMP MTRZD 192X69MM 48VDC |
3,205 |
|
规格书 |
RER190TD | Box | Active | 48VDC | Round - 192mm Dia | 69.00mm | 635.7 CFM (17.80m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 216 W | 4600 RPM | 4 Wire Leads | - | - | - | 1.8 lbs (816.5 g) |
|
DV6248/17TDAU-821DC TUBEAXIAL FAN |
3,125 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RER190-45/14/2TDPS-FORCE EC RADIAL BLOWER |
1,011 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV6248TDDC TUBEAXIAL FAN |
2,681 |
|
- |
DV6248 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 412.3 CFM (11.54m³/min) | - | Ball | Tubeaxial | - | 69.0dB(A) | 89 W | 5500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, CE, VDE, UL | - |
|
|
R1G250-AI13-52FAN IMP MTRZD 250X89MM 24VDC |
1,374 |
|
规格书 |
R1G250 | - | Obsolete | 24VDC | Round - 250mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 85 W | - | 4 Wire Leads | - | - | - | 4.7 lbs (2.1 kg) |
|
|
RER220-44/18/2TDMPS-FORCE EC RADIAL BLOWER |
1,826 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RER220-44/18/2TDMOFAN IMP MTRZD 221X71MM 48VDC |
4,007 |
|
规格书 |
RER220TD, S-Force | Bulk | Active | 48VDC | Round - 221mm Dia | 71.00mm | 641.0 CFM (17.95m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 80 W | 3000 RPM | 4 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | - |
|

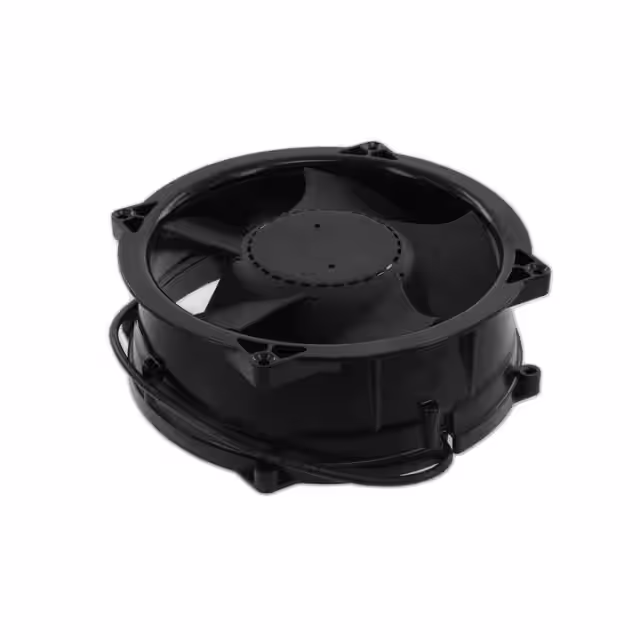

W1G180-AB11-32FAN AXIAL 220X70MM BALL 48VDC |
1,557 |
|
- |
W1G180 | Bulk | Obsolete | 48VDC | Round - 220mm Dia | 70.00mm | - | - | Ball | Tubeaxial | - | 70.0dB(A) | 35 W | 3200 RPM | - | IP20 | -13 ~ 140°F (-25 ~ 60°C) | CSA, UL | - |
|
|
R1G250-AI17-52FAN IMP MTRZD 250X89MM 48VDC |
2,767 |
|
规格书 |
R1G250 | - | Obsolete | 48VDC | Round - 250mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 85 W | - | 4 Wire Leads | - | - | - | 4.7 lbs (2.1 kg) |
|
|
RER225-63/14/2TDMPS-FORCE EC RADIAL BLOWER |
4,165 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
RER225-55/18/2TDMOFAN IMP MTRZD 225X99MM 48VDC |
3,523 |
|
规格书 |
RER225TD, S-Force | Bulk | Active | 48VDC | Round - 225mm Dia | 99.00mm | 11.9 CFM (0.333m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 120 W | 2800 RPM | 4 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | 2.4 lbs (1.1 kg) |
|
|
OD280AN-24MBThermal Products |
4,121 |
|
- |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 60 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
RER220-44/18/2TDOFAN IMP MTRZD 221X71MM 48VDC |
1,038 |
|
规格书 |
RER220TD, S-Force | Bulk | Active | 48VDC | Round - 221mm Dia | 71.00mm | 753.0 CFM (21.08m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 140 W | 3500 RPM | 4 Wire Leads | - | -4 ~ 131°F (-20 ~ 55°C) | - | - |
|
|
W1G250-HH73-52FAN AXIAL 280X80MM BALL 48VDC |
3,825 |
|
规格书 |
W1G250 | - | Obsolete | 48VDC | Square - 280mm L x 280mm H | 80.00mm | 1089.0 CFM (30.49m³/min) | - | Ball | Tubeaxial | - | 68.0dB(A) | 95 W | - | Terminal Block | - | - | - | 4.7 lbs (2.1 kg) |
|
|
D3G133-DB05-05FAN BLOWER 204X232.0MM 48VDC |
3,013 |
|
规格书 |
D3G133 | - | Obsolete | 48VDC | Rectangular/Rounded - 204mm L x 213mm H | 232.0mm | 335.0 CFM (9.38m³/min) | - | Ball | Blower | - | 54.0dB(A) | 34 W | - | 2 Wire Leads | - | - | - | 6.5 lbs (2.9 kg) |
|
|
RER220-44/18/2TDLPS-FORCE EC RADIAL BLOWER |
2,591 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
OD280AN-12MBThermal Products |
2,915 |
|
- |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 1050.0 CFM (29.40m³/min) | 0.650 in H2O (161.9 Pa) | Ball | Tubeaxial | Auto Restart | 56.0dB(A) | 90 W | 2150 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280AN-24LBThermal Products |
1,802 |
|
- |
OD280 | Bulk | Active | 24VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 27 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280AN-12LBThermal Products |
3,266 |
|
- |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 50 W | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD280AN-12LTBThermal Products |
1,924 |
|
- |
OD280 | Bulk | Active | 12VDC | Square - 280mm L x 280mm H | 89.00mm | 865.0 CFM (24.22m³/min) | 0.550 in H2O (137.0 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 50 W | 1800 RPM | 2 Terminals | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
