购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

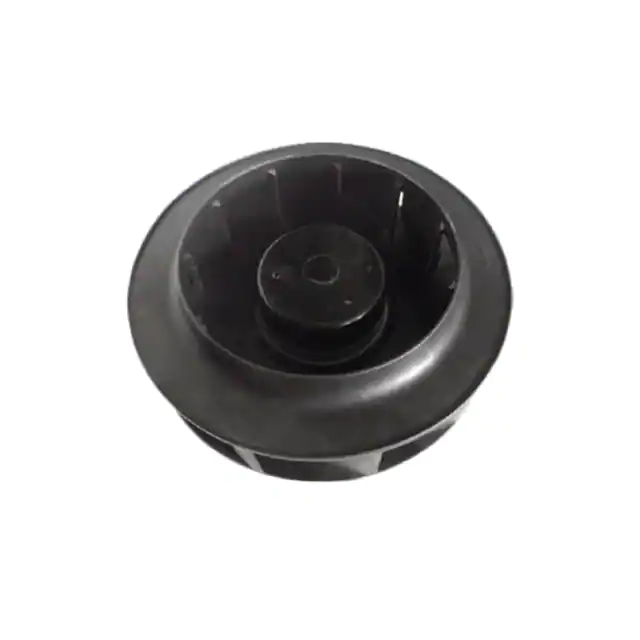

MSI2577H48B-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
3,353 |
|
规格书 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart | 76.0dB(A) | - | 2800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|

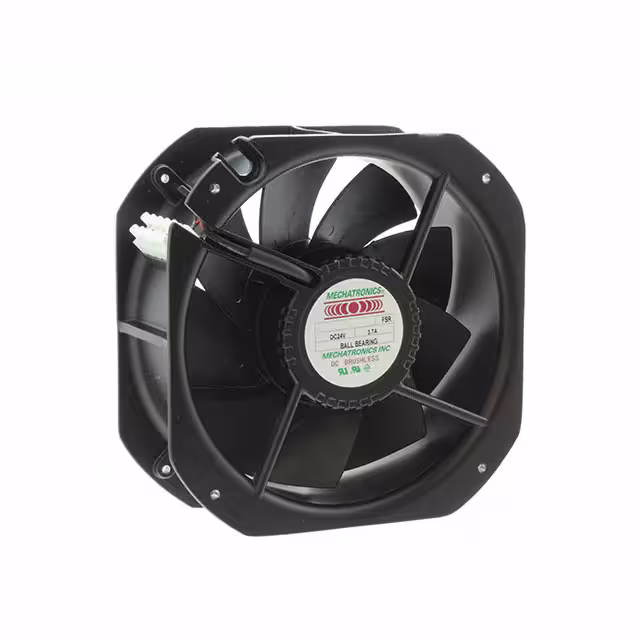

MM2589H48B-FSRFAN AXIAL 255X89MM 48VDC WIRE |
1,906 |
|
规格书 |
MM2589 | Bulk | Obsolete | 48VDC | Round - 255mm Dia | 89.00mm | 1030.0 CFM (28.84m³/min) | 1.100 in H2O (274.0 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 60.0dB(A) | - | 3000 RPM | 2 Wire Leads | - | - | CSA, cULus, TUV, UL | 3.5 lbs (1.6 kg) |
|
|
MSI2577H24B1-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
2,468 |
|
规格书 |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Speed Sensor (Tach) | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|
|
MSI2577H24B2-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
1,624 |
|
规格书 |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|
|
MSI2577H48B2-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
3,714 |
|
规格书 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, Locked Rotor Sensor | 76.0dB(A) | - | 2800 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|
R172A0-051-D0790FAN AXIAL 172.7X50.8MM 48VDC |
4,701 |
|
规格书 |
R172 | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 604.0 CFM (16.91m³/min) | 6.050 in H2O (1507.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 82.0dB | 211.2 W | 9300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.4 lbs (1.1 kg) |
|
|
R172A5-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
3,364 |
|
规格书 |
R172 | Bulk | Active | 48VDC | Round - 172.7mm Dia | 50.80mm | 409.0 CFM (11.45m³/min) | 3.020 in H2O (752.3 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 74.0dB(A) | 76.8 W | 6300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.4 lbs (1.1 kg) |
|
DV6248/2A-201DC TUBEAXIAL FAN |
1,717 |
|
- |
DV6200 | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 317.8 CFM (8.90m³/min) | - | Ball | Tubeaxial | - | 63.0dB(A) | 40 W | 4300 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
RER190-45/18/2TDLPS-FORCE EC RADIAL BLOWER |
1,493 |
|
- |
RER190 | Bulk | Active | 48VDC | Round - 190mm Dia | 69.00mm | 635.7 CFM (17.80m³/min) | - | Ball | Tubeaxial | - | - | 216 W | 4600 RPM | 2 Wire Leads | - | 149°F (65°C) | - | - |
|
|
RER190-45/18/2TDMLPS-FORCE EC RADIAL BLOWER |
1,316 |
|
- |
RER190 | Bulk | Active | 48VDC | Round - 190mm Dia | 69.00mm | 388.2 CFM (10.87m³/min) | - | Ball | Blower | - | - | 56 W | 3000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | - |
|
|
RER190-45/14/2TDMLPS-FORCE EC RADIAL BLOWER |
1,103 |
|
- |
RER190 | Bulk | Active | 24VDC | Round - 190mm Dia | 69.00mm | 388.2 CFM (10.87m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | - | 58 W | 3000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | - |
|
RER190-39/14/2TDMLOFAN IMP MTRZD 190X69MM 24VDC |
4,564 |
|
规格书 |
RER190TD, S-Force | Bulk | Active | 24VDC | Round - 190mm Dia | 69.00mm | 382.0 CFM (10.70m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 58 W | 3000 RPM | 4 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | - | 1.9 lbs (900.0 g) |
|

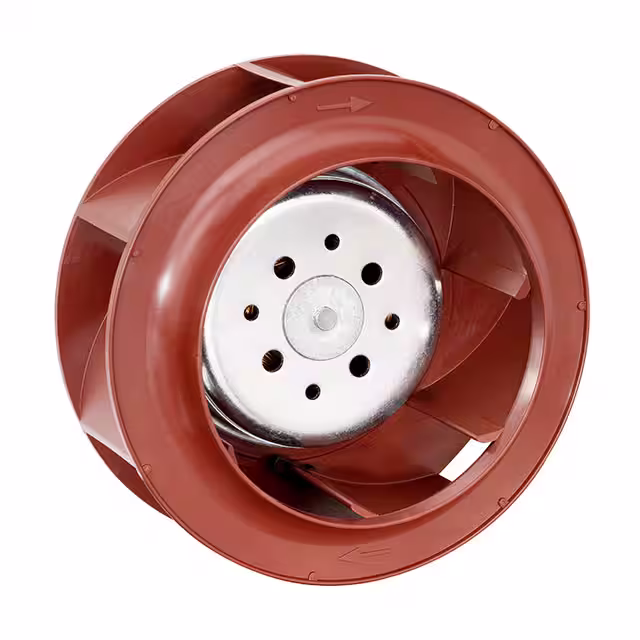

RER133-41/14/2TDPFAN IMP MTRZD 133X91MM 24VDC |
2,514 |
|
规格书 |
RER133TD, S-Force | Bulk | Active | 24VDC | Round - 133mm Dia | 91.00mm | 332.0 CFM (9.30m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 90 W | 6000 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.9 lbs (900.0 g) |
|
|
MSI2577H24B1+6-BBRFAN IMP MTRZD 250X77.3MM 24VDC |
1,878 |
|
规格书 |
MSI2577 | Box | Active | 24VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | - | 2800 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|
|
MSI2577H48B1+6-BBRFAN IMP MTRZD 250X77.3MM 48VDC |
4,849 |
|
规格书 |
MSI2577 | Box | Active | 48VDC | Round - 250mm Dia | 77.30mm | 716.0 CFM (20.05m³/min) | 3.365 in H2O (838.2 Pa) | Ball | Motorized Impellers | Auto Restart, PWM Control, Speed Sensor (Tach) | 76.0dB(A) | - | 2800 RPM | 4 Wire Leads | - | - | CE, cUL, TUV, UL | 4.4 lbs (2 kg) |
|
|
R2G133-AB15-10FAN IMP MTRZD 133X91MM 12VDC |
1,611 |
|
规格书 |
R2G133 | - | Obsolete | 12VDC | Round - 133mm Dia | 91.00mm | 174.0 CFM (4.87m³/min) | - | Ball | Motorized Impellers | - | 60.0dB(A) | 19 W | - | 2 Wire Leads | - | - | - | 1.6 lbs (725.7 g) |
|
|
6248NTDDC TUBEAXIAL FAN |
4,509 |
|
- |
6200N | Bulk | Active | 48VDC | Round - 171.5mm Dia | 50.80mm | 535.1 CFM (14.98m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 50 W | 5100 RPM | 2 Wire Leads | - | - | CSA, VDE, UL | - |
|
|
6224NTDADC TUBEAXIAL FAN |
4,711 |
|
- |
6200N | Bulk | Active | 24VDC | Round - 171.5mm Dia | 50.80mm | 354.0 CFM (9.91m³/min) | - | Ball | Tubeaxial | - | 65.0dB(A) | 50 W | 5100 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, CE, VDE, UL | - |
|
RER175-42/14/2TDMPFAN IMP MTRZD 175X69MM 24VDC |
1,029 |
|
规格书 |
RER175TD, S-Force | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | 509.0 CFM (14.25m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 110 W | 4800 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.7 lbs (780.0 g) |
|
|
RER175-42/18/2TDMPFAN IMP MTRZD 175X69MM 48VDC |
2,015 |
|
规格书 |
RER175TD, S-Force | Bulk | Active | 48VDC | Round - 175mm Dia | 69.00mm | 509.0 CFM (14.25m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 110 W | 4800 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.7 lbs (780.0 g) |
