购物车直流无刷风扇（BLDC）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

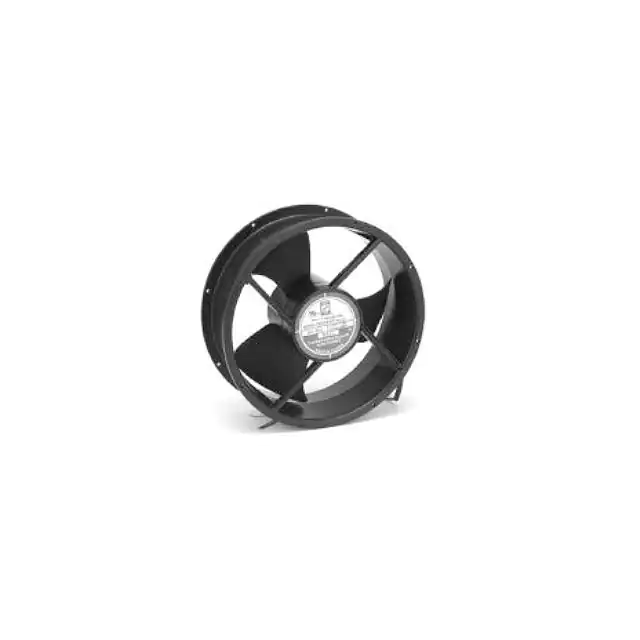

OD254AP-24HTBIP69KFAN IMP MTRZD 254X89MM 24VDC |
1,336 |
|
规格书 |
OD254AP-IP69K | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD254AP-12HTBIP69KFAN IMP MTRZD 254X89MM 12VDC |
4,561 |
|
规格书 |
OD254AP-IP69K | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
RER175-42/14/2TDMLPFAN IMP MTRZD 175X69MM 24VDC |
1,799 |
|
规格书 |
RER175TD, S-Force | Bulk | Active | 24VDC | Round - 175mm Dia | 69.00mm | 353.0 CFM (9.88m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | - | 48 W | 3400 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | - | 1.7 lbs (780.0 g) |
|
R150H3-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
2,309 |
|
- |
R150 | Bulk | Active | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 473.0 CFM (13.24m³/min) | 3.200 in H2O (797.1 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 73.0dB(A) | 180 W | 6500 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 1.8 lb (800.0 g) |
|
R150H1-051-D0560FAN AXIAL 172.7X50.8MM 24VDC |
1,149 |
|
规格书 |
R150 | Box | Active | 24VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.80mm | 473.0 CFM (13.24m³/min) | 3.204 in H2O (798.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 73.0dB | 96 W | 6500 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
|
|
R150H4-051-D0760FAN AXIAL 172.7X50.8MM 48VDC |
1,819 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
R150H3-051-D0750FAN AXIAL 172.7X50.8MM 48VDC |
4,648 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
DV5214/2NU-805DC TUBEAXIAL FAN |
4,783 |
|
- |
DV5200 | Bulk | Active | 24VDC | Square - 127mm L x 127mm H | 38.00mm | 159.0 CFM (4.45m³/min) | 1.084 in H2O (270.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 56.0dB(A) | 18.5 W | 5000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
OD254AP-48HTBIP69KFAN IMP MTRZD 254X89MM 48VDC |
4,972 |
|
规格书 |
OD254AP-IP69K | Box | Active | 48VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Terminals | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
6424/2HP-210FAN AXL 171.5X50.8MM 24VDC RECT |
1,513 |
|
- |
6400 | Bulk | Obsolete | 24VDC | Rectangular/Rounded - 171.5mm L x 150mm H | 50.80mm | 288.6 CFM (8.08m³/min) | 0.984 in H2O (245.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor, PWM Control, Speed Sensor (Tach) | 63.0dB(A) | 31.4 W | 4270 RPM | 4 Position Rectangular Connector | - | -4 ~ 162°F (-20 ~ 72°C) | CE, CSA, EAC, UL, VDE | - |
|
|
4158N/2H7PS-FORCE DC TUBEAXIAL FAN |
3,647 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4154N/2H8PS-FORCE DC TUBEAXIAL FAN |
4,699 |
|
- |
4100N, S-Force | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 315.0 CFM (8.82m³/min) | - | Ball | Tubeaxial | - | 80.0dB(A) | 120 W | 11000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
|
4158N/2H8PS-FORCE DC TUBEAXIAL FAN |
3,553 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
4154N/2H7PS-FORCE DC TUBEAXIAL FAN |
2,668 |
|
- |
4154N | Bulk | Active | 24VDC | Square - 119mm L x 119mm H | 38.00mm | 274.0 CFM (7.67m³/min) | - | Ball | Tubeaxial | - | 77.0dB(A) | 90 W | 9500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | - | - |
|
DV6424/12DC TUBEAXIAL FAN |
1,684 |
|
- |
DV6400 | Bulk | Active | 24VDC | Rectangular/Rounded - 172mm L x 159.7mm H | 51.00mm | 306.3 CFM (8.58m³/min) | 1.710 in H2O (425.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 63.0dB(A) | 41 W | 4300 RPM | 3 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | CCC, CSA, CE, EAC, VDE, UL | - |
|
|
R1G133-AB75-20FAN IMP MTRZD 133X59.5MM 12VDC |
3,416 |
|
规格书 |
R1G133AB | - | Obsolete | 12VDC | Round - 133mm Dia | 59.50mm | 160.0 CFM (4.48m³/min) | - | Ball | Motorized Impellers | PWM Control, Speed Sensor (Tach) | 64.0dB(A) | 18 W | - | 4 Wire Leads | - | - | - | 1.6 lbs (725.7 g) |
|
|
R150A3-051-D0790FAN AXIAL 172.7X50MM 48VDC WIRE |
3,028 |
|
规格书 |
R150 | Bulk | Obsolete | 48VDC | Rectangular/Rounded - 172.7mm L x 150mm H | 50.00mm | 544.0 CFM (15.23m³/min) | 6.210 in H2O (1546.9 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 85.0dB | 196.8 W | 9300 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | 2.3 lbs (1 kg) |
|

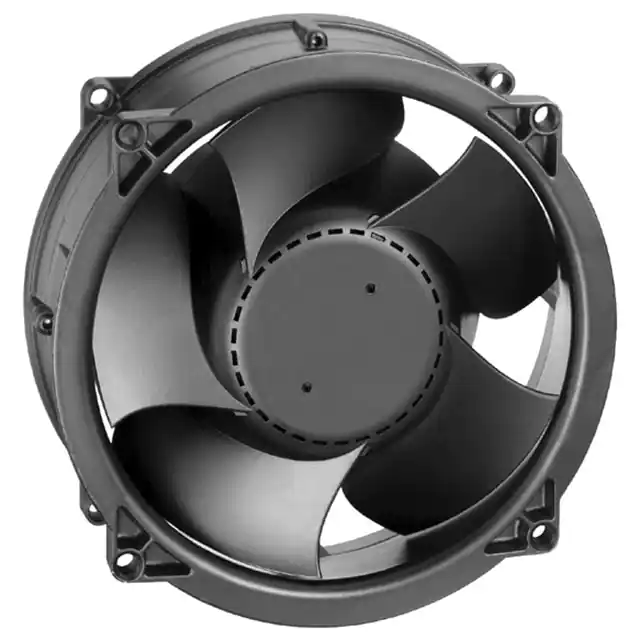

W1G180-AA03-10FAN AXIAL 200X70MM 48VDC WIRE |
3,894 |
|
规格书 |
W1G180 | - | Obsolete | 48VDC | Round - 200mm Dia | 70.00mm | 377.0 CFM (10.56m³/min) | - | Ball | Tubeaxial | - | 59.0dB(A) | 36 W | - | 2 Wire Leads | - | - | CE, CSA, UL, VDE | 4.2 lbs (1.9 kg) |
|
|
W2G110-AK67-24FAN AXIAL 119X38MM 12VDC TERM |
1,387 |
|
- |
W2G110 | Bulk | Active | 12VDC | Square - 119mm L x 119mm H | 38.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | 17 W | 4400 RPM | 2 Terminals | IP42 | -13 ~ 162°F (-25 ~ 72°C) | EAC, UL | - |
|
|
R172H4-051-D0550DC AXIAL FAN |
2,252 |
|
规格书 |
R172 | Box | Active | 24VDC | Round - 172.7mm Dia | 50.80mm | 364.0 CFM (10.19m³/min) | 2.236 in H2O (557.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 66.0dB | 48 W | 5000 RPM | 4 Wire Leads | - | -22 ~ 158°F (-30 ~ 70°C) | - | - |
