| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2.5SWZ270MR09CAP ALUM POLY 270UF 20% 2.5V SMD |
2,682 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SWZ270MR06CAP ALUM POLY 270UF 20% 2V SMD |
2,268 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-UD0G151RCAP ALUM POLY 150UF 20% 4V SMD |
2,293 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-HD0J101RCAP ALUM POLY 100UF 20% 6.3V SMD |
3,663 |
|
规格书 |
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HD0K680RCAP ALUM POLY 68UF 20% 8V SMD |
2,434 |
|
规格书 |
SP-Cap HD | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 8 V | 15mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0D331RCAP ALUM POLY 330UF 20% 2V SMD |
4,184 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0E271RCAP ALUM POLY 270UF 20% 2.5V SMD |
4,620 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2.5 V | 15mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UD0J151RCAP ALUM POLY 150UF 20% 6.3V SMD |
1,546 |
|
规格书 |
SP-Cap UD | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 6.3 V | 18mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.118" (3.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SXE150MCAP ALUM POLY 150UF 20% 4V SMD |
4,871 |
|
规格书 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEH-ZE1E221VCAP ALUMHYB 220UF 20% 25V SMD |
2,719 |
|
规格书 |
ZE, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 2000 Hrs @ 145°C | -55°C ~ 145°C | AEC-Q200 | Automotive | - | 105 mA @ 100 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875035019002CAP ALUM POLY 180UF 20% 4V SMD |
1,981 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875036219019CAP ALUM POLY 560UF 20% 2V SMD |
4,750 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875036319015CAP ALUM POLY 390UF 20% 2.5V SMD |
4,809 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2.5 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
HZC566M063G24VT-FCAP ALUM HYBRID 56UF 20% 63V SMD |
4,793 |
|
规格书 |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 140 mA @ 120 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEF-UE0D561LRCAP ALUM POLY 560UF 20% 2V SMD |
4,538 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-UE0D561ERCAP ALUM POLY 560UF 20% 2V SMD |
3,310 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 560 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCH1C102MCL1GSCAP ALUM POLY 1000UF 20% 16V SMD |
1,939 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 13mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
SPSX221M02RCAP ALUM POLY 220UF 20% 2V SMD |
2,767 |
|
规格书 |
SPSX | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

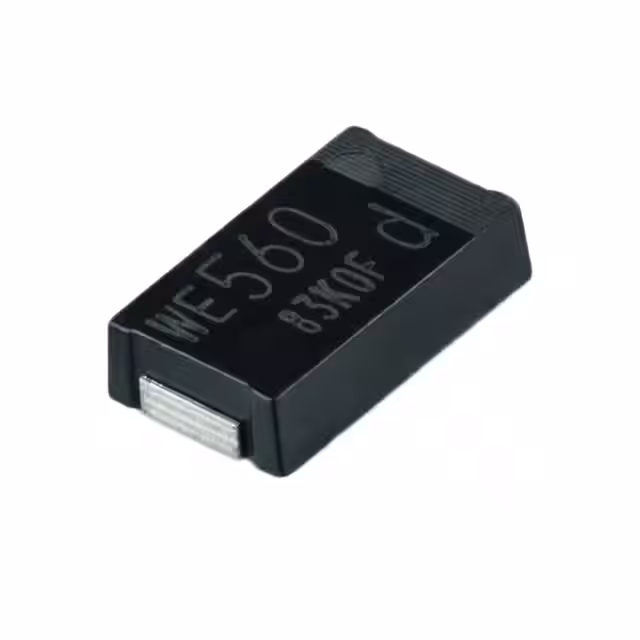

875016219007CAP ALUM POLY 560UF 20% 2V SMD |
3,016 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SW330MCAP ALUM POLY 330UF 20% 2V SMD |
1,782 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 330 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
