购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAL218097508E3CAP ALUM POLY 330UF 20% 16V SMD |
4,552 |
|
规格书 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | 12 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097511E3CAP ALUM POLY 820UF 20% 16V SMD |
3,846 |
|
规格书 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.4 A @ 100 kHz | 12 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
MAL218097711E3CAP ALUM POLY 2200UF 20% 4V SMD |
4,576 |
|
规格书 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 2200 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.7 A @ 100 kHz | 9 mOhms | - | 0.394" Dia (10.00mm) | 0.496" (12.60mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
875075655003CAP ALUM POLY 82UF 20% 35V SMD |
2,340 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 28mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 165 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCH1E471MCL1GSCAP ALUM POLY 470UF 20% 25V SMD |
4,972 |
|
规格书 |
PCH | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 25 V | 15mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 145 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HZC337M025G24VT-FCAP ALUMHYB 330UF 20% 25V SMD |
4,843 |
|
规格书 |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 110 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
MAL218397102E3CAP ALUM HYBRID 22UF 20% 50V SMD |
4,298 |
|
规格书 |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 50 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 750 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
|
MAL218397801E3CAP ALUM HYBRID 10UF 20% 63V SMD |
1,964 |
|
规格书 |
183 CPHT | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
6SW100MCAP ALUM POLY 100UF 20% 6.3V SMD |
3,923 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
HZC157M035F24VT-FCAP ALUMHYB 150UF 20% 35V SMD |
4,726 |
|
规格书 |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
HZC686M050F24VT-FCAP ALUM HYBRID 68UF 20% 50V SMD |
2,859 |
|
规格书 |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 125 mA @ 120 Hz | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
875016219005CAP ALUM POLY 390UF 20% 2V SMD |
3,118 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875016319002CAP ALUM POLY 330UF 20% 2.5V SMD |
2,015 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|

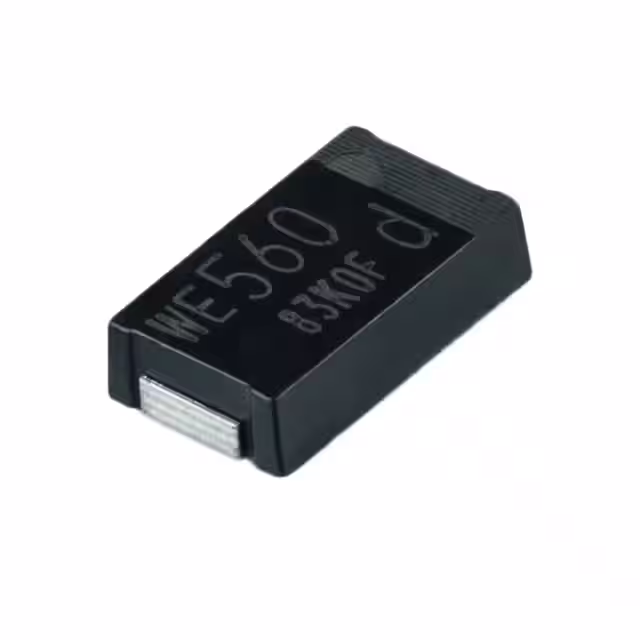

875016319004CAP ALUM POLY 470UF 20% 2.5V SMD |
3,720 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2.5 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
APXE160ARA181MHA0GCAP ALUM POLY 180UF 20% 16V SMD |
3,558 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.89 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
MAL218497614E3CAP ALUM POLY 470UF 20% 25V SMD |
1,627 |
|
- |
184 CPNS | Box | Active | Polymer | 470 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 190 mA @ 120 Hz | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | - | Surface Mount |
|

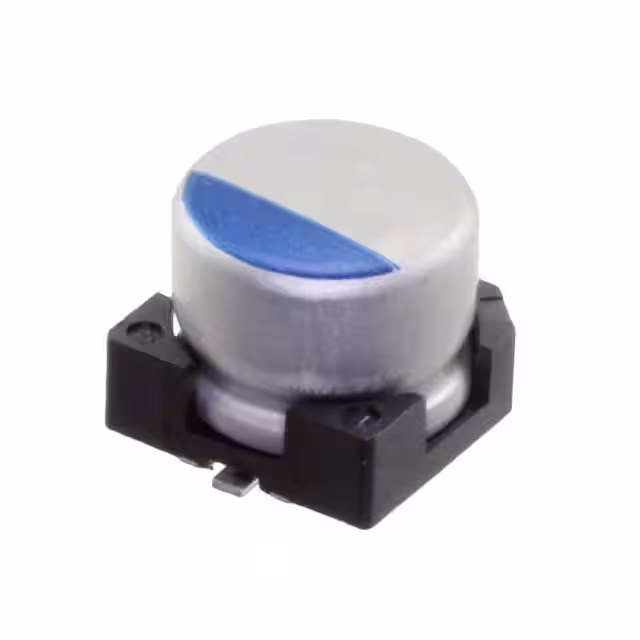

PCX1D560MCS1GSCAP ALUM POLY 56UF 20% 20V SMD |
4,463 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 56 µF | ±20% | 20 V | 50mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
ECASD41C686M040KH0CAP ALUM POLY 68UF 20% 16V SMD |
4,435 |
|
规格书 |
ECAS | Tape & Reel (TR) | Obsolete | Polymer | 68 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 125°C | -40°C ~ 125°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
RAHTK821M1TGL5005ECAP ALUMHYB 820UF 20% 25V SMD |
3,786 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 820 µF | ±20% | 25 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RSHTK561M1GGL5005ECAP ALUMHYB 560UF 20% 35V SMD |
4,624 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
