购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSHTK331M1UGL5005ECAP ALUMHYB 330UF 20% 50V SMD |
2,762 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 50 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RSHTK121M4EGL5005ECAP ALUMHYB 120UF 20% 63V SMD |
2,941 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RSHTK821M1TGL5005ECAP ALUMHYB 820UF 20% 25V SMD |
1,420 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 820 µF | ±20% | 25 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | Anti-Vibration | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
|
RAHTK561M1GGL5005BCAP ALUMHYB 560UF 20% 35V SMD |
1,274 |
|
规格书 |
HTK | Tape & Reel (TR) | Active | Hybrid | 560 µF | ±20% | 35 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 350 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.492" Dia (12.50mm) | 0.551" (14.00mm) | 0.512" L x 0.512" W (13.00mm x 13.00mm) | Surface Mount |
|
EEF-SD0D271ERCAP ALUM POLY 270UF 20% 2V SMD |
1,114 |
|
- |
SP-Cap SD | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 7mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.110" (2.80mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SXB220MCAP ALUM POLY 220UF 20% 2.5V SMD |
4,747 |
|
规格书 |
PC-CON, SXB | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SXE220MR07CAP ALUM POLY 220UF 20% 2.5V SMD |
3,392 |
|
规格书 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2.5SZE120MCAP ALUM POLY 120UF 20% 2.5V SMD |
1,723 |
|
规格书 |
PC-CON, SZE | Tape & Reel (TR) | Obsolete | Polymer | 120 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.055" (1.40mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
UPC1C681MP30811CAP ALUM POLY 680UF 20% 16V TH |
1,437 |
|
规格书 |
UPC | Active | Polymer | 680 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 4.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.492" (12.50mm) | - | Through Hole | |
|

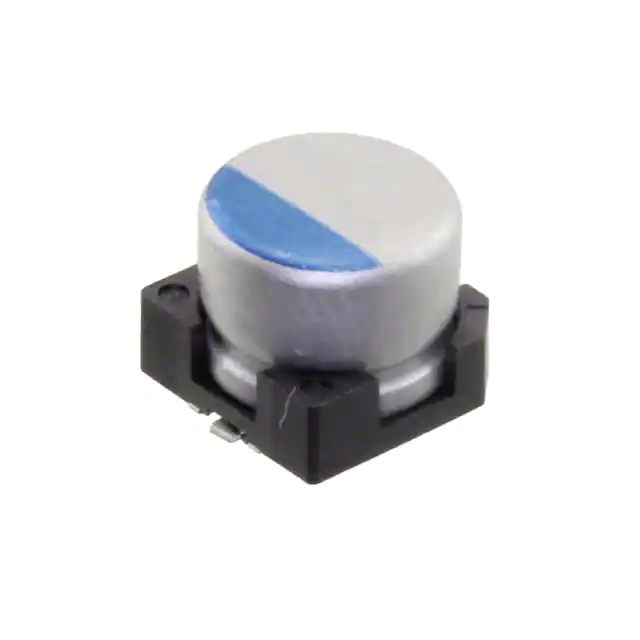

PCX1C820MCS1GSCAP ALUM POLY 82UF 20% 16V SMD |
1,444 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 45mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
2.5SWZ220MR09CAP ALUM POLY 220UF 20% 2.5V SMD |
1,017 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
2SW270MCAP ALUM POLY 270UF 20% 2V SMD |
3,773 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
SPA221M04BCAP ALUM POLY 220UF 20% 4V SMD |
2,816 |
|
规格书 |
SPA | Bulk | Obsolete | Polymer | 220 µF | ±20% | 4 V | 5mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218497801E3CAP ALUM POLY 5.6UF 20% 63V SMD |
1,762 |
|
规格书 |
184 CPNS | Tape & Reel (TR) | Active | Polymer | 5.6 µF | ±20% | 63 V | 100mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.248" L x 0.248" W (6.30mm x 6.30mm) | Surface Mount |
|
875115657016CAP ALUM POLY 68UF 20% 35V SMD |
3,363 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 35 V | 32mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875075855001CAP ALUM POLY 10UF 20% 63V SMD |
2,528 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 63 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90 mA @ 120 Hz | 1.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-UE0D391RCAP ALUM POLY 390UF 20% 2V SMD |
1,552 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 390 µF | ±20% | 2 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | - | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-HE0D271RCAP ALUM POLY 270UF 20% 2V SMD |
3,177 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HE0E221RCAP ALUM POLY 220UF 20% 2.5V SMD |
2,227 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
EEF-HE0G181RCAP ALUM POLY 180UF 20% 4V SMD |
4,608 |
|
规格书 |
SP-Cap HE | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 12mOhm | - | -40°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
