购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2.5SWZ220MR06CAP ALUM POLY 220UF 20% 2.5V SMD |
1,982 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
2SWZ270MR09CAP ALUM POLY 270UF 20% 2V SMD |
3,006 |
|
规格书 |
PC-CON, SWZ | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 2 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
4SW180MCAP ALUM POLY 180UF 20% 4V SMD |
4,086 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 180 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218097703E3CAP ALUM POLY 330UF 20% 4V SMD |
2,413 |
|
规格书 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.16 A @ 100 kHz | 15 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
MAL218097504E3CAP ALUM POLY 100UF 20% 16V SMD |
2,807 |
|
规格书 |
180 CPS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.49 A @ 100 kHz | 24 mOhms | - | 0.248" Dia (6.30mm) | 0.232" (5.90mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
MPD151M1CD28040RCAP ALUM POLY 150UF 20% 16V SMD |
1,795 |
|
规格书 |
MPD28 | Active | Polymer | 150 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 590 mA @ 120 Hz | 5.9 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.114" (2.90mm) | - | Surface Mount | |
|
PLE0E102MDO1TDCAP ALUM POLY 1000UF 20% 2.5V TH |
3,555 |
|
规格书 |
PLE | Cut Tape (CT) | Obsolete | Polymer | 1000 µF | ±20% | 2.5 V | 5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
ECASD90J337M009K00CAP ALUM POLY 330UF 20% 6.3V SMD |
3,390 |
|
规格书 |
ECAS | Cut Tape (CT) | Obsolete | Polymer | 330 µF | ±20% | 6.3 V | 9mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.4 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.177" (4.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
MAL218697008E3CAP ALUM POLY 180UF 20% 35V SMD |
1,287 |
|
- |
186 CPNT | Box | Active | Polymer | 180 µF | ±20% | 35 V | 30mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | - | Surface Mount |
|
MAL218397605E3CAP ALUMHYB 330UF 20% 25V SMD |
3,265 |
|
规格书 |
183 CPHT | Box | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | Automotive | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

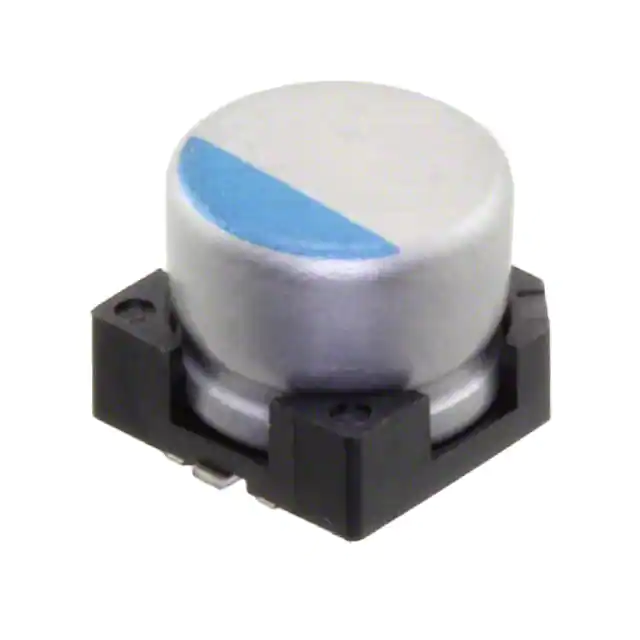

PCX1E390MCS1GSCAP ALUM POLY 39UF 20% 25V SMD |
4,951 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 25 V | 55mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 1.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1A681MCL6GSCAP ALUM POLY 680UF 20% 10V SMD |
3,465 |
|
规格书 |
PCR | Tape & Reel (TR) | Obsolete | Polymer | 680 µF | ±20% | 10 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.5 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
4SW150MCAP ALUM POLY 150UF 20% 4V SMD |
2,530 |
|
规格书 |
PC-CON, SW | Tape & Reel (TR) | Obsolete | Polymer | 150 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.106" (2.70mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
6SXE100MCAP ALUM POLY 100UF 20% 6.3V SMD |
1,255 |
|
规格书 |
PC-CON, SXE | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PVH-16V151MH80E-R2CAP ALUM POLY 150UF 20% 16V SMD |
1,685 |
|
- |
PVH | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 16 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.43 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
PVH-20V820MH80E-R2CAP ALUM POLY 82UF 20% 20V SMD |
3,662 |
|
- |
PVH | Cut Tape (CT) | Obsolete | Polymer | 82 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
875015519004CAP ALUM POLY 33UF 20% 25V SMD |
4,257 |
|
- |
WCAP-PHGP | Tape & Reel (TR) | Obsolete | Polymer | 33 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875036219015CAP ALUM POLY 390UF 20% 2V SMD |
1,297 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 390 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875036219018CAP ALUM POLY 470UF 20% 2V SMD |
4,714 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-UE0E471ERCAP ALUM POLY 470UF 20% 2.5V SMD |
1,607 |
|
规格书 |
SP-Cap UE | Tape & Reel (TR) | Obsolete | Polymer | 470 µF | ±20% | 2.5 V | 12mOhm | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.165" (4.20mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
