购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECASD31E156M040KA0CAP ALUM POLY 15UF 20% 25V SMD |
4,432 |
|
规格书 |
ECAS | Tape & Reel (TR) | Active | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -40°C ~ 105°C | - | General Purpose | - | - | 1.6 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.059" (1.50mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCS1C121MCL1GSCAP ALUM POLY 120UF 20% 16V SMD |
1,817 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 28mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZK1E101UPCAP ALUMHYB 100UF 20% 25V SMD |
1,362 |
|
规格书 |
ZKU | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 50mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 195 mA @ 100 Hz | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEF-CX0D331RCAP ALUM POLY 330UF 20% 2V SMD |
5,253 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SEPF1000MCAP ALUM POLY 1000UF 20% 16V TH |
3,214 |
|
规格书 |
OS-CON™, SEPF | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 270 mA @ 120 Hz | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
HHXF630ARA101MJC5GCAP ALUMHYB 100UF 20% 63V SMD |
1,270 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 63 V | 17mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 460 mA @ 120 Hz | 4.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

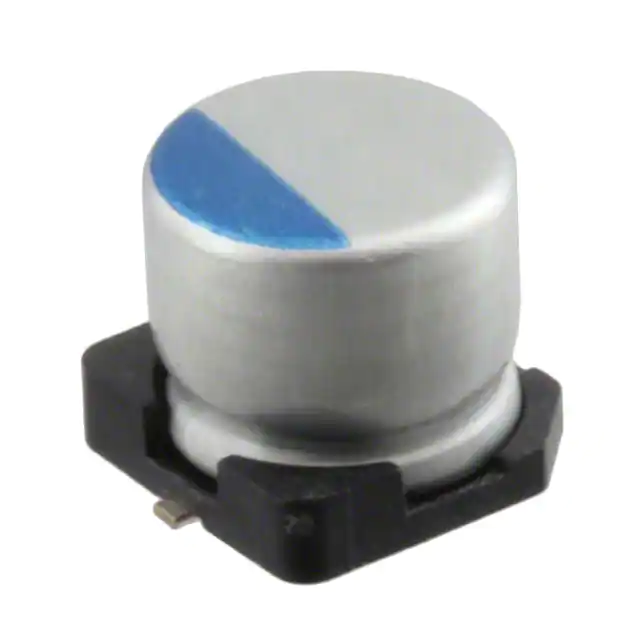

PCJ1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
1,203 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.53 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
870235375008CAP ALUM POLY 470UF 20% 16V TH |
216 |
|
规格书 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 9mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 305 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
EEF-GX0D331RCAP ALUM POLY 330UF 20% 2V SMD |
10,623 |
|
规格书 |
SP-Cap GX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 3mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 10.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|

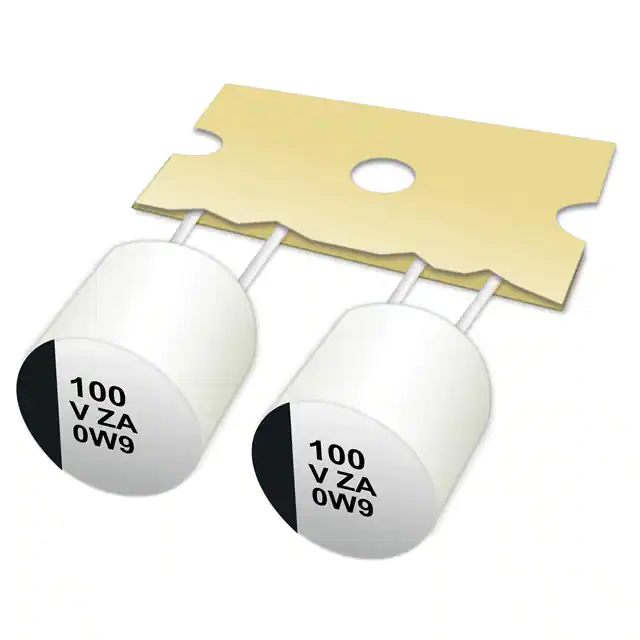

EEH-AZA1V221BCAP ALUM HYBRID 220UF 20% 35V TH |
3,120 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 35 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 375 mA @ 100 Hz | 2.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
80PFV22M8X10.5CAP ALUM HYBRID 22UF 20% 80V SMD |
2,681 |
|
规格书 |
PFV | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 80 V | 45mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
EEH-ZK1V680UPCAP ALUM HYBRID 68UF 20% 35V SMD |
2,277 |
|
规格书 |
ZKU | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 60mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 180 mA @ 100 Hz | 1.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
EEH-AZA1H101BCAP ALUM HYBRID 100UF 20% 50V TH |
828 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
875105945001CAP ALUM POLY 4.7UF 20% 100V SMD |
2,535 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 4.7 µF | ±20% | 100 V | 100mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 53 mA @ 120 Hz | 1.06 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZK1E271PCAP ALUMHYB 270UF 20% 25V SMD |
495 |
|
规格书 |
ZK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
16SVQP82MCAP ALUM POLY 82UF 20% 16V SMD |
3,255 |
|
规格书 |
OS-CON™, SVQP | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 106 mA @ 120 Hz | 2.12 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
875575545003CAP ALUMHYB 100UF 20% 25V SMD |
2,959 |
|
规格书 |
WCAP-HSG5 | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 25 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|

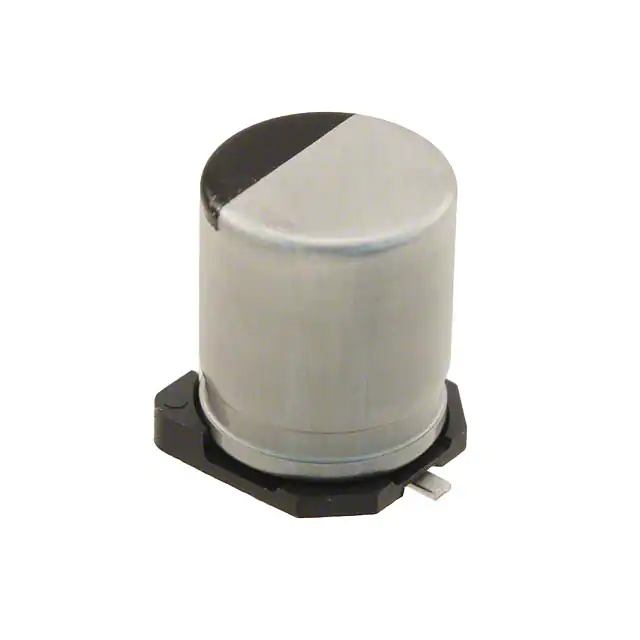

EEH-ZC1V101PCAP ALUMHYB 100UF 20% 35V SMD |
1,342 |
|
规格书 |
ZC | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
6SEPC1000MDCAP ALUM POLY 1000UF 20% 6.3V TH |
980 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 1000 µF | ±20% | 6.3 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 176.5 mA @ 120 Hz | 3.53 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | - | Through Hole |
|
|
GYF1H101MCW1GSCAP ALUMHYB 100UF 20% 50V SMD |
659 |
|
规格书 |
GYF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 255 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
