购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

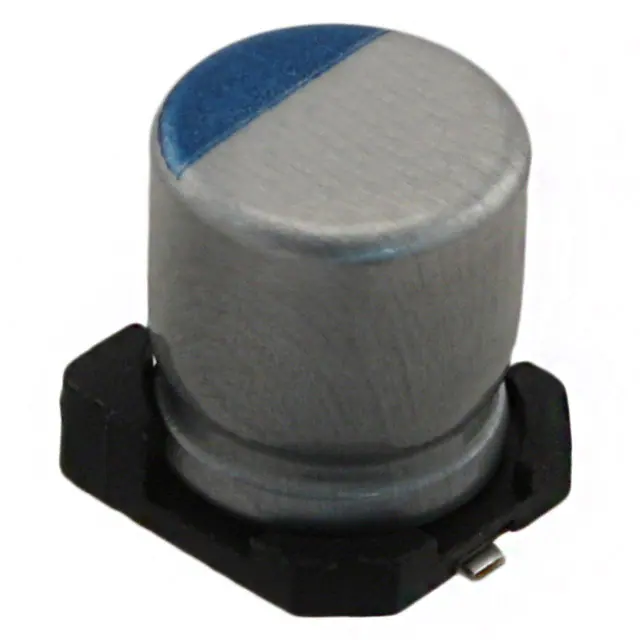

10SVP4R7MCAP ALUM POLY 4.7UF 20% 10V SMD |
6,097 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 4.7 µF | ±20% | 10 V | 240mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 33.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.157" Dia (4.00mm) | 0.217" (5.50mm) | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Surface Mount |
|
RHS0J821MCN1GSCAP ALUM POLY 820UF 20% 6.3V SMD |
5,214 |
|
规格书 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 515 mA @ 120 Hz | 5.15 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.461" (11.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCS1C220MCL1GSCAP ALUM POLY 22UF 20% 16V SMD |
1,845 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 16 V | 45mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.1 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
337XMPL2R5MG19CAP ALUM POLY 330UF 20% 2.5V SMD |
14,000 |
|
规格书 |
XMPL | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 2.5 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | - | Decoupling | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.083" (2.10mm) | - | Surface Mount |
|
A759KS106M2CAAE110CAP ALUM POLY 10UF 20% 160V TH |
6,207 |
|
规格书 |
A759 | Bulk | Active | Polymer | 10 µF | ±20% | 160 V | 110mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 67.5 mA @ 120 Hz | 1.35 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
|
PCS1C390MCL1GSCAP ALUM POLY 39UF 20% 16V SMD |
1,452 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 16 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
RNE1C471MDN1PXCAP ALUM POLY 470UF 20% 16V TH |
1,102 |
|
规格书 |
FPCAP, RNE | Cut Tape (CT) | Active | Polymer | 470 µF | ±20% | 16 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 540 mA @ 120 Hz | 5.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEF-SX0G221ERCAP ALUM POLY 220UF 20% 4V SMD |
32,758 |
|
规格书 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 4 V | 9mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
EEF-CX1E150RCAP ALUM POLY 15UF 20% 25V SMD |
29,425 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 15 µF | ±20% | 25 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
PCX1C470MCL1GSCAP ALUM POLY 47UF 20% 16V SMD |
1,219 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 16 V | 55mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
PCF1A470MCL1GSCAP ALUM POLY 47UF 20% 10V SMD |
1,077 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 10 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.6 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
GYF1V221MCQ1GSCAP ALUMHYB 220UF 20% 35V SMD |
888 |
|
规格书 |
GYF | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZA1V680XPCAP ALUM HYBRID 68UF 20% 35V SMD |
6,086 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 35 V | 35mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
6SVP100MCAP ALUM POLY 100UF 20% 6.3V SMD |
3,663 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 90.5 mA @ 120 Hz | 1.81 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
35PJV100M6.3X8CAP ALUMHYB 100UF 20% 35V SMD |
3,531 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 84 mA @ 100 Hz | 1.68 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
875115357006CAP ALUM POLY 470UF 20% 16V SMD |
955 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 16 V | 11mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 255 mA @ 120 Hz | 5.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
875575345004CAP ALUMHYB 220UF 20% 16V SMD |
1,256 |
|
规格书 |
WCAP-HSG5 | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 16 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RPF1015331M050KCAP ALUM POLY 330UF 20% 50V TH |
354 |
|
规格书 |
RPF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 50 V | 22mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.630" (16.00mm) | - | Through Hole |
|
|
EEF-SX0D331XECAP ALUM POLY 330UF 20% 2V SMD |
8,788 |
|
规格书 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SEPC270MX+SCAP ALUM POLY 270UF 20% 16V TH |
3,279 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
