购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

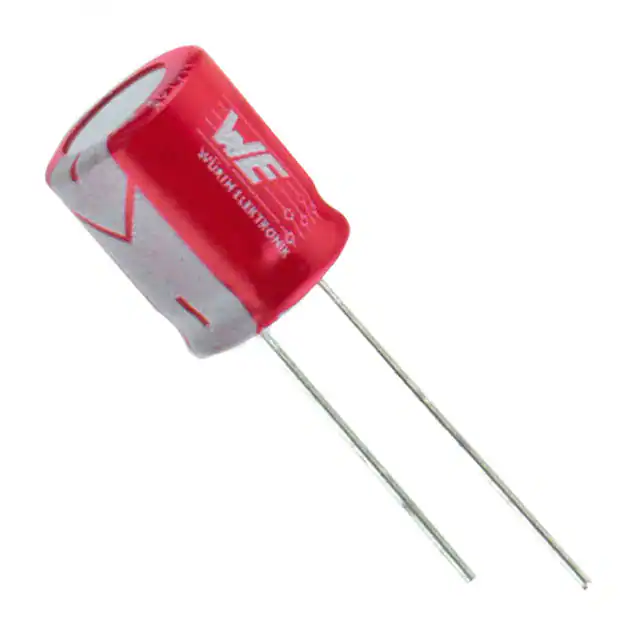

870235673001CAP ALUM POLY 22UF 20% 35V TH |
934 |
|
规格书 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 35 V | 35mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 130 mA @ 120 Hz | 2.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.264" (6.70mm) | - | Through Hole |
|
APSG160ELL272MJ20SCAP ALUM POLY 2.7MF 20% 16V TH |
3,909 |
|
规格书 |
NPCAP™-PSG | Bulk | Active | Polymer | 2.7 mF | ±20% | 16 V | 8mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 810 mA @ 120 Hz | 8.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.846" (21.50mm) | - | Through Hole |
|
EEH-ZA1V220RCAP ALUM HYBRID 22UF 20% 35V SMD |
2,895 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 35 V | 100mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
HHXF500ARA101MJA0GCAP ALUMHYB 100UF 20% 50V SMD |
890 |
|
规格书 |
HXF | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 20mOhm | 3000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 430 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
10SVP270MCAP ALUM POLY 270UF 20% 10V SMD |
257 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 10 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZK1V181PCAP ALUMHYB 180UF 20% 35V SMD |
4,086 |
|
规格书 |
ZK | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 100 Hz | 2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCS1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
3,591 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
6SVP330MCAP ALUM POLY 330UF 20% 6.3V SMD |
2,196 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
PCS1C680MCL1GSCAP ALUM POLY 68UF 20% 16V SMD |
940 |
|
规格书 |
PCS | Tape & Reel (TR) | Active | Polymer | 68 µF | ±20% | 16 V | 30mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A780MS337M1VLAS020CAP ALUMHYB 330UF 20% 35V SMD |
792 |
|
规格书 |
A780 | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 880 mA @ 100 Hz | 2.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

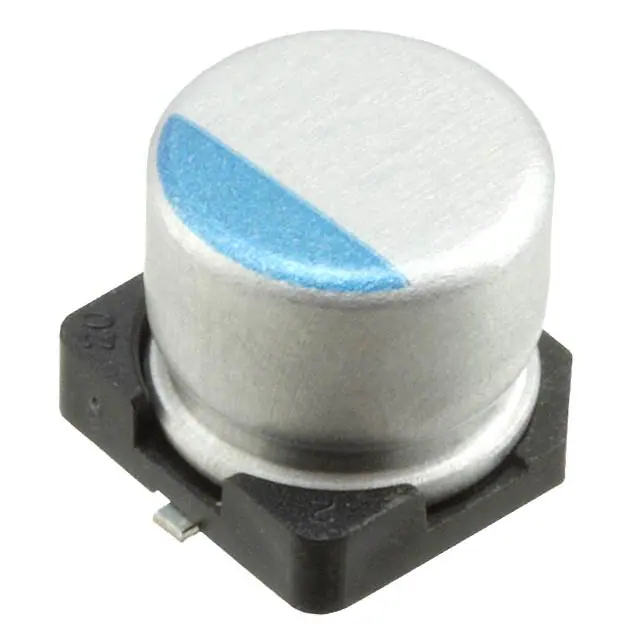

PCV1E330MCL1GSCAP ALUM POLY 33UF 20% 25V SMD |
5,673 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 25 V | 60mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

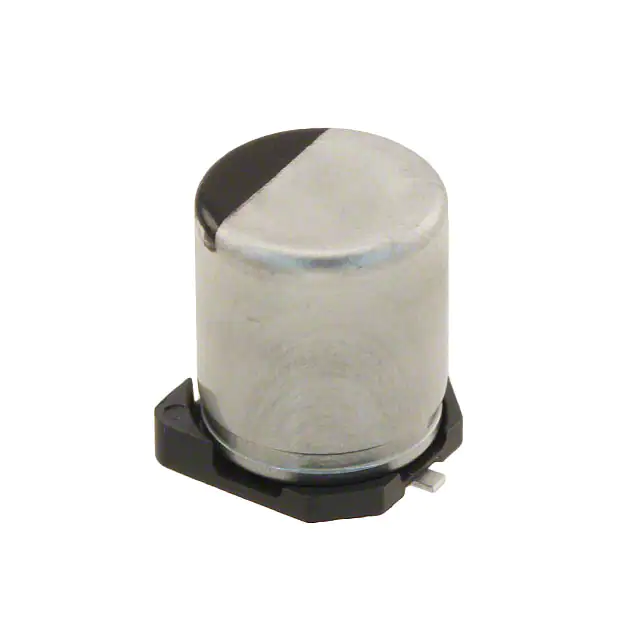

EEH-ZC1V100RCAP ALUM HYBRID 10UF 20% 35V SMD |
1,828 |
|
规格书 |
ZC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 35 V | 100mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 100 Hz | 550 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
870135774001CAP ALUM POLY 22UF 20% 50V TH |
728 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 50 V | 35mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
GYB1H101MCQ1GSCAP ALUMHYB 100UF 20% 50V SMD |
371 |
|
规格书 |
GYB | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEF-CX1V220RCAP ALUM POLY 22UF 20% 35V SMD |
4,346 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
-Photo-Taped-Size-F.jpg)
|
EEH-AZA1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
3,353 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZA1V101BCAP ALUM HYBRID 100UF 20% 35V TH |
2,564 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
A750MW128M1EAAE014CAP ALUM POLY 1200UF 20% 25V TH |
1,746 |
|
规格书 |
A750 | Bulk | Active | Polymer | 1200 µF | ±20% | 25 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 295.5 mA @ 120 Hz | 5.91 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.709" (18.00mm) | - | Through Hole |
|
|
EEH-AZA1H470BCAP ALUM HYBRID 47UF 20% 50V TH |
1,572 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 50 V | 30mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 270 mA @ 100 Hz | 1.8 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZA1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
1,073 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 255 mA @ 100 Hz | 1.7 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
