购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
35SVPT39MCAP ALUM POLY 39UF 20% 35V SMD |
256 |
|
规格书 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 35 V | 30mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCR1E221MCL6GSCAP ALUM POLY 220UF 20% 25V SMD |
9,604 |
|
规格书 |
PCR | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A759KS475M2EAAE496CAP ALUM POLY 4.7UF 20% 250V TH |
8,964 |
|
规格书 |
A759 | Bulk | Active | Polymer | 4.7 µF | ±20% | 250 V | 496mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 32.5 mA @ 120 Hz | 650 mA @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
RNU1H390MDN1KXCAP ALUM POLY 39UF 20% 50V TH |
6,350 |
|
规格书 |
FPCAP, RNU | Cut Tape (CT) | Active | Polymer | 39 µF | ±20% | 50 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
EEH-ZC1H680PCAP ALUM HYBRID 68UF 20% 50V SMD |
2,076 |
|
规格书 |
ZC | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 187.5 mA @ 100 Hz | 1.25 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|
EEH-AZC1K470BCAP ALUM HYBRID 47UF 20% 80V TH |
882 |
|
规格书 |
ZC | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 80 V | 36mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 204 mA @ 100 Hz | 1.36 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

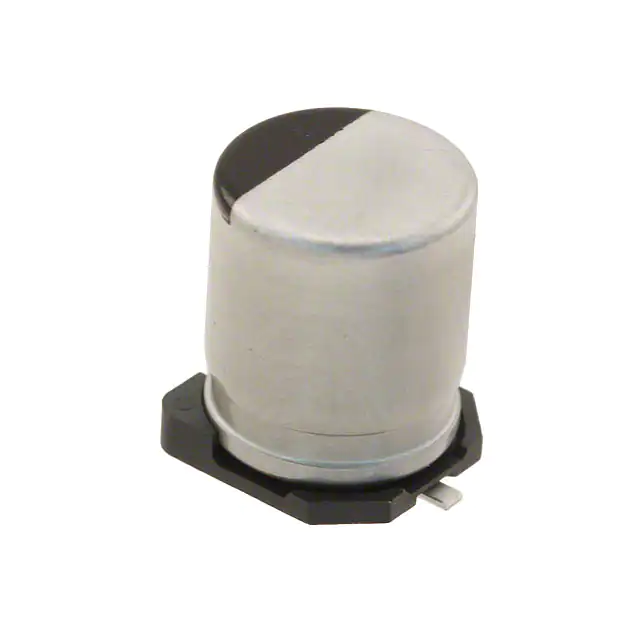

EEH-ZA1J330PCAP ALUM HYBRID 33UF 20% 63V SMD |
4,460 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 170 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

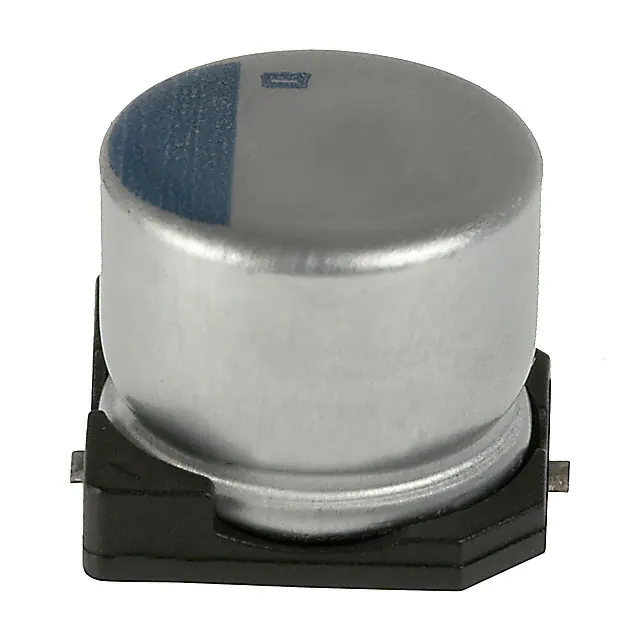

APXH100ARA121MH70GCAP ALUM POLY 120UF 20% 10V SMD |
1,715 |
|
规格书 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A785MW227M1HLAS015CAP ALUMHYB 220UF 20% 50V SMD |
1,470 |
|
规格书 |
A785 | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 50 V | 15mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 792 mA @ 100 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25PEV220M8X10.5CAP ALUMHYB 220UF 20% 25V SMD |
955 |
|
规格书 |
PEV | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Photo-Taped-Size-F.jpg)
|

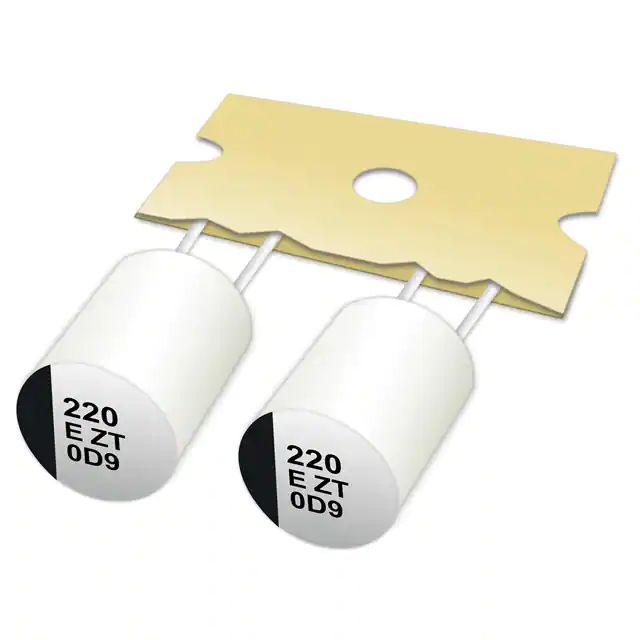

EEH-AZT1J470BCAP ALUM HYBRID 47UF 20% 63V TH |
165 |
|
规格书 |
ZT | Cut Tape (CT) | Active | Hybrid | 47 µF | ±20% | 63 V | 32mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 360 mA @ 100 Hz | 2.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
PCF1C221MCL1GSCAP ALUM POLY 220UF 20% 16V SMD |
4,442 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.9 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.394" (10.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
EEH-AZT1V151BCAP ALUM HYBRID 150UF 20% 35V TH |
2,000 |
|
规格书 |
ZT | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 35 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 100 Hz | 2.9 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|

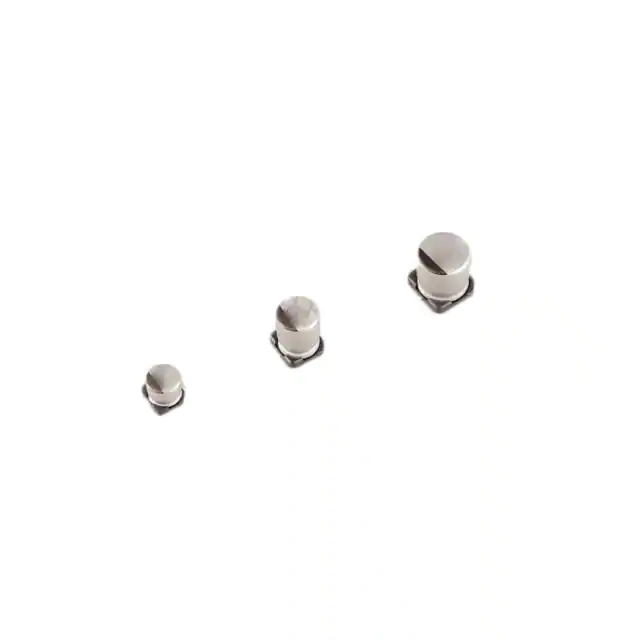

GYC1V271MCW1GSCAP ALUMHYB 270UF 20% 35V SMD |
1,840 |
|
规格书 |
GYC | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 495 mA @ 120 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
63PFV33M8X10.5CAP ALUM HYBRID 33UF 20% 63V SMD |
20,832 |
|
规格书 |
PFV | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 63 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 55 mA @ 120 Hz | 1.1 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Series-(SMD%2C-High-Temp.-Reflow)-Photo-G12.jpg)
|

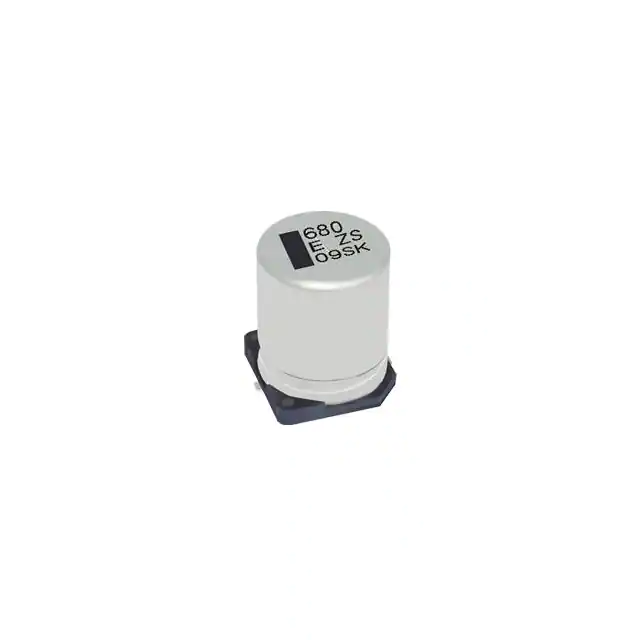

EEH-ZS1J121UPCAP ALUMHYB 120UF 20% 63V SMD |
1,477 |
|
规格书 |
ZSU | Tape & Reel (TR) | Active | Hybrid | 120 µF | ±20% | 63 V | 19mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 600 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A785MW187M1JLAS013CAP ALUMHYB 180UF 20% 63V SMD |
1,130 |
|
规格书 |
A785 | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 63 V | 13mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 880 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.669" (17.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE160ARA121MH70GCAP ALUM POLY 120UF 20% 16V SMD |
2,871 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
-Photo-Taped-Size-G.jpg)
|

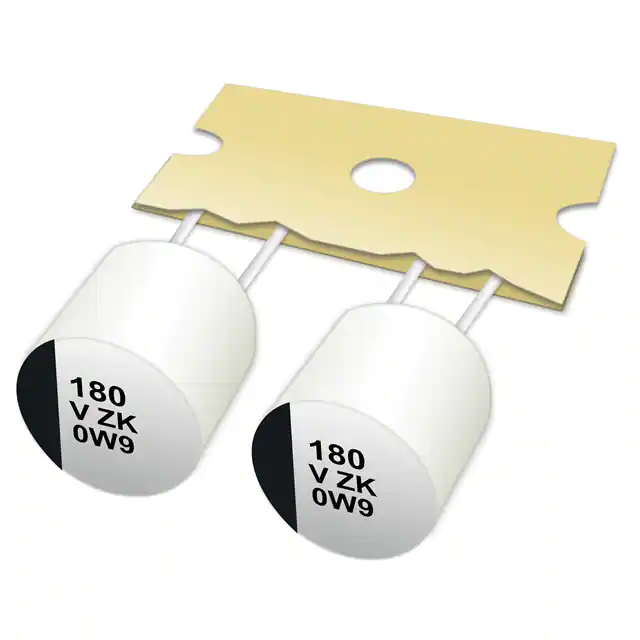

EEH-AZK1V331BCAP ALUM HYBRID 330UF 20% 35V TH |
497 |
|
规格书 |
ZK | Cut Tape (CT) | Active | Hybrid | 330 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
80PFV39M10X10.5CAP ALUM HYBRID 39UF 20% 80V SMD |
3,778 |
|
规格书 |
PFV | Tape & Reel (TR) | Active | Hybrid | 39 µF | ±20% | 80 V | 35mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 60 mA @ 120 Hz | 1.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
