购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

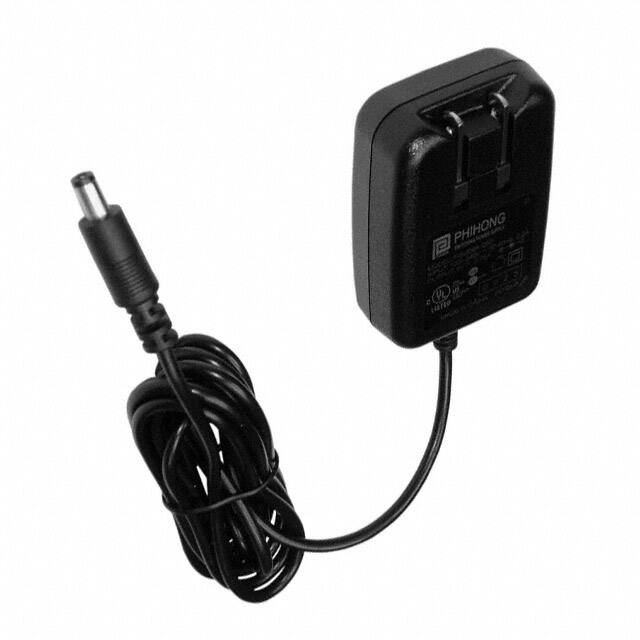

PSM04A-050(STD)AC/DC WALL MOUNT ADAPTER 5V 3.8W |
3,154 |
|
规格书 |
PSM04A (4W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 750mA | 3.8 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.73" L x 1.89" W x 0.98" H (69.4mm x 48.0mm x 25.0mm) | cULus |
|

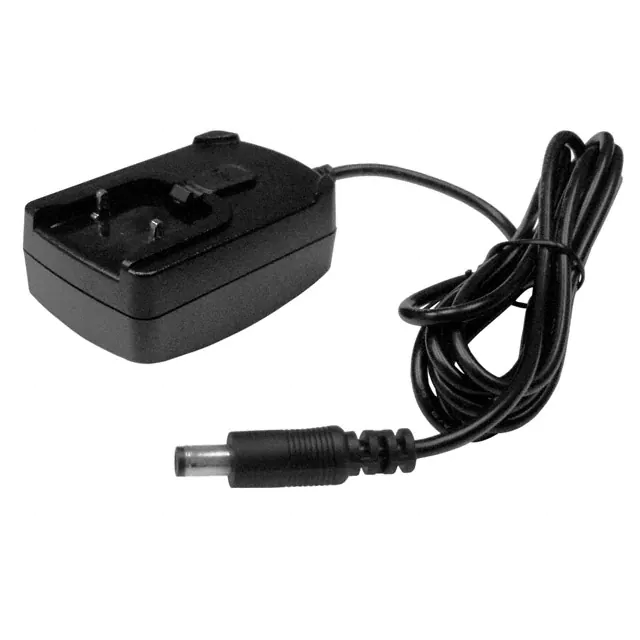

PSA05R-033AC/DC WALL MOUNT ADAPTER 3.3V 4W |
2,219 |
|
规格书 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 3.3V | 1.2A | 4 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | cULus |
|
|
PSA05R-050AC/DC WALL MOUNT ADAPTER 5V 5W |
4,632 |
|
规格书 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | cULus |
|
|
PSA05R-090AC/DC WALL MOUNT ADAPTER 9V 5W |
3,502 |
|
规格书 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 560mA | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | CE, cULus |
|
|
PSA05R-120AC/DC WALL MOUNT ADAPTER 12V 5W |
2,618 |
|
规格书 |
PSA05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 420mA | 5 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.22" H (71.7mm x 45.0mm x 31.0mm) | cULus |
|
PSA15R-050PAC/DC WALL MOUNT ADAPTER 5V 15W |
1,584 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-060PAC/DC WALL MOUNT ADAPTER 6V 15W |
3,067 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 6V | 2.5A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-075PAC/DC WALL MNT ADAPTER 7.5V 16W |
1,585 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 7.5V | 2.14A | 16 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-090PAC/DC WALL MOUNT ADAPTER 9V 15W |
1,722 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.67A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-120PAC/DC WALL MOUNT ADAPTER 12V 15W |
2,855 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-240PAC/DC WALL MOUNT ADAPTER 24V 15W |
4,112 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 625mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|
|
PSA15R-480PAC/DC WALL MOUNT ADAPTER 48V 15W |
2,994 |
|
规格书 |
PSA15R (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 313mA | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | cULus |
|

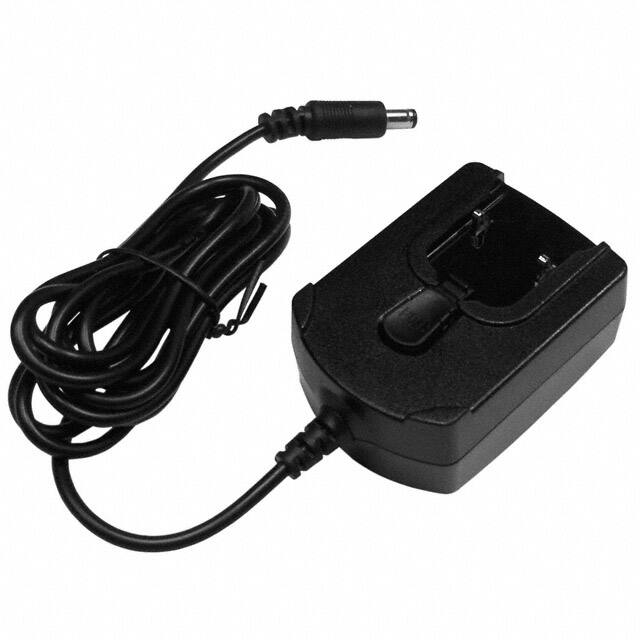

PSA18R-120PAC/DC WALL MOUNT ADAPTER 12V 18W |
1,634 |
|
规格书 |
PSA18R (18W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.5A | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | CE, C-Tick, cULus, PSE, GS |
|
PSB05R-050Q(A)AC/DC WALL MOUNT ADAPTER 5V 5W |
2,189 |
|
- |
PSB05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB A Receptacle | - | Multi-Blade | - | 2.96" L x 1.81" W x 1.25" H (75.3mm x 46.0mm x 31.7mm) | CE, C-Tick, cULus, GS |
|

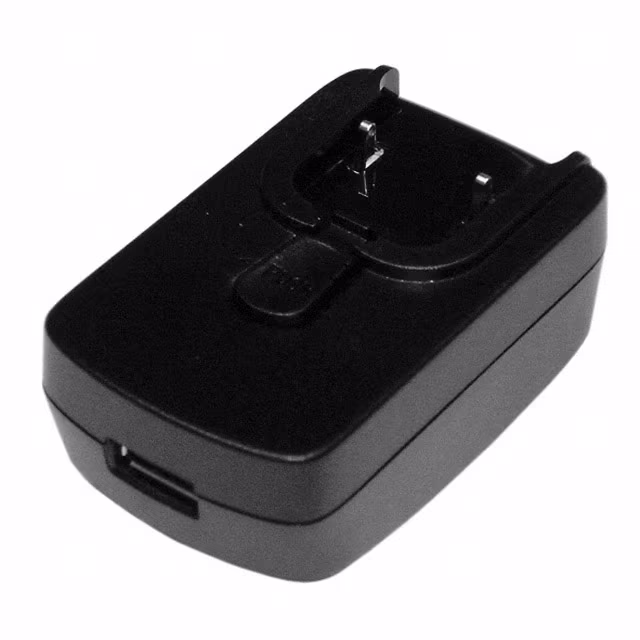

PSC03R-050AC/DC WALL MOUNT ADAPTER 5V 2.5W |
1,042 |
|
规格书 |
PSC03R (2.5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 500mA | 2.5 W | 300mW (Max) | - | ITE (Commercial) | Level IV | 0°C ~ 45°C | USB A Receptacle | - | Multi-Blade | - | 2.97" L x 1.81" W x 1.25" H (75.3mm x 46.0mm x 31.7mm) | CE, C-tick, cULus |
|
PSC20R-180AC/DC WALL MOUNT ADAPTER 18V 20W |
1,645 |
|
规格书 |
PSC20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.11A | 20 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 3.90" L x 2.50" W x 1.40" H (100.0mm x 63.0mm x 36.0mm) | C-Tick, cULus |
|

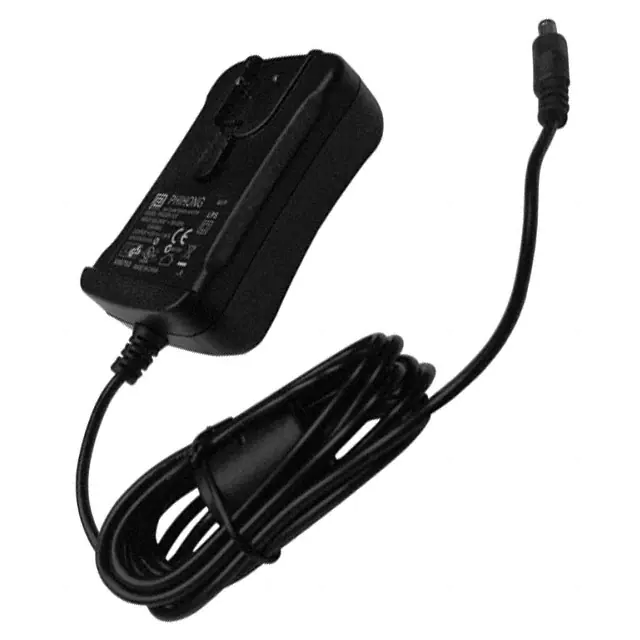

PSC30R-120AC/DC WALL MOUNT ADAPTER 12V 30W |
4,099 |
|
规格书 |
PSC30R (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 3.90" L x 2.50" W x 1.40" H (100.0mm x 63.0mm x 36.0mm) | C-Tick, cULus |
|
|
PSC30R-180AC/DC WALL MOUNT ADAPTER 18V 30W |
2,559 |
|
规格书 |
PSC30R (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 18V | 1.67A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 3.90" L x 2.50" W x 1.40" H (100.0mm x 63.0mm x 36.0mm) | C-Tick, cULus |
|
|
PSC30R-240AC/DC WALL MOUNT ADAPTER 24V 30W |
3,498 |
|
规格书 |
PSC30R (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | Multi-Blade | - | 3.90" L x 2.50" W x 1.40" H (100.0mm x 63.0mm x 36.0mm) | C-Tick, cULus |
.jpg)
|

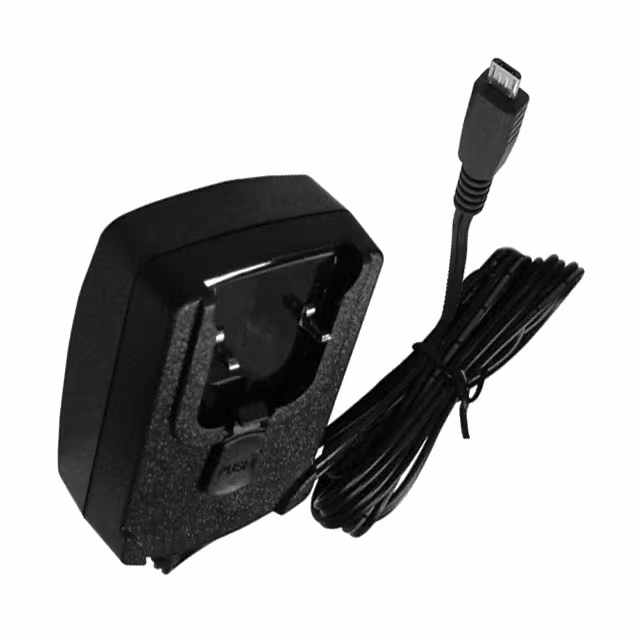

PSM08R-050(M)AC/DC WALL MOUNT ADAPTER 5V 8W |
4,813 |
|
规格书 |
PSM08R (8W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1.6A | 8 W | 300mW (Max) | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB Micro | 70.9" (1.80m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CCC, C-Tick, cULus |
