购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

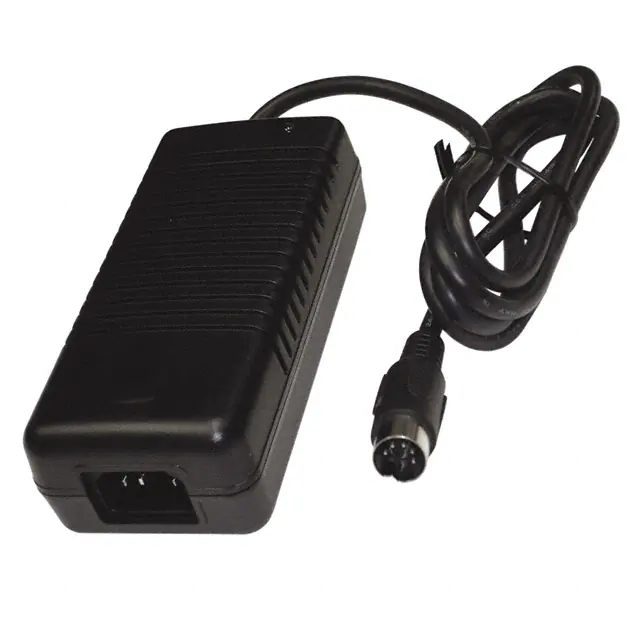

PSA45U-201AC/DC DESKTOP ADAPTER 5V/12V 38W |
2,896 |
|
规格书 |
PSA45U (38W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V, 12V | 4A, 1.5A | 38 W | - | - | ITE (Commercial) | 70% | 0°C ~ 40°C | DIN, 5 Pin | 70.9" (1.80m) | IEC 320-C8 | - | 5.51" L x 2.48" W x 1.58" H (140.0mm x 63.0mm x 40.0mm) | CE, cULus, TUVgs |
|
PSAA05A-050AC/DC WALL MOUNT ADAPTER 5V 5W |
4,898 |
|
规格书 |
PSAA05 (5W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9" (1.80m) | NEMA 1-15P | - | 2.62" L x 1.10" W x 1.54" H (66.5mm x 28.0mm x 39.0mm) | cULus, PSE |
|
PSAA05E-050AC/DC WALL MOUNT ADAPTER 5V 5W |
2,801 |
|
规格书 |
PSAA05 (5W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9" (1.80m) | CEE 7/16 | - | 2.62" L x 1.10" W x 1.54" H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS |
|

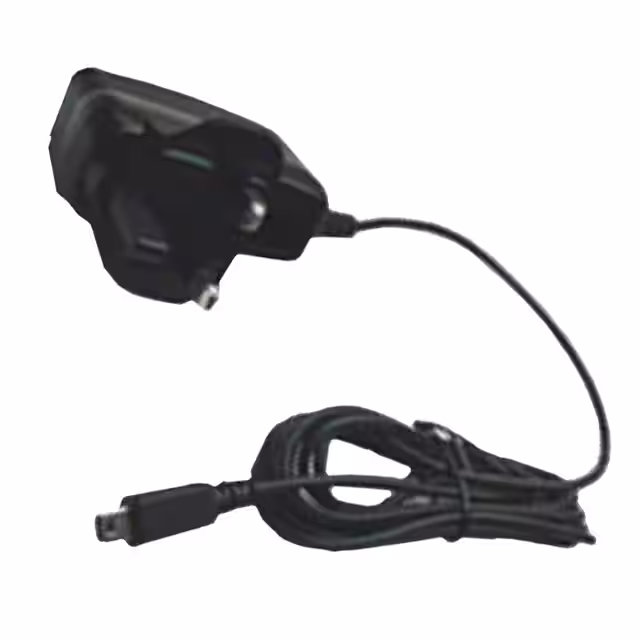

PSAA05K-050AC/DC WALL MOUNT ADAPTER 5V 5W |
2,313 |
|
规格书 |
PSAA05 (5W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9" (1.80m) | BS 1363 | - | 2.62" L x 1.10" W x 1.54" H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS |
|
PSAA05S-050AC/DC WALL MOUNT ADAPTER 5V 5W |
2,160 |
|
规格书 |
PSAA05 (5W) | Box | Obsolete | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 50°C | USB Mini | 70.9" (1.80m) | AS 3112 | - | 2.62" L x 1.10" W x 1.54" H (66.5mm x 28.0mm x 39.0mm) | CE, C-Tick, cULus, GS |
|
PSAA15W-180AC/DC DESKTOP ADAPTER 18V 15W |
2,864 |
|
规格书 |
PSAA15W (15W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 830mA | 15 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | IEC 320-C8 | - | 3.20" L x 1.97" W x 1.17" H (81.2mm x 50.0mm x 29.8mm) | cULus |
|

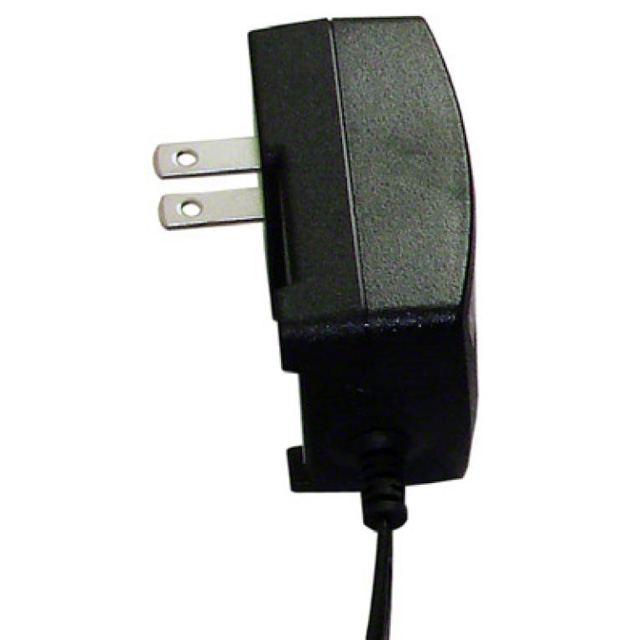

PSC12A-050AC/DC WALL MOUNT ADAPTER 5V 10W |
2,839 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | cULus |
|
|
PSC12A-090AC/DC WALL MOUNT ADAPTER 9V 10W |
4,602 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | cULus |
|
PSC12C-050AC/DC WALL MOUNT ADAPTER 5V 10W |
1,494 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | China | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | GB 1002 | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CCC |
|
|

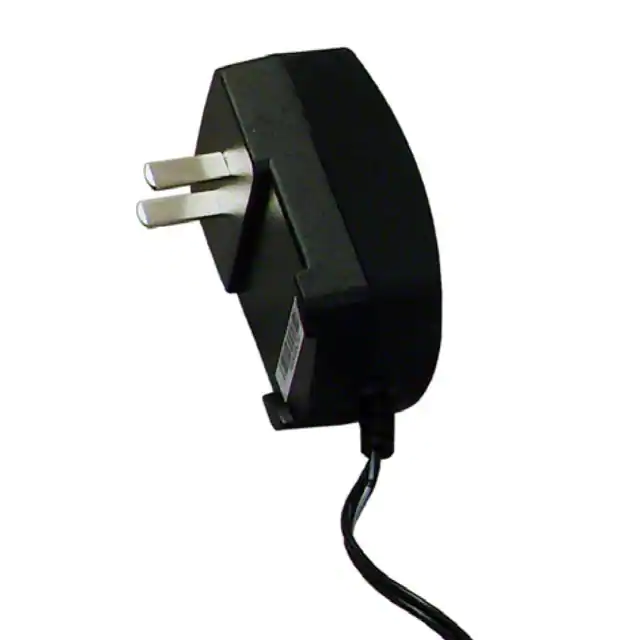

PSC12C-090AC/DC WALL MOUNT ADAPTER 9V 10W |
4,667 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | China | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | GB 1002 | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CCC |
|

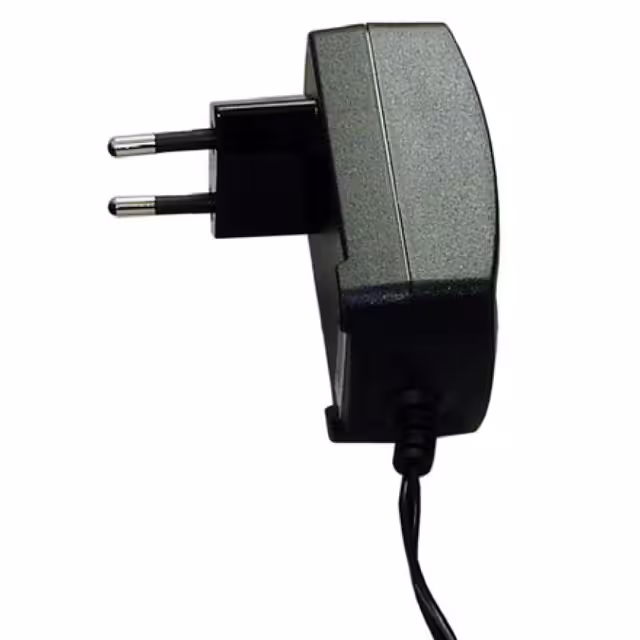

PSC12E-050AC/DC WALL MOUNT ADAPTER 5V 10W |
1,850 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.82" L x 1.77" W x 1.20" H (71.7mm x 45.0mm x 30.5mm) | CE |
|
|
PSC12E-090AC/DC WALL MOUNT ADAPTER 9V 10W |
2,253 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | CEE 7/16 | - | 2.82" L x 1.77" W x 1.20" H (71.7mm x 45.0mm x 30.5mm) | CE |
|

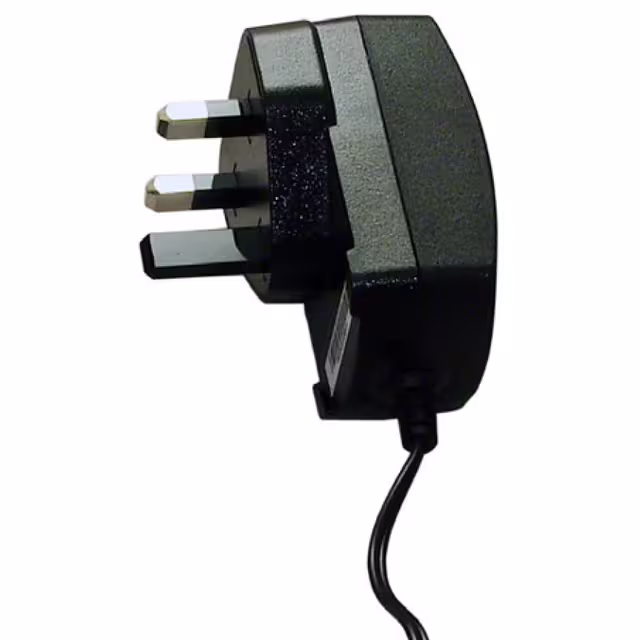

PSC12K-050AC/DC WALL MOUNT ADAPTER 5V 10W |
4,715 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | BS 1363 | - | 2.82" L x 1.99" W x 1.20" H (71.7mm x 50.5mm x 30.5mm) | CE |
|
|
PSC12K-090AC/DC WALL MOUNT ADAPTER 9V 10W |
3,814 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | BS 1363 | - | 2.82" L x 1.99" W x 1.20" H (71.7mm x 50.5mm x 30.5mm) | CE |
|

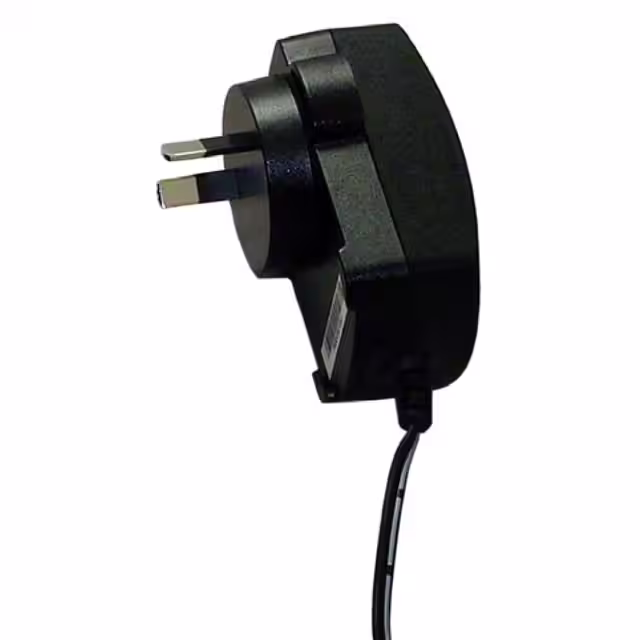

PSC12S-050AC/DC WALL MOUNT ADAPTER 5V 10W |
3,927 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | Australia | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | AS 3112 | - | 2.82" L x 1.77" W x 1.93" H (71.7mm x 45.0mm x 49.1mm) | C-Tick |
|
|
PSC12S-090AC/DC WALL MOUNT ADAPTER 9V 10W |
3,194 |
|
规格书 |
PSC12 (10W) | Box | Obsolete | Australia | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | AS 3112 | - | 2.82" L x 1.77" W x 1.93" H (71.7mm x 45.0mm x 49.1mm) | C-Tick |
|

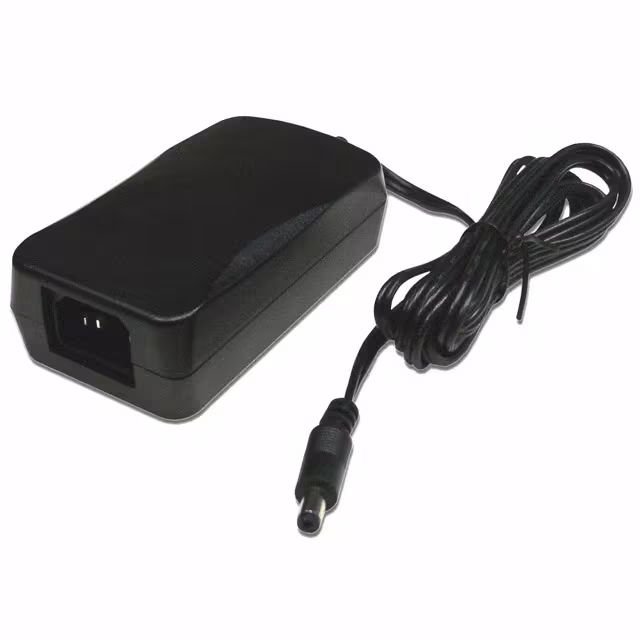

PSC30U-050AC/DC DESKTOP ADAPTER 5V 20W |
3,189 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
|
|
PSC30U-120AC/DC DESKTOP ADAPTER 12V 30W |
1,365 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
|
|
PSC30U-240AC/DC DESKTOP ADAPTER 24V 30W |
4,255 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
|
|
PSC30U-480AC/DC DESKTOP ADAPTER 48V 30W |
4,184 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 625mA | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 72.83" (1.85m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
