购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAA18U-240AC/DC DESKTOP ADAPTER 24V 18W |
1,342 |
|
规格书 |
PSAA18U (18W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 750mA | 18 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.06" L x 1.93" W x 1.32" H (103.0mm x 49.0mm x 33.5mm) | CE, cULus |
|

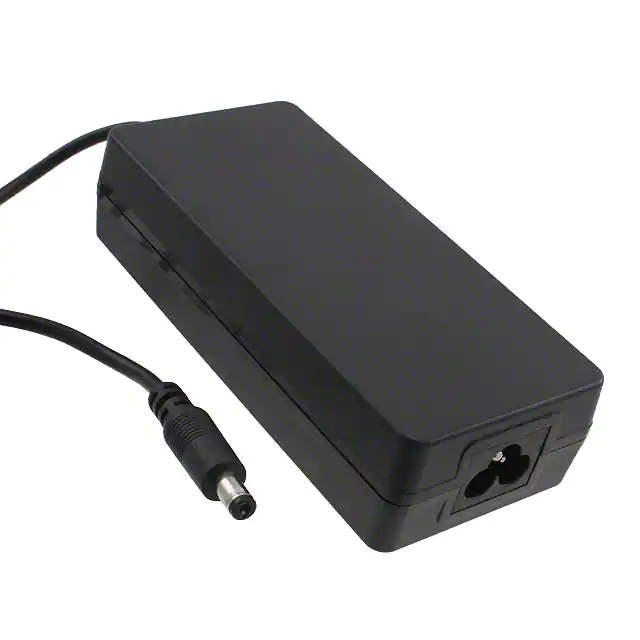

PSAA60M-120AC/DC DESKTOP ADAPTER 12V 60W |
2,409 |
|
规格书 |
PSAA60M (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60M-150AC/DC DESKTOP ADAPTER 15V 60W |
3,018 |
|
规格书 |
PSAA60M (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 4A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60M-180AC/DC DESKTOP ADAPTER 18V 60W |
2,864 |
|
规格书 |
PSAA60M (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 3.3A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60M-240AC/DC DESKTOP ADAPTER 24V 60W |
4,266 |
|
规格书 |
PSAA60M (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 2.5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60M-480AC/DC DESKTOP ADAPTER 48V 60W |
3,738 |
|
规格书 |
PSAA60M (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 1.25A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|

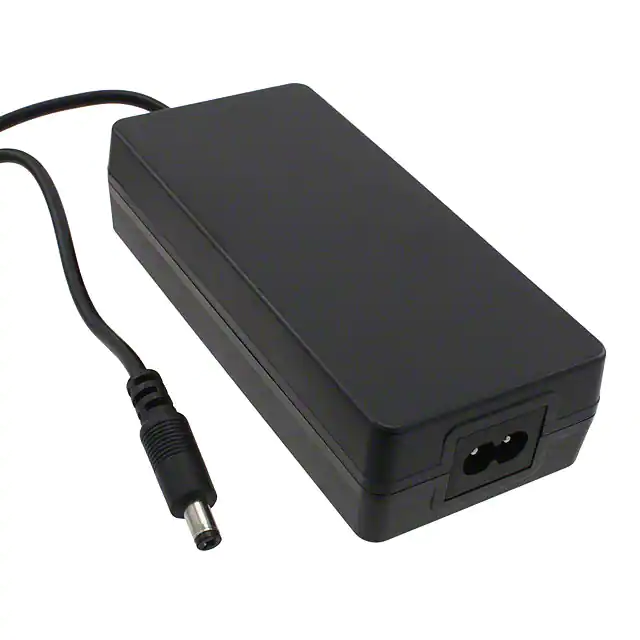

PSAA60W-120AC/DC DESKTOP ADAPTER 12V 60W |
4,893 |
|
规格书 |
PSAA60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | - | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60W-150AC/DC DESKTOP ADAPTER 15V 60W |
4,254 |
|
规格书 |
PSAA60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 15V | 4A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | - | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60W-180AC/DC DESKTOP ADAPTER 18V 59W |
1,588 |
|
规格书 |
PSAA60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 18V | 3.3A | 59 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | - | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60W-240AC/DC DESKTOP ADAPTER 24V 60W |
2,181 |
|
规格书 |
PSAA60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 2.5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | - | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
|
PSAA60W-480AC/DC DESKTOP ADAPTER 48V 60W |
1,141 |
|
规格书 |
PSAA60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 100 ~ 240 VAC | 48V | 1.25A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | - | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus, TUVgs |
|
PSAC30U-050AC/DC DESKTOP ADAPTER 5V 20W |
2,160 |
|
规格书 |
PSAC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 4A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus |
|
|
PSAC30U-120AC/DC DESKTOP ADAPTER 12V 30W |
2,381 |
|
规格书 |
PSAC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus |
|
|
PSAC30U-240AC/DC DESKTOP ADAPTER 24V 30W |
4,425 |
|
规格书 |
PSAC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus |
|
|
PSAC30U-560AC/DC DESKTOP ADAPTER 56V 30W |
1,980 |
|
规格书 |
PSAC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 540mA | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 4.07" L x 1.65" W x 1.13" H (103.4mm x 42.0mm x 28.7mm) | CE, cULus |
|

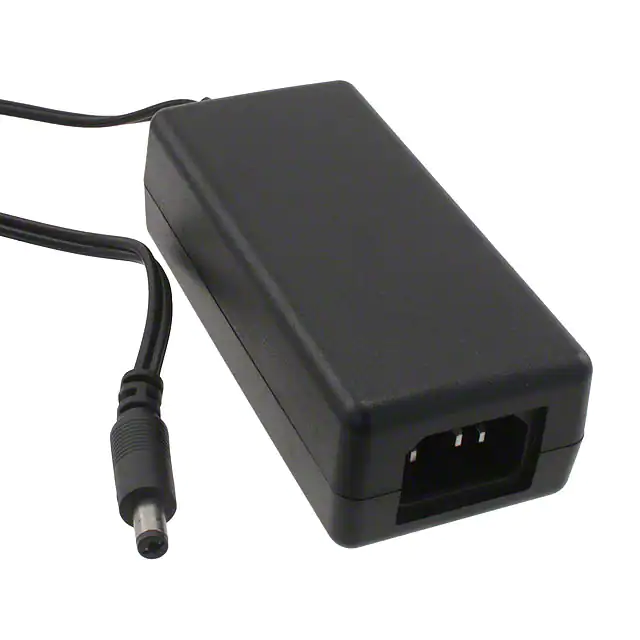

PSC18U-480(P)AC/DC DESKTOP ADAPTER 48V 18W |
3,628 |
|
规格书 |
PSC18U (18W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 380mA | 18 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 70.9" (1.80m) | IEC 320-C14 | - | 4.06" L x 1.93" W x 1.32" H (103.0mm x 49.0mm x 33.5mm) | CE, cULus, TUVgs |
|
PSC30U-120VAC/DC DESKTOP ADAPTER 12V 30W |
3,198 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
|
|
PSC30U-480VAC/DC DESKTOP ADAPTER 48V 30W |
4,107 |
|
规格书 |
PSC30U (30W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 625mA | 30 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C14 | - | 3.88" L x 2.17" W x 1.24" H (98.5mm x 55.0mm x 31.5mm) | cULus |
|

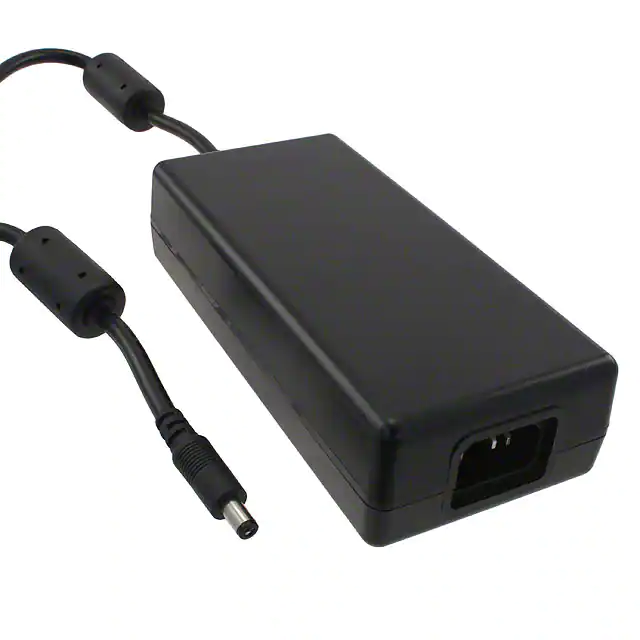

PSC75U-480AC/DC DESKTOP ADAPTER 48V 72W |
1,943 |
|
规格书 |
PSC75U (75W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 1.5A | 72 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 46.46" (1.18m) | IEC 320-C14 | - | 5.93" L x 2.78" W x 1.54" H (150.5mm x 70.5mm x 39.0mm) | CE, cULus |
|
|
PSC75U-560AC/DC DESKTOP ADAPTER 56V 75W |
4,396 |
|
规格书 |
PSC75U (75W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.34A | 75 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 46.46" (1.18m) | IEC 320-C14 | - | 5.93" L x 2.78" W x 1.54" H (150.5mm x 70.5mm x 39.0mm) | CE, cULus |
