购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSM03A-050QAC/DC WALL MOUNT ADAPTER 5V 2.8W |
3,148 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 2.8 W | 150mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 0.83" L x 1.69" W x 1.65" H (21.0mm x 43.0mm x 42.0mm) | cULus |
|

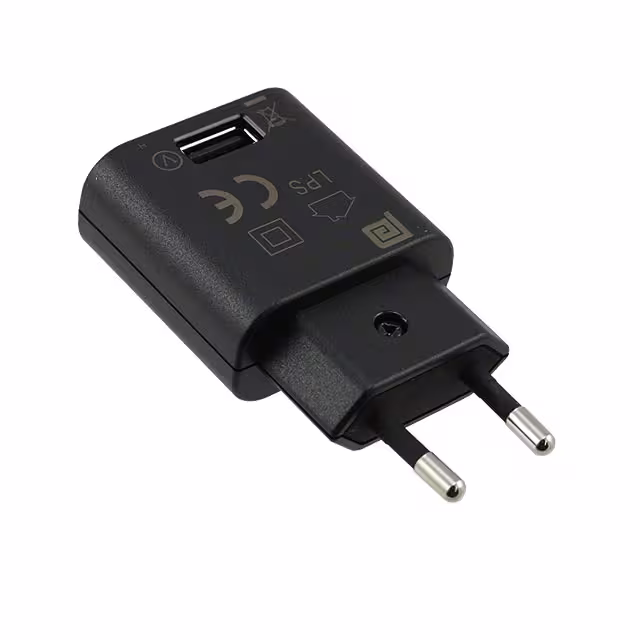

PSM03E-050QAC/DC WALL MOUNT ADAPTER 5V 2.8W |
1,556 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 2.8 W | 150mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB A Receptacle | - | CEE 7/16 | - | 0.83" L x 1.69" W x 2.37" H (21.0mm x 43.0mm x 60.2mm) | cULus |
|
PSM36W-120-TW2AC/DC DESKTOP ADAPTER 12V 36W |
1,335 |
|
规格书 |
PSM36W (36W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 89 ~ 270 VAC | 12V | 3A | 36 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.2mm | 39.4" (1.00m) | IEC 320-C8 | - | 4.72" L x 1.98" W x 1.27" H (120.0mm x 50.0mm x 31.5mm) | CE, cULus |
|
PSAA20R-033AC/DC WALL MNT ADAPTER 3.3V 10W |
1,006 |
|
规格书 |
PSAA20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 3.3V | 3A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
|
PSAA20R-050AC/DC WALL MOUNT ADAPTER 5V 15W |
4,026 |
|
规格书 |
PSAA20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 3A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
|
PSAA20R-120AC/DC WALL MOUNT ADAPTER 12V 20W |
4,112 |
|
规格书 |
PSAA20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
|
PSAA20R-240AC/DC WALL MOUNT ADAPTER 24V 20W |
3,484 |
|
规格书 |
PSAA20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 830mA | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
|
PSAA20R-480AC/DC WALL MOUNT ADAPTER 48V 20W |
4,084 |
|
规格书 |
PSAA20R (20W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 48V | 420mA | 20 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.22" H (71.7mm x 50.0mm x 31.0mm) | CE, cULus |
|
PSAC05R-050(MB)AC/DC WALL MOUNT ADAPTER 5V 5W |
4,969 |
|
规格书 |
PSAC05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB Mini | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs |
|
PSAC05R-050(P)AC/DC WALL MOUNT ADAPTER 5V 5W |
3,594 |
|
规格书 |
PSAC05R (5W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CE, cULus, TUVgs |
|

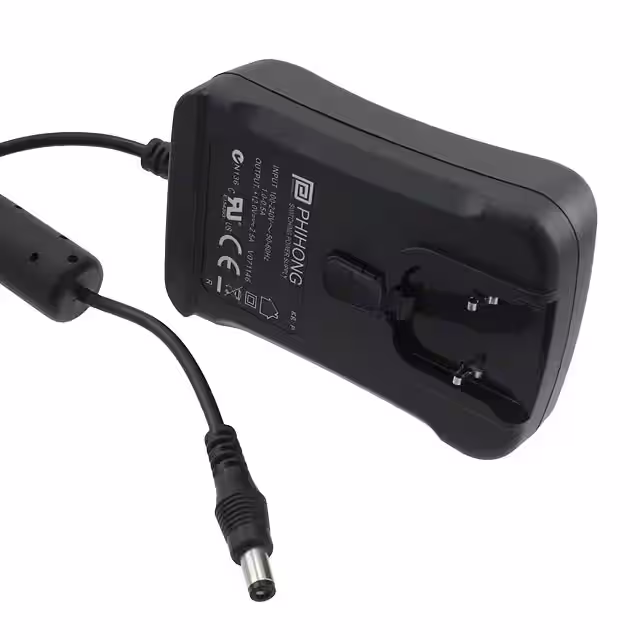

PSAM30R-120AC/DC WALL MOUNT ADAPTER 12V 30W |
2,062 |
|
- |
PSAM30R (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 2.5A | 30 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 3.94" L x 2.48" W x 1.41" H (100.0mm x 63.0mm x 35.7mm) | CE, C-Tick, cURus |
|
|
PSAM30R-240AC/DC WALL MOUNT ADAPTER 24V 30W |
2,528 |
|
- |
PSAM30R (30W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1.25A | 30 W | 500mW (Max) | Positive Center | Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | Multi-Blade | - | 3.94" L x 2.48" W x 1.41" H (100.0mm x 63.0mm x 35.7mm) | CE, C-Tick, cURus |
|
PSC12R-050AC/DC WALL MOUNT ADAPTER 5V 10W |
1,453 |
|
规格书 |
PSC12R (12W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|
|
PSC12R-090AC/DC WALL MOUNT ADAPTER 9V 10W |
2,684 |
|
规格书 |
PSC12R (12W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.11A | 10 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|
|
PSC12R-120AC/DC WALL MOUNT ADAPTER 12V 12W |
4,061 |
|
规格书 |
PSC12R (12W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.30" H (71.7mm x 45.0mm x 33.0mm) | CE, C-tick, cULus |
|

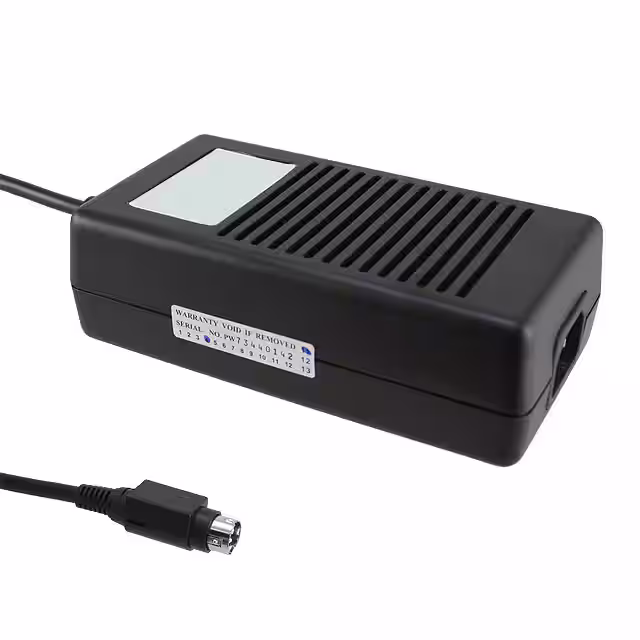

DTM65PW050CAC/DC DESKTOP ADAPTER 5V 40W |
3,252 |
|
- |
DTM65-C (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 8A | 40 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE |
|
DTM65PW120CAC/DC DESKTOP ADAPTER 12V 60W |
3,080 |
|
- |
DTM65-C (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE |
|

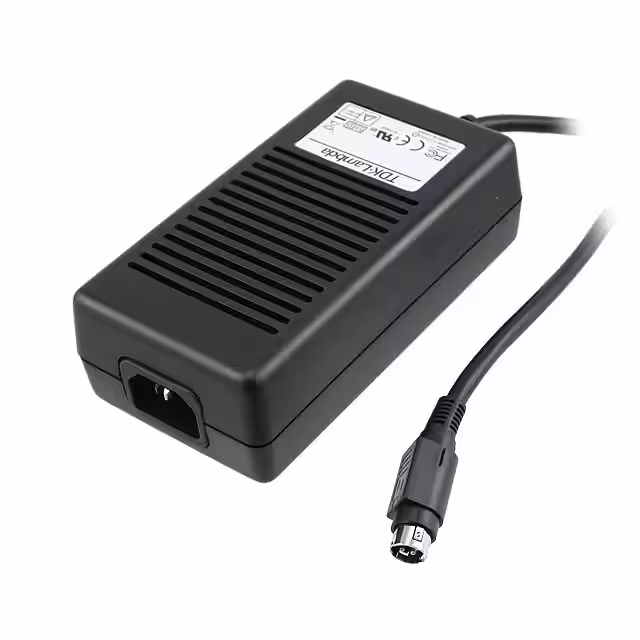

DTM65PW150CAC/DC DESKTOP ADAPTER 15V 60W |
4,644 |
|
- |
DTM65-C (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4A | 60 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE |
|
DTM65PW180CAC/DC DESKTOP ADAPTER 18V 65W |
4,981 |
|
- |
DTM65-C (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 3.6A | 65 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE |
|

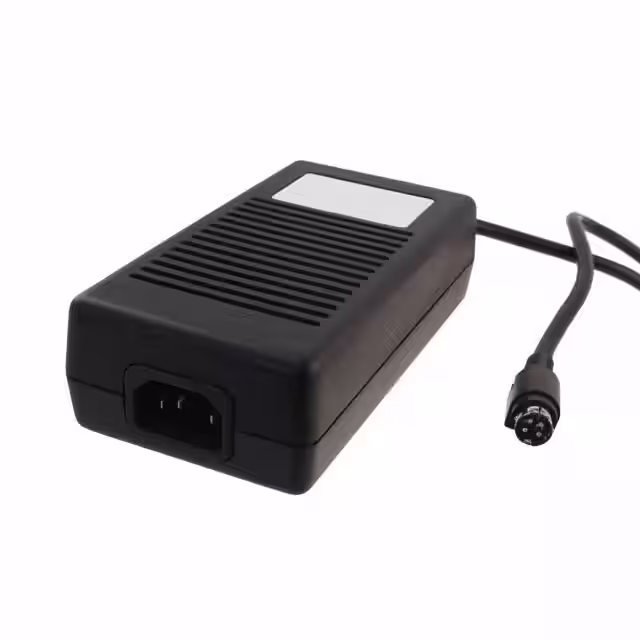

DTM65PW240CAC/DC DESKTOP ADAPTER 24V 65W |
1,975 |
|
- |
DTM65-C (65W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 65 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 50°C | Power DIN, 4 Pin | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.71" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE |
