无线充电线圈

型号	库存	价格	数量	规格书	系列	包装	产品状态	功能	类型	电感	容差	直流电阻 (DCR)	品质因数 (Q) @ 频率	电流额定值（安培）	饱和电流 (Isat)	频率 - 自谐振	工作温度	尺寸 / 尺寸
760308101105 TX 1 COIL 2 LAYER 3.3UH 3A Würth Elektronik	4,116	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer	3.3µH	±10%	80mOhm Max	30 @ 125kHz	3A	6A	20MHz	-20°C ~ 105°C	0.81" Dia x 0.10" H (20.5mm x 2.6mm)
760308100111 TX 1 COIL 1 LAYER 6.3UH 13A Würth Elektronik	1,913	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	51mOhm Max	120 @ 125kHz	6A	10A	24MHz	-20°C ~ 105°C	1.97" Dia x 0.24" H (50.0mm x 6.0mm)
760308101304 TX 1 COIL 1 LAYER 6.3UH 6A Würth Elektronik	4,218	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	48mOhm Max	115 @ 125kHz	6A	10A	16MHz	-20°C ~ 105°C	1.85" Dia x 0.12" H (47.0mm x 3.0mm)
760308103102 TX 1 COIL 1 LAYER 10UH 7A Würth Elektronik	2,353	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	55mOhm Max	130 @ 125kHz	7A	10A	11MHz	-20°C ~ 105°C	1.79" L x 2.09" W x 0.18" H (45.5mm x 53.0mm x 4.5mm)
760308103203 RX 1 COIL 1 LAYER 12UH 1.55A Würth Elektronik	3,566	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	550mOhm	21 @ 125kHz	1.55A	3A	20MHz	-20°C ~ 105°C	1.89" L x 1.27" W x 0.03" H (48.2mm x 32.2mm x 1.0mm)

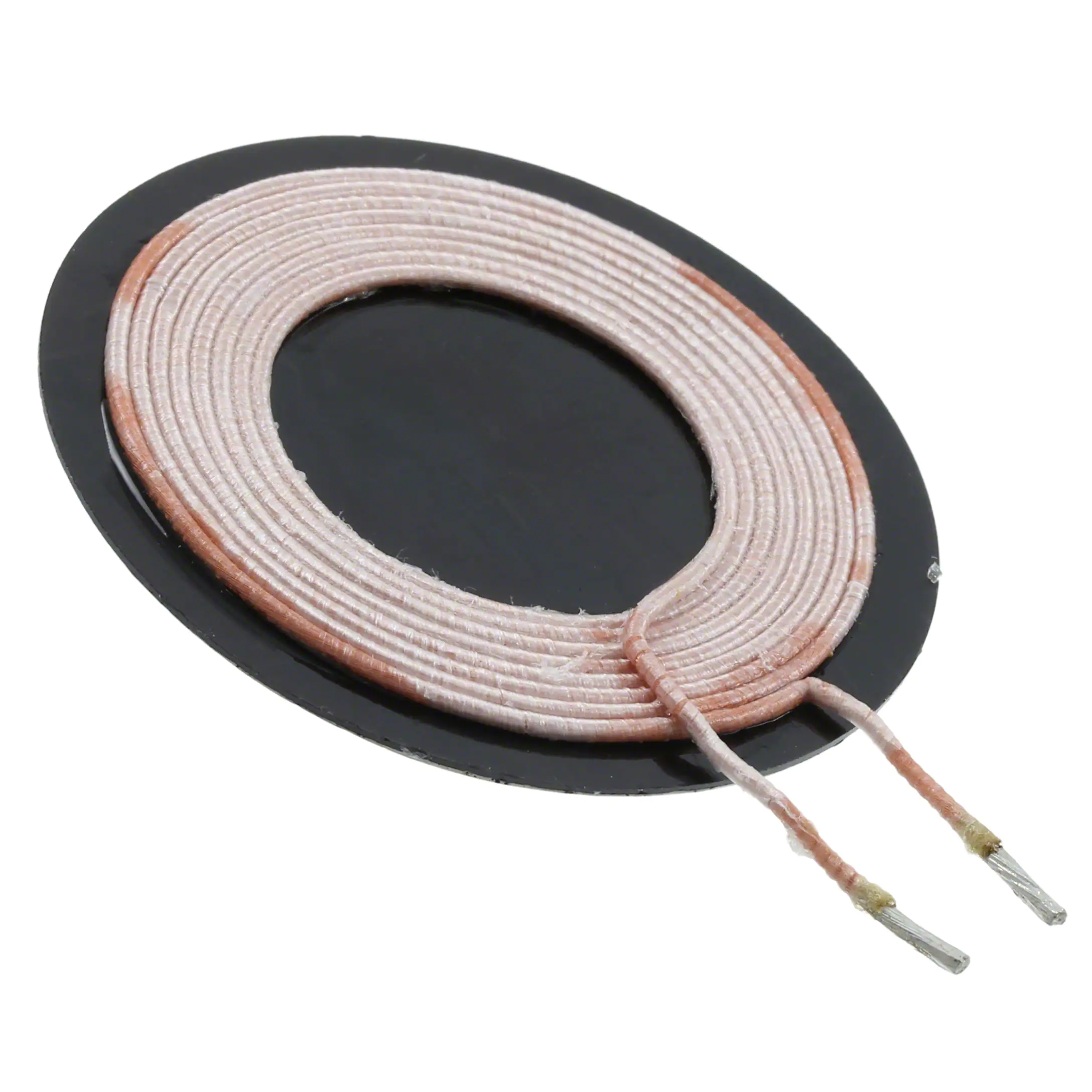

WT-505060-8K2-LT TX 1 COIL 1 LYR 4.95UH TDK Corporation	4,687	-	立即询价	规格书	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	4.95µH	-	30mOhm	97 @ 100kHz	-	-	-	-	-
760308102212 RX 1 COIL 1 LAYER 5.4UH 2A Würth Elektronik	1,177	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	5.4µH	±10%	240mOhm Max	18 @ 125kHz	2A	4A	25MHz	-20°C ~ 105°C	1.14" L x 1.14" W x 0.04" H (29.0mm x 29.0mm x 0.9mm)
760308103211 RX 1 COIL 1 LAYER 7.3UH 2.5A Würth Elektronik	2,186	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	7.3µH	±10%	200mOhm Max	28 @ 125kHz	2.5A	5A	12.7MHz	-20°C ~ 105°C	1.81" L x 1.42" W x 0.03" H (46.0mm x 36.0mm x 0.7mm)
760308103215 RX 1 COIL 1 LAYER 14.3UH 3A Würth Elektronik	1,912	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	1 Coil, 1 Layer	14.3µH	±10%	190mOhm Max	40 @ 125kHz	3A	8A	8.8MHz	-20°C ~ 105°C	1.89" L x 1.26" W x 0.04" H (48.0mm x 32.0mm x 1.0mm)
760308101410 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,622	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	24µH	±10%	100mOhm	170 @ 125kHz	5.5A	10A	6MHz	-20°C ~ 105°C	1.97" Dia x 0.12" H (50.0mm x 3.1mm)
760308102308 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,110	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	3µH	±10%	35mOhm Max	60 @ 125kHz	8.5A	15A	27MHz	-20°C ~ 105°C	1.97" L x 1.18" W x 0.14" H (50.0mm x 30.0mm x 3.5mm)
760308104119 TX 2 COIL 1 LAYER 12UH 11.5UH 8A Würth Elektronik	2,494	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	2 Coil, 1 Layer	12µH, 11.5µH	±10%	56mOhm	130 @ 125kHz	8A	12A	12MHz	-20°C ~ 105°C	3.48" L x 2.07" W x 0.14" H (88.50mm x 52.50mm x 3.50mm)
760308103145 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,960	-	立即询价	规格书	WE-WPCC	Bulk	Active	Transmitter	3 Coil, 1 Layer	11.3µH	±10%	83mOhm Max	150 @ 125kHz, 145 @ 125kHz	8.5A	24A	10MHz	-20°C ~ 105°C	4.29" L x 2.20" W x 0.20" H (109.0mm x 56.0mm x 5.2mm)
760308103147 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,950	-	立即询价	规格书	WE-WPCC	Bulk	Active	Transmitter	3 Coil, 1 Layer	8.5µH, 7.5µH, 8.5µH	±10%	56mOhm Max	145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz	9A, 10A, 9A	18A	11MHz	-20°C ~ 105°C	3.94" L x 2.01" W x 0.20" H (100.0mm x 51.0mm x 5.2mm)

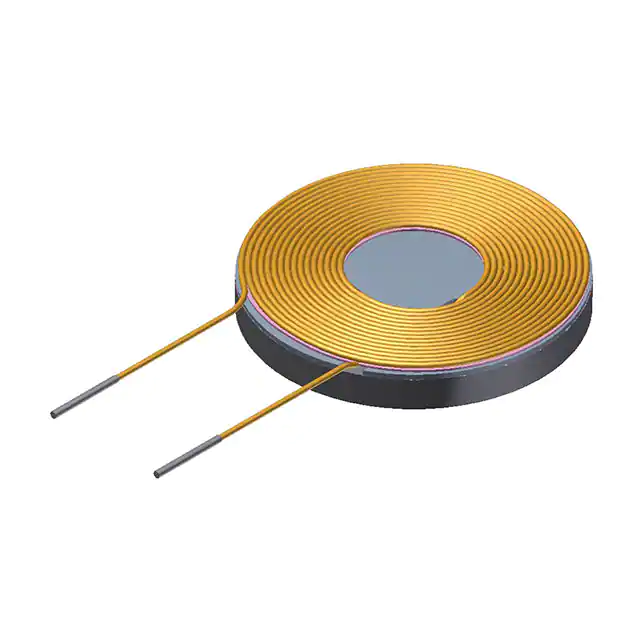

WT202030-16M8-G TX 1 COIL, 1 LYR 6.2UH TDK Corporation	1,137	-	立即询价	规格书	WT	Tray	Active	Transmitter	1 Coil, 1 Layer	6.2µH	-	190mOhm	-	-	-	-	-	-
WTM-12R5K-A6 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	3,925	-	立即询价	规格书	WCC	Box	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C	3.94" L x 2.17" W x 0.16" H (100.0mm x 55.0mm x 4.0mm)

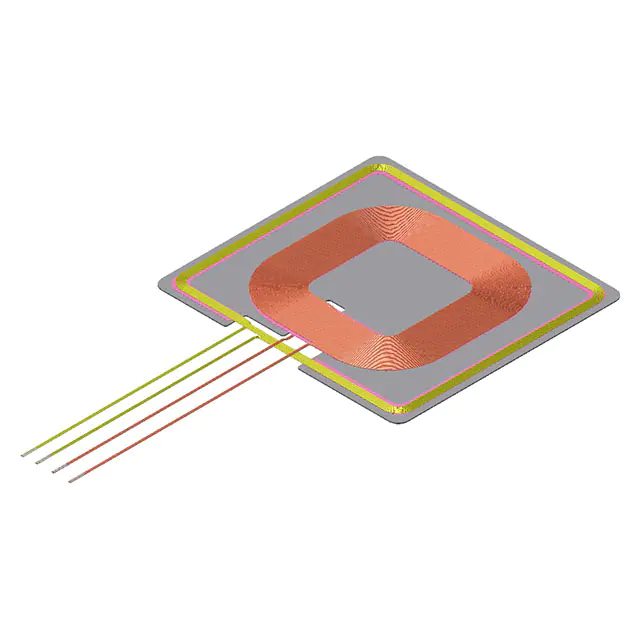

WR524825-17M6-NF-G RX 1 COIL, 1 LYR 16.8UH TDK Corporation	1,206	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 1 Layer	16.8µH	-	750mOhm	-	-	-	-	-	2.05" L x 1.89" W x 0.02" H (52.0mm x 48.0mm x 0.5mm)
WTM12R5K-A28 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	3,233	-	立即询价	规格书	WCC	Box	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C	3.70" L x 2.13" W x 0.16" H (94.0mm x 54.0mm x 4.0mm)
WTM9R8K-A9 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	1,617	-	立即询价	规格书	WCC	Box	Active	Transmitter	3 Coil, 1 Layer	9.8µH, 10.2µH, 9.8µH	±10%	60mOhm Max, 65mOhm Max	-	8A	10A	-	-20°C ~ 85°C	3.98" L x 2.24" W x 0.16" H (101.0mm x 57.0mm x 4.0mm)
AWCCA-RX404012-101 RX COIL 1 LAYER 8.0UH Abracon LLC	3,469	-	立即询价	-	AWCCA	Tray	Not For New Designs	Receiver	1 Coil, 1 Layer	8µH	±10%	80mOhm Max	-	-	-	-	-	1.57" L x 1.57" W x 0.05" H (40.0mm x 40.0mm x 1.2mm)

共 267 记录«上一页 1... 4 5 6 789 10 11...14 下一页»
