无线充电线圈

型号	库存	价格	数量	规格书	系列	包装	产品状态	功能	类型	电感	容差	直流电阻 (DCR)	品质因数 (Q) @ 频率	电流额定值（安培）	饱和电流 (Isat)	频率 - 自谐振	工作温度	尺寸 / 尺寸

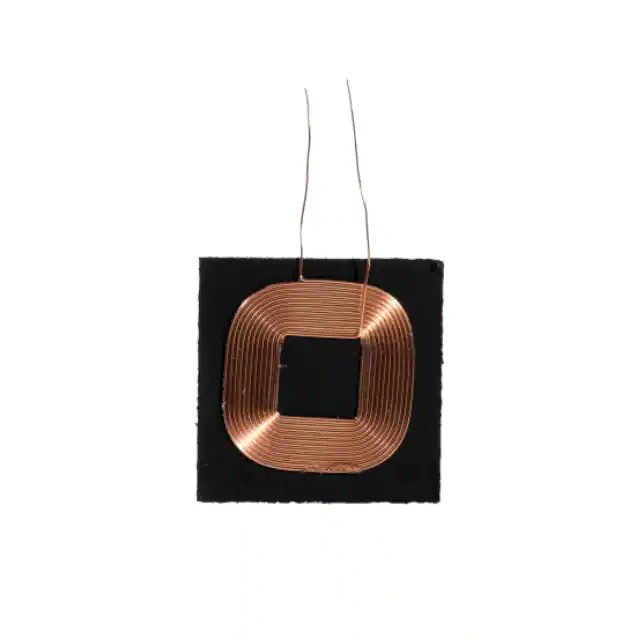

RCC-2020-RX-NL INDUCTOR RDI, Inc.	3,722	-	立即询价	规格书	-	Tray	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	275mOhm	-	-	-	-	-25°C ~ 85°C	0.79" L x 0.79" W x 0.04" H (20.0mm x 20.0mm x 1.0mm)

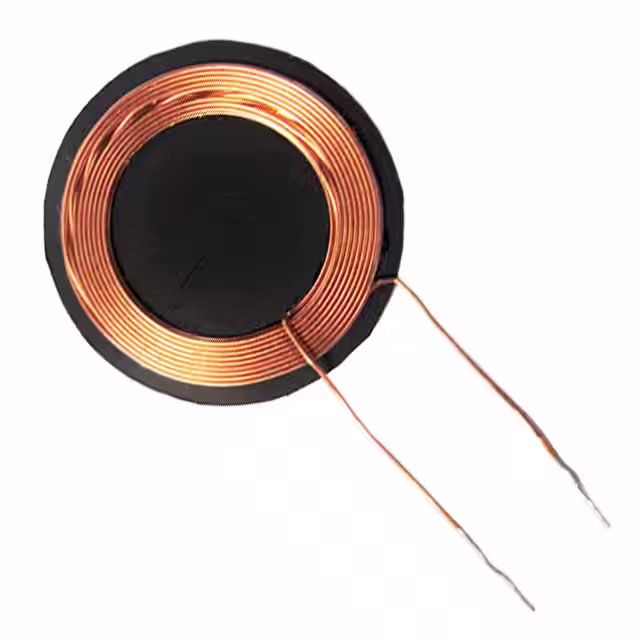

AWCCA-18R18H10-C01-B RX 1 COIL 1 LAYER 10.5UH Abracon LLC	4,591	-	立即询价	规格书	AWCCA	Bulk	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	330mOhm	17 @ 100kHz	-	-	-	-25°C ~ 85°C	0.72" Dia x 0.04" H (18.3mm x 1.0mm)
SCR35018R3KB RX 1 COIL 2 LAYER 8.3UH 2000MA Superworld Electronics (S) Pte. Ltd.	380	-	立即询价	规格书	SCR	Bag	Active	Receiver	1 Coil, 1 Layer	8.3µH	±10%	160mOhm Max	-	2A	-	-	-40°C ~ 85°C	1.38" Dia x 0.05" H (35.0mm x 1.2mm)
IWTX55R0DZEB8R9KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	552	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	8.9µH	±10%	55mOhm Max	98.5 @ 100kHz	6A	-	-	-40°C ~ 125°C	2.17" Dia x 0.16" H (55.0mm x 4.0mm)
IWTX5555DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	216	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	80mOhm Max	99 @ 100kHz	6A	-	-	-40°C ~ 85°C	2.17" L x 2.17" W x 0.12" H (55.0mm x 55.0mm x 3.0mm)

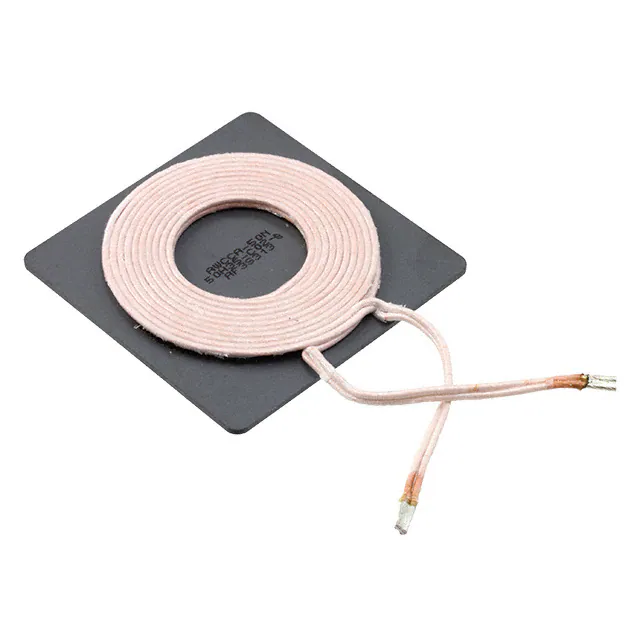

AWCCA-50N50H35-C02-B RX TX 1 COIL 1 LAYER 6.3UH 10.6A Abracon LLC	4,232	-	立即询价	规格书	AWCCA-50N50	Bulk	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	6.3µH	±10%	19mOhm	72 @ 100kHz	10.6A	36A	6.4MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)

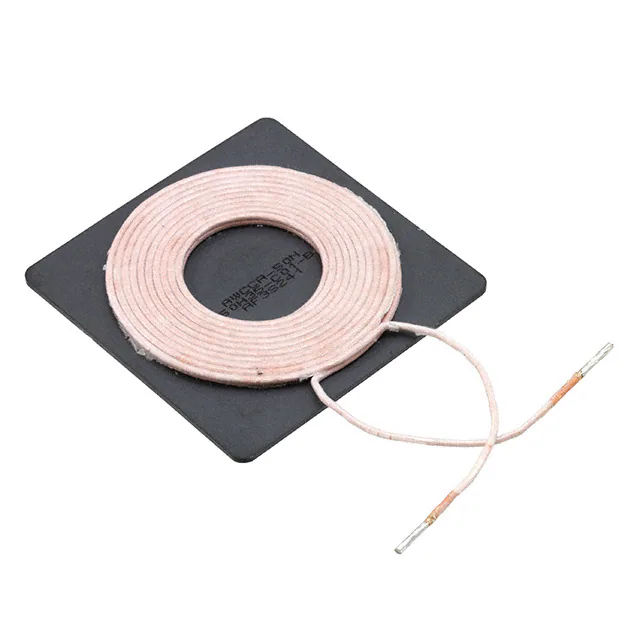

AWCCA-50N50H35-C01-B RX TX 1 COIL 1 LAYER 24UH 5.4A Abracon LLC	2,390	-	立即询价	规格书	AWCCA-50N50	Bulk	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	160 @ 100kHz	5.4A	21A	3MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.13 " H (50.0mm x 50.0mm x 3.5mm)
IWTX5050DEEB100KF1 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	427	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	29.7mOhm Max	200 @ 100kHz	9A	-	-	-40°C ~ 85°C	1.97" Dia x 0.18" H (50.0mm x 4.5mm)
IWAS3222CZEB190JF1 IWAS-3222CZ-F1 19 5% EB E2 Vishay Dale	1,512	-	立即询价	规格书	-	Tray	Active	Receiver	1 Coil, 1 Layer	19.6µH	±5%	357mOhm	29 @ 200kHz	-	-	-	-40°C ~ 105°C	1.26" L x 0.87" W (32.0mm x 22.0mm)
1461798011 RX 1 COIL 1 LAYER 2.6UH Molex	3,849	-	立即询价	规格书	NuCurrent, PowerLife, 146179	Bulk	Obsolete	Receiver	1 Coil, 1 Layer	2.6µH	±2%	245mOhm	90 @ 6.78MHz	-	-	-	-	1.04" Dia x 0.02" H (26.5mm x 0.5mm)
IWTX4646DCEB240JF1 IWTX-4646DC-F1 24 5% EB E2 Vishay Dale	1,036	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	185 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.81" L x 1.81" W x 0.21" H (46.0mm x 46.0mm x 5.3mm)
IWTX9955DEEB110KF3 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	219	-	立即询价	规格书	-	Tray	Active	Transmitter	3 Coil, 1 Layer	11.3µH, 11.3µH, 11.3µH	±10%	80mOhm Max	100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz	6.5A	-	-	-40°C ~ 125°C	3.90" L x 2.19" W x 0.16" H (99.0mm x 55.6mm x 4.0mm)
1461794001 RX 2 COIL, 1 LYR 8.9UH Molex	5,492	-	立即询价	规格书	NuCurrent, PowerLife, 146179	Box	Active	Receiver	2 Coil, 1 Layer	8.9µH	±2%	350mOhm	25 @ 200kHz	-	-	-	-	2.58" L x 1.91" W x 0.02" H (65.5mm x 48.4mm x 0.5mm)
IWTXA148DGEB9R8KF3 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	129	-	立即询价	规格书	-	Tray	Active	Transmitter	3 Coil, 1 Layer	9.8µH, 10.2µH, 9.8µH	±10%	80mOhm Max	100 @ 100kHz, 100 @ 100kHz, 100 @ 100kHz	7A	-	-	-40°C ~ 125°C	4.01" L x 2.26" W x 0.19" H (101.8mm x 57.3mm x 4.7mm)
IWTXA653FZEB120KF3 WIRELESS CHARGING TRANSMIT COIL Vishay Dale	230	-	立即询价	规格书	-	Tray	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	±10%	80mOhm Max	110 @ 100kHz, 100 @ 100kHz, 110 @ 100kHz	6.5A	-	-	-40°C ~ 85°C	4.17" L x 2.09" W x 0.24" H (106.0mm x 53.0mm x 6.0mm)
IWTX5547EEEB8R5KF1 INDUCT WW SNGL COIL MISC Vishay Dale	1,265	-	立即询价	规格书	-	Bulk	Active	Transmitter	1 Coil, 1 Layer	8.5µH	±10%	56mOhm	140 @ 125kHz	6A	10A	11MHz	-40°C ~ 105°C	2.17" L x 1.85" W x 0.22" H (55.0mm x 47.0mm x 5.5mm)
SWC5547AK120-500 TX 1 COIL 1 LAYER 12.5UH Laird-Signal Integrity Products	225	-	立即询价	规格书	SWC	Box	Active	Transmitter	1 Coil, 1 Layer	12.5µH	±10%	65mOhm Max	90 @ 100kHz	-	-	-	-40°C ~ 125°C	2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm)
WR222230-26M8-G RX 1 COIL 2 LYR 27UH TDK Corporation	4,471	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	27µH	-	1.1Ohm Max	-	-	-	-	-	0.87" Dia x 0.03" H (22.0mm x 0.9mm)

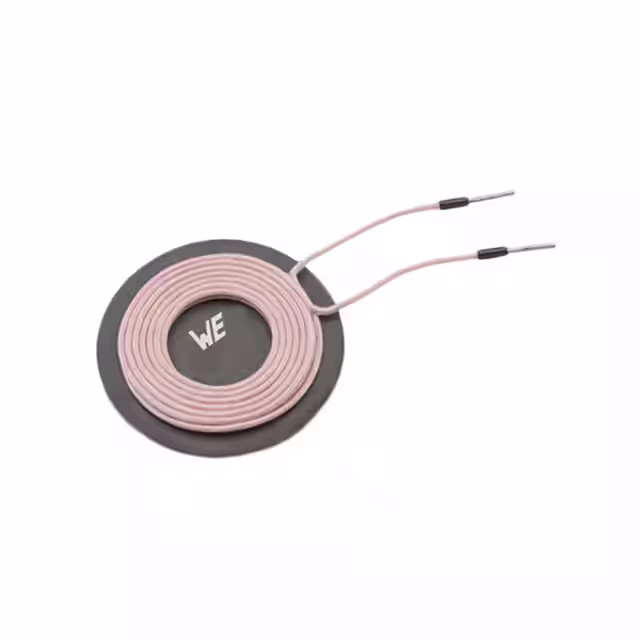

760308101141 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,167	-	立即询价	规格书	WE-WPCC	Bulk	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	220 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C	1.97" Dia x 0.20" H (50.0mm x 5.0mm)
WR111180-36F5-B1 RX 1 COIL 2 LYR 16.6UH TDK Corporation	3,226	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 2 Layer	16.6µH	-	1Ohm	-	-	-	-	-	0.43" Dia x 0.06" H (11.0mm x 1.5mm)

共 267 记录«上一页 1 2 345 6 7...14 下一页»
