无线充电线圈

型号	库存	价格	数量	规格书	系列	包装	产品状态	功能	类型	电感	容差	直流电阻 (DCR)	品质因数 (Q) @ 频率	电流额定值（安培）	饱和电流 (Isat)	频率 - 自谐振	工作温度	尺寸 / 尺寸

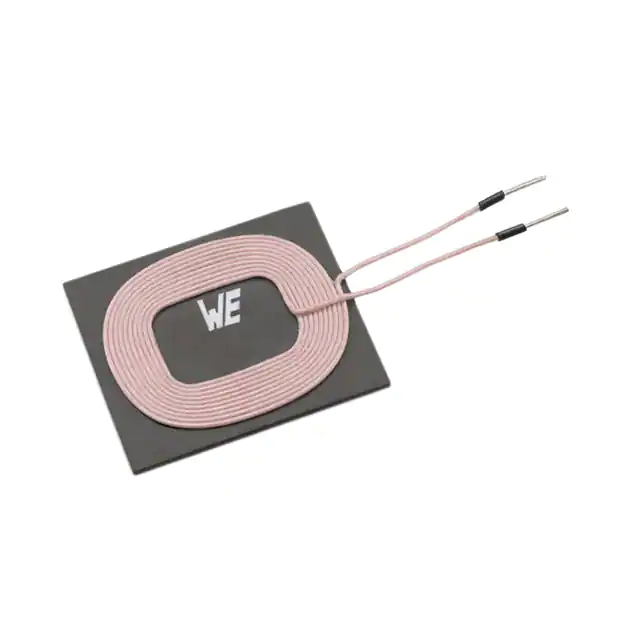

760308103146 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	1,753	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 1 Layer	8.5µH	±10%	56mOhm Max	140 @ 125kHz	8A	16A	11MHz	-20°C ~ 60°C	2.01" L x 1.85" W x 0.18" H (51.0mm x 47.0mm x 4.5mm)

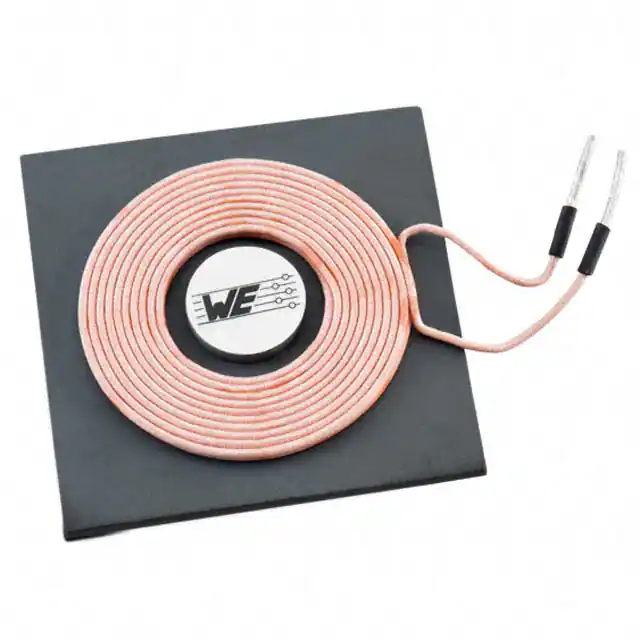

760308101 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	2,286	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	90 @ 125kHz	6A	10A	6MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
760308101302 TX 1 COIL 1 LAYER 5.3UH 8A Würth Elektronik	2,004	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 1 Layer	5.3µH	±10%	33mOhm	100 @ 125kHz	8A	10A	27MHz	-20°C ~ 105°C	1.97" Dia x 0.19" H (50.0mm x 4.7mm)
760308100143 TX 1 COIL 2 LAYER 6UH 12A Würth Elektronik	4,993	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	6µH	±10%	18mOhm Max	180 @ 125kHz	12A	24A	16MHz	-20°C ~ 105°C	1.97" Dia x 0.26" H (50.0mm x 6.7mm)
WCT38466-N0E0SST101 PATTERNED TX COIL FOR WPT TDK Corporation	4,827	-	立即询价	规格书	WCT	Tray	Active	Transmitter	1 Coil, 2 Layer	10.6µH	±0.5µH	149mOhm Max	-	-	-	-	-40°C ~ 85°C	3.35" L x 2.64" W x 0.03" H (85.1mm x 67.0mm x 0.8mm)
760308100141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	1,633	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	180 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C	1.97" L x 1.89" W x 0.24" H (50.0mm x 48.0mm x 6.0mm)
760308141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	4,493	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	140 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.26" H (53.3mm x 53.3mm x 6.5mm)
760308106 TX 3 COIL 1 LAYER 10A Würth Elektronik	1,608	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	-	65mOhm	140 @ 125kHz	10A	10A	-	-	5.12" L x 0.28" W x 2.15" H (130.0mm x 7.0mm x 54.7mm)
WTSC-6R3K-A11 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	3,250	-	立即询价	规格书	WCC	Box	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C	1.97" Dia x 0.14" H (50.0mm x 3.5mm)
WR483265-13F5-G RX 1 COIL, 1 LYR 10.1UH TDK Corporation	3,880	-	立即询价	规格书	WR	Tray	Active	Receiver	1 Coil, 1 Layer	10.1µH	-	270mOhm	-	-	-	-	-	1.90" L x 1.27" W x 0.05" H (48.2mm x 32.2mm x 1.3mm)
760308105 TX 1 COIL 2 LYR BILFILAR 6.3UH Würth Elektronik	3,354	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	24mOhm Max	55 @ 125kHz	13A	16A	20MHz	-20°C ~ 105°C	2.10" L x 2.10" W x 0.24" H (53.3mm x 53.3mm x 6.0mm)
WT1005690-10F2-M8-G2 TX 3 COIL, 1 LYR 7.5UH, 8.5UH TDK Corporation	3,681	-	立即询价	规格书	WT	Tray	Active	Transmitter	3 Coil, 1 Layer	7.5µH, 8.5µH	-	50mOhm	-	-	-	-	-	4.01" L x 2.26" W x 0.18" H (101.8mm x 57.3mm x 4.7mm)
760308103148 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,724	-	立即询价	规格书	WE-WPCC	Bulk	Active	Receiver, Transmitter	2 Coil, 1 Layer	6.9µH, 6.4µH	±10%	52mOhm Max	120 @ 125kHz, 115 @ 125kHz	8.5A	20A	15MHz, 19MHz	-20°C ~ 105°C	2.80" L x 2.40" W x 0.16" H (71.0mm x 61.0mm x 4.0mm)
760308103149 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,012	-	立即询价	规格书	WE-WPCC	Tray	Active	Transmitter	3 Coil, 1 Layer	10.2µH, 9.8µH, 10.2µH	±10%	55mOhm	110 @ 125kHz	9A	18A	8MHz	-20°C ~ 105°C	4.17" L x 2.24" W x 0.17" H (106.0mm x 57.0mm x 4.2mm)
760308104120 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,319	-	立即询价	规格书	WE-WPCC	Box	Active	Transmitter	3 Coil, 1 Layer	6.9µH, 6.4µH, 6.9µH	±10%	45mOhm	100 @ 125kHz	9A	12A	15MHz	-20°C ~ 105°C	-

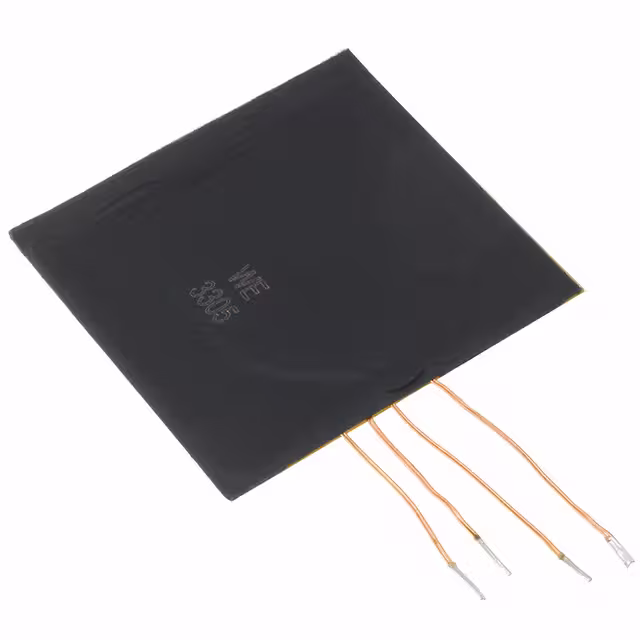

760308103305 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	4,620	-	立即询价	规格书	WE-WPCC	Tray	Active	Receiver	2 Coil, 1 Layer	8.8µH, 1.4µH	±10%	220mOhm Max, 100mOhm Max	30 @ 125Khz, 47 @ 125kHz	2.6A, 5A	5A, 5A	22MHz, 16MHz	-20°C ~ 105°C	1.77" L x 1.73" W x 0.03" H (45.0mm x 44.0mm x 0.75mm)
IWTX47R0DAEB6R3JF1 IWTX-47R0DA-F1 6.3 5% EB E2 Vishay Dale	4,470	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±5%	40mOhm	190 @ 200kHz	7A	22A	-	-40°C ~ 105°C	1.81" L x 1.81" W x 0.22" H (46.0mm x 46.0mm x 5.6mm)
IWAS4832ADEB150JF1 IWAS-4832AB-F1 11 5% EB E2 Vishay Dale	4,657	-	立即询价	规格书	-	Tray	Active	Receiver	1 Coil, 1 Layer	15µH	±5%	240mOhm	65 @ 200kHz	-	-	-	-40°C ~ 105°C	1.89" L x 1.26" W x 0.07" H (48.0mm x 32.0mm x 1.9mm)
IWTX47R0EBEB240JF1 IWTX-47R0EB-F1 24 5% EB E2 Vishay Dale	2,618	-	立即询价	规格书	-	Tray	Active	Transmitter	1 Coil, 1 Layer	24µH	±5%	75mOhm	200 @ 200kHz	6A	20A	-	-40°C ~ 105°C	1.85" Dia x 0.21" H (47.0mm x 5.3mm)
AWCCA-50N50H50-C01-B RX TX 1 COIL 1 LAYER 24UH 5.7A Abracon LLC	2,253	-	立即询价	规格书	AWCCA-50N50	Bulk	Not For New Designs	Receiver, Transmitter	1 Coil, 1 Layer	24µH	±10%	72mOhm	163 @ 100kHz	5.7A	30A	2.8MHz	-25°C ~ 85°C	1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)

共 267 记录«上一页 1 2 3 4 567 8 9...14 下一页»
