开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式
	B78304B1031A003 XFMR DC/DC CONV 1MH SMD EPCOS - TDK Electronics	3,798	-	立即询价	规格书	B78304B	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	1mH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.224" (5.70mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-

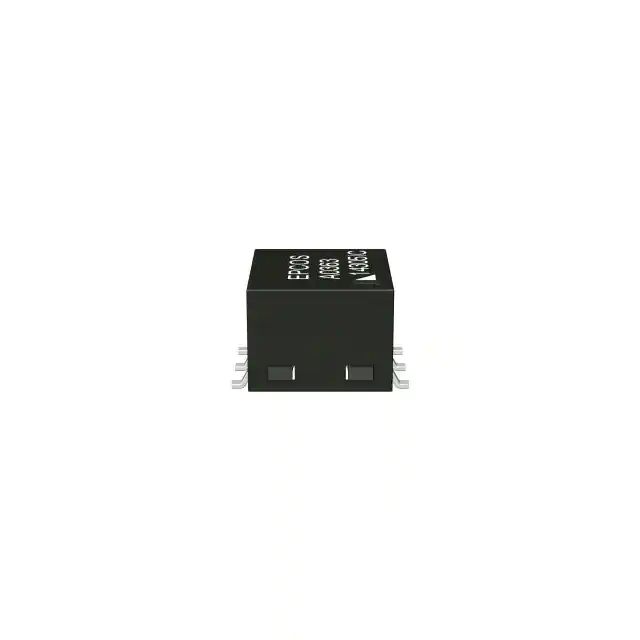

	B78304B1016A003 XFMR DC/DC CONV 4.3MH SMD EPCOS - TDK Electronics	3,444	-	立即询价	规格书	B78304B	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	4.3mH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.224" (5.70mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-

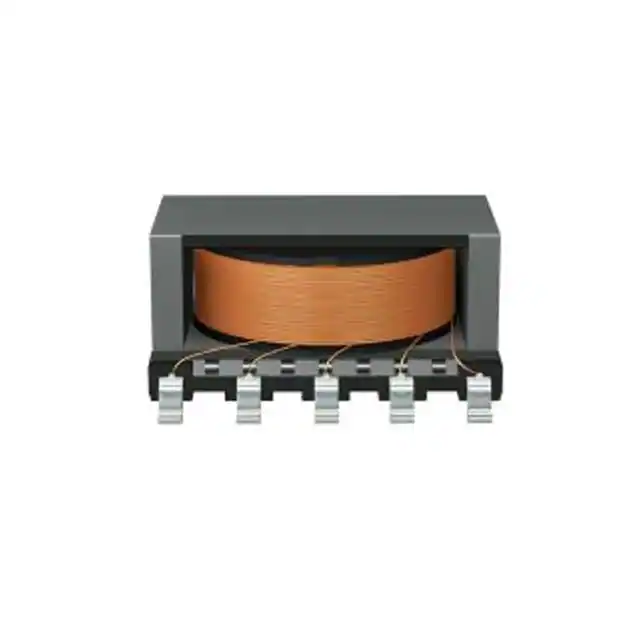

	B78334B1018A003 XFMR DC/DC CONV 288.3UH SMD EPCOS - TDK Electronics	1,147	-	立即询价	规格书	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	1200Vrms	288.3µH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.472" L x 0.535" W (12.00mm x 13.60mm)	0.252" (6.40mm)	0.480" L x 0.535" W (12.20mm x 13.60mm)	-

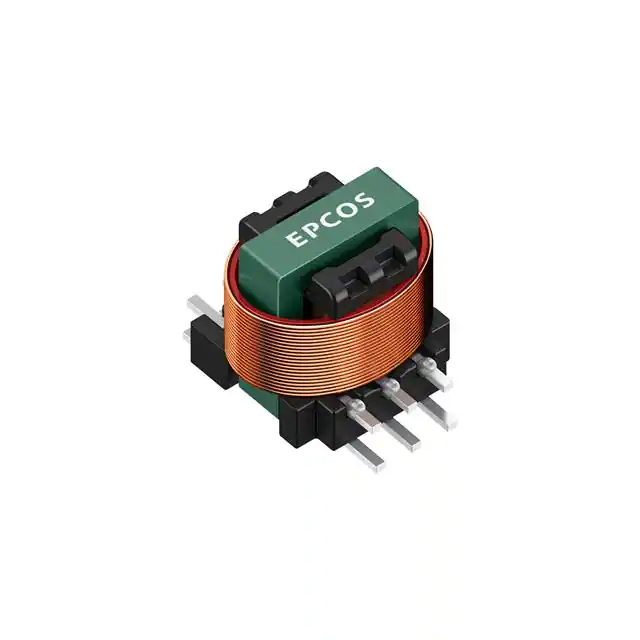

	B78302A2403A003 XFMR 4MH SMD EPCOS - TDK Electronics	2,046	-	立即询价	规格书	B78302	Tape & Reel (TR)	Last Time Buy	-	-	-	-	-	-	-	4mH @ 50kHz	50kHz	-40°C ~ 125°C	-	-	Surface Mount	0.307" L x 0.264" W (7.80mm x 6.70mm)	0.264" (6.70mm)	0.346" L x 0.264" W (8.80mm x 6.70mm)	Wirewound
	B78302A2401A003 XFMR 2MH SMD EPCOS - TDK Electronics	2,482	-	立即询价	规格书	B78302	Tape & Reel (TR)	Last Time Buy	-	-	-	-	-	-	-	2mH @ 50kHz	50kHz	-40°C ~ 125°C	-	-	Surface Mount	0.307" L x 0.264" W (7.80mm x 6.70mm)	0.264" (6.70mm)	0.346" L x 0.264" W (8.80mm x 6.70mm)	Wirewound
	B78302A2402A003 XFMR 3MH SMD EPCOS - TDK Electronics	3,092	-	立即询价	规格书	B78302	Tape & Reel (TR)	Last Time Buy	-	-	-	-	-	-	-	3mH @ 50kHz	50kHz	-40°C ~ 125°C	-	-	Surface Mount	0.307" L x 0.264" W (7.80mm x 6.70mm)	0.264" (6.70mm)	0.346" L x 0.264" W (8.80mm x 6.70mm)	Wirewound

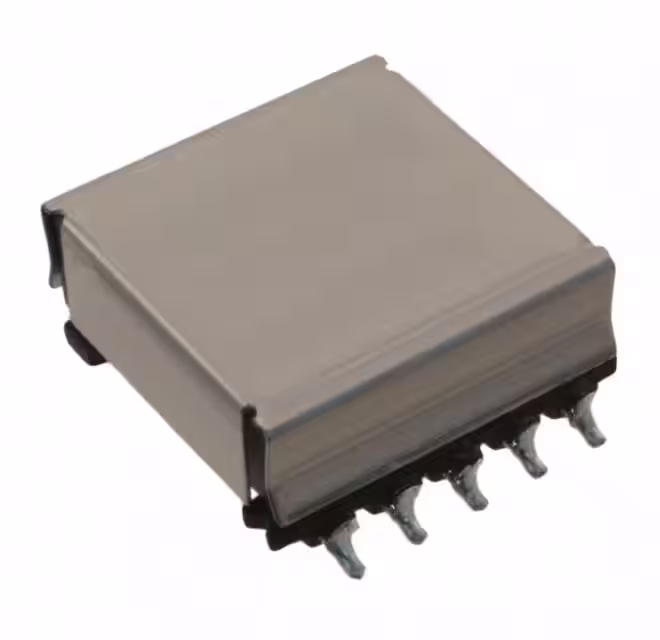

	B82802A0030A320 XFMR FLYBACK DC/DC CONV 40UH SMD EPCOS - TDK Electronics	4,128	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	40µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	0.866" L x 0.878" W (22.00mm x 22.30mm)	0.421" (10.70mm)	0.866" L x 1.035" W (22.00mm x 26.30mm)	-
	B82802A0030A220 XFMR FLYBACK DC/DC CONV 40UH SMD EPCOS - TDK Electronics	4,533	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	40µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	0.866" L x 0.878" W (22.00mm x 22.30mm)	0.421" (10.70mm)	0.866" L x 1.035" W (22.00mm x 26.30mm)	-

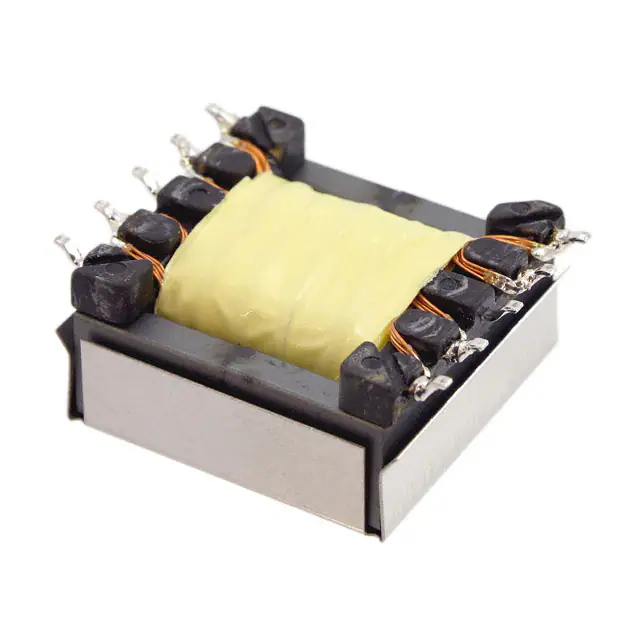

	B82802A0055A225 XFMR FLYBACK DC/DC CONV 22UH SMD EPCOS - TDK Electronics	1,214	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	22µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.583" (14.80mm)	1.063" L x 1.283" W (27.00mm x 32.60mm)	-
	B82802A0055A325 XFMR FLYBACK DC/DC CONV 22UH SMD EPCOS - TDK Electronics	1,291	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	22µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	-	0.583" (14.80mm)	1.063" L x 1.283" W (27.00mm x 32.60mm)	-

共 35 记录«上一页 1 234 下一页»
