开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式

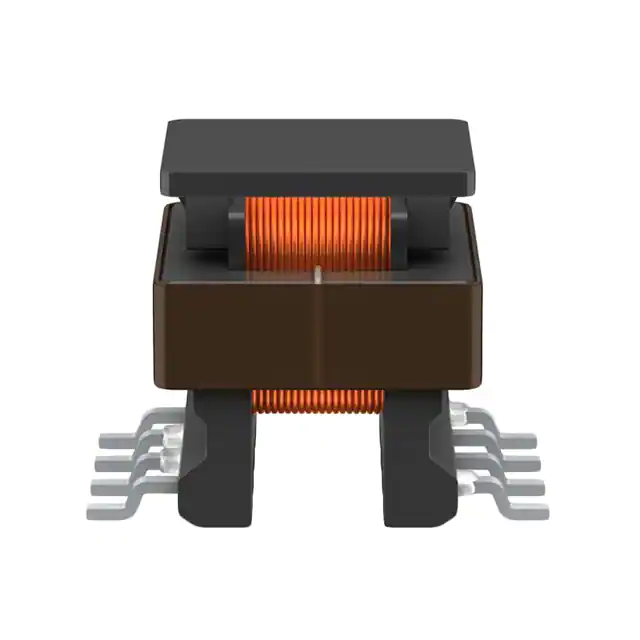

	B78307A2276A003 XFMR 100UH SMD EPCOS - TDK Electronics	5,019	-	立即询价	规格书	E10 EM	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	100µH @ 50kHz	100 ~ 400kHz	-40°C ~ 150°C	Automotive	AEC-Q200	Surface Mount	-	-	-	-
	B78307A9741A003 XFMR FLYBACK DC/DC CONV 100UH SM EPCOS - TDK Electronics	326	-	立即询价	规格书	E10 EM	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	100µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Automotive	AEC-Q200	Surface Mount	0.461" L x 0.367" W (11.70mm x 9.33mm)	0.447" (11.35mm)	0.518" L x 0.461" W (13.15mm x 11.70mm)	-

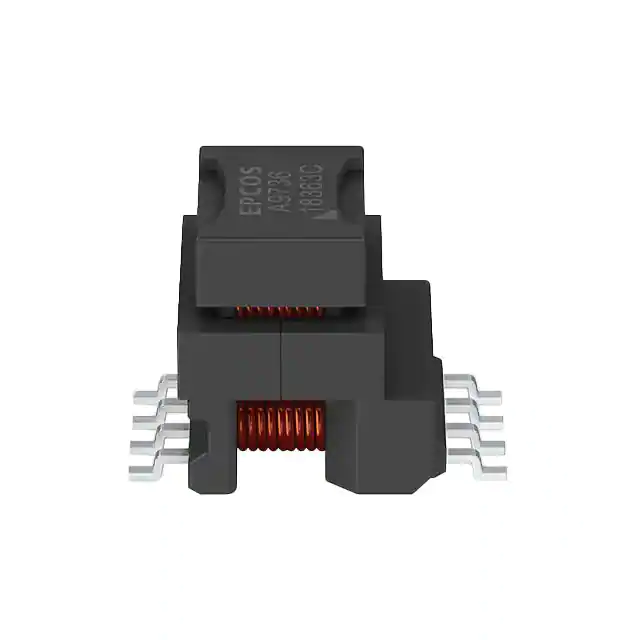

	B78308A2485A003 XFMR FWD P-P DC/DC CONV 90UH SMD EPCOS - TDK Electronics	160	-	立即询价	规格书	E13 EMHV	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3000Vrms	90µH @ 100kHz	100 ~ 400kHz	-40°C ~ 150°C	-	-	Surface Mount	0.508" L x 0.433" W (12.90mm x 11.00mm)	0.449" (11.40mm)	0.622" L x 0.508" W (15.80mm x 12.90mm)	-
	B78308A2484A003 XFMR FWD P-P DC/DC CONV 90UH SMD EPCOS - TDK Electronics	224	-	立即询价	规格书	E13 EMHV	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3000Vrms	90µH @ 100kHz	100 ~ 400kHz	-40°C ~ 150°C	-	-	Surface Mount	0.508" L x 0.433" W (12.90mm x 11.00mm)	0.449" (11.40mm)	0.622" L x 0.508" W (15.80mm x 12.90mm)	-
	B78308A2461A003 XFMR FLYBACK DC/DC CONV 4.1UH SM EPCOS - TDK Electronics	204	-	立即询价	规格书	E13 EMHV	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	3000Vrms	4.1µH @ 100kHz	100 ~ 400kHz	-40°C ~ 150°C	-	-	Surface Mount	0.508" L x 0.433" W (12.90mm x 11.00mm)	0.449" (11.40mm)	0.622" L x 0.508" W (15.80mm x 12.90mm)	-
	B82805A943A250 XFMR FWD P-P DC/DC CONV 94UH SMD EPCOS - TDK Electronics	4,597	-	立即询价	规格书	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	94µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-
	B82805A0773A250 XFMR FWD P-P DC/DC CONV 77UH SMD EPCOS - TDK Electronics	1,504	-	立即询价	规格书	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	77µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-
	B78307A2385A003 XFMR FLYBACK DC/DC CONV 10UH SMD EPCOS - TDK Electronics	280	-	立即询价	规格书	E10 EM	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	10µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Automotive	AEC-Q200	Surface Mount	0.461" L x 0.367" W (11.70mm x 9.33mm)	0.447" (11.35mm)	0.518" L x 0.461" W (13.15mm x 11.70mm)	-

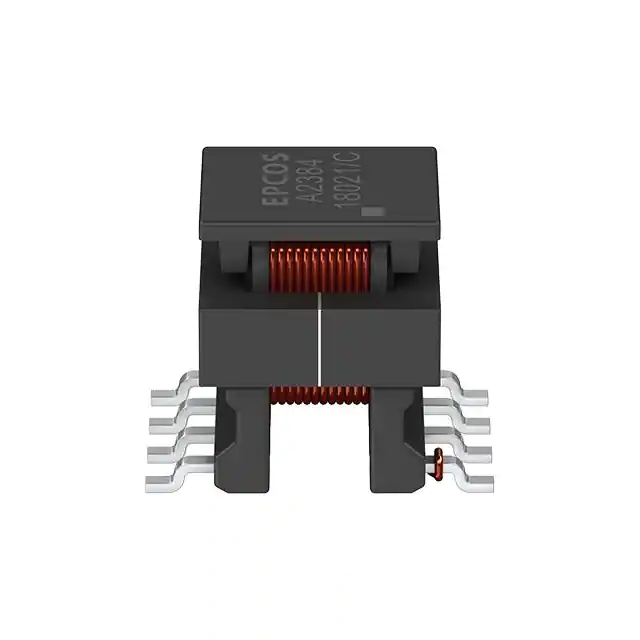

	B78307A2338A003 XFMR FLYBACK DC/DC CONV 2UH SMD EPCOS - TDK Electronics	218	-	立即询价	规格书	E10 EM	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	-	2µH @ 100kHz	100 ~ 500kHz	-40°C ~ 150°C	Automotive	AEC-Q200	Surface Mount	0.461" L x 0.367" W (11.70mm x 9.33mm)	0.447" (11.35mm)	0.518" L x 0.461" W (13.15mm x 11.70mm)	-

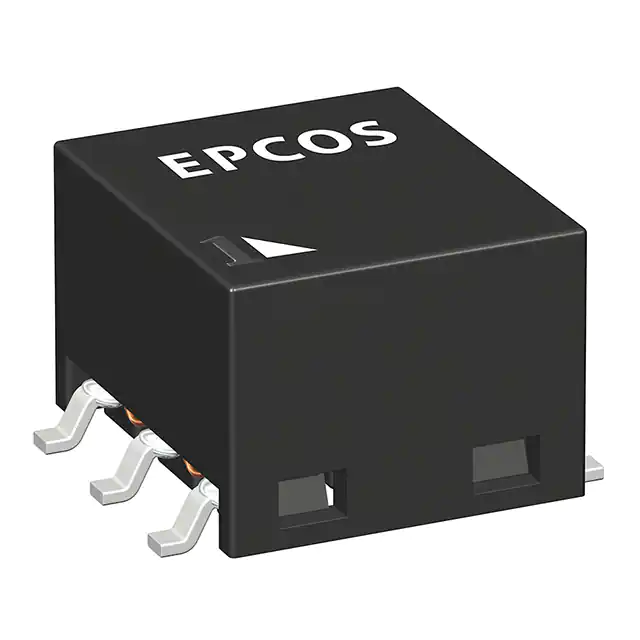

	B78304B1032A003 XFMR DC/DC CONV 10MH SMD EPCOS - TDK Electronics	850	-	立即询价	规格书	B78304B	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	10mH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.224" (5.70mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-

共 35 记录«上一页12 3 4 下一页»
