开关转换器、开关电源（SMPS）变压器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	类型	应用	适用芯片组	芯片组制造商	电压 - 初级	电压 - 辅助	电压 - 隔离	电感 @ 频率	频率	工作温度	等级	认证	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	占地面积	样式

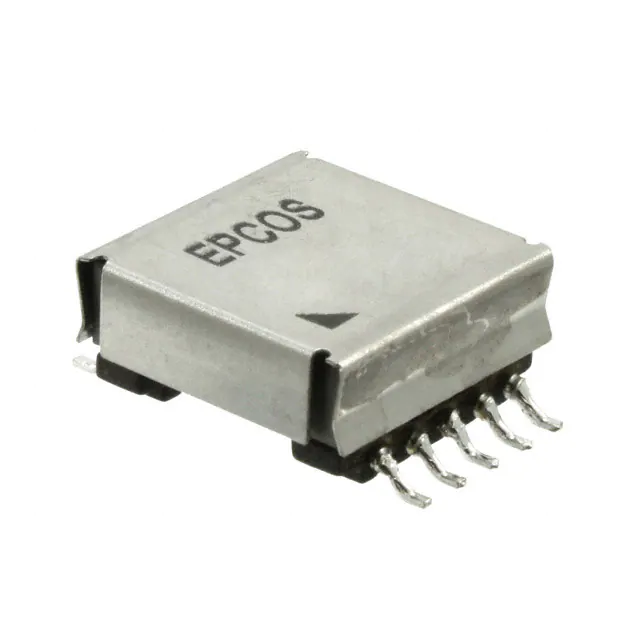

	B82802A0012A315 XFMR FLYBACK DC/DC CONV 100UH SM EPCOS - TDK Electronics	101	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	100µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	0.650" L x 0.681" W (16.50mm x 17.30mm)	0.341" (8.65mm)	0.650" L x 0.902" W (16.50mm x 22.90mm)	-
	B78308A2387A003 XFMR FWD P-P DC/DC CONV 100UH SM EPCOS - TDK Electronics	138	-	立即询价	规格书	E13 EMHV	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	3000Vrms	100µH @ 100kHz	100 ~ 400kHz	-40°C ~ 150°C	-	-	Surface Mount	0.508" L x 0.433" W (12.90mm x 11.00mm)	0.449" (11.40mm)	0.622" L x 0.508" W (15.80mm x 12.90mm)	-
	B78308A2462A003 XFMR FLYBACK DC/DC CONV 4.1UH SM EPCOS - TDK Electronics	189	-	立即询价	规格书	E13 EMHV	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	-	-	3000Vrms	4.1µH @ 100kHz	100 ~ 400kHz	-40°C ~ 150°C	-	-	Surface Mount	0.508" L x 0.433" W (12.90mm x 11.00mm)	0.449" (11.40mm)	0.622" L x 0.508" W (15.80mm x 12.90mm)	-
	B82805A0173A250 XFMR FWD P-P DC/DC CONV 17UH SMD EPCOS - TDK Electronics	509	-	立即询价	规格书	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	17µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-
	B82805A0363A250 XFMR FWD P-P DC/DC CONV 36UH SMD EPCOS - TDK Electronics	306	-	立即询价	规格书	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	36µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-
	B78334B1033A003 XFMR DC/DC CONV 100UH SMD EPCOS - TDK Electronics	251	-	立即询价	规格书	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	1000Vrms	100µH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.472" L x 0.535" W (12.00mm x 13.60mm)	0.252" (6.40mm)	0.480" L x 0.535" W (12.20mm x 13.60mm)	-
	B78334B1034A003 XFMR DC/DC CONV 1.08MH SMD EPCOS - TDK Electronics	496	-	立即询价	规格书	-	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	1000Vrms	1.08mH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.472" L x 0.535" W (12.00mm x 13.60mm)	0.252" (6.40mm)	0.480" L x 0.535" W (12.20mm x 13.60mm)	-
	B82805A0952A250 XFMR FWD P-P DC/DC CONV 9.5UH SM EPCOS - TDK Electronics	740	-	立即询价	规格书	B82805	Tape & Reel (TR)	Active	For DC/DC Converters	Forward, Push-Pull Converters	-	-	-	-	500VAC	9.5µH @ 50kHz	250kHz	-25°C ~ 125°C	-	-	Surface Mount	0.315" L x 0.236" W (8.00mm x 6.00mm)	0.224" (5.70mm)	0.315" L x 0.378" W (8.00mm x 9.60mm)	-

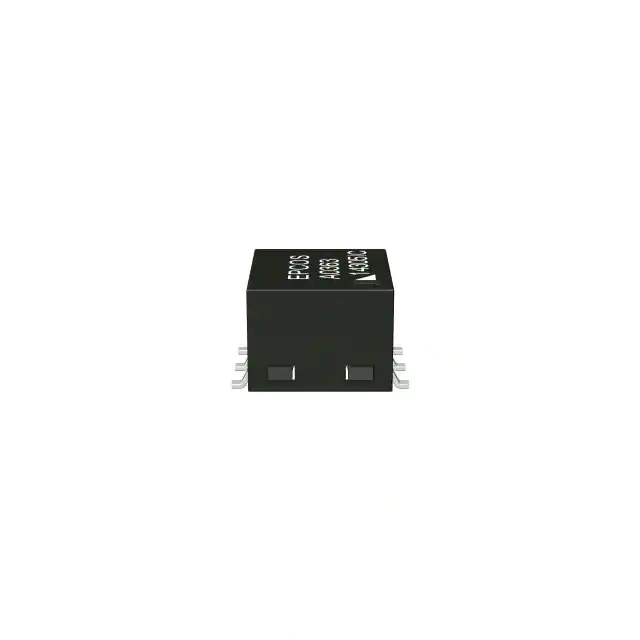

	B78304B1030A003 XFMR DC/DC CONV 100UH SMD EPCOS - TDK Electronics	1,763	-	立即询价	规格书	B78304B	Tape & Reel (TR)	Active	For DC/DC Converters	-	-	-	-	-	500Vrms	100µH @ 10kHz	-	-40°C ~ 85°C	-	-	Surface Mount	0.315" L x 0.276" W (8.00mm x 7.00mm)	0.224" (5.70mm)	0.315" L x 0.374" W (8.00mm x 9.50mm)	-
	B82802A0012A215 XFMR FLYBACK DC/DC CONV 100UH SM EPCOS - TDK Electronics	2,499	-	立即询价	规格书	B82802A	Tape & Reel (TR)	Active	For DC/DC Converters	Flyback Converters	-	-	36 ~ 60V	-	1500Vrms	100µH @ 100kHz	100kHz	-40°C ~ 125°C	-	-	Surface Mount	0.650" L x 0.681" W (16.50mm x 17.30mm)	0.341" (8.65mm)	0.650" L x 0.902" W (16.50mm x 22.90mm)	-

共 35 记录«上一页 123 4 下一页»
