购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OWS-484833TA-4SPEAKER 4OHM 6W TOP PORT 83DB |
183 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 170Hz | 4 Ohms | 83.00 | 6W/10cm | Sound Pressure Level (SPL) | 6 W | 8 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.890" L x 1.890" W (48.00mm x 48.00mm) |
|
SMS2020-08H4.5SPEAKER 8OHM 500MW TOP PORT 93DB |
695 |
|
规格书 |
SMS | Box | Active | Magnetic | General Purpose | 950 Hz ~ 950 Hz | 850Hz | 8 Ohms | 93.00 | 500mW/100cm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Square | - | Nd-Fe-B | - | - | - | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
PMT-30N18AL04-04SPEAKR 3.91OHM 1.5W TOP 78.5DB |
1,314 |
|
规格书 |
PMT | Bulk | Active | Magnetic | Full Range | 250 Hz ~ 20 kHz | 249.75Hz | 3.91 Ohms | 78.50 | 1W/1M | Half Space Sensitivity | 1.5 W | - | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.339" Dia (34.00mm) |
|
D0057008NM130ARLoudspeaker, 57 mm ; 8 Ohms, 1W |
199 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 510 Hz ~ 3 kHz | 510Hz | 9.2 Ohms | 91.20 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads with Connector | 2.244" Dia (57.00mm) |
|
OC16SC00-04SPEAKR 4.33OHM 100W TOP 82.8DB |
400 |
|
规格书 |
OC | Bulk | Obsolete | Magnetic | Tweeter | 2.5 kHz ~ 20 kHz | 2082.09Hz | 4.33 Ohms | 82.80 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Nd | - | - | Solder Eyelet(s) | 1.024" Dia (26.00mm) |
|
|
CS45-04D20-28-1SPEAKER 4 OHM 4W 84DB |
947 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 160 Hz ~ 20 kHz | 200Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Solder Pads | 1.780" L x 1.780" W (45.20mm x 45.20mm) |
|

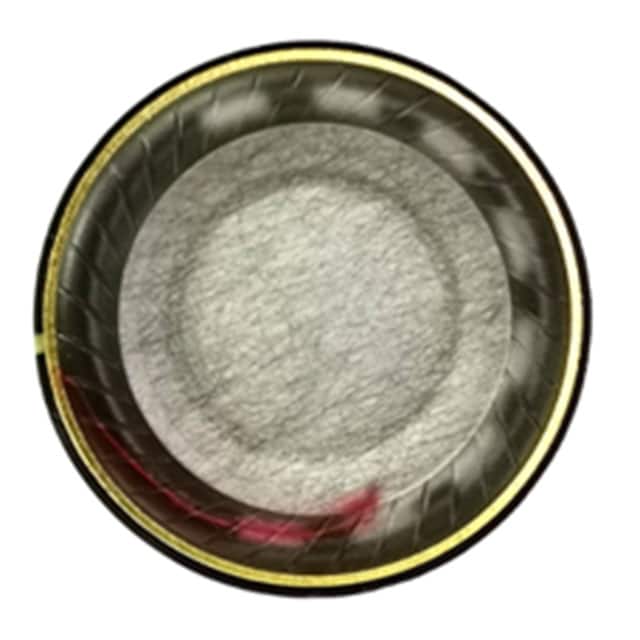

NS40P-320004-72-03SPEAKER 32OHM 40MW 78DB |
2,171 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 20 Hz ~ 20 kHz | - | 32 Ohms | 78.00 | 100mW/100mm | Sound Pressure Level (SPL) | 40 mW | 100 mW | - | Round | Bio-Cellulose Diaphragm | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
|
D5353004NR023WERLoudspeaker 53x53 mm ; 4Ohms 3W |
209 |
|
规格书 |
- | Tray | Active | Magnetic | Full Range | 150 Hz ~ 10 kHz | 150Hz | 4 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round, Square Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 2.087" L x 2.087" W (53.00mm x 53.00mm) |
|
|
BHS1324-11-08H6.5W050JDynamic Exciter 13x24mm External |
250 |
|
- |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TEBM35C10-4BALANCED MODE RADIATOR 54mm |
103 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20000 Hz | 185Hz | 4 Ohms | 80.00 | 1W/1m | Sensitivity | 10 W | - | Top | Round | Paper | Nd-Fe-B | - | - | - | 2.126" Dia (54.00mm) |
|
|
D0050008NC22JARLoudspeaker 50mm ; 8 Ohms, 0.5W |
249 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 6 kHz | 240Hz | 8 Ohms | 88.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.969" Dia (50.00mm) |
|
PMT-40N25AL01-04SPEAKER 4.39OHM 5W TOP PT 82.8DB |
1,817 |
|
规格书 |
PMT | Bulk | Active | Magnetic | Full Range | 100 Hz ~ 20 kHz | 234.6Hz | 4.39 Ohms | 82.80 | 1W/1M | Half Space Sensitivity | 5 W | - | Top | Round, Square Frame | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.594" L x 1.594" W (40.50mm x 40.50mm) |
|
|
TEBM28C10-4BBALANCED MODE RADIATOR 55mm |
164 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 150 Hz ~ 20000 Hz | 145Hz | 4 Ohms | 80.00 | 1W/1m | Sensitivity | 10 W | - | Top | Round | Paper | Nd-Fe-B | - | - | - | 2.165" Dia (55.00mm) |
|
SPK-8032BVT-LFSPEAKER 8OHM 80MW TOP PORT 73DB |
1,040 |
|
规格书 |
- | Box | Active | Magnetic | General Purpose | 500 Hz ~ 4 kHz | 1500Hz | 8 Ohms | 73.00 | - | Sound Pressure Level (SPL) | 80 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | Washable | PC Pins | 0.906" Dia (23.00mm) |
|
|
930101" X 3" WIDE RANGE SPEAKER |
181 |
|
规格书 |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 592 Hz ~ 8 kHz | 592Hz | 8 Ohms | 83.00 | - | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Quick Connect | 2.764" L x 1.189" W (70.21mm x 30.20mm) |
|
|
930122" X 3" WIDE RANGE SPEAKER |
198 |
|
规格书 |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 150 Hz ~ 19 kHz | 211Hz | 8 Ohms | 92.00 | - | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Oval, Rectangular Frame | Polypropylene (PP) | Nd-Fe-B | - | - | Quick Connect | 2.795" L x 1.614" W (70.99mm x 41.00mm) |
|
|
930032" ALUMINUM WIDE RANGE SPEAKER |
189 |
|
规格书 |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 125 Hz ~ 20 kHz | 155Hz | 8 Ohms | 80.00 | - | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Round | Aluminum | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.040" Dia (51.82mm) |
|
|
930182" X 3.5" WIDE RANGE SPEAKER |
199 |
|
规格书 |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 20 kHz ~ 258 kHz | 258Hz | 8 Ohms | 88.00 | - | Sound Pressure Level (SPL) | 9 W | 18 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Quick Connect | 3.543" L x 1.969" W (89.99mm x 50.01mm) |
|
SPK-I-81345SPEAKER 100DB ROUND PIEZO TWEET |
405 |
|
规格书 |
- | Box | Active | Piezo | Tweeter | 2.5 kHz ~ 60 kHz | 4kHz | - | 100.00 | 1W/10cm | Sound Pressure Level (SPL) | - | - | - | Round | Paper | Piezo Ceramic | - | - | Solder Eyelet(s) | 2.008" Dia (51.00mm) |
|
|
930152X4" OUTDOOR WIDE BAND MIDWOOFER |
190 |
|
规格书 |
- | Tape & Box (TB) | Active | Magnetic | Full Range | 10 Hz ~ 100 kHz | 130Hz | 6 Ohms | 84.00 | - | Sound Pressure Level (SPL) | 10 W | 20 W | Top | Rectangular | Polypropylene (PP) | Nd-Fe-B | - | - | Quick Connect | 3.941" L x 2.366" W (100.10mm x 60.10mm) |
