| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OWR-3507T-36ASPEAKER 36OHM 10MW TOP PT 97.4DB |
672 |
|
规格书 |
- | Bulk | Active | Magnetic | Headphone Driver | 20 Hz ~ 20 kHz | 72Hz | 36 Ohms | 97.40 | 10mW/10mm | Sensitivity | 10 mW | 20 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.378" Dia (35.00mm) |
|
CAC25-01W75-07-1XSPEAKER 6OHM 1W TOP PORT 93DB |
615 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 6 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Square | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 0.984" L x 0.984" W (25.00mm x 25.00mm) |
|
CS12-00P43-02-1XSPEAKER 8OHM 0.7W 81DB |
939 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 344 Hz ~ 20 kHz | 430Hz | 8 Ohms | 81.00 | 100mW/10cm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK), Aluminum | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.472" L x 0.315" W (12.00mm x 8.00mm) |
|
|
CAC20-01W95-07-1XCHAMBER ASSEMBLY |
2,928 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 8 Ohms | 94.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Square | Polyphthalamide (PPA) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 0.787" L x 0.787" W (20.00mm x 20.00mm) |
|
S20X35VFS-2WSPEAKER 8OHM 2W TOP PORT 86DB |
1,300 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 18 kHz | 240Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 5 W | Top | Oval, Rectangular Frame | Paper | - | - | - | Quick Connect | 3.543" L x 1.969" W (90.00mm x 50.00mm) |
|
|
CS20-01P63-02-1SPEAKER 8OHM 1W 94.5DB |
990 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 630Hz | 8 Ohms | 94.50 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 0.787" L x 0.630" W (20.00mm x 16.00mm) |
|
|
OWS-4021TA-4SPEAKER 4OHM 3W TOP PORT 104DB |
131 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 180Hz | 4 Ohms | 104.00 | 3W/10cm | Sensitivity | 3 W | 5 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
CS23-01P100-03-1XSPEAKER 8OHM 1.5W TOP PORT 103DB |
785 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 8 Ohms | 103.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.906" L x 0.433" W (23.00mm x 11.00mm) |
|
CS18-02P110-03-1XSPEAKER 4OHM 2W TOP PORT 104DB |
446 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
|
|
OWS-3117TA-4SPEAKER 4OHM 2W TOP PORT 100DB |
236 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 240Hz | 4 Ohms | 100.00 | 2W/10cm | Sensitivity | 2 W | 2.5 W | Top | Round | Plastic | Nd-Fe-B | - | - | Solder Pads | 1.220" Dia (31.00mm) |
|
CDS-27204-L100SPEAKER 4OHM 2W TOP PORT 93DB |
2,180 |
|
规格书 |
CDS | Bulk | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 4 Ohms | 93.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads | 1.063" L x 0.787" W (27.00mm x 20.00mm) |
|
GA0501SPEAKER 8OHM 250MW TOP PORT 89DB |
3,710 |
|
规格书 |
GA | Tray | Active | Magnetic | General Purpose | 430 Hz ~ 4 kHz | 430Hz | 8 Ohms | 89.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|

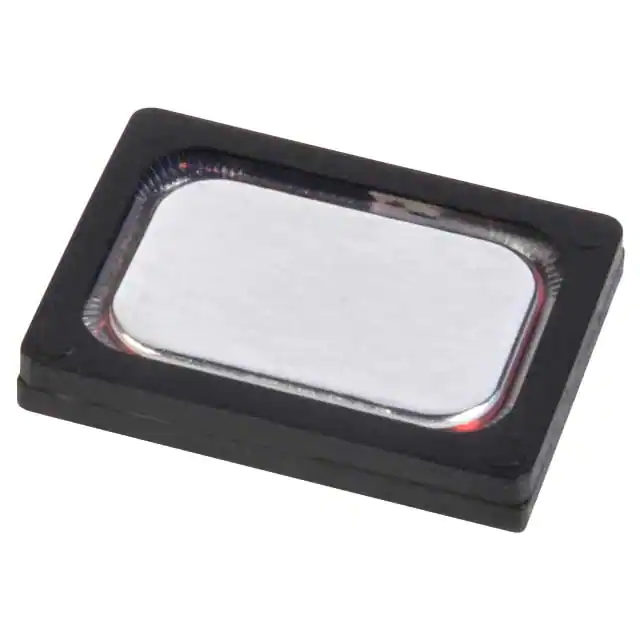

CDS-15118BSPEAKER 8OHM 700MW TOP PORT 86DB |
3,010 |
|
规格书 |
CDS | Bulk | Obsolete | Magnetic | General Purpose | 400 Hz ~ 20 kHz | 500Hz | 8 Ohms | 86.00 | 500mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

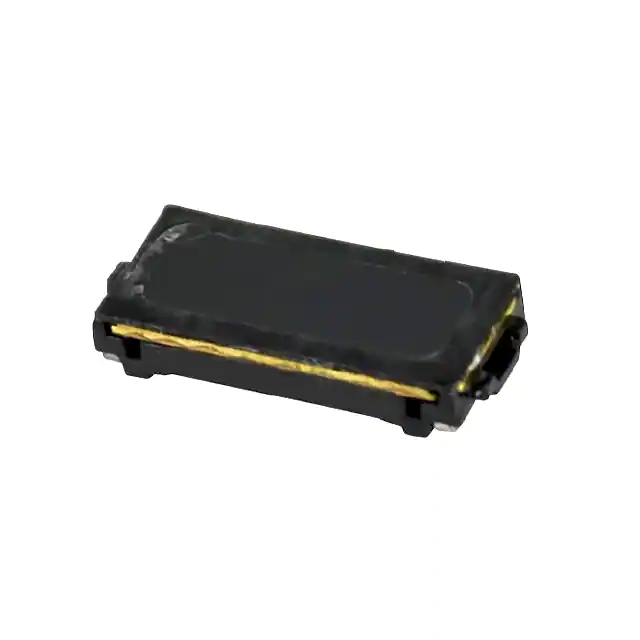

CMR-120632-2-SPSPEAKR 32OHM 20MW TOP PORT 110DB |
2,921 |
|
规格书 |
CMR | Bulk | Obsolete | Magnetic | Receiver | 300 Hz ~ 6.5 kHz | 300Hz | 32 Ohms | 110.00 | 1mW/100mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
CS28-02W57-07-1XSPEAKER 4OHM 2W TOP PORT 103DB |
910 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 456 Hz ~ 20 kHz | 570Hz | 4 Ohms | 103.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 1.102" Dia (28.00mm) |
|

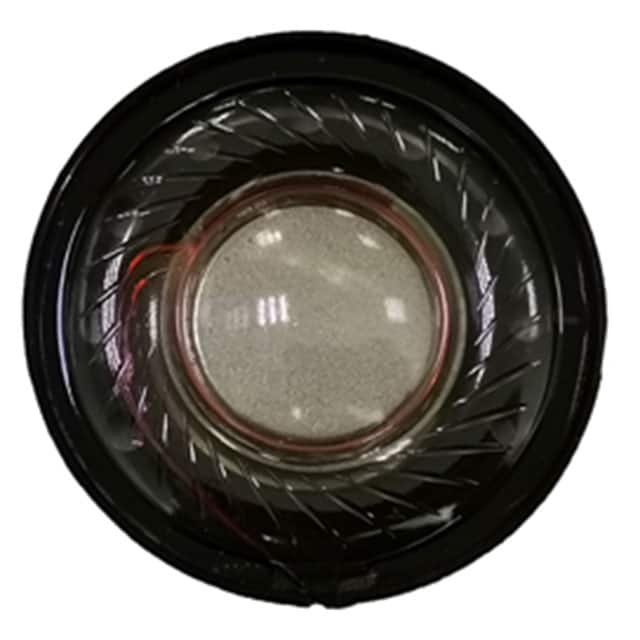

NS30M-300001-03SPEAKER 300OHM 10MW 105DB |
1,043 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 20 Hz ~ 20 kHz | 260Hz | 300 Ohms | 105.00 | - | Sound Pressure Level (SPL) | 10 mW | 30 mW | - | Round | - | Nd-Fe-B | - | - | Solder Pads | 1.165" Dia (29.60mm) |
|
|
CS13-00S85-04-613X13MM SMT SPEAKER |
2,136 |
|
规格书 |
- | Tape & Reel (TR) | Active | Magnetic | General Purpose | 680 Hz ~ 20 kHz | 850Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Cobalt | - | - | Solder Pads | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
|
|
CS15-00S80-04-115X15MM SMT SPEAKER |
1,345 |
|
规格书 |
- | Tape & Reel (TR) | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 800Hz | 8 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyimide (PI) | Cobalt | - | - | Solder Pads | 0.591" L x 0.591" W (15.00mm x 15.00mm) |
|
|
CAC24-01W120-05-1XCHAMBER ASSEMBLY |
1,321 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 960 Hz ~ 20 kHz | 1.2kHz | 8 Ohms | 95.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Oval | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads with Connector | 0.945" L x 0.591" W (24.00mm x 15.00mm) |
|
|
CS28-02W190-05-1XSPEAKER 8OHM 2W TOP PORT 103DB |
1,046 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 1.52 kHz ~ 7 kHz | 1.9kHz | 8 Ohms | 103.00 | 500mW/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.102" Dia (28.00mm) |
