| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CAC40-02W100-09-1CHAMBER ASSEMBLY |
810 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Side | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.024" W (40.00mm x 26.00mm) |
|
S110SL-REV 1SPEAKER 8OHM 2W TOP PORT 82DB |
378 |
|
规格书 |
- | Tray | Active | Magnetic | Low Profile | 150 Hz ~ 20 kHz | 270Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|

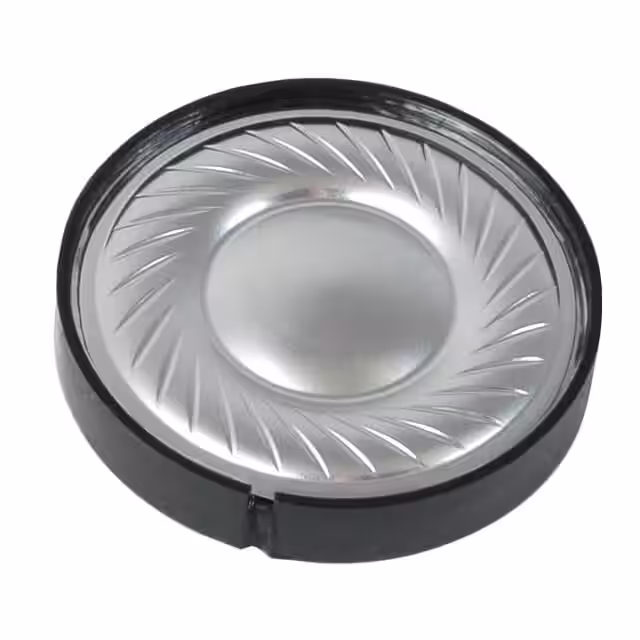

GC0302MSPEAKR 32OHM 30MW TOP PORT 120DB |
4,574 |
|
规格书 |
GC | Bulk | Active | Magnetic | General Purpose | 220 Hz ~ 3 kHz | 220Hz | 32 Ohms | 120.00 | 1mW/10mm | Sound Pressure Level (SPL) | 30 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.181" Dia (30.00mm) |
|
CS34-01P70-03-1SPEAKER 8OHM 1.5W TOP PORT 97DB |
941 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 97.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.339" L x 0.433" W (34.00mm x 11.00mm) |
|
|
CS40-01P60-05-3XSPEAKER IP67 8OHM 1W 98DB |
925 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 480 Hz ~ 20 kHz | 600Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 1.575" L x 0.512" W (40.00mm x 13.00mm) |
|
|
CAC25-02W100-10-1CHAMBER ASSEMBLY |
1,156 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1kHz | 4 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyphthalamide (PPA) | Nd-Fe-B | - | - | Wire Leads | 0.984" L x 0.748" W (25.00mm x 19.00mm) |
|
|
CS32-01W130-10-1XSPEAKER 8OHM 1.5W 101DB |
798 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 1.04 kHz ~ 7 kHz | 1300Hz | 8 Ohms | 101.00 | 1W/10cm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.276" Dia (32.40mm) |
|
|
OWS-5716TA-4CSPEAKER 4OHM 2W TOP PORT 112.5DB |
429 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 480Hz | 4 Ohms | 112.50 | 2W/10cm | Sensitivity | 2 W | 3 W | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 2.244" Dia (57.00mm) |
|
|
CAC35-01W110-05-2CHAMBER ASSEMBLY |
799 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Side | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
|
CAC32-02W110-13-1XCHAMBER ASSEMBLY |
1,000 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 105.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Round, Rectangular Frame | Polyetheretherketone (PEEK) | Nd-Fe-B | IPX7 | - | Wire Leads | 1.260" L x 0.787" W (32.00mm x 20.00mm) |
|
|
CS38-02P50-02-1SPEAKER 4OHM 2W 93DB |
988 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 500Hz | 4 Ohms | 93.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Thermoplastic Polyester Elastomer (TPEE) | Nd-Fe-B | - | - | Solder Pads | 1.496" L x 0.512" W (38.00mm x 13.00mm) |
|

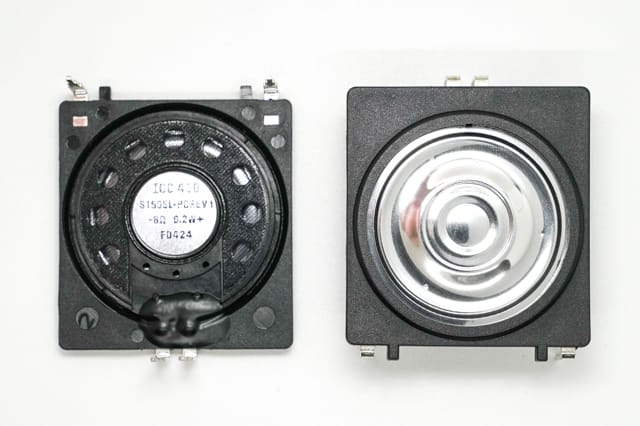

S150SL-PC REV.1SPEAKER 8OHM 250MW TOP PORT 79DB |
1,700 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 280 Hz ~ 7 kHz | 550Hz | 8 Ohms | 79.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Rare Earth | - | - | PC Pins | 1.693" L x 1.575" W (43.00mm x 40.00mm) |
|
|
CAC36-02W80-09-1CHAMBER ASSEMBLY |
995 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 640 Hz ~ 20 kHz | 800Hz | 4 Ohms | 111.00 | 2W/10cm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 1.417" L x 1.024" W (36.00mm x 26.00mm) |
|
CS25-02P95-05-1XSPEAKER 4OHM 2W TOP PORT 103DB |
998 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 4 Ohms | 103.00 | 1W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
|
SOD02902Y50L34mm round speaker, 50 ohms |
308 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 17 kHz | 450Hz | 50 Ohms | 72.00 | 100mW/1m | Sensitivity | 300 mW | 500 mW | Top | Round | - | Nd-Fe-B | - | - | Terminal Block | 1.339" Dia (34.00mm) |
|

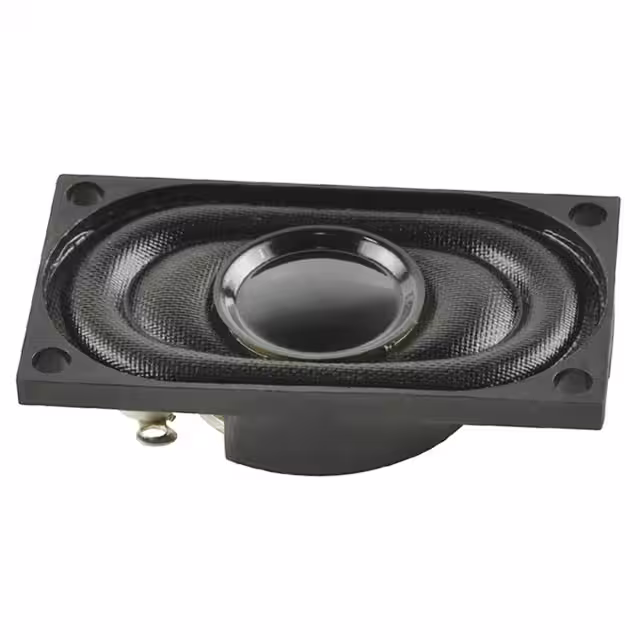

CMS-35208NSPEAKER 8OHM 1W TOP PORT 98DB |
1,106 |
|
规格书 |
CMS | Bulk | Obsolete | Magnetic | General Purpose | 576 Hz ~ 2.5 kHz | 720Hz | 8 Ohms | 98.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.398" L x 0.807" W (35.50mm x 20.50mm) |
|
OWR-4009T-38ESPEAKR 38OHM 10MW TOP PORT 115DB |
1,046 |
|
规格书 |
- | Bulk | Active | Magnetic | Headphone Driver | 20 Hz ~ 20 kHz | 3kHz | 38 Ohms | 115.00 | 1mW | Sensitivity | 10 mW | 20 mW | Top | Round | Plastic | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
|
CAC32-02W90-16-1XCHAMBER ASSEMBLY |
926 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose, Enclosure Included | 720 Hz ~ 20 kHz | 900Hz | 4 Ohms | 104.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Square | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX8 | - | Wire Leads with Connector | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|

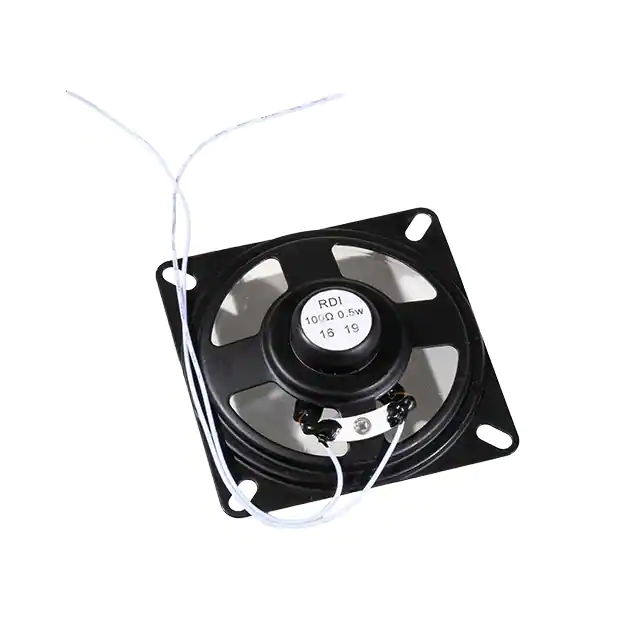

RNS-66100183NLSPEAKER 100OHM 500MW TOP PT 86DB |
259 |
|
规格书 |
- | Box | Active | Magnetic | General Purpose | 310 Hz ~ 10 kHz | 310Hz | 100 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round, Square Frame | - | - | - | - | Wire Leads | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|
|
P1511008NM28CMRLoudspeaker 15x11mm, 8Ohms, 0.8W |
1,979 |
|
规格书 |
- | Tray | Active | Magnetic | Microspeaker | - | 615Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1.2 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Contacts | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
