购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

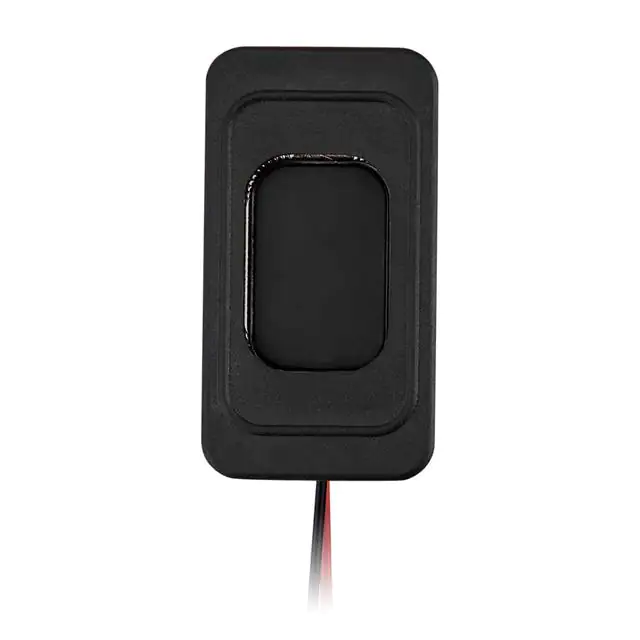

SPKM.2413.8.ASPEAKR 8 OHM 650MW TOP 93DB |
1,122 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 650 mW | 930 mW | Top | Oval, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" L x 0.354" W (28.00mm x 9.00mm) |
|

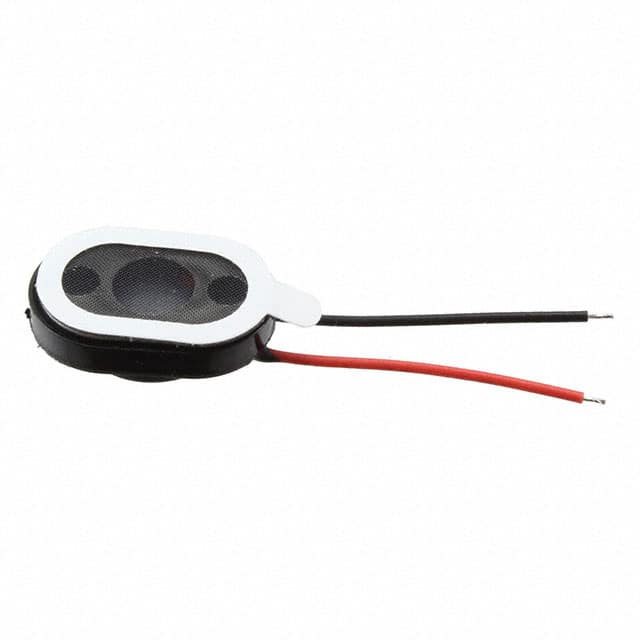

SP-1510SPEAKER 8OHM 500MW TOP PORT 85DB |
326 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.591" L x 0.394" W (15.00mm x 10.00mm) |
|
SM280508-1SPEAKER 8OHM 500MW TOP PORT 97DB |
1,193 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SP-1504-17SPEAKER 8OHM 500MW TOP PORT 93DB |
593 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1kHz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B N42 | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|

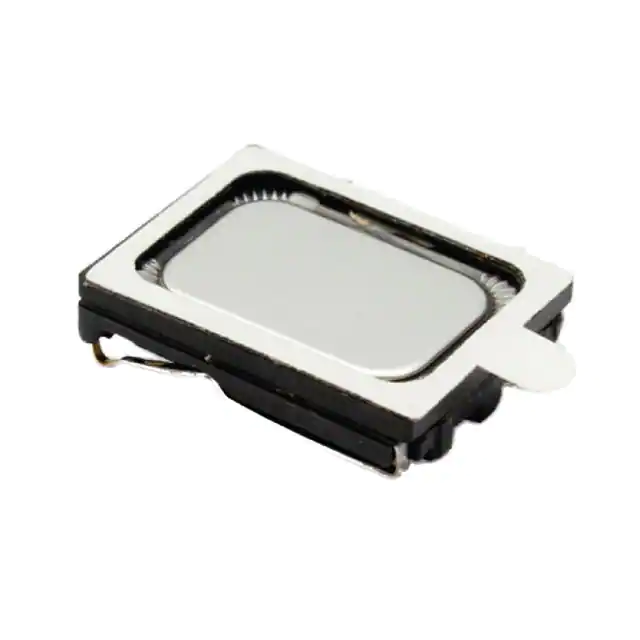

SP-1511S-4SPEAKER 8OHM 700MW TOP PORT 82DB |
277 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 950Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

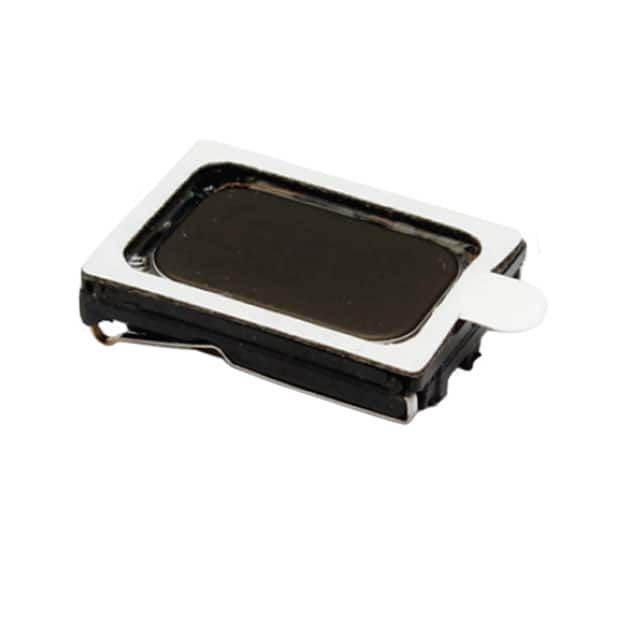

SP-1511S-2SPEAKER 8OHM 700MW TOP PORT 83DB |
112 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

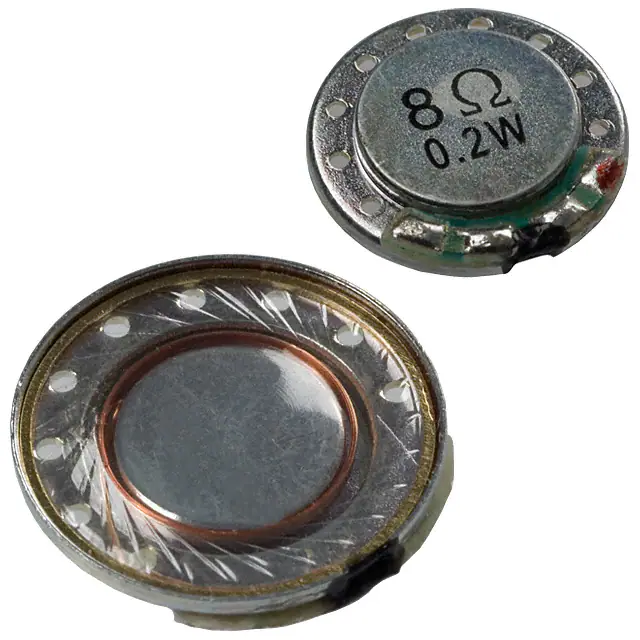

CDMG13008L-02SPEAKER 8OHM 200MW TOP PORT 75DB |
870 |
|
规格书 |
CDMG | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1050Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|

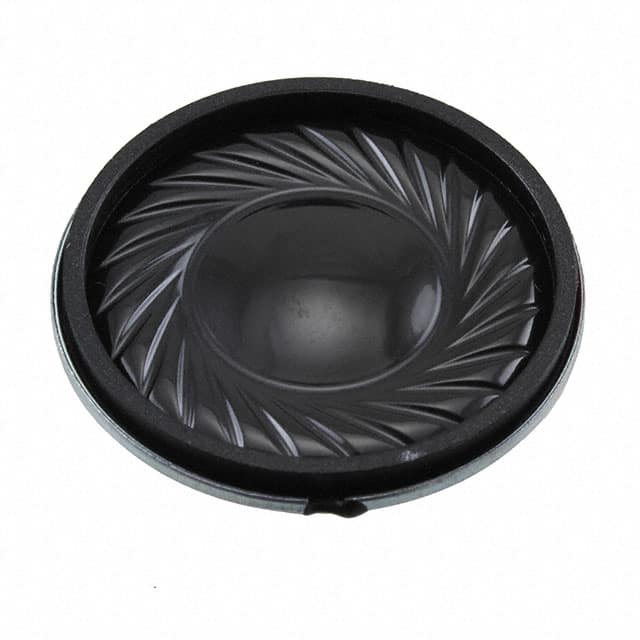

SP-2805SPEAKER 8OHM 300MW TOP PORT 91DB |
169 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 600Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

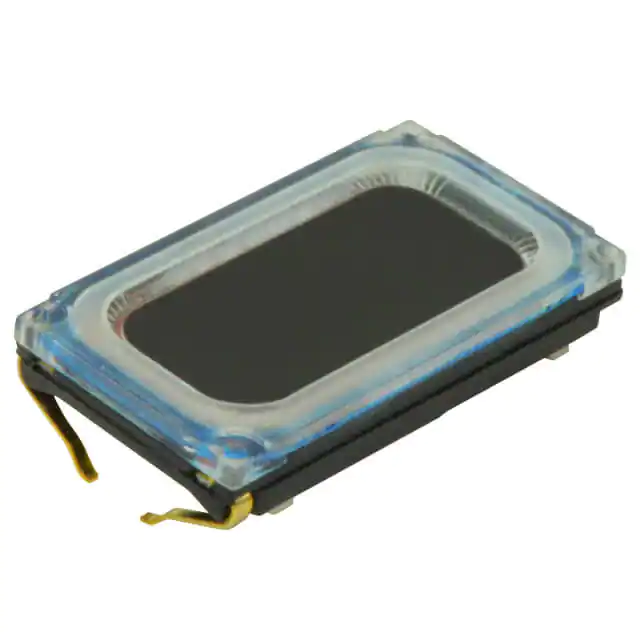

CMS-16093-076SSPEAKER 6OHM 700MW TOP PORT 90DB |
2,734 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

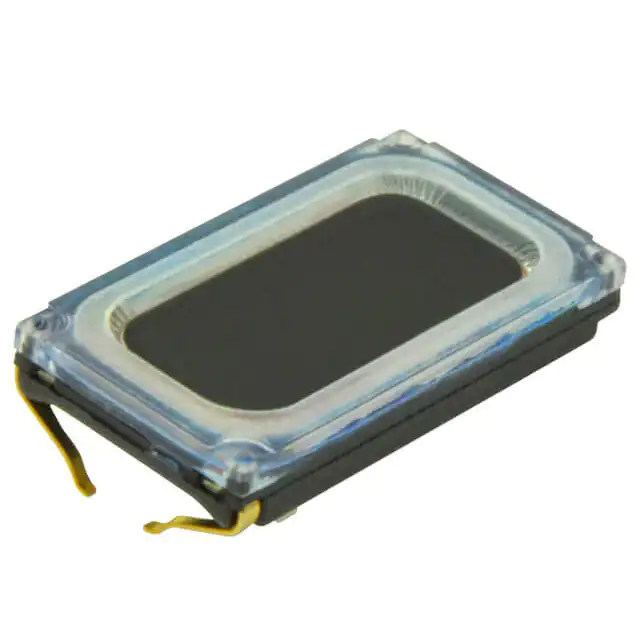

CMS-16093-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
1,158 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

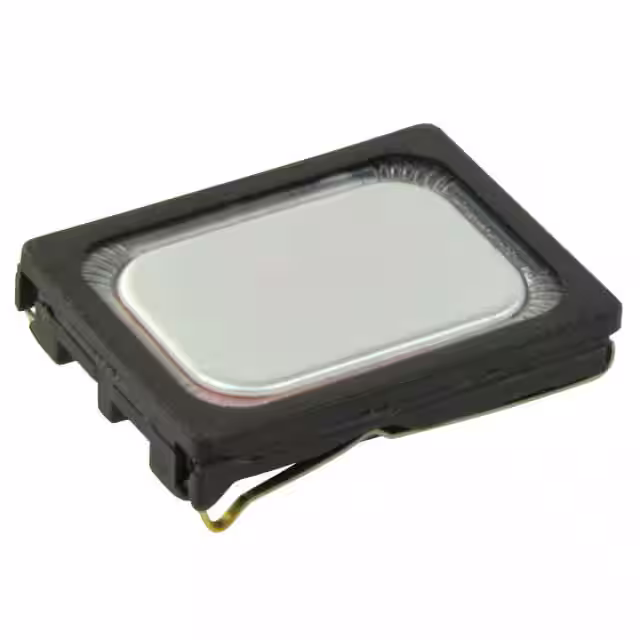

CMS-151125-076SSPEAKER 6OHM 700MW TOP PT 92.5DB |
899 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

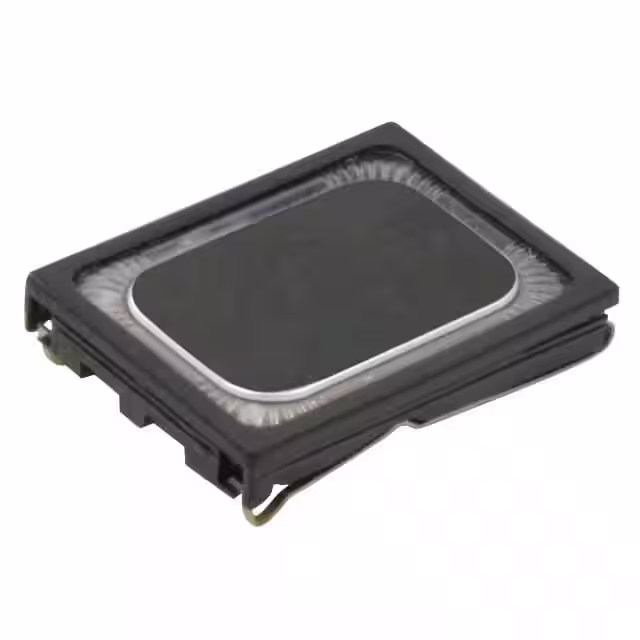

CMS-15113-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
842 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM160816-1SPEAKR 16OHM 300MW TOP PORT 85DB |
660 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | - | 16 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 600 mW | Top | Round | Polyethylene Naphthalate (PEN) | - | - | - | Solder Pads | 0.630" Dia (16.00mm) |
|

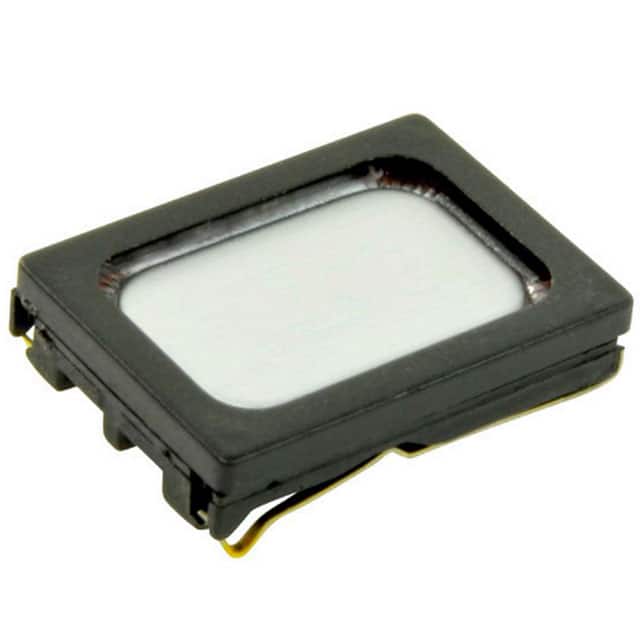

CMS-151125-076L100SPEAKER 6OHM 700MW TOP PT 92.5DB |
386 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM230808-1SPEAKER 8OHM 1W TOP PORT 92DB |
439 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 5 kHz | 950Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|

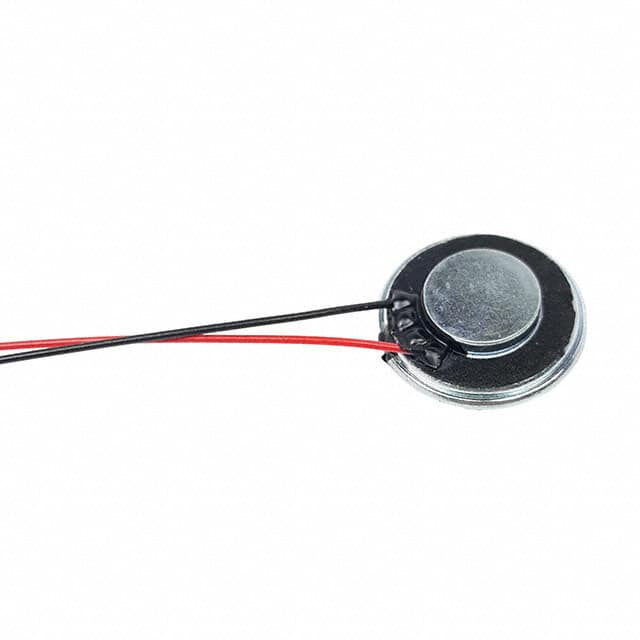

SP-2306-1SPEAKER 8OHM 1W TOP PORT 87DB |
136 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 750Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CMS-151125-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
688 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

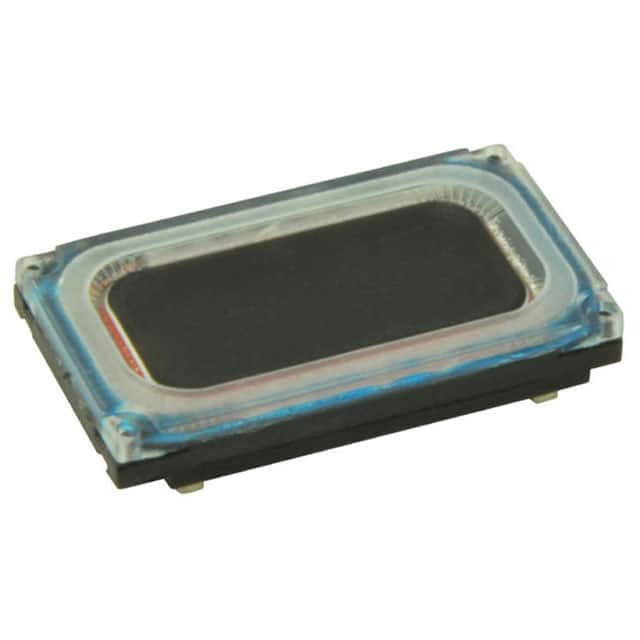

CMS-16093-076L100SPEAKER 6OHM 700MW TOP PORT 90DB |
536 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

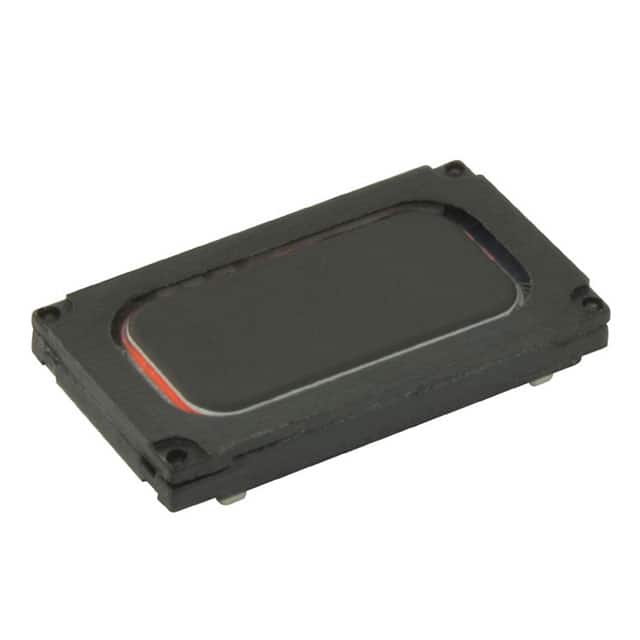

CMS-160925-078L100SPEAKER 8OHM 700MW TOP PORT 90DB |
265 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-16093-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
958 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
