购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RC-1206SPEAKR 32OHM 10MW TOP PORT 110DB |
447 |
|
规格书 |
RC | Tray | Active | Magnetic | Receiver | 200 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B N42 | - | - | Wire Leads | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
RC-1206S-1SPEAKR 32OHM 10MW TOP PORT 110DB |
241 |
|
规格书 |
RC | Tray | Active | Magnetic | Receiver | 200 Hz ~ 3.4 kHz | - | 32 Ohms | 110.00 | - | Sound Pressure Level (SPL) | 10 mW | 20 mW | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B N42 | - | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
SP-1813SPEAKER 8OHM 500MW TOP PORT 89DB |
232 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 900Hz | 8 Ohms | 89.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

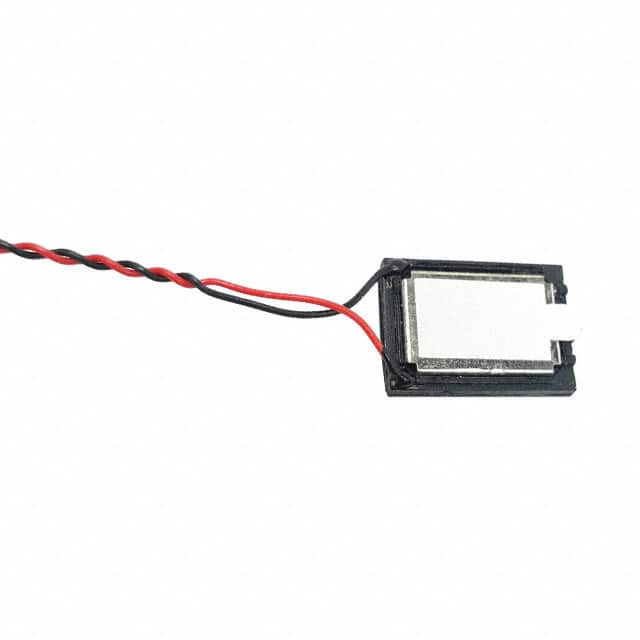

SP-1511L-1SPEAKER 8OHM 500MW TOP PORT 82DB |
216 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 850Hz | 8 Ohms | 82.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

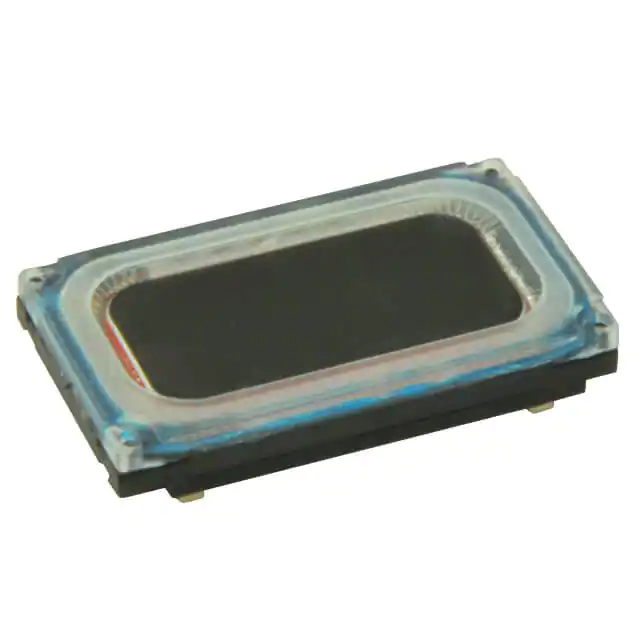

CMS-16093-076SP-67SPEAKER 6OHM 700MW TOP PORT 90DB |
5,717 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

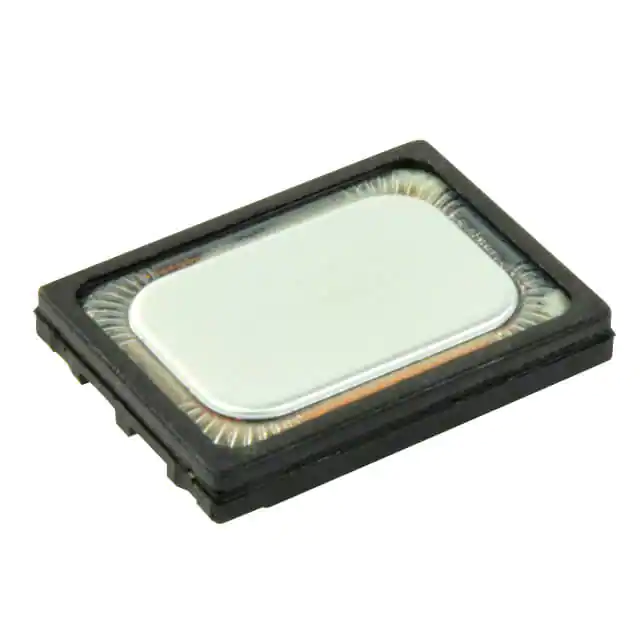

CMS-151125-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
1,471 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

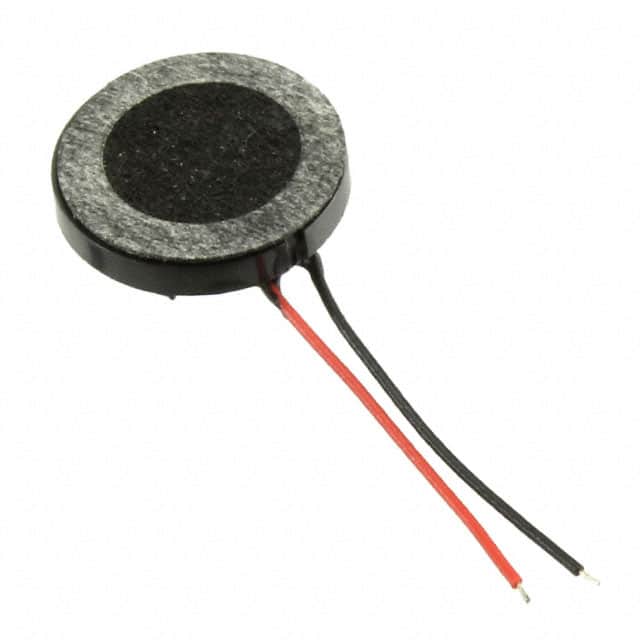

SP-1304SPEAKR 32OHM 200MW TOP PORT 88DB |
105 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 900Hz | 32 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.512" Dia (13.00mm) |
|
CMS-181325-078L100SPEAKER 8OHM 700MW TOP PORT 93DB |
2,219 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
CMS-151125-076S-67SPEAKER 6OHM 700MW TOP PT 92.5DB |
7,332 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

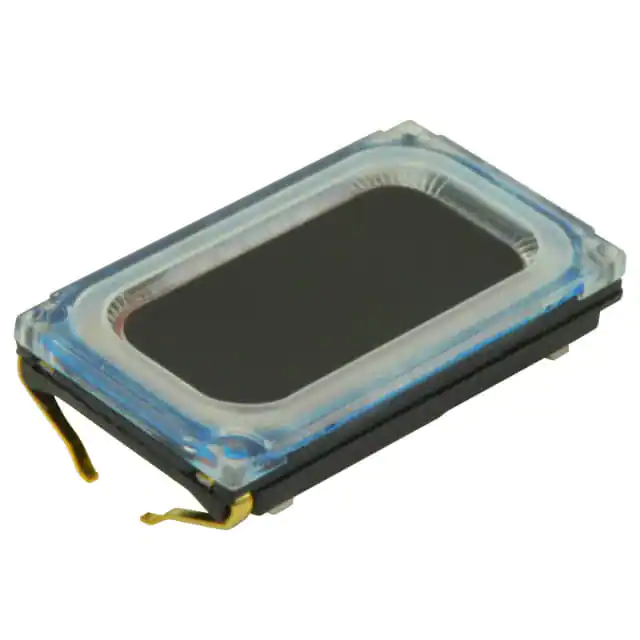

CMS-16093-076S-67SPEAKER 6OHM 700MW TOP PORT 90DB |
2,393 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SP-1303LSPEAKER 8OHM 500MW TOP PORT 87DB |
160 |
|
规格书 |
SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1.1kHz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.512" Dia (13.00mm) |
|

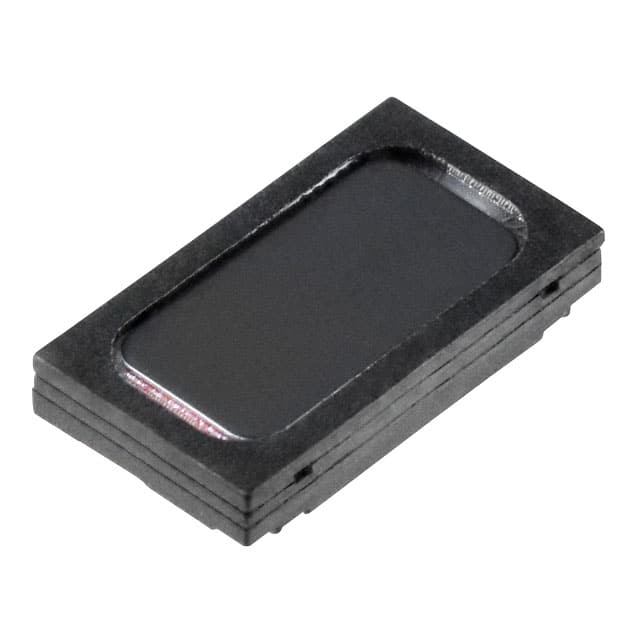

CMS-160903-16SPSPEAKER 6OHM 940MW TOP PORT 91DB |
419 |
|
规格书 |
CMS | Box | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 850Hz | 6 Ohms | 91.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

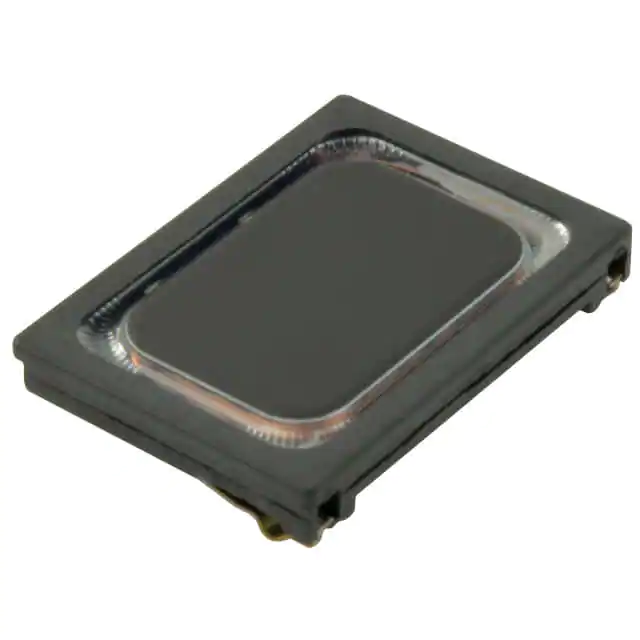

CMS-181325-078S-67SPEAKER 8OHM 700MW TOP PORT 93DB |
2,356 |
|
规格书 |
CMS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS01506MS-SC15-WP-2-RSPEAKER 6OHM 1W TOP PORT 93DB |
760 |
|
规格书 |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | 100mm | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-151125-078L100A-67SPEAKER 8OHM 700MW TOP PORT 91DB |
3,004 |
|
- |
CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01506MS-SP15-WP-RSPEAKER 6OHM 1W TOP PORT 93DB |
239 |
|
规格书 |
AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

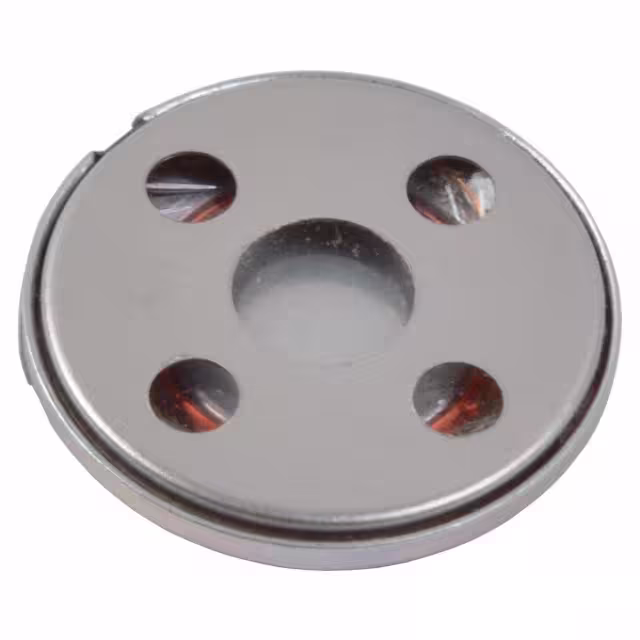

CDM-13008SPEAKER 8OHM 200MW TOP PORT 87DB |
500 |
|
规格书 |
CDM | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1100Hz | 8 Ohms | 87.00 | 200mW/100mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|

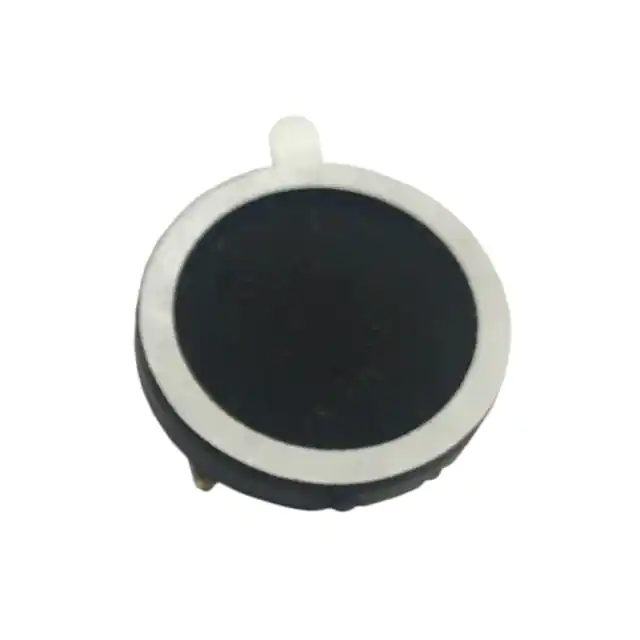

SP-2005SSPEAKER 8OHM 800MW TOP PORT 91DB |
194 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 750 Hz ~ 20 kHz | 750Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Spring Type | 0.787" Dia (20.00mm) |
|
AS05004MR-3-RSPEAKER 4OHM 1.5W TOP PORT 100DB |
2,245 |
|
规格书 |
AS | Tray | Active | Magnetic | General Purpose | 350 Hz ~ 20 kHz | 350Hz | 4 Ohms | 100.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|

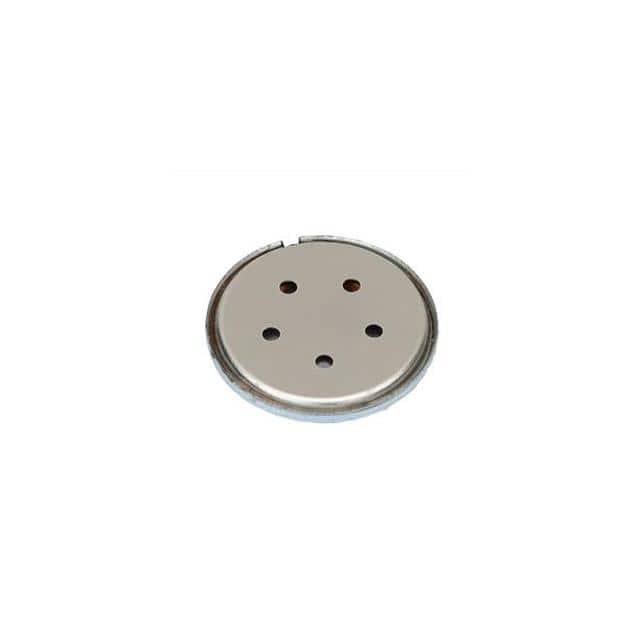

CDS-1328-16-SPSPEAKR 16OHM 200MW TOP PORT 85DB |
985 |
|
规格书 |
CDS | Box | Active | Magnetic | General Purpose | 880 Hz ~ 5 kHz | 1.1kHz | 16 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
