购物车扬声器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 技术 | 类型 | 频率范围 | 频率 - 自谐振 | 阻抗 | 效率 - dBA | 效率 - 测试 | 效率 - 类型 | 额定功率 | 功率 - 最大值 | 端口位置 | 形状 | 材料 - 锥体 | 材料 - 磁体 | 防护等级 | 额定值 | 端接方式 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GBS-85N25PR03-04SPEAKR 3.19OHM 15W TOP PT 82.8DB |
146 |
|
规格书 |
GBS | Bulk | Active | Magnetic | Woofer | 40 Hz ~ 3 kHz | 113.45Hz | 3.19 Ohms | 82.80 | 1W/1M | Half Space Sensitivity | 15 W | - | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 3.297" L x 3.297" W (83.75mm x 83.75mm) |
|

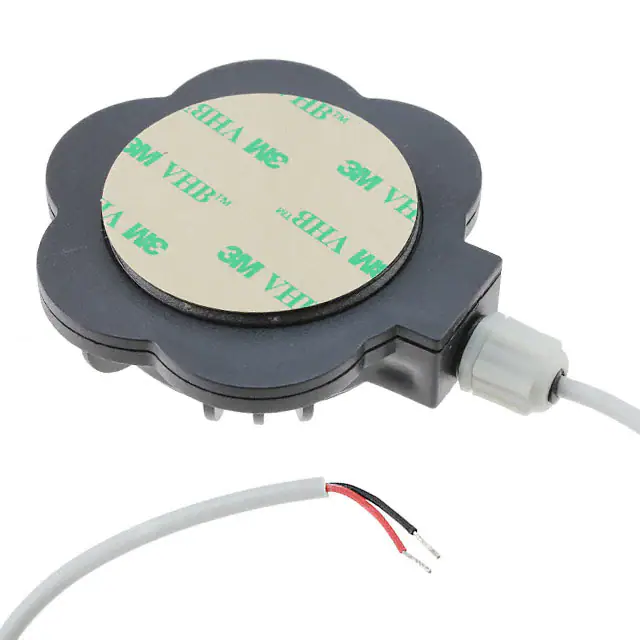

ASX07008-WP-RSPEAKER 8OHM 5W TOP PORT 82DB |
1,862 |
|
规格书 |
ASX | Bulk | Active | Magnetic | Exciter | 1.2 kHz ~ 10.5 kHz | 1200Hz | 8 Ohms | 82.00 | 1W/100mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Round | - | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads | 2.764" Dia (70.20mm) |
|
BK-28507-000SPEAKER 13.3OHM SIDE PORT |
140 |
|
- |
BK | Bulk | Active | Magnetic | Receiver, Balanced Armature | 100 Hz ~ 6 kHz | - | 13.3 Ohms | - | - | - | - | - | Side | Rectangular | - | - | - | - | Solder Pads | 0.310" L x 0.220" W (7.87mm x 5.59mm) |
|
XT25BG60-04SPEAKR 3.44OHM 100W TOP 88.6DB |
756 |
|
- |
XT | Bulk | Active | Magnetic | Tweeter | 500 Hz ~ 20 kHz | 589.10Hz | 3.44 Ohms | 88.60 | 1W/1M | Half Space Sensitivity | 100 W | - | Top | Round | Cloth | Ferrite | - | - | Solder Eyelet(s) | 4.094" Dia (104.00mm) |
|
EX 30 S - 8 OHMSPEAKER 8OHM TOP PORT |
238 |
|
规格书 |
- | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
|
NE65W-04SPEAKER 4OHM 25W TOP PORT 82.7DB |
2,242 |
|
规格书 |
NE | Bulk | Active | Magnetic | Tweeter | 150 Hz ~ 18 kHz | 166.01Hz | 4 Ohms | 82.70 | 1W/1M | Half Space Sensitivity | 25 W | - | Top | Round | Aluminum (AI) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.565" Dia (65.14mm) |
|
GBS-135F25AL02-04SPEAKR 3.88OHM 35W TOP PT 85.3DB |
1,763 |
|
规格书 |
GBS | Bulk | Active | Magnetic | Woofer | 50 Hz ~ 20 kHz | 62.97Hz | 3.88 Ohms | 85.30 | 1W/1M | Half Space Sensitivity | 35 W | - | Top | Round | Aluminum (AI) | Ferrite | - | - | Solder Eyelet(s) | 5.984" Dia (152.00mm) |
|
EX 45 S - 8 OHMSPEAKER 8OHM TOP PORT |
109 |
|
规格书 |
- | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.811" L x 1.811" W (46.00mm x 46.00mm) |
|
TWFK-30017-000SPEAKER 43OHM TOP PORT 95DB |
4,413 |
|
规格书 |
TWFK | Tray | Active | Magnetic | Receiver, Balanced Armature | 200 Hz ~ 6.5 kHz | - | 43 Ohms | 95.00 | - | Sound Pressure Level (SPL) | - | - | Top | Rectangular | - | - | - | - | Solder Pads | 0.197" L x 0.108" W (5.00mm x 2.73mm) |
|
W 200 S - 8 OHMSPEAKER 8OHM 75W TOP PORT 88DB |
4,888 |
|
规格书 |
- | Bulk | Active | Magnetic | General Purpose | 30 Hz ~ 6 kHz | 30Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 75 W | 115 W | Top | Round | Paper | - | - | - | Quick Connect | 9.134" Dia (232.00mm) |
|
PHUA3015-049B-00-000SPEAKER 2.2OHM 5W TOP PORT |
213 |
|
规格书 |
PiezoListen™ | Tray | Active | Piezo | General Purpose | 100 Hz ~ 20 kHz | - | 2.2 Ohms|Ohms | - | 100mm | Sound Pressure Level (SPL) | 5 W | 10 W | Top | Rectangular | - | - | - | - | Flex Contacts | 1.181" L x 0.591" W (30.00mm x 15.00mm) |
|
EX 80 S - 8 OHMSPEAKER 8OHM TOP PORT |
4,394 |
|
规格书 |
- | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 50 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 3.150" L x 3.150" W (80.00mm x 80.00mm) |
|
XLS-P830452SPEAKR 5.38OHM 150W TOP 85.9DB |
4,416 |
|
规格书 |
XLS | Bulk | Active | Magnetic | Subwoofer | 20 Hz ~ 700 Hz | 22.6Hz | 5.38 Ohms | 85.90 | 1W/1M | Half Space Sensitivity | 150 W | - | Top | Round | Meta-Aramid | Ferrite | - | - | Solder Eyelet(s) | 10.598" Dia (269.20mm) |
|
PSR-40F08S01-YHQSPEAKER 8OHM 250MW TOP PORT 68DB |
150 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 800 Hz ~ 1.2 kHz | 1kHz | 8 Ohms | 68.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | - | - | - | - | Solder Pads | 1.555" Dia (39.50mm) |
|
SM101208-1SPEAKER 8OHM 150MW TOP PORT 82DB |
1,001 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 6 kHz | 1.2kHz | 8 Ohms | 82.00 | 100mm | Sound Pressure Level (SPL) | 150 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.394" Dia (10.00mm) |
|

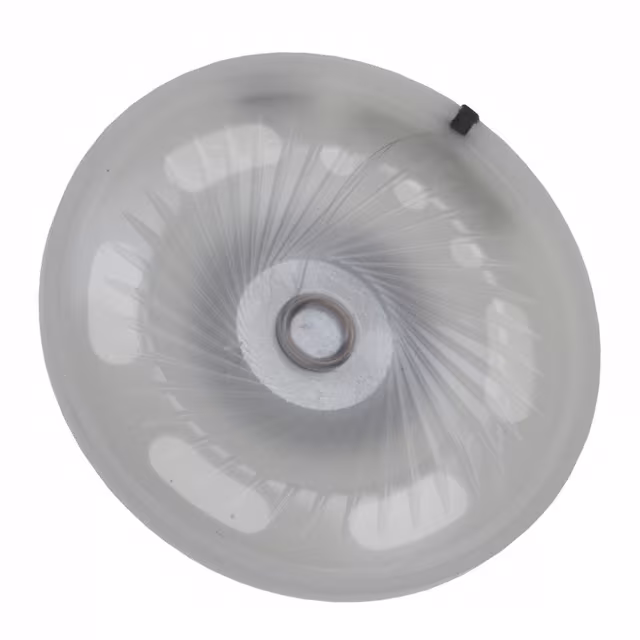

PSR-50F08S-JQSPEAKER 8OHM 250MW TOP PORT 91DB |
2,693 |
|
规格书 |
PSR | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|

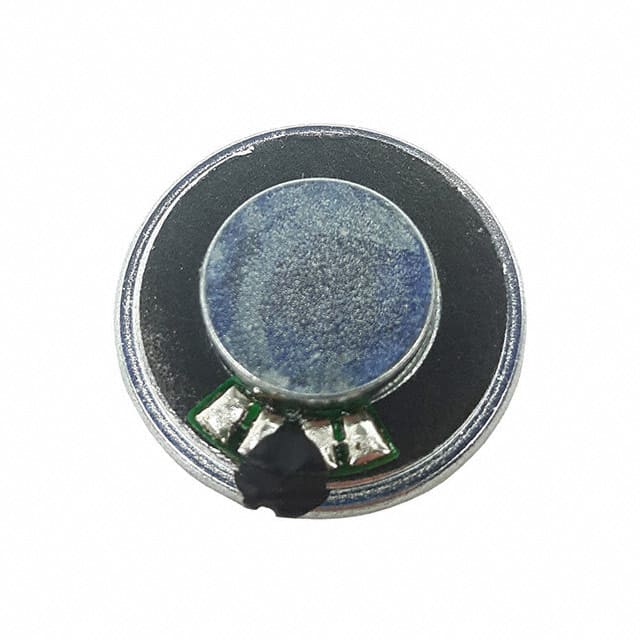

SP-2306YSPEAKER 8OHM 1W TOP PORT 82DB |
188 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | - | - | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|

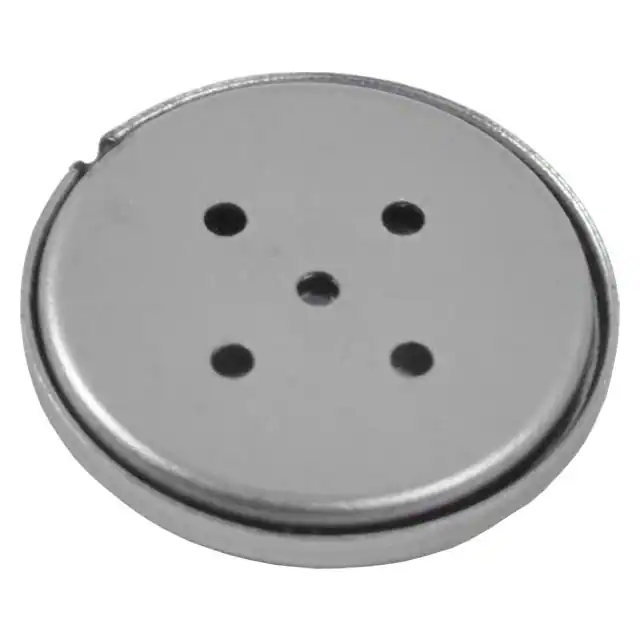

CDM-12008SPEAKER 8OHM 500MW TOP PORT 90DB |
1,991 |
|
规格书 |
CDM | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 1000Hz | 8 Ohms | 90.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 600 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.472" Dia (12.00mm) |
|
SM300608-1SPEAKER 8OHM 300MW TOP PORT 96DB |
873 |
|
规格书 |
- | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 600Hz | 8 Ohms | 96.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.181" Dia (30.00mm) |
|
SP-2004YSPEAKER 8OHM 800MW TOP PORT 88DB |
589 |
|
规格书 |
SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 800Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 0.787" Dia (20.00mm) |
