购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

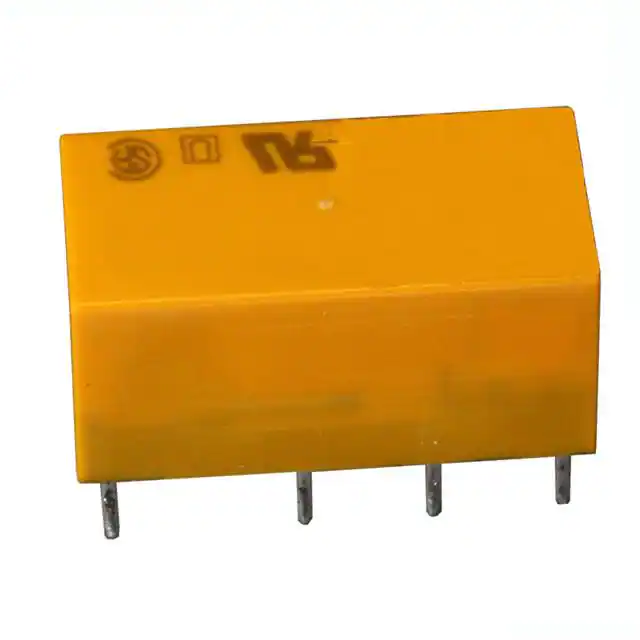

DS2E-M-DC24V-RRELAY GEN PURPOSE DPDT 2A 24V |
3,220 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC3VRELAY GENERAL PURPOSE DPDT 2A 3V |
1,111 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.1 VDC | 0.3 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC48V-RRELAY GEN PURPOSE DPDT 2A 48V |
2,897 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 33.6 VDC | 4.8 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC5V-RRELAY GENERAL PURPOSE DPDT 2A 5V |
2,152 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC5V-R-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
1,071 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | Reverse Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC5V-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
1,899 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-M-DC6VRELAY GENERAL PURPOSE DPDT 2A 6V |
1,282 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 4.2 VDC | 0.6 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC12VRELAY GEN PURPOSE DPDT 2A 12V |
3,714 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC12V-RRELAY GEN PURPOSE DPDT 2A 12V |
1,722 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15 mA | Latching, Single Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC24VRELAY GEN PURPOSE DPDT 2A 24V |
4,472 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC3VRELAY GENERAL PURPOSE DPDT 2A 3V |
4,191 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC5VRELAY GENERAL PURPOSE DPDT 2A 5V |
2,542 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 36 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC6VRELAY GENERAL PURPOSE DPDT 2A 6V |
3,136 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML-DC9VRELAY GENERAL PURPOSE DPDT 2A 9V |
3,057 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC12V-RRELAY GEN PURPOSE DPDT 2A 12V |
4,876 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC1.5VRELAY GEN PURPOSE DPDT 2A 1.5V |
2,208 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 240 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 1.05 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC24V-RRELAY GEN PURPOSE DPDT 2A 24V |
3,414 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 15 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC48V-RRELAY GEN PURPOSE DPDT 2A 48V |
1,444 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 33.6 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC5V-RRELAY GENERAL PURPOSE DPDT 2A 5V |
3,981 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 72 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-ML2-DC5V-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
2,572 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 72 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
