购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSBT2-M-2D-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,466 |
|
规格书 |
DS-BT | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form D) | 1 A | 250VAC, 220VDC - Max | 500VA, 440W | 45 mA | Non Latching | - | PC Pin | - | - | 9 VDC | 1.2 VDC | 3 ms | 2 ms | -40°C ~ 60°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TQ4-L2-12VRELAY TELECOM 4PDT 1A 12V |
1,384 |
|
规格书 |
TQ | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | Telecom | - | - |
|
TN2-3VRELAY GENERAL PURPOSE DPDT 1A 3V |
2,525 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 46.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 2.25 VDC | 0.3 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-9VRELAY GENERAL PURPOSE DPDT 1A 9V |
3,473 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 15.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.75 VDC | 0.9 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

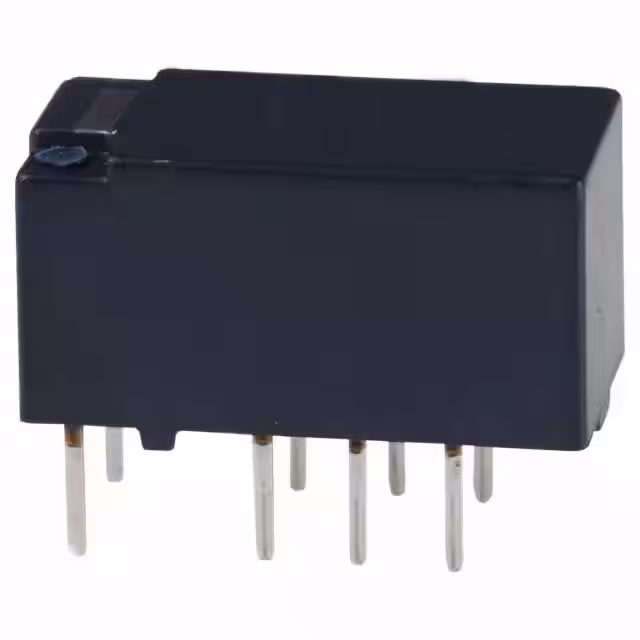

ASX20003RELAY TELECOM DPDT 10MA 3V |
4,790 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 16.7 mA | Non Latching | - | PC Pin | - | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX2004HRELAY TELECOM DPDT 10MA 4.5V |
4,531 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.1 mA | Non Latching | - | PC Pin | - | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX20024RELAY TELECOM DPDT 10MA 24V |
3,284 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

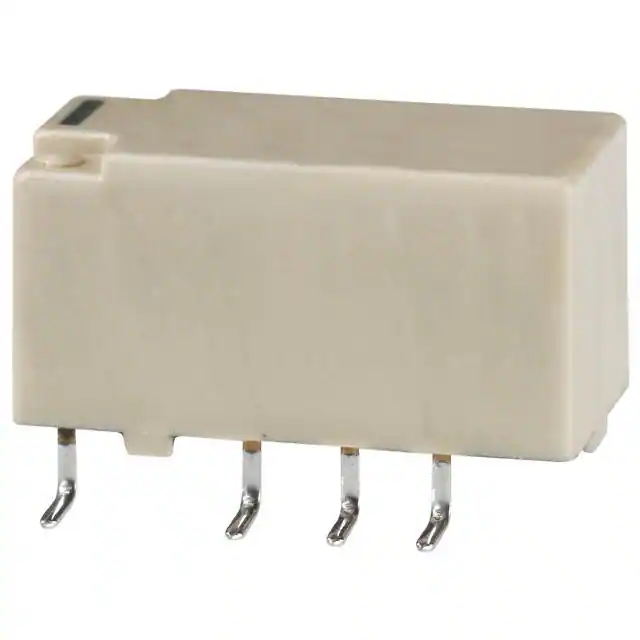

ASX200A03RELAY TELECOM DPDT 10MA 3V |
1,829 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 16.7 mA | Non Latching | - | Gull Wing | - | - | 2.4 VDC | 0.3 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX200A4HRELAY TELECOM DPDT 10MA 4.5V |
2,294 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.1 mA | Non Latching | - | Gull Wing | - | - | 3.6 VDC | 0.45 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX200A24RELAY TELECOM DPDT 10MA 24V |
4,984 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Non Latching | - | Gull Wing | - | - | 19.2 VDC | 2.4 VDC | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|

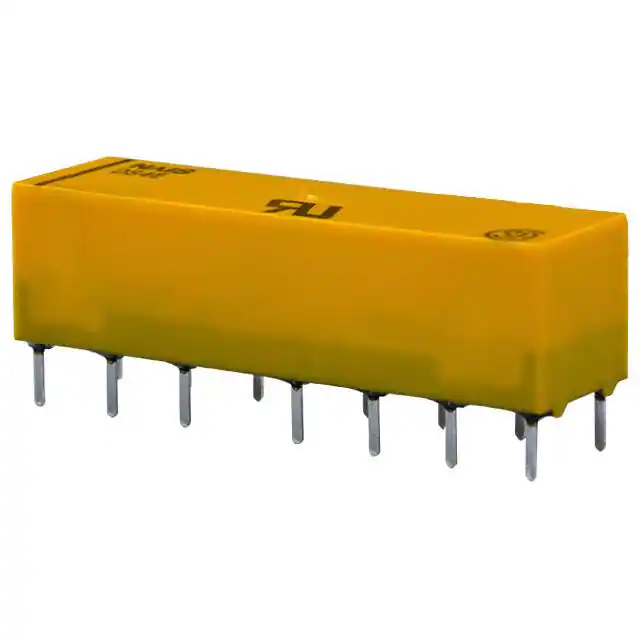

DS4E-S-DC12VRELAY GEN PURPOSE 4PDT 2A 12V |
1,038 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 12VDC | 4PDT (4 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
ASX21003RELAY TELECOM DPDT 10MA 3V |
1,237 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.7 mA | Latching, Single Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX21012RELAY TELECOM DPDT 10MA 12V |
2,072 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Latching, Single Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX2104HRELAY TELECOM DPDT 10MA 4.5V |
1,652 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 7.8 mA | Latching, Single Coil | - | PC Pin | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A03RELAY TELECOM DPDT 10MA 3V |
1,042 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 11.7 mA | Latching, Single Coil | - | Gull Wing | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A12RELAY TELECOM DPDT 10MA 12V |
3,254 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.9 mA | Latching, Single Coil | - | Gull Wing | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A24RELAY TELECOM DPDT 10MA 24V |
4,146 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 24VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 2.1 mA | Latching, Single Coil | - | Gull Wing | - | - | 19.2 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX210A4HRELAY TELECOM DPDT 10MA 4.5V |
1,966 |
|
规格书 |
ASX | Tube | Obsolete | Surface Mount | 4.5VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 7.8 mA | Latching, Single Coil | - | Gull Wing | - | - | 3.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22003RELAY TELECOM DPDT 10MA 3V |
4,395 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 23.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
|
|
ASX22012RELAY TELECOM DPDT 10MA 12V |
3,077 |
|
规格书 |
ASX | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 10 mA | 10VDC - Max | 100W | 5.8 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 5 ms | -40°C ~ 70°C | Silver Palladium (AgPd), Gold (Au) | Telecom | - | - |
