购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TF2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,384 |
|
规格书 |
TF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 4 ms | 4 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TN2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
2,573 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 28.1 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-12VRELAY GEN PURPOSE DPDT 1A 12V |
4,711 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-24VRELAY GEN PURPOSE DPDT 1A 24V |
2,838 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-5VRELAY GENERAL PURPOSE DPDT 1A 5V |
3,056 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 40 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.75 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-12VRELAY GEN PURPOSE DPDT 1A 12V |
1,766 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 16.7 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 9 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TN2-L2-24VRELAY GEN PURPOSE DPDT 1A 24V |
2,663 |
|
规格书 |
TN | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 110VDC - Max | 125VA, 110W | 12.5 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 18 VDC | - | 3 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
TK1-12VRELAY GEN PURPOSE SPDT 2A 12V |
3,017 |
|
规格书 |
TK | Tube | Obsolete | Through Hole | 12VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 11.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
TK1-24VRELAY GEN PURPOSE SPDT 2A 24V |
2,097 |
|
规格书 |
TK | Tube | Obsolete | Through Hole | 24VDC | SPDT (1 Form C) | 2 A | 220VDC - Max | 440VA | 11.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 18 VDC | 2.4 VDC | 3 ms | 2 ms | -40°C ~ 85°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DF2E-DC5VRELAY GENERAL PURPOSE DPDT 1A 5V |
4,435 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,883 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-DC24VRELAY GEN PURPOSE DPDT 1A 24V |
4,111 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

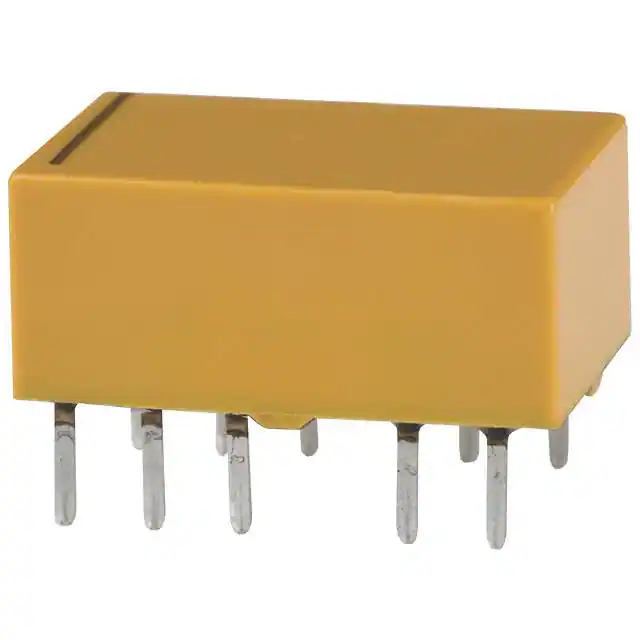

DF2E-L2-DC3VRELAY GENERAL PURPOSE DPDT 1A 3V |
2,908 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 66.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.4 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC5VRELAY GENERAL PURPOSE DPDT 1A 5V |
1,207 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 40 mA | Latching, Dual Coil | - | PC Pin | - | - | 4 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC6VRELAY GENERAL PURPOSE DPDT 1A 6V |
4,312 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 33.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 4.8 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC9VRELAY GENERAL PURPOSE DPDT 1A 9V |
4,938 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 22.2 mA | Latching, Dual Coil | - | PC Pin | - | - | 7.2 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC12VRELAY GEN PURPOSE DPDT 1A 12V |
2,755 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 16.7 mA | Latching, Dual Coil | - | PC Pin | - | - | 9.6 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DF2E-L2-DC24VRELAY GEN PURPOSE DPDT 1A 24V |
1,962 |
|
规格书 |
DF | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 1 A | 125VAC, 60VDC - Max | 125VA, 60W | 8.3 mA | Latching, Dual Coil | - | PC Pin | - | - | 19.2 VDC | - | 5 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
DS2E-S-DC5VRELAY GENERAL PURPOSE DPDT 2A 5V |
4,546 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-S-DC12VRELAY GEN PURPOSE DPDT 2A 12V |
3,843 |
|
规格书 |
DS | Tray | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
