购物车信号继电器（最大2安培）
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 负载 - 最大切换 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 线圈绝缘 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 | 继电器类型 | 等级 | 认证 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DS2E-SL2-DC24V-RRELAY GEN PURPOSE DPDT 2A 24V |
1,189 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | Reverse Polarity | PC Pin | Sealed - Fully | - | 16.8 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-SL2-DC3VRELAY GENERAL PURPOSE DPDT 2A 3V |
3,311 |
|
规格书 |
DS | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 2.1 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-SL2-DC5V-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
3,989 |
|
规格书 |
DS | Tape & Box (TB) | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 36 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-SL2-DC6VRELAY GENERAL PURPOSE DPDT 2A 6V |
1,011 |
|
规格书 |
DS | Bulk | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 30 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 4.2 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2E-SL2-DC9VRELAY GENERAL PURPOSE DPDT 2A 9V |
4,087 |
|
规格书 |
DS | Bulk | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 20 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 6.3 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|

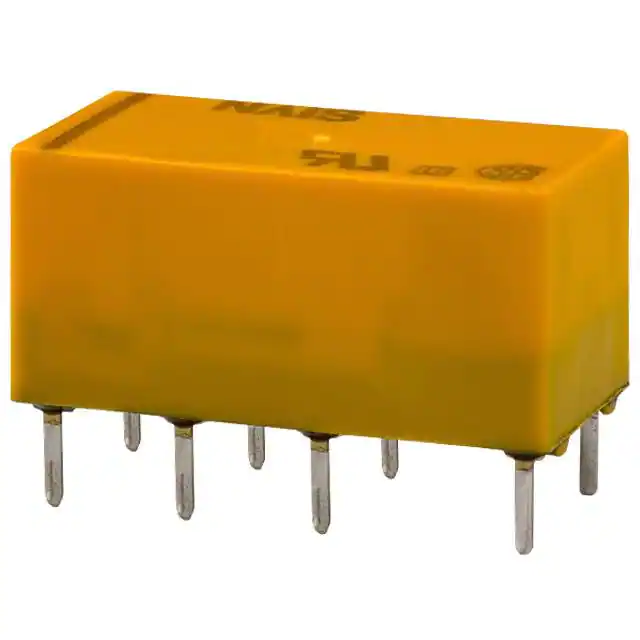

DS2Y-S-DC12V-RRELAY GEN PURPOSE DPDT 2A 12V |
4,405 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | Reverse Polarity | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC12V-TBRELAY GEN PURPOSE DPDT 2A 12V |
4,766 |
|
规格书 |
DS2Y | Tape & Box (TB) | Obsolete | Through Hole | 12VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 16.7 mA | Non Latching | - | PC Pin | - | - | 8.4 VDC | 1.2 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC1.5VRELAY GEN PURPOSE DPDT 2A 1.5V |
1,613 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 1.5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 133 mA | Non Latching | - | PC Pin | - | - | 1.05 VDC | 0.15 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC24V-RRELAY GEN PURPOSE DPDT 2A 24V |
4,768 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | Reverse Polarity | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC24V-TBRELAY GEN PURPOSE DPDT 2A 24V |
2,002 |
|
规格书 |
DS2Y | Bulk | Obsolete | Through Hole | 24VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 8.3 mA | Non Latching | - | PC Pin | - | - | 16.8 VDC | 2.4 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC3VRELAY GENERAL PURPOSE DPDT 2A 3V |
2,707 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 66.7 mA | Non Latching | - | PC Pin | - | - | 2.1 VDC | 0.3 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC48V-TBRELAY GEN PURPOSE DPDT 2A 48V |
2,531 |
|
规格书 |
DS2Y | Bulk | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 6.3 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC5V-RRELAY GENERAL PURPOSE DPDT 2A 5V |
3,532 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | Reverse Polarity | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC5V-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
1,067 |
|
规格书 |
DS2Y | Bulk | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 40 mA | Non Latching | - | PC Pin | - | - | 3.5 VDC | 0.5 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC6VRELAY GENERAL PURPOSE DPDT 2A 6V |
1,739 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC6V-RRELAY GENERAL PURPOSE DPDT 2A 6V |
4,497 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 6VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 33.3 mA | Non Latching | Reverse Polarity | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-S-DC9VRELAY GENERAL PURPOSE DPDT 2A 9V |
4,269 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 9VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 22.2 mA | Non Latching | - | PC Pin | - | - | 6.3 VDC | 0.9 VDC | 4 ms | 3 ms | -40°C ~ 70°C | Silver (Ag), Gold (Au) | General Purpose | - | - |
|
|
DS2Y-SL2-DC3VRELAY GENERAL PURPOSE DPDT 2A 3V |
2,855 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 3VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 60 mA | Latching, Dual Coil | - | PC Pin | - | - | 2.1 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
DS2Y-SL2-DC48VRELAY GEN PURPOSE DPDT 2A 48V |
4,468 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 48VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 7.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 33.6 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
|
|
DS2Y-SL2-DC5V-TBRELAY GENERAL PURPOSE DPDT 2A 5V |
4,775 |
|
规格书 |
DS2Y | Tube | Obsolete | Through Hole | 5VDC | DPDT (2 Form C) | 2 A | 250VAC, 220VDC - Max | 500VA, 440W | 36 mA | Latching, Dual Coil | - | PC Pin | - | - | 3.5 VDC | - | 10 ms | 5 ms | -40°C ~ 70°C | - | General Purpose | - | - |
