购物车多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C2538A.41.10CABLE 2CON 14AWG GRAY SHLD |
4,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.335" (8.51mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 600 V | -20°C ~ 75°C | Communication, Control | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|

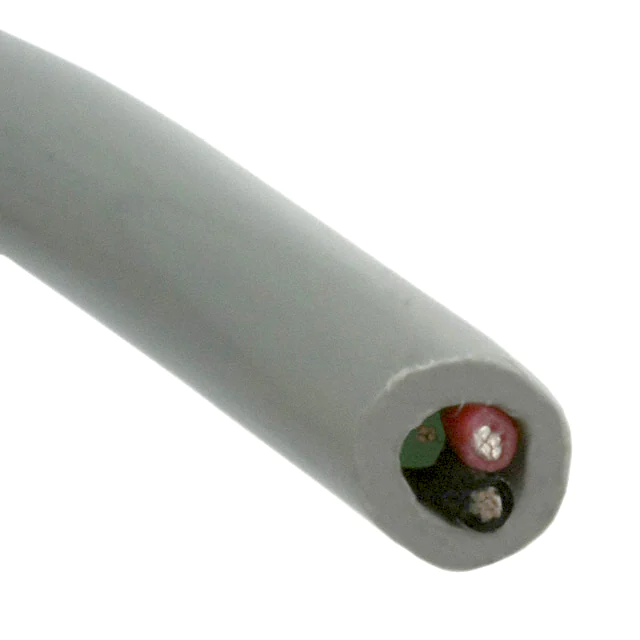

8443 0601000CABLE 3COND 22AWG CHROME |
5,000 |
|
规格书 |
Classics | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2576 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0439A.41.10CABLE 2COND 14AWG GRAY |
5,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.288" (7.32mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 105°C | Communication, Control | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - |
|
H-115-BKPOWER CABLE BULK SJT 16/3 |
10,355 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 26/0.0100" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.327" (8.31mm) | - | 500.0' (152.4m) | Black | UL Style SJT | - | 300 V | 105°C | - | 0.0240" (0.610mm) | - | - |
|
30-00686CABLE 2COND 20AWG BLACK |
32,331 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 20 AWG | 26/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.185" (4.70mm) | - | 1000.7' (305.0m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
|
C1203.41.01CABLE 3COND 18AWG BLACK SHLD |
36,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 41/34 | Copper, Tinned | Carolprene | 0.305" (7.75mm) | Braid | 1000.0' (304.8m) | Black | - | - | 300 V | -25°C ~ 60°C | Communication, Control | 0.0350" (0.889mm) | Rubber | - |
|

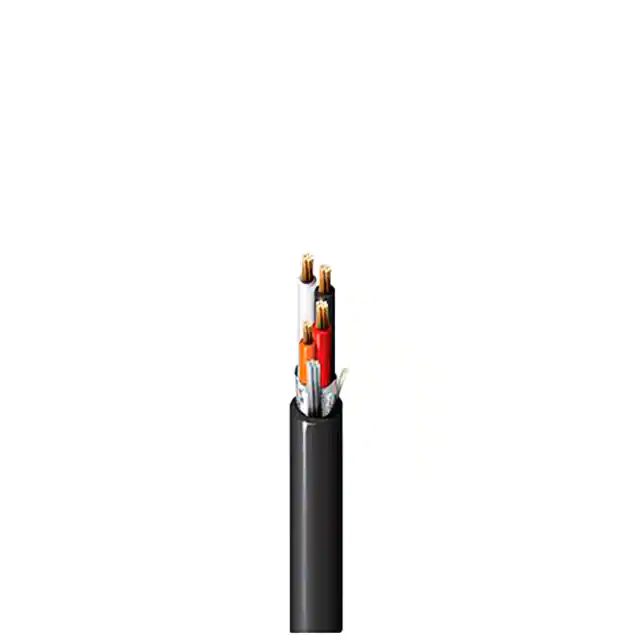

1036A 0101000CABLE 3COND 18AWG BLACK SHLD |
48,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 (1 Triad Twisted) | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.266" (6.76mm) | Foil | 1000.0' (304.8m) | Black | UL Style 2464 | Drain Wire, Rip Cord | - | -30°C ~ 105°C | - | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

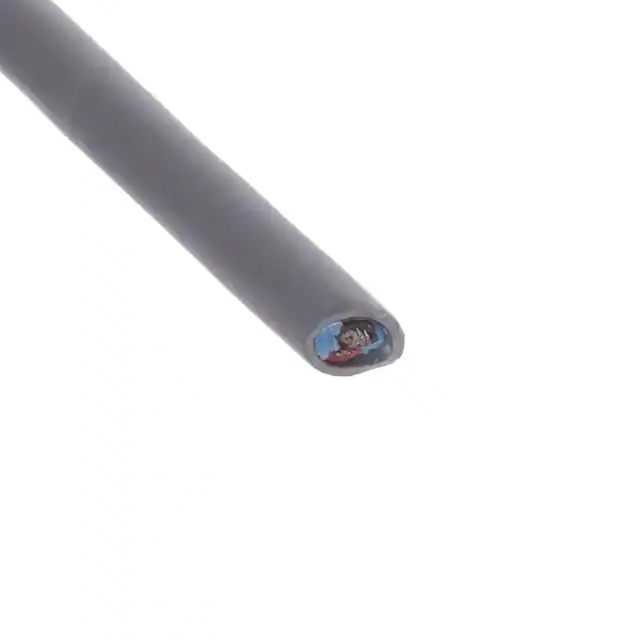

1131C SL001CABLE 2COND 18AWG SLATE |
4,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.225" (5.72mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
8443 060500CABLE 3COND 22AWG CHROME |
2,500 |
|
规格书 |
Classics | Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.172" (4.37mm) | - | 500.0' (152.4m) | Chrome | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
PUP6XHD04BU-GCABLE CAT6A 8CON 23AWG BLU 1000' |
23,000 |
|
规格书 |
TX6A™ | Retail Package | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 23 AWG | Solid | Copper | Poly-Vinyl Chloride (PVC), Plenum | 0.230" (5.84mm) | Foil | 1000.0' (304.8m) | Blue | - | Flame Retardant | 80 V | -20°C ~ 105°C | - | - | Fluorinated Ethylene-Propylene (FEP) | - |
|
|
6454 BK001MULTI-PAIR 3COND 22AWG BLACK |
5,000 |
|
规格书 |
- | Spool | Active | Multi-Pair | 3 (1.5 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil, Braid | 1000.0' (304.8m) | Black | - | Drain Wire | 300 V | -20°C ~ 60°C | - | 0.0420" (1.067mm) | High Density Polyethylene (HDPE) | - |
|

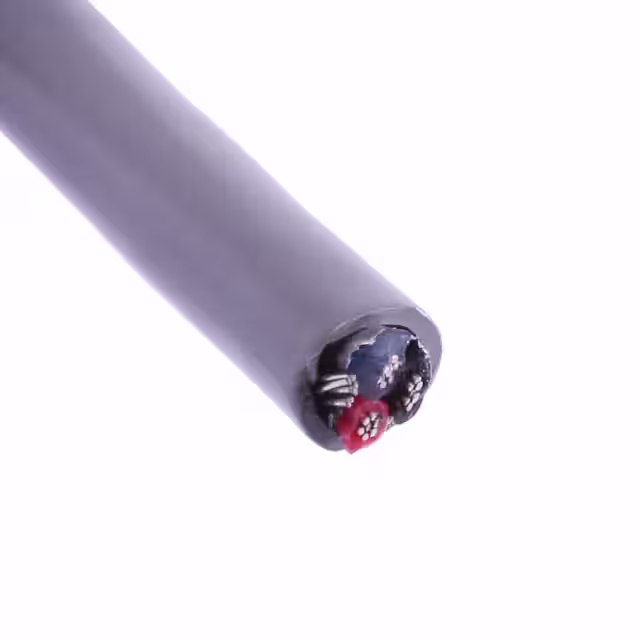

C2537A.41.10CABLE 3COND 16AWG GRAY SHLD |
7,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.325" (8.26mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 600 V | -20°C ~ 75°C | Communication, Control | 0.0320" (0.813mm) | Polyethylene (PE) | - |
|
30-00395CABLE 2COND 18AWG BLACK |
3,355 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.173" (4.39mm) | - | 1000.7' (305.0m) | Black | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00217CABLE 4COND 32AWG BLACK SHLD |
1,525 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 4 | 32 AWG | 19/0.0019" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.079" (2.01mm) | Spiral | 1000.0' (304.8m) | Black | - | - | 150 V | 80°C | - | 0.0098" (0.250mm) | Polyethylene (PE) | - |
|
89023.35.01CABLE 3COND 14AWG BLACK |
5,500 |
|
规格书 |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.372" (9.45mm) | - | 250.0' (76.2m) | Black | - | Oil Resistant | 300 V | -50°C ~ 105°C | Cord and Cordset | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|
8761 0601000CABLE 2COND 22AWG CHROME SHD |
5,000 |
|
规格书 |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.175" (4.45mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2092 | Drain Wire | - | -20°C ~ 60°C | - | 0.0250" (0.635mm) | Polyethylene (PE) | - |
|

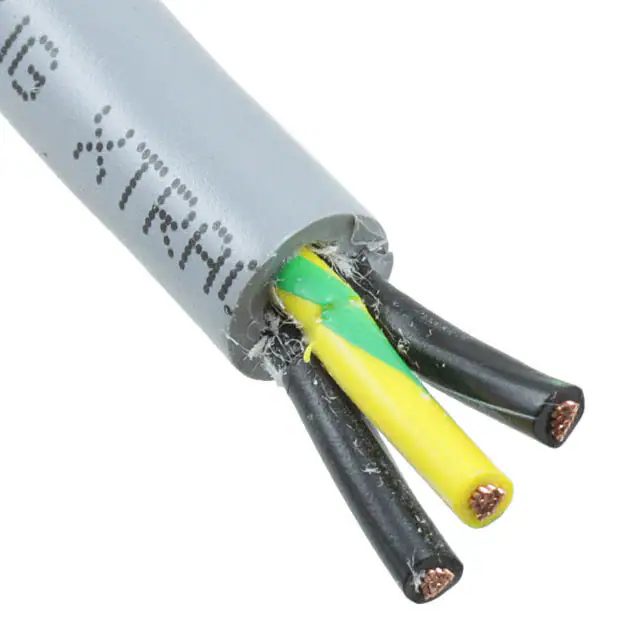

65803 SL002CABLE 3COND 18AWG SLATE |
1,500 |
|
规格书 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.272" (6.91mm) | - | 500.0' (152.4m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|
9534 0601000CABLE 4COND 24AWG CHROME SHD |
14,000 |
|
规格书 |
Classics | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.184" (4.67mm) | Foil | 1000.0' (304.8m) | Chrome | - | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
|
9740 0601000CABLE 2COND 18AWG CHROME |
3,000 |
|
规格书 |
Classics | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.210" (5.33mm) | - | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
74004 BK002CABLE CAT7 8COND 26AWG BLACK |
17,000 |
|
规格书 |
- | Spool | Active | Multi-Pair, Cat7 | 8 (4 Pair Twisted) | 26 AWG | 7/34 | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.268" (6.81mm) | Foil, Braid | 500.0' (152.4m) | Black | - | Oil Resistant, Rip Cord | 300 V | -40°C ~ 80°C | Industrial, Network | 0.0280" (0.711mm) | Polyethylene (PE) | - |
