购物车多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C0762A.41.10CABLE 4COND 22AWG GRAY SHLD |
22,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.190" (4.83mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

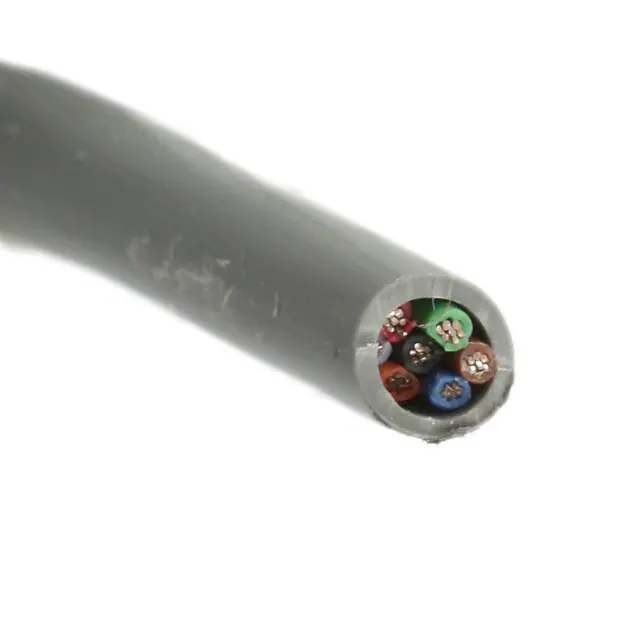

C4088A.41.10CABLE 7COND 22AWG GRAY |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 7 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.218" (5.54mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

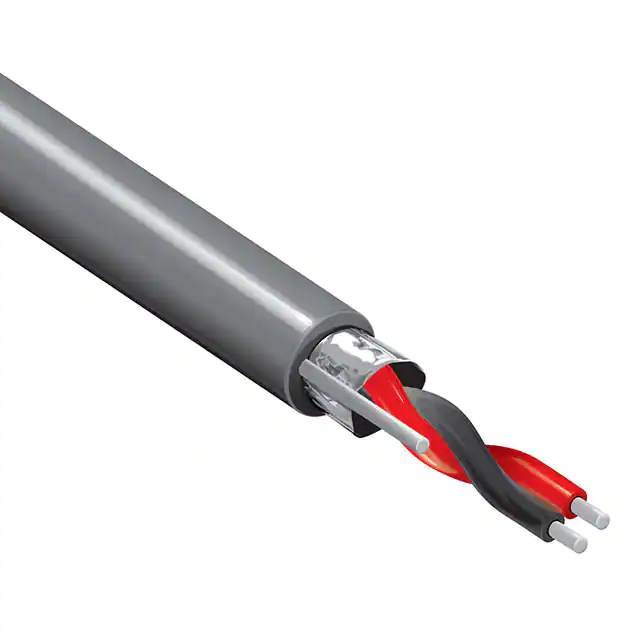

8450 010U500CABLE 2COND 22AWG BLACK SHLD |
12,500 |
|
规格书 |
- | Box | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.118" (3.00mm) | Foil | 500.0' (152.4m) | Black | - | - | - | -20°C ~ 105°C | - | 0.0180" (0.457mm) | Polypropylene (PP) | - |
|

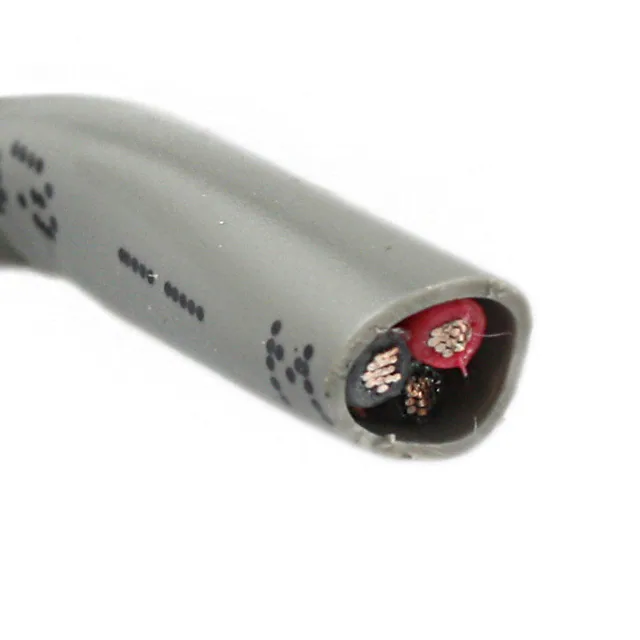

C2535A.41.10CABLE 3COND 18AWG GRAY SHLD |
4,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.219" (5.56mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|

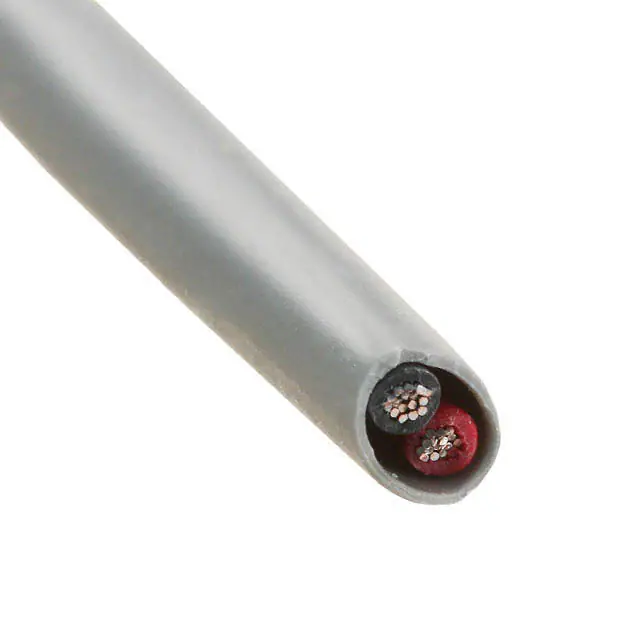

C0437A.41.10CABLE 2COND 16AWG GRAY |
6,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.243" (6.17mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

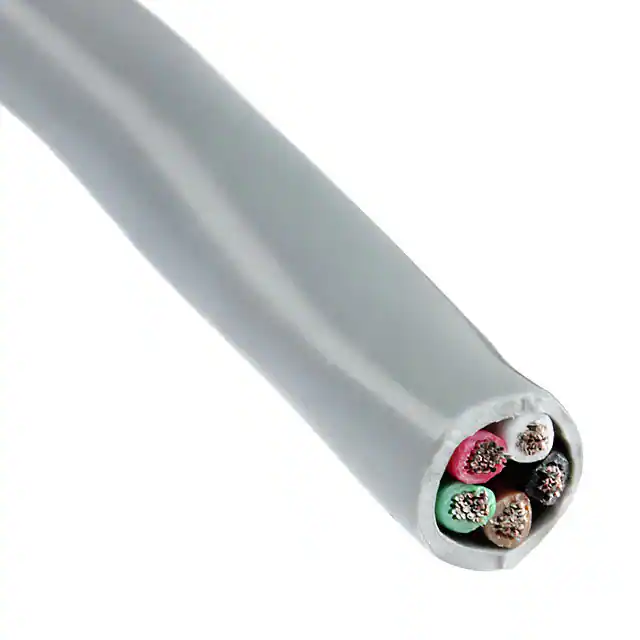

C6355A.41.10CABLE 5COND 20AWG GRAY |
10,000 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 5 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.254" (6.45mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
1317C SL001MULTI-PAIR 4COND 22AWG |
7,000 |
|
规格书 |
- | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.231" (5.87mm) | - | 1000.0' (304.8m) | Slate | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

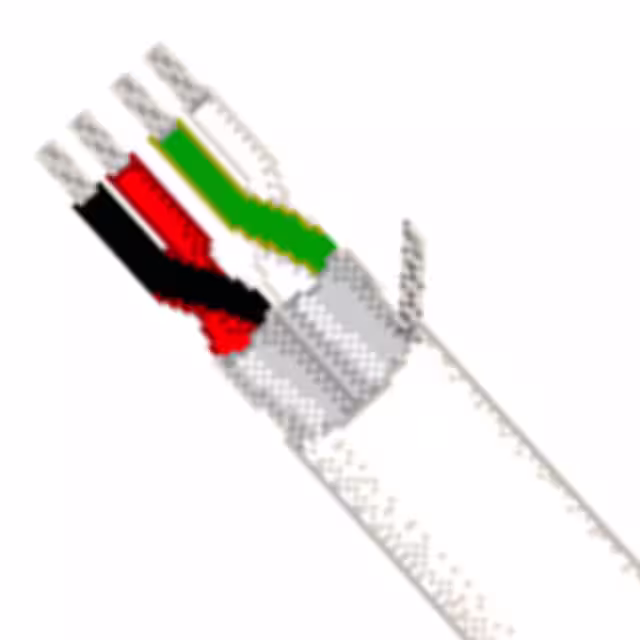

1325A 0091000MULTI-PAIR 4COND 22AWG WHITE |
7,000 |
|
规格书 |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.158" (4.01mm) | Foil | 1000.0' (304.8m) | White | UL Style CMP | Drain Wire, Flame Retardant | - | 0°C ~ 75°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|

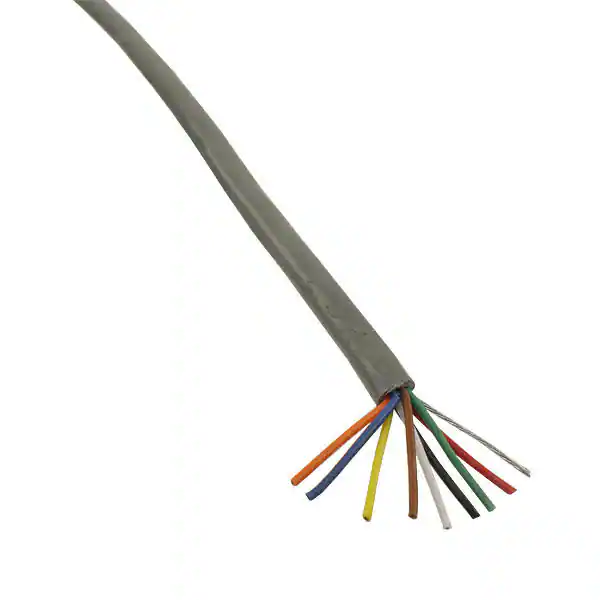

C0744A.41.10CABLE 8COND 24AWG GRAY SHLD |
8,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 8 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.215" (5.46mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

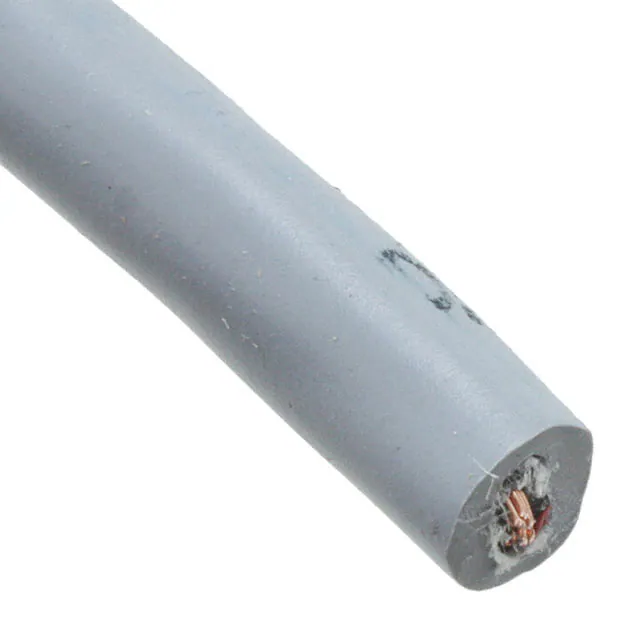

65002 SL001CABLE 2COND 20AWG SLATE |
2,000 |
|
规格书 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 2 | 20 AWG | 10/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | - | 1000.0' (304.8m) | Slate | ISO 10993, UL Style 2587 | Biological Compatibility | 600 V | - | - | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - |
|

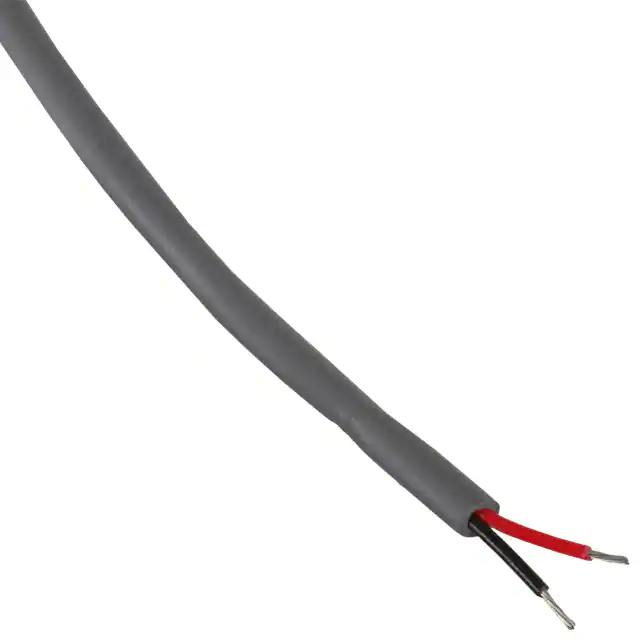

C6348A.46.10CABLE 2COND 22AWG GRAY FEET |
90,708 |
|
规格书 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.130" (3.30mm) | - | Enter Number of Feet in Order Quantity | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

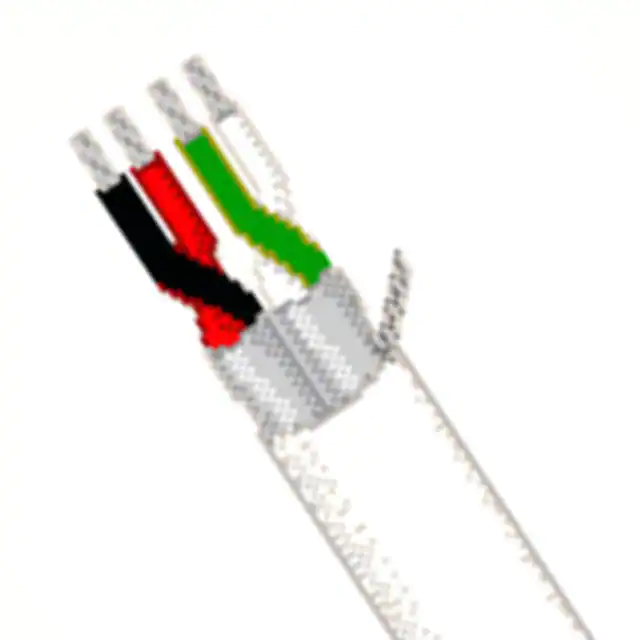

1325A 009500MULTI-PAIR 4COND 22AWG WHT |
5,500 |
|
规格书 |
- | Spool | Active | Multi-Pair | 4 (2 Pair) | 22 AWG | 7/30 | Copper, Tinned | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum | 0.158" (4.01mm) | Foil | 500.0' (152.4m) | White | UL Style CMP | Drain Wire, Flame Retardant | - | 0°C ~ 75°C | - | - | Poly-Vinyl Chloride (PVC) | - |
|

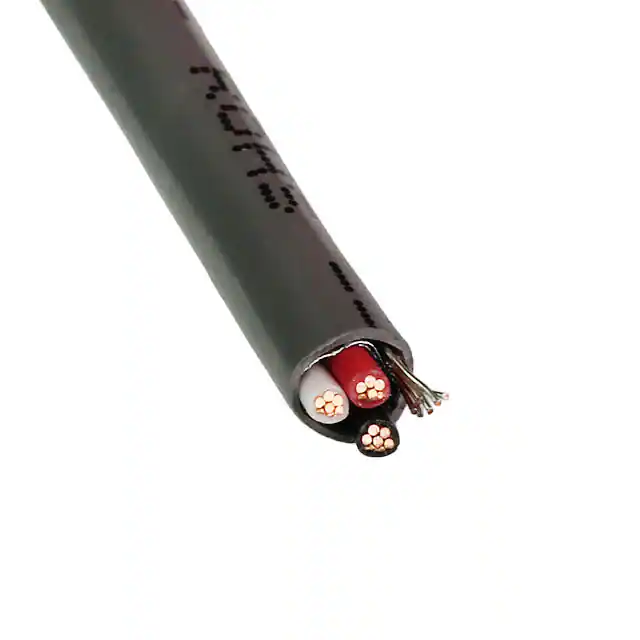

C0455A.41.10CABLE 3CON 18AWG GRAY SHLD |
2,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

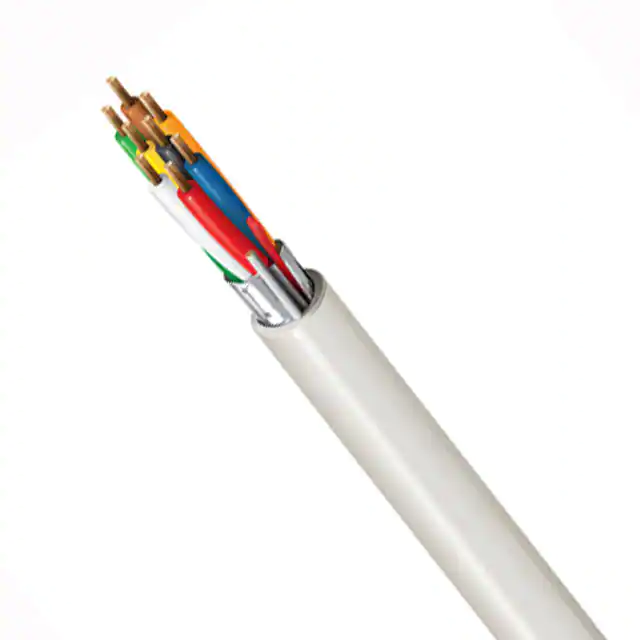

5306FE 008500CABLE 8COND 18AWG GRAY SHLD |
19,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 8 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.245" (6.22mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire, Rip Cord | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0180" (0.457mm) | Polypropylene (PP) | - |
|

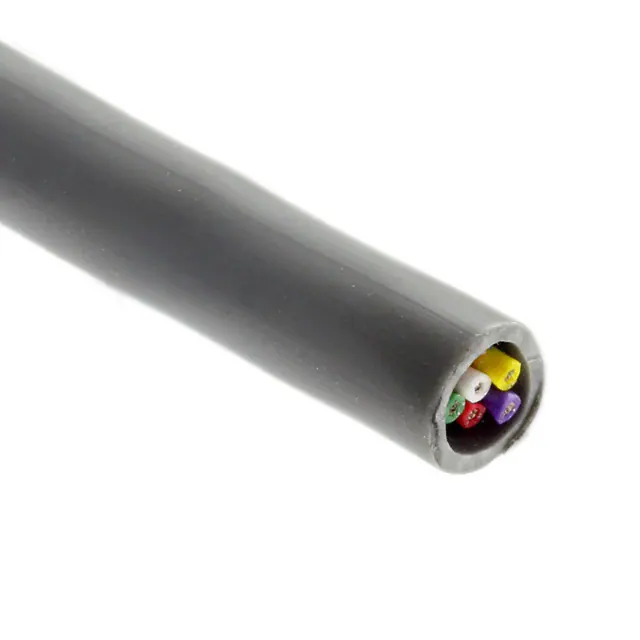

C0755A.41.10CABLE 9CON 24AWG GRAY SHLD |
5,000 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 9 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00405CABLE 2COND 24AWG WHITE |
2,136 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 11/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.118" (3.00mm) | - | 1000.0' (304.8m) | White | UL Style 2468 | - | 300 V | -10°C ~ 80°C | - | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

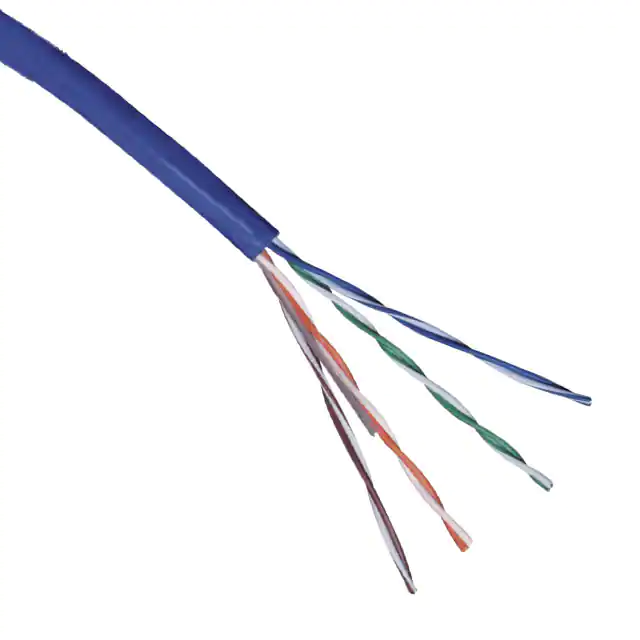

1592A 0061000CABLE CAT5E 8CON 24AWG BLUE |
56,000 |
|
规格书 |
- | Spool | Active | Multi-Pair, Cat5e | 8 (4 Pair) | 24 AWG | 7/32 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.213" (5.41mm) | - | 1000.0' (304.8m) | Blue | - | - | 300 V | -20°C ~ 75°C | Network | - | Polyolefin (PO) | - |
|

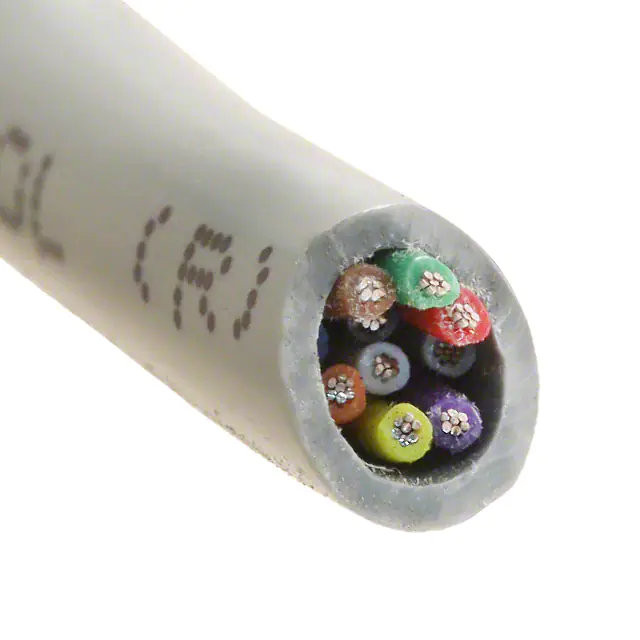

C2471A.41.10CABLE 10COND 24AWG GRAY |
7,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 10 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.244" (6.20mm) | - | 1000.0' (304.8m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

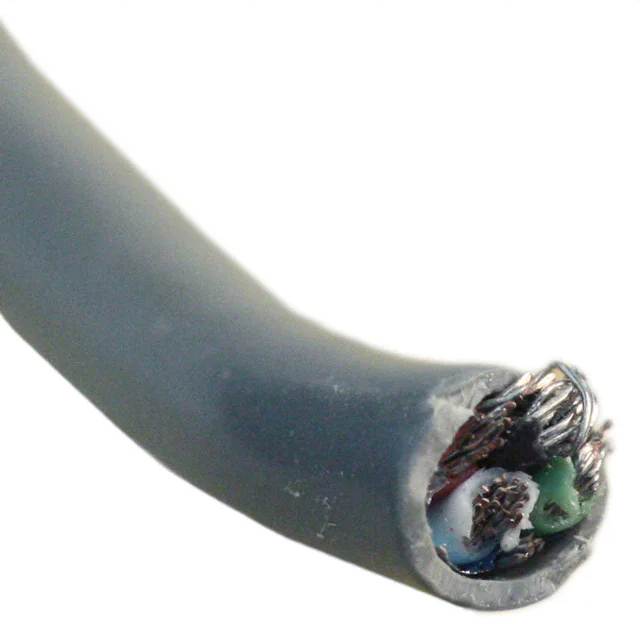

C2543A.41.10CABLE 4CON 18AWG GRAY SHLD |
4,000 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 4 | 18 AWG | 19/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.238" (6.05mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
30-00356CABLE 2COND 22AWG BLACK |
3,660 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 22 AWG | 17/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.169" (4.29mm) | - | 1000.0' (304.8m) | Black | UL Style 2464 | - | 300 V | 80°C | - | 0.0299" (0.759mm) | Poly-Vinyl Chloride (PVC) | - |
