购物车多导体电缆
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

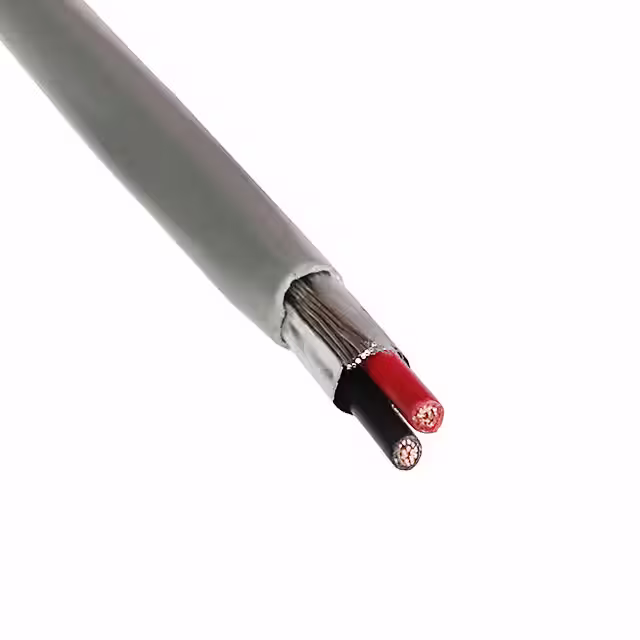

E2052S.41.10CABLE 2COND 14AWG GRAY SHLD |
12,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 14 AWG | 19/0.0147" | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.245" (6.22mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Alarm, Security, Sound | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

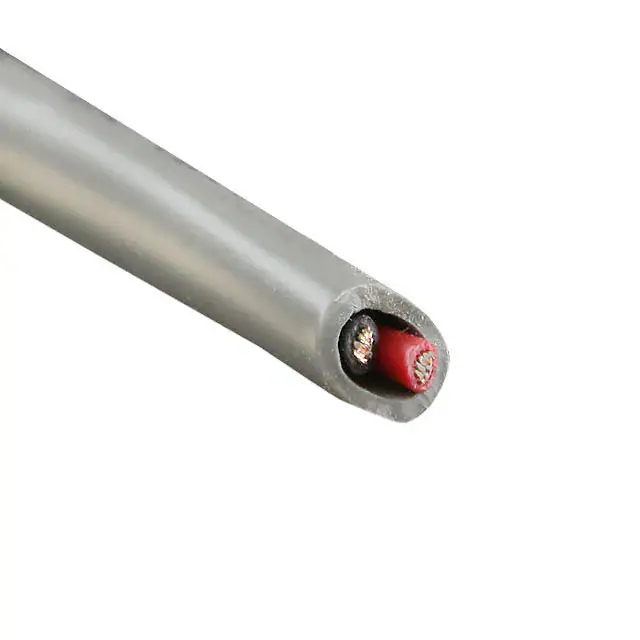

C0720A.41.10CABLE 2CON 22AWG GRAY SHLD |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.169" (4.29mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

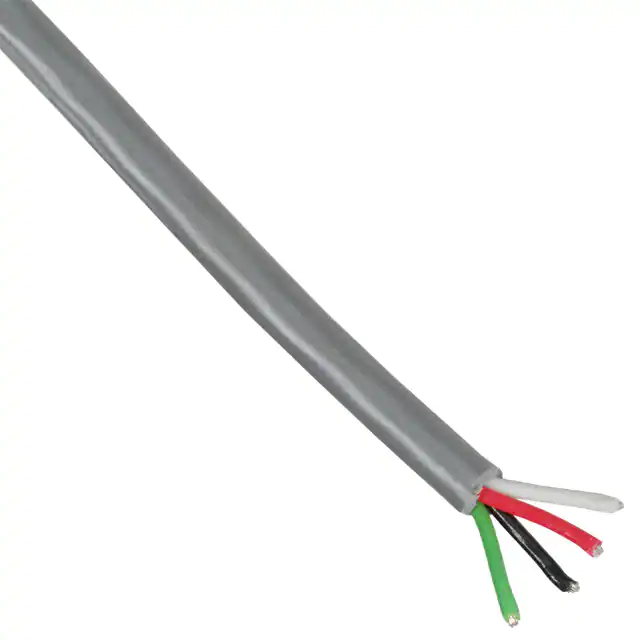

C4063A.18.10CABLE 4COND 22AWG GRAY 500' |
18,500 |
|
规格书 |
- | Bulk | Active | Multi-Conductor | 4 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.189" (4.80mm) | - | 500.0' (152.4m) | Gray | - | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|

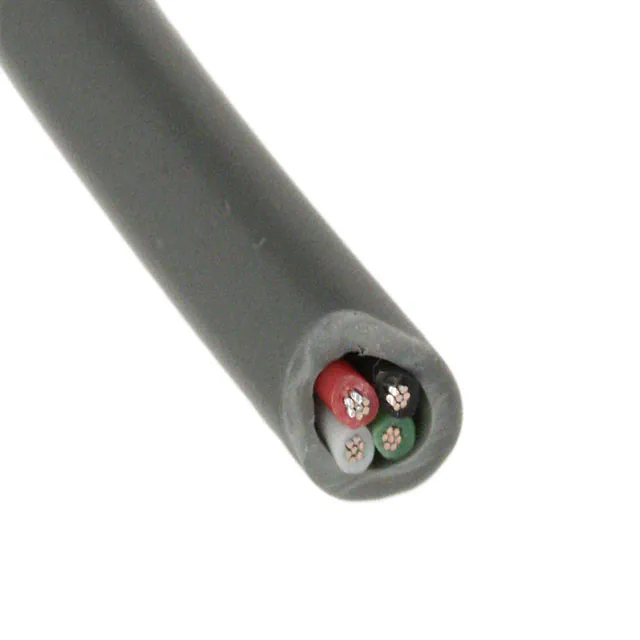

C2463A.41.10CABLE 4COND 24AWG GRAY |
26,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 4 | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.174" (4.42mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
5508FE 008U500CABLE 10CON 22AWG GRAY SHLD |
12,500 |
|
规格书 |
- | Box | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.217" (5.51mm) | Foil | 500.0' (152.4m) | Gray | - | Drain Wire, Rip Cord | - | -20°C ~ 75°C | Alarm, Security, Sound | 0.0180" (0.457mm) | Polypropylene (PP) | - |
|
C2534A.41.10CABLE 2COND 18AWG GRAY SHLD |
5,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.201" (5.11mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire | 300 V | -20°C ~ 75°C | Communication, Control | 0.0200" (0.508mm) | Polyethylene (PE) | - |
|

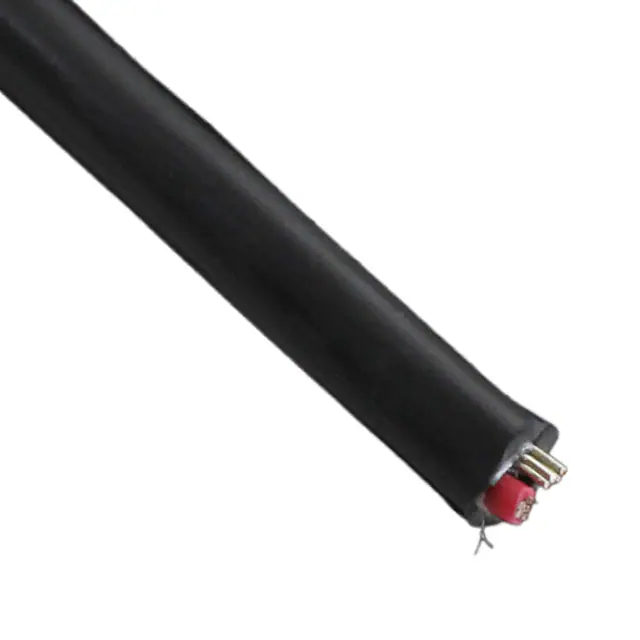

8451 0101000CABLE 2COND 22AWG BLACK SHLD |
130,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.138" (3.50mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMR | Drain Wire | - | -20°C ~ 75°C | - | - | Polypropylene (PP) | - |
|
|
8451 010U1000CABLE 2COND 22AWG BLACK SHLD |
48,000 |
|
规格书 |
- | Box | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.138" (3.50mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMR | Drain Wire | - | -20°C ~ 75°C | - | - | Polypropylene (PP) | - |
|
9451 010U1000CABLE 2COND 22AWG BLACK SHLD |
3,000 |
|
规格书 |
- | Box | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.135" (3.43mm) | Foil | 1000.0' (304.8m) | Black | UL Style CMR | - | - | -20°C ~ 75°C | - | 0.0200" (0.508mm) | Polypropylene (PP) | - |
|
|
5301FE 0081000CABLE 3CON 18AWG GRAY SHLD |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.171" (4.34mm) | Foil | 1000.0' (304.8m) | Gray | - | Rip Cord | - | -20°C ~ 75°C | Commercial Audio | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|

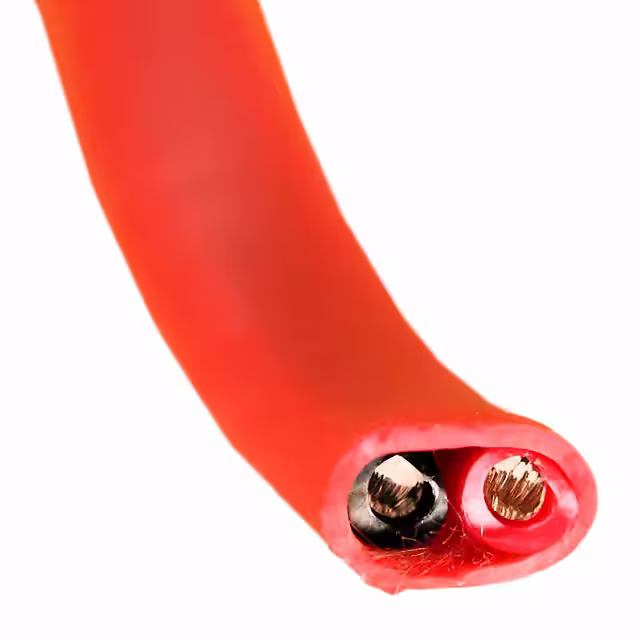

E1532S.41.03CABLE 2COND 12AWG RED |
9,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 12 AWG | Solid | Copper, Annealed Bare | Poly-Vinyl Chloride (PVC) | 0.244" (6.20mm) | - | 1000.0' (304.8m) | Red | ASTM B-3 | Rip Cord | 300 V | -20°C ~ 75°C | Alarm, Safety | 0.0150" (0.381mm) | Poly-Vinyl Chloride (PVC) | - |
|

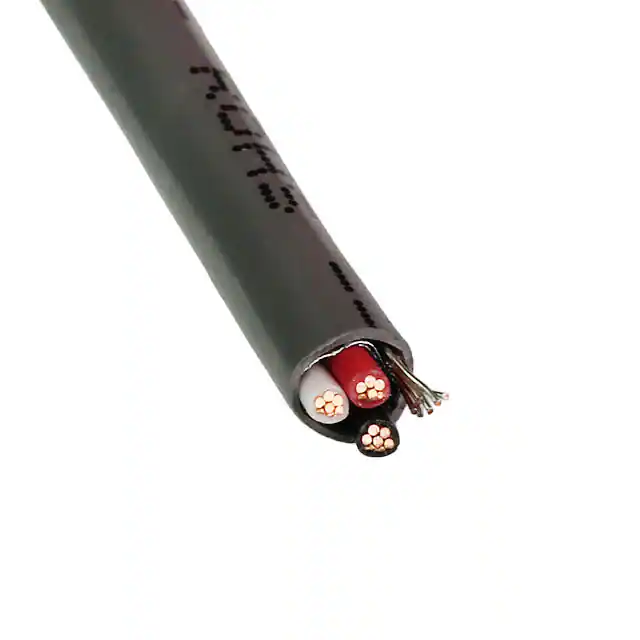

C0781A.41.10CABLE 3CON 20AWG GRAY SHLD |
17,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.217" (5.51mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
C0435A.41.10CABLE 2COND 18AWG GRAY |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.226" (5.74mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 105°C | Communication, Control | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

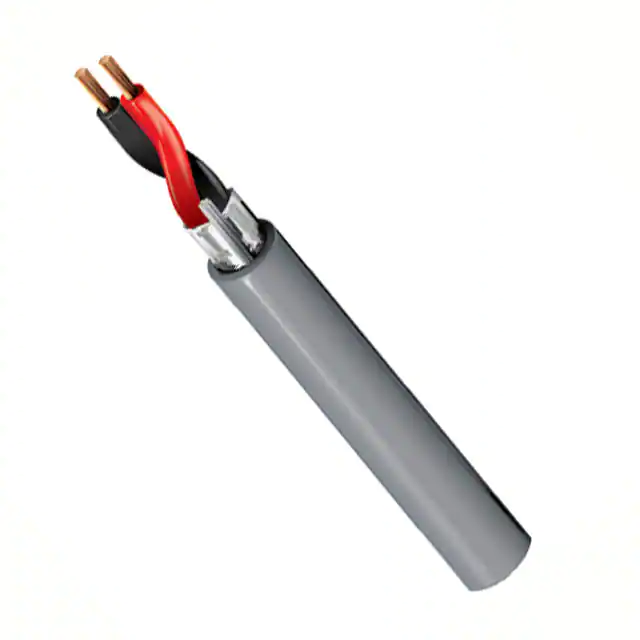

5200FE 0081000CABLE 2CON 16AWG GRAY SHLD |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.184" (4.67mm) | Foil | 1000.0' (304.8m) | Gray | - | Drain Wire, Rip Cord | - | -20°C ~ 75°C | Commercial Audio | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|

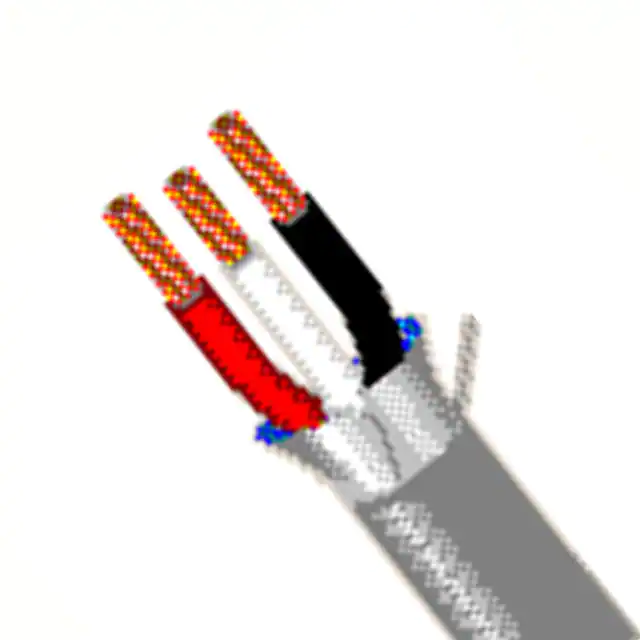

5301FE 008500CABLE 3COND 18AWG GRAY SHLD |
2,500 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Bare | Poly-Vinyl Chloride (PVC), Riser | 0.171" (4.34mm) | Foil | 500.0' (152.4m) | Gray | - | Rip Cord | - | -20°C ~ 75°C | Commercial Audio | 0.0170" (0.432mm) | Polypropylene (PP) | - |
|

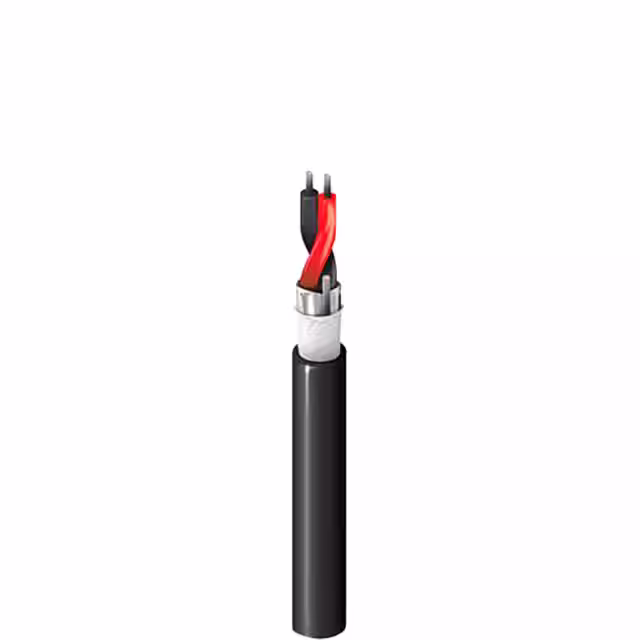

5240F1 0101000CABLE 2COND 16AWG BLK SHLD |
9,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair) | 16 AWG | 7/24 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.254" (6.45mm) | Foil | 1000.0' (304.8m) | Black | - | Direct Burial, Drain Wire, UV Resistant, Ripcord, Water-Blocked | 300 V | -30°C ~ 105°C | Security, Sound | 0.0370" (0.940mm) | Poly-Vinyl Chloride (PVC) | - |
|

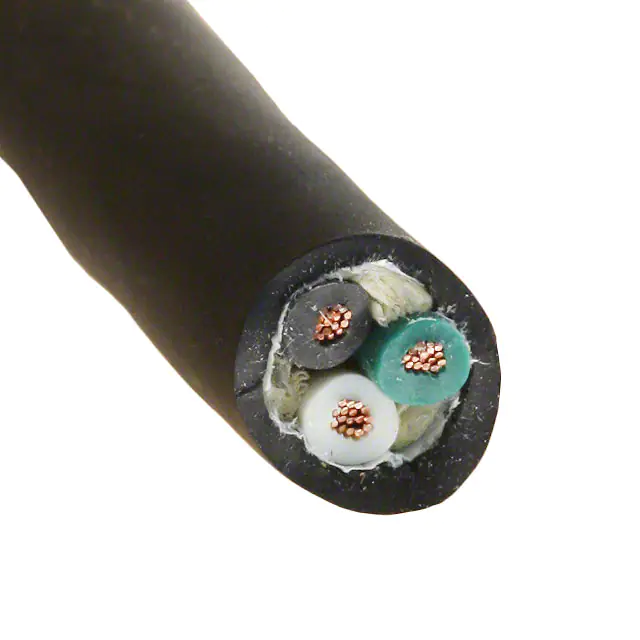

89003.35.01CABLE 3COND 18AWG BLACK |
4,250 |
|
规格书 |
Ultra Flex® | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.310" (7.87mm) | - | 250.0' (76.2m) | Black | - | Oil Resistant | 300 V | -50°C ~ 105°C | Cord and Cordset | 0.0300" (0.762mm) | Thermoplastic Elastomer (TPE) | - |
|

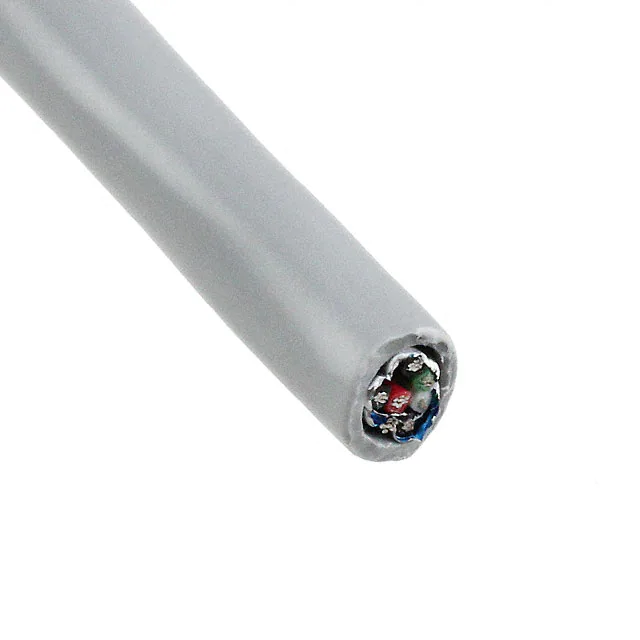

C0602A.41.10MULTI-PAIR 6COND 24AWG GRAY |
3,000 |
|
规格书 |
- | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 24 AWG | 7/32 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.225" (5.72mm) | Foil | 1000.0' (304.8m) | Gray | ASTM B-33 | Drain Wire | 300 V | -20°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
|
8450 0101000CABLE 2COND 22AWG BLK SHLD |
2,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | Solid | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.118" (3.00mm) | Foil | 1000.0' (304.8m) | Black | - | - | - | -20°C ~ 105°C | - | 0.0180" (0.457mm) | Polypropylene (PP) | - |
|

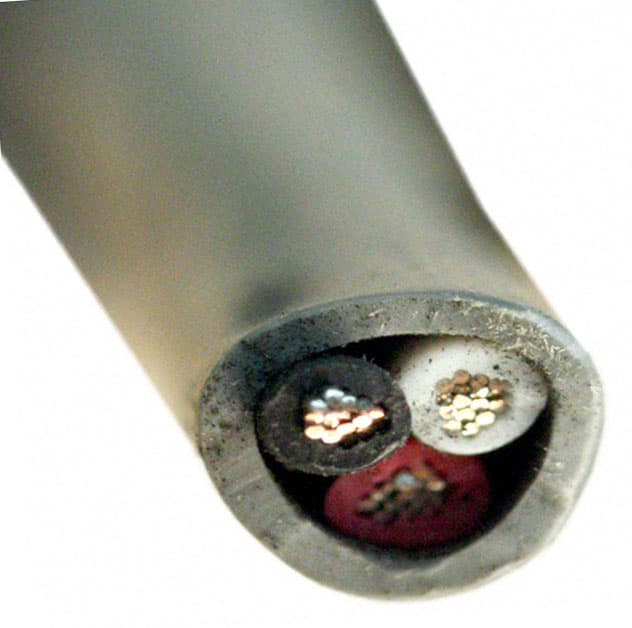

C2831A.41.10CABLE 3COND 18AWG GRAY |
6,000 |
|
规格书 |
- | Spool | Active | Multi-Conductor | 3 | 18 AWG | 16/30 | Copper, Annealed Tinned | Poly-Vinyl Chloride (PVC) | 0.236" (5.99mm) | - | 1000.0' (304.8m) | Gray | ASTM B-33 | - | 300 V | -20°C ~ 80°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
