BOM
购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS-5GL13-F-3-TSWITCH SNAP ACT SPST-NO 5A 125V |
307 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 120°C |
|

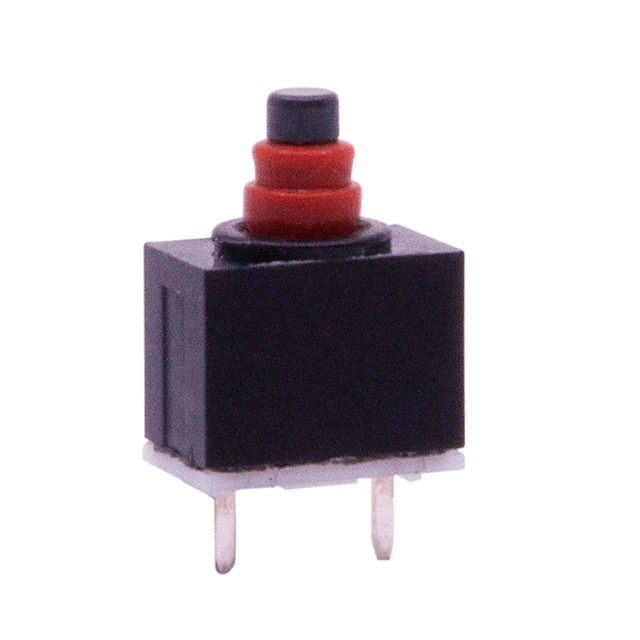

TD1150AF100QSWITCH DETECTOR SPST-NO 0.1A 12V |
1,325 |
|
规格书 |
TD1150 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 100gf | - | - | - | - | - | -40°C ~ 85°C |
|
D2SW-P01L3TSWITCH SNAP ACT SPDT 0.1A 125V |
678 |
|
规格书 |
D2SW-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
WS20850100F183C1ASWITCH SNAP ACTION SPDT 2A 250V |
999 |
|
规格书 |
WS2 | Box | Active | SPDT | On-On | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 183gf | - | - | - | - | - | -25°C ~ 85°C |
|
WS20850100F183P1ASWITCH SNAP ACTION SPDT 2A 250V |
950 |
|
规格书 |
WS2 | Box | Active | SPDT | On-On | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | - | - | - | - | - | -25°C ~ 85°C |
|
D2GW-A1R2FSEALED SWITCH PCB PIN PLUNGER |
489 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|
|
D2GW-A13DSEALED SWITCH PCB PIN PLUNGER |
379 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|

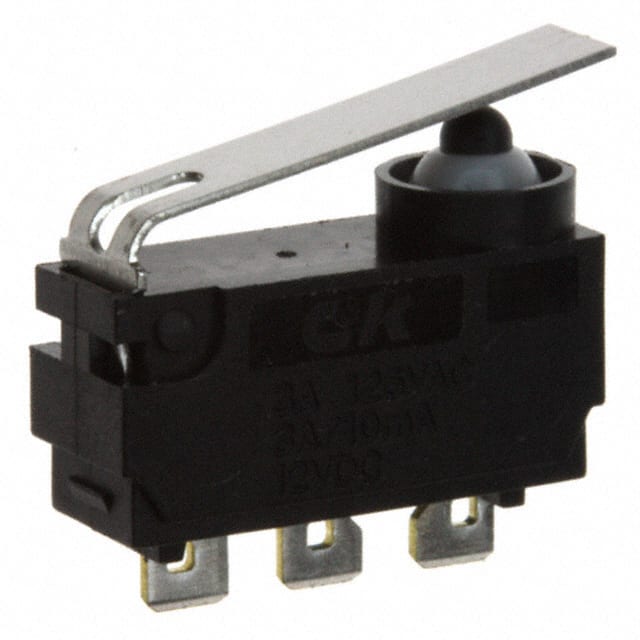

ZMSH03130T10SSCSWITCH SNAP ACTION SPDT 3A 125V |
1,065 |
|
规格书 |
ZMS | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Solder Lug | IP65 - Dust Tight, Water Resistant | - | 195gf | 55gf | 0.440" (11.2mm) | 0.152" (3.85mm) | 0.020" (0.5mm) | 0.084" (2.14mm) | -40°C ~ 85°C |
|

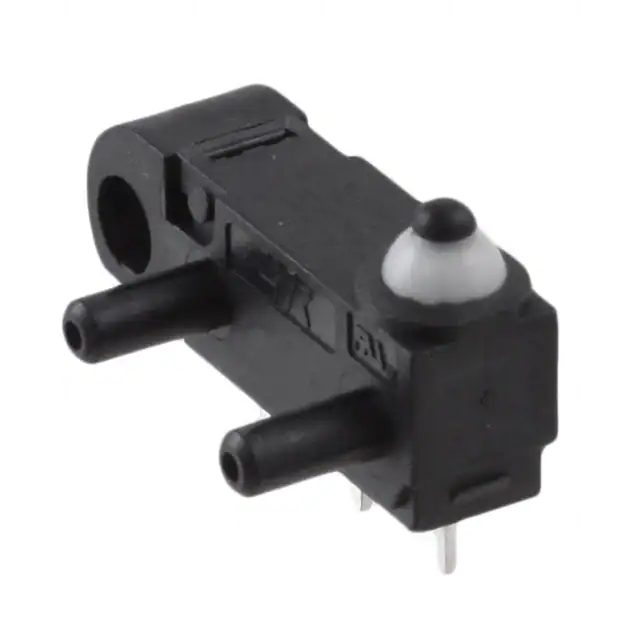

ZMSMH3130P00PLCSWITCH SNAP ACTION SPDT 3A 125V |
512 |
|
规格书 |
ZMSM | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP65 - Dust Tight, Water Resistant | Support Posts | 130gf | 13gf | 0.266" (6.75mm) | 0.030" (0.8mm) | 0.012" (0.3mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
ABS1114513SWITCH SNAP ACT SPDT 0.1A 125V |
176 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
D2F-FL3-DSWITCH SNAP ACTION SPDT 1A 125V |
520 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
MS-118405-HSWITCH SNAP ACT SPDT 100MA 30V |
1,354 |
|
规格书 |
MS, COMAX | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 25gf | 5.000gf | 0.335" (8.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | - |
|
D2F-FL3-TSWITCH SNAP ACTION SPDT 1A 125V |
763 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
D2F-L3-TSWITCH SNAP ACTION SPDT 3A 125V |
748 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

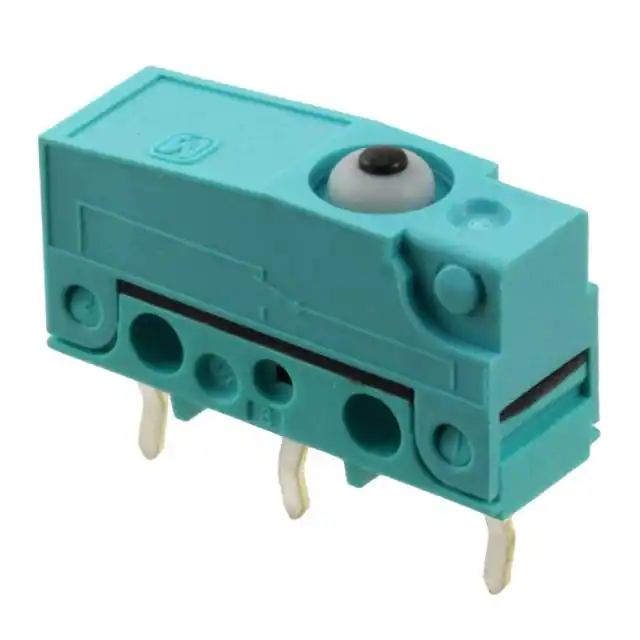

ABS1510409SWITCH SNAP ACTION SPDT 2A 125V |
995 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
WS1085300F130SASWITCH SNAP ACTION SPDT 3A 125V |
995 |
|
规格书 |
WS1 | Box | Active | SPDT | On-On | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 130gf | - | - | - | - | - | -40°C ~ 85°C |
|

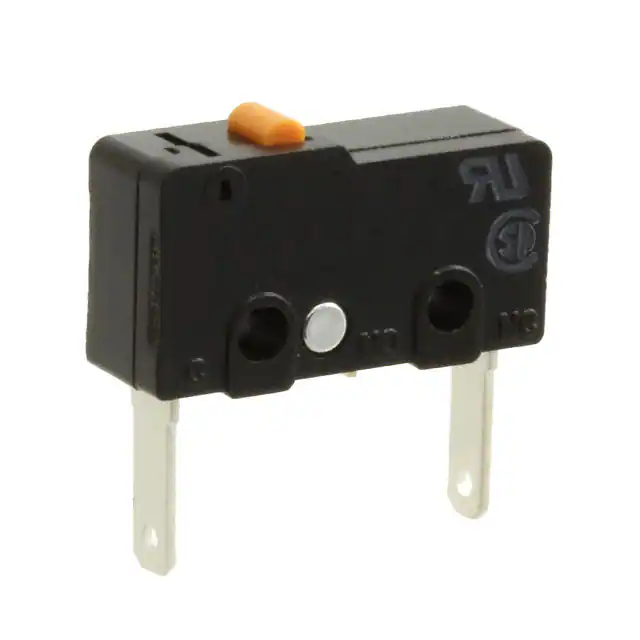

SS-10-2TSWITCH SNAP ACT SPST-NC 10A 250V |
470 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|

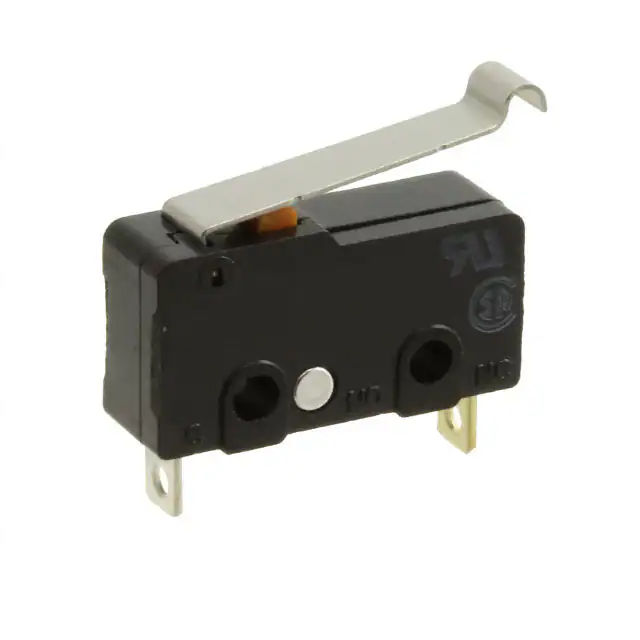

SS-5GL13-2SWITCH SNAP ACT SPST-NC 5A 125V |
352 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ABS1511503SWITCH SNAP ACTION SPDT 2A 125V |
479 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
SSG-01L2PSWITCH SNAP ACT SPDT 0.1A 125V |
532 |
|
规格书 |
SSG | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 61gf | 6.118gf | 0.705" (17.9mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
