购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2GW-A02FSEALED SWITCH PCB PIN PLUNGER |
497 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
|
D2GW-A03FSEALED SWITCH PCB PIN PLUNGER |
462 |
|
- |
D2GW | Tray | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 13.5 V | Round (Pin Plunger) | Panel Mount | Press-Fit | IP67 - Dust Tight, Waterproof | - | 122gf | 10gf | 0.315" (8.0mm) | - | 0.010" (0.25mm) | 0.065" (1.7mm) | -40°C ~ 85°C |
|
ZM50E70A01SWITCH SNAP ACTION SPDT 5A 125V |
241 |
|
规格书 |
ZM | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 146gf | 35gf | 0.449" (11.4mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|

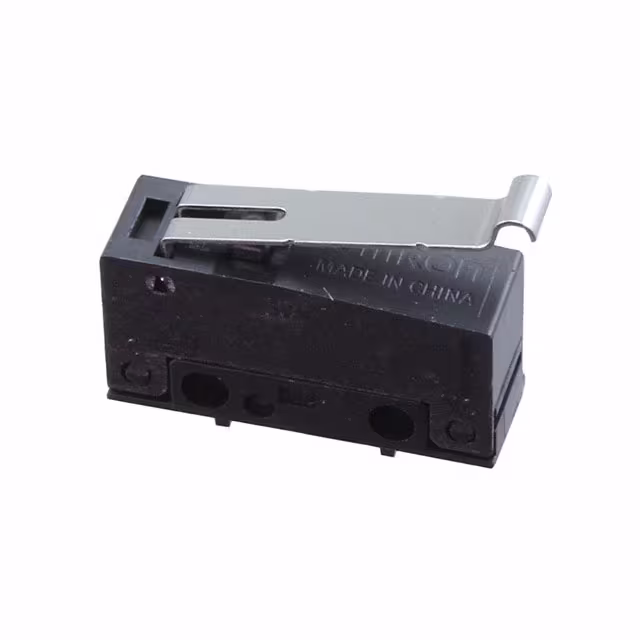

SS-01GL13PD2SWITCH SNAP ACT SPDT 0.1A 125V |
428 |
|
规格书 |
SS-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP40 | - | 51gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

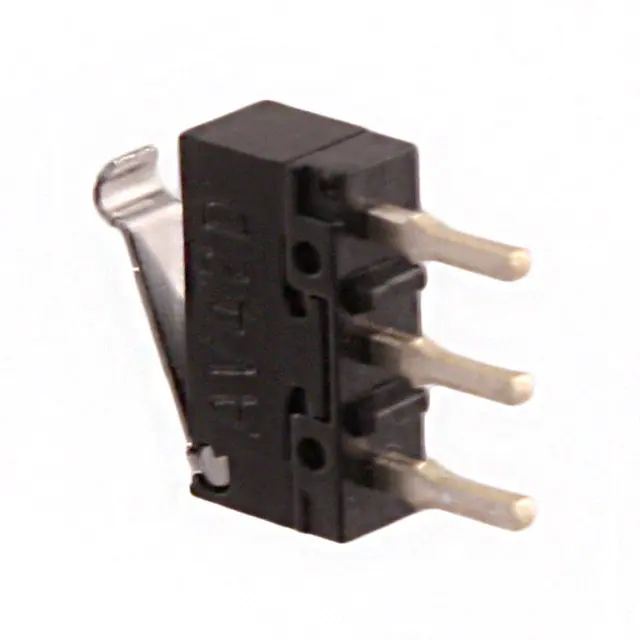

AV4444SWITCH SNAP ACTION SPDT 0.5A 30V |
370 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 29gf | - | 0.240" (6.1mm) | 0.087" (2.2mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -25°C ~ 80°C |
|
SS-01GL30PTSWITCH SNAP ACTION SUBMINIATURE |
589 |
|
规格书 |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

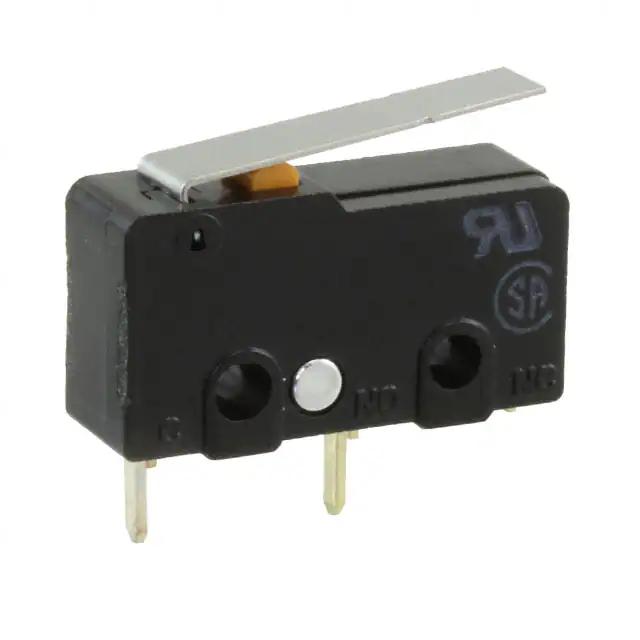

SS-5GL-F-3DSWITCH SNAP ACT SPST-NO 5A 125V |
466 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D3SH-B1LSWITCH DETECT SPST-NC 0.001A 5V |
185 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Board Guide, Left Operating Lever | 31gf | - | 0.197" (5.0mm) | - | - | - | -25°C ~ 85°C |
|
VM3CQF1802L00SWITCH LIMIT SPDT 16A 125V |
209 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 180gf | 90gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
|
AV462461SWITCH SNAP ACTION SPDT 0.1A 30V |
499 |
|
规格书 |
AV4 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 25gf | - | 0.228" (5.8mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.015" (0.4mm) | -25°C ~ 80°C |
|
VM3CQF0801L00SWITCH LIMIT SPDT 16A 125V |
109 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 40gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
D3SH-B0L1SWITCH DETECT SPST-NC 0.001A 5V |
674 |
|
规格书 |
D3SH | Tape & Reel (TR) | Active | SPST-NC | On-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | Left Operating Lever | 24gf | - | 0.213" (5.4mm) | - | - | - | -25°C ~ 85°C |
|
VM3AQF0802L06SWITCH LIMIT SPST-NO 16A 125V |
394 |
|
规格书 |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 40gf | 0.785" (19.9mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
VM3CQF0801L04SWITCH LIMIT SPDT 16A 125V |
200 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 65gf | 35gf | 0.560" (14.2mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
SS-5-F-3DSWITCH SNAP ACT SPST-NO 5A 125V |
170 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
D2AW-EL003D RSWITCH SNAP ACT SPST-NO 0.1A 12V |
358 |
|
规格书 |
D2AW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 101gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
D2AW-ER003D RSWITCH SNAP ACT SPST-NO 0.1A 12V |
245 |
|
规格书 |
D2AW | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 101gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
|
V19T16-EZ400A06SWITCH SNAP ACTION SPDT 16A 125V |
956 |
|
规格书 |
V19 | Box | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 250gf | 25gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.107" (2.7mm) | 0.062" (1.6mm) | -25°C ~ 125°C |
|

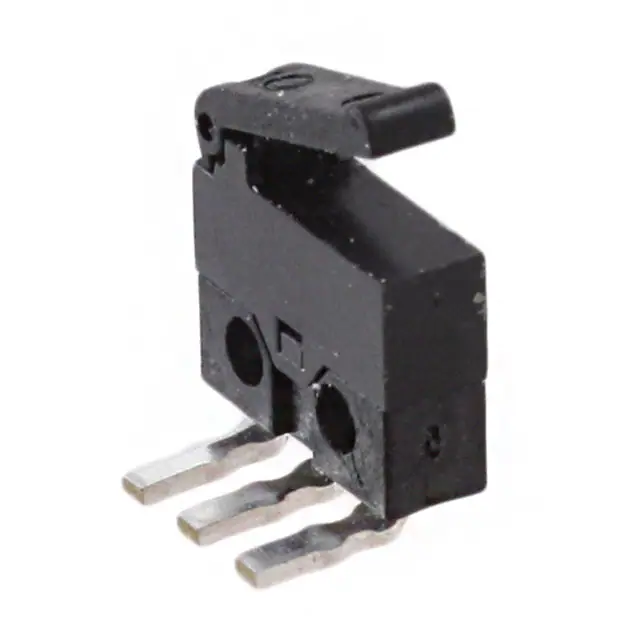

MDS6500AL02LLSWITCH SNAP ACT SPDT 300MA 30V |
10,193 |
|
规格书 |
MDS | Bulk | Active | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | 0.264" (6.7mm) | 0.071" (1.8mm) | - | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
LS0851506F120V2ASWITCH SNAP ACTION SPDT 15A 125V |
1,031 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.100" (2.5mm) | - | - | -25°C ~ 85°C |
