购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LS0851506F120V1ASWITCH SNAP ACTION SPDT 15A 125V |
1,028 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 120gf | 40gf | 0.815" (20.7mm) | 0.100" (2.5mm) | - | - | -25°C ~ 85°C |
|
SS-10-2DSWITCH SNAP ACT SPST-NC 10A 250V |
405 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
D2SW-P01DSWITCH SNAP ACT SPDT 0.1A 125V |
470 |
|
规格书 |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|

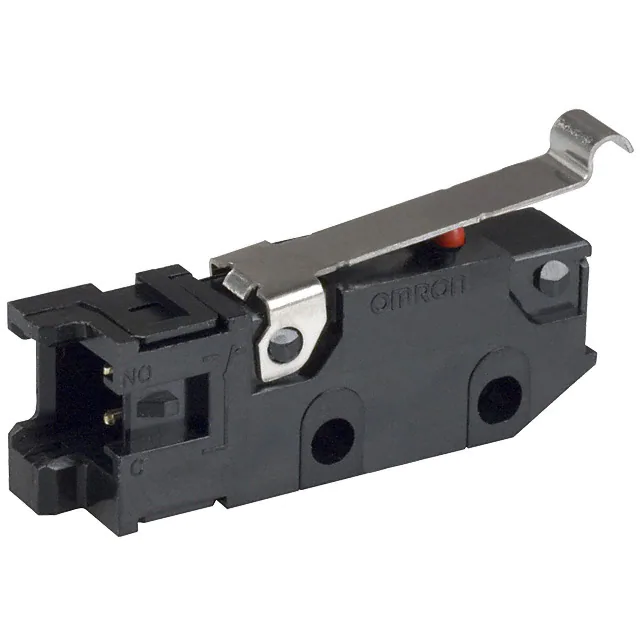

D3M-01L3SWITCH SNAP ACT SPST-NC 0.1A 30V |
4,843 |
|
规格书 |
D3M | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.445" (11.3mm) | - | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
SS-5GL-F-3TSWITCH SNAP ACT SPST-NO 5A 125V |
134 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-5GL-F-2TSWITCH SNAP ACT SPST-NC 5A 125V |
585 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

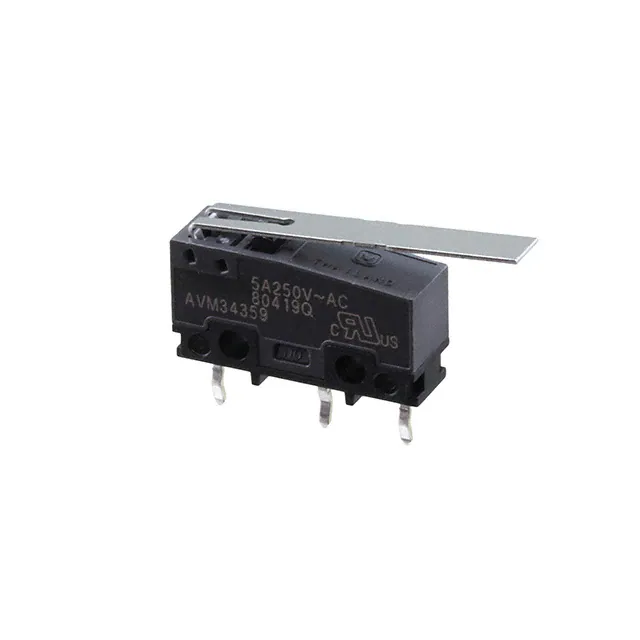

AVM34359-ASWITCH SNAP ACTION SPDT 5A 125V |
373 |
|
规格书 |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
SS-5-F-2SWITCH SNAP ACT SPST-NC 5A 125V |
445 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
VM3CQF0801L01SWITCH LIMIT SPDT 16A 125V |
194 |
|
规格书 |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 40gf | 20gf | 0.732" (18.6mm) | 0.146" (3.7mm) | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 120°C |
|
LS0851500F160C2ASWITCH SNAP ACTION SPDT 15A 125V |
576 |
|
规格书 |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
|
D2GW-A12DSEALED SWITCH PCB PIN PLUNGER |
484 |
|
- |
D2GW | Tray | Active | SPST-NC | On-Mom | 10mA (DC) | - | 13.5 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 87gf | 2.000gf | 0.356" (9.05mm) | - | 0.055" (1.4mm) | 0.175" (4.45mm) | -40°C ~ 85°C |
|

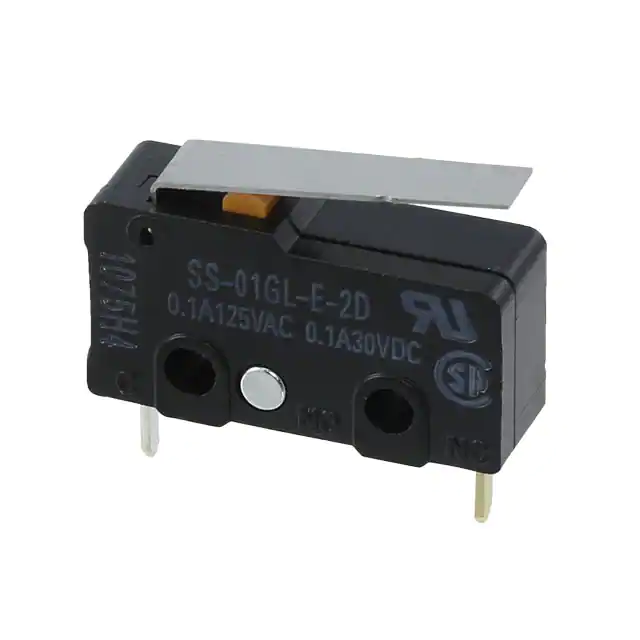

SS-01GL-E-2DSWITCH SNP ACT SPST-NC 0.1A 125V |
453 |
|
规格书 |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 8.158gf | 1.020gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
ABS1411503SWITCH SNAP ACTION SPDT 2A 125V |
983 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
ZMT05ACJP00SCESWITCH SNAP ACTION SPDT 5A 125V |
172 |
|
规格书 |
ZMT | Box | Active | SPDT | On-Mom | 5A (AC), 3A (DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
.jpg)
|
D3V-01-2C22SWITCH SNP ACT SPST-NC 0.1A 125V |
133 |
|
规格书 |
D3V | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 25gf | 3.059gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
|
ZMT03ACJP00SCESWITCH SNAP ACTION SPDT 3A 125V |
117 |
|
规格书 |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
|
D3V-11-3C24-KSWITCH SNAP ACT SPST-NO 11A 250V |
119 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|

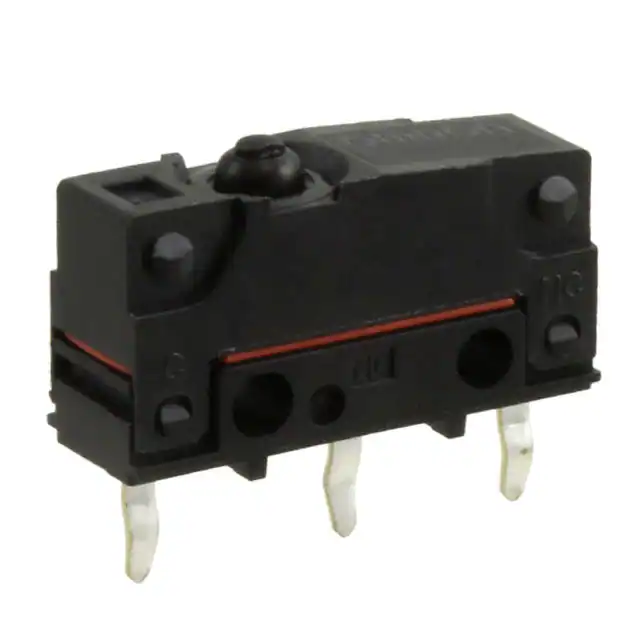

D2SW-P2DSWITCH SNAP ACTION SPDT 2A 250V |
404 |
|
规格书 |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
|

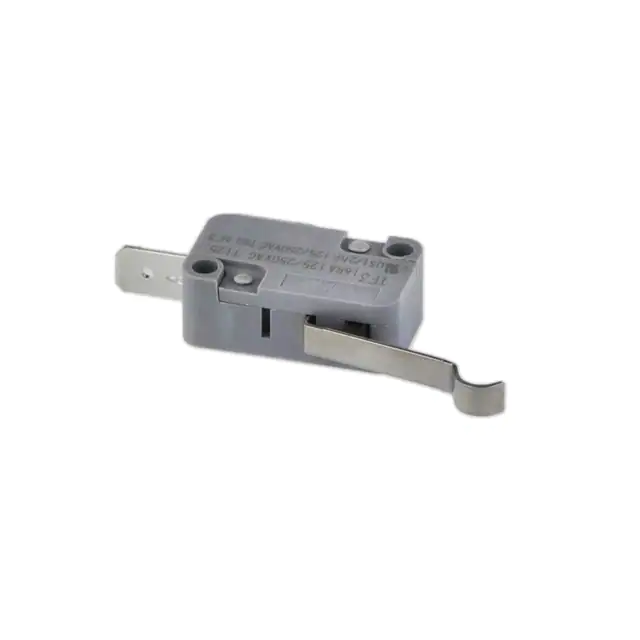

TF316ECT244AYSWITCH SNAP ACT SPST-NO 16A 125V |
470 |
|
规格书 |
TF3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 88gf | - | 0.724" (18.40mm) | 0.283" (7.2mm) | 0.114" (2.9mm) | 0.059" (1.5mm) | -40°C ~ 125°C |
|
|
MS085R105F065S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
466 |
|
规格书 |
MS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 65gf | 25gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
