购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

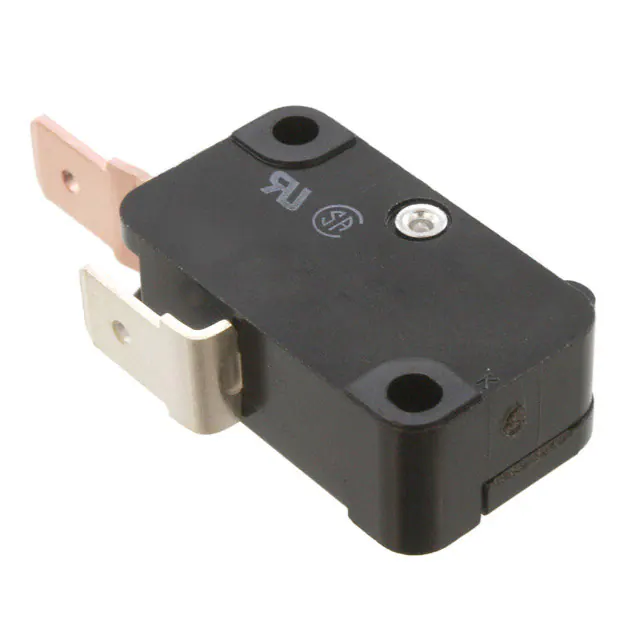

V-15G-3C5-KSWITCH SNAP ACT SPST-NO 15A 250V |
129 |
|
规格书 |
V | Tray | Active | SPST-NO | Off-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

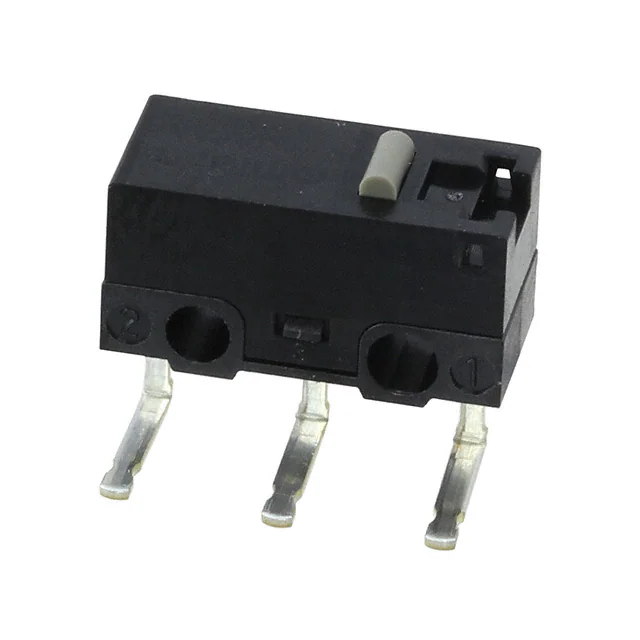

D2F-ASWITCH SNAP ACTION SPDT 3A 125V |
198 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
.JPG)
|
MS-105A01 (H)SWITCH SNAP ACTION SPDT 5A 125V |
4,370 |
|
规格书 |
MS, COMAX | Tray | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 230gf | 55gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.008" (0.2mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|

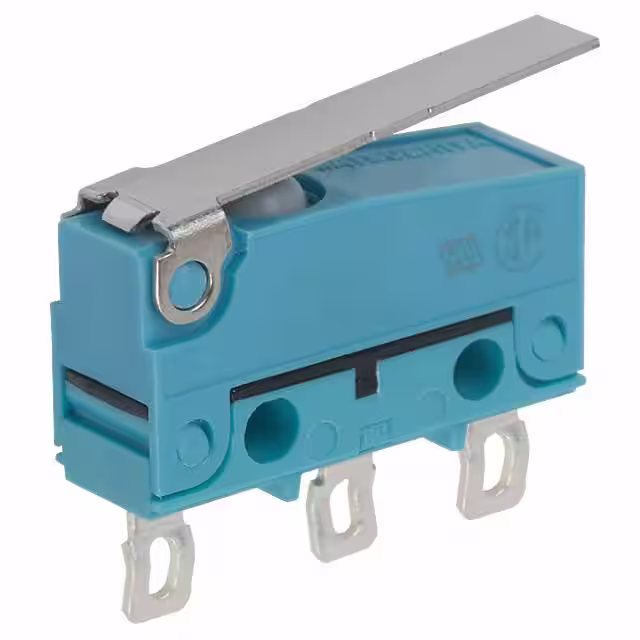

ABS1412509SWITCH SNAP ACTION SPDT 2A 125V |
242 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
SS-01GLD-12SWITCH SNAP ACTION HINGE |
199 |
|
规格书 |
SS | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

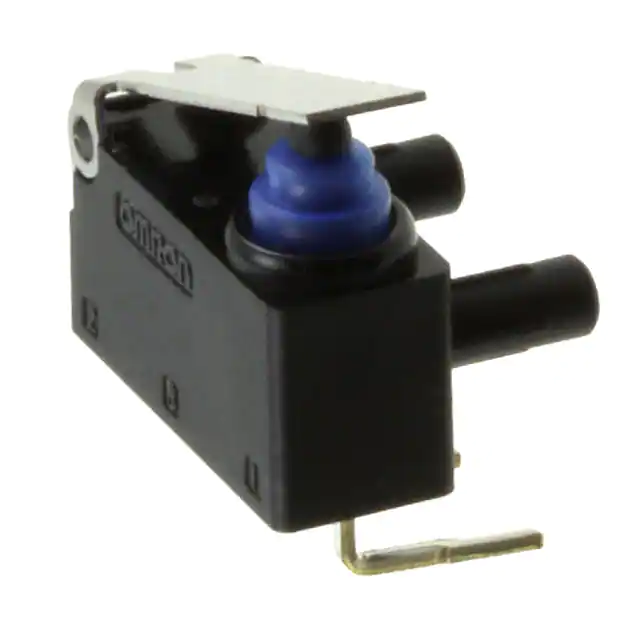

D2HW-BL211DLSWITCH SNAP ACT SPDT 0.1A 125V |
1,661 |
|
规格书 |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2F-A1SWITCH SNAP ACTION SPDT 3A 125V |
669 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
D3V-016-1C3SWITCH SNAP ACT SPDT 0.1A 125V |
573 |
|
规格书 |
D3V | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 30gf | - | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
D2HW-A201HSWITCH SNAP ACT SPDT 0.1A 125V |
363 |
|
规格书 |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
.jpg)
|
D3V-16-3C5SWITCH SNAP ACT SPST-NO 16A 250V |
151 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
D2F01L30SWITCH SNAP ACTION SPDT 0.1A 30V |
998 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 55gf | 4.079gf | 0.374" (9.5mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
SSG-5L3PSWITCH SNAP ACTION SPDT 5A 125V |
404 |
|
规格书 |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 61gf | 6.000gf | 0.567" (14.4mm) | - | 0.031" (0.8mm) | 0.039" (1.0mm) | -25°C ~ 125°C |
|

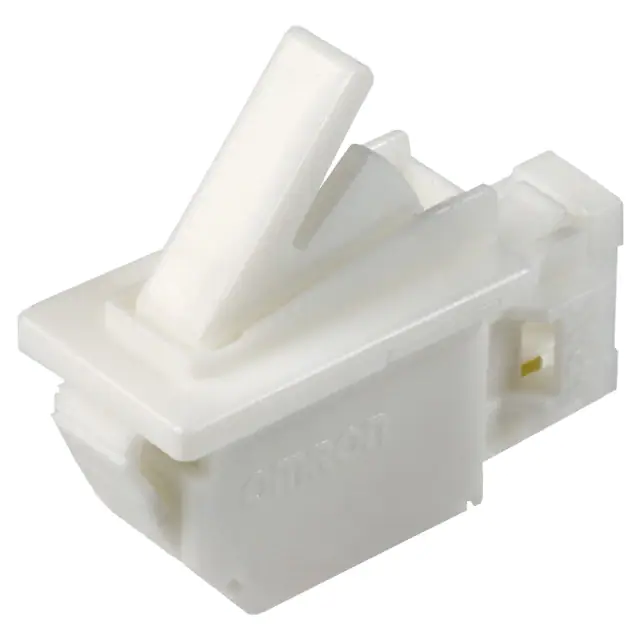

D3D-221SWITCH DETECTOR SPST-NC 1A 125V |
1,282 |
|
规格书 |
D3D | Tray | Active | SPST-NC | On-Mom | 1A (AC) | 125 V | - | Angled Toggle (Detector) | Panel Mount, Snap-In | Connector | IP00 | White Actuator | 204gf | - | 0.512" (13.0mm) | - | - | - | -30°C ~ 60°C |
|

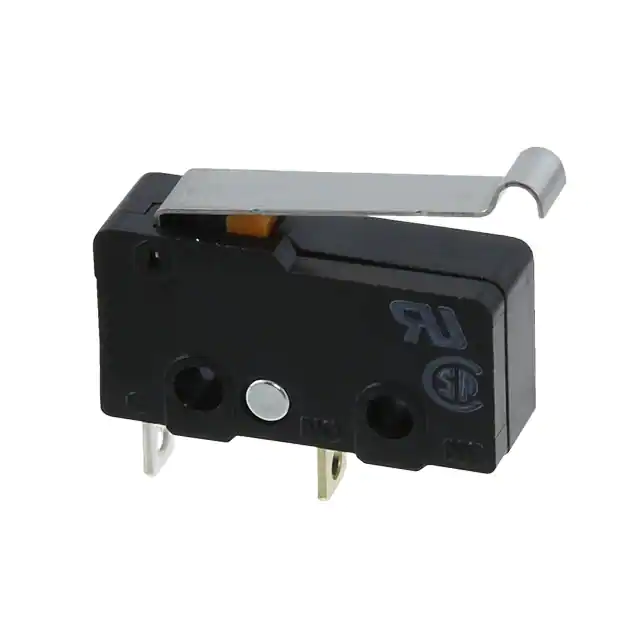

SS-01GL13-3SWITCH SNP ACT SPST-NO 0.1A 125V |
4,867 |
|
规格书 |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

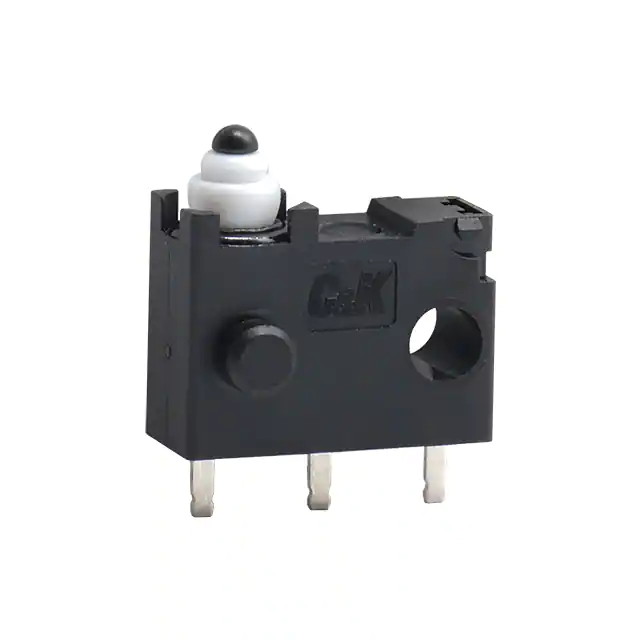

ZMW00AP00PCAASWITCH SNAP ACTION SPDT 0.1A 30V |
2,915 |
|
规格书 |
ZMW | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 150gf | - | - | 0.030" (0.8mm) | - | 0.087" (2.2mm) | -40°C ~ 85°C |
|

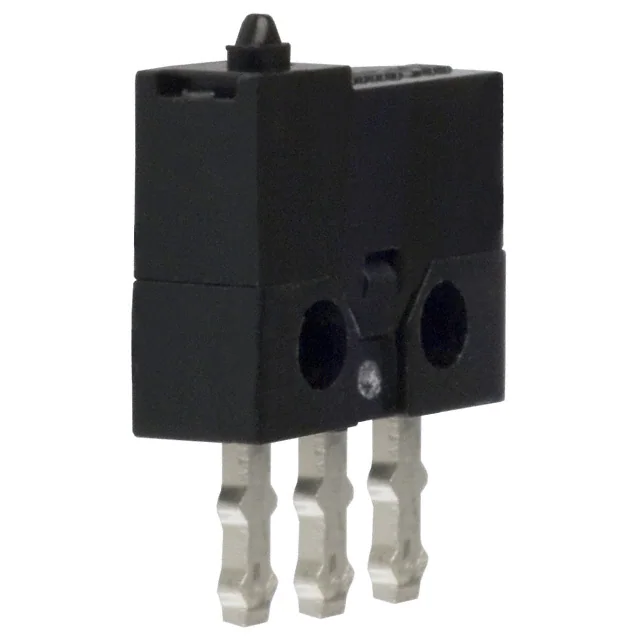

D2MQ-1SWITCH SNAP ACTION SPDT 0.5A 30V |
1,058 |
|
规格书 |
D2MQ | Bulk | Active | SPDT | On-Mom | 500mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 120gf | 21gf | 0.224" (5.7mm) | 0.015" (0.4mm) | 0.004" (0.1mm) | 0.004" (0.1mm) | -15°C ~ 70°C |
|
|
SS-10GLDSWITCH SNAP ACTION SPDT 10A 250V |
4,538 |
|
规格书 |
SS | Tray | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.345" (8.8mm) | - | 0.040" (1.0mm) | 0.039" (1.0mm) | -25°C ~ 85°C |
|

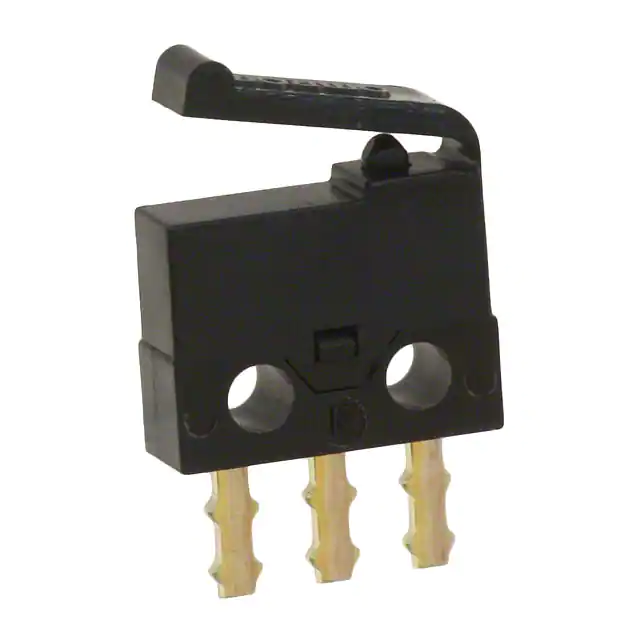

D2MQ-1L-105SWITCH SNAP ACT SPDT 0.05A 30V |
899 |
|
规格书 |
D2MQ | Bulk | Active | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Leaf | Through Hole | PC Pin | IP40 | - | 60gf | 8.158gf | 0.264" (6.7mm) | 0.094" (2.4mm) | 0.027" (0.7mm) | 0.011" (0.3mm) | -15°C ~ 70°C |
|
SS-5GL-FTSWITCH SNAP ACTION SPDT 5A 125V |
502 |
|
规格书 |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
D2FD-2L1-1HSWITCH SNAP ACTION SPDT 2A 125V |
194 |
|
规格书 |
D2FD | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP60 - Dust Tight | - | 66gf | 5.099gf | 0.328" (8.3mm) | - | 0.020" (0.5mm) | 0.020" (0.5mm) | -20°C ~ 70°C |
