购物车限位开关
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 电路 | 开关功能 | 电流额定值（安培） | 电压额定值 - 交流 | 电压额定值 - 直流 | 执行器类型 | 安装类型 | 端接样式 | 防护等级 | 特性 | 操作力 | 释放力 | 工作位置 | 预行程 | 差分行程 | 过行程 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D3V-014-3C23SWITCH SNP ACT SPST-NO 0.1A 125V |
9,506 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | - | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
D2F-L2-D3SWITCH SNAP ACTION SPDT 3A 125V |
638 |
|
规格书 |
D2F | Bulk | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
ABS1411513SWITCH SNAP ACT SPDT 0.1A 125V |
186 |
|
规格书 |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|

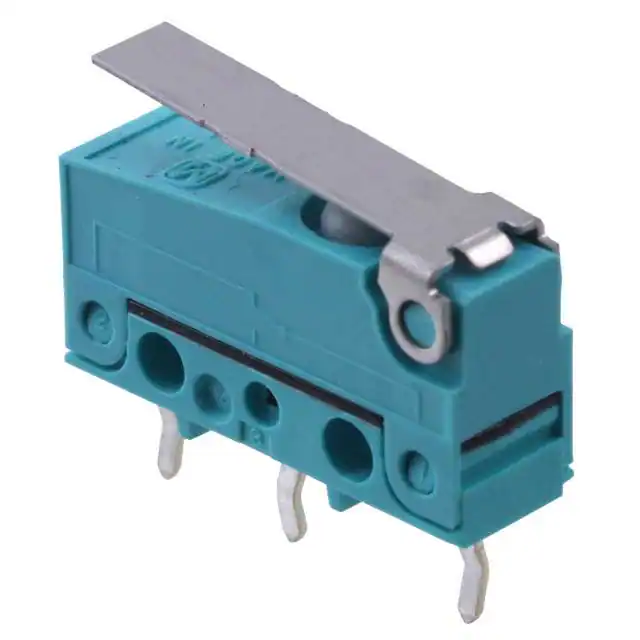

ABS1511509SWITCH SNAP ACTION SPDT 2A 125V |
200 |
|
规格书 |
ABS | Tray | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|

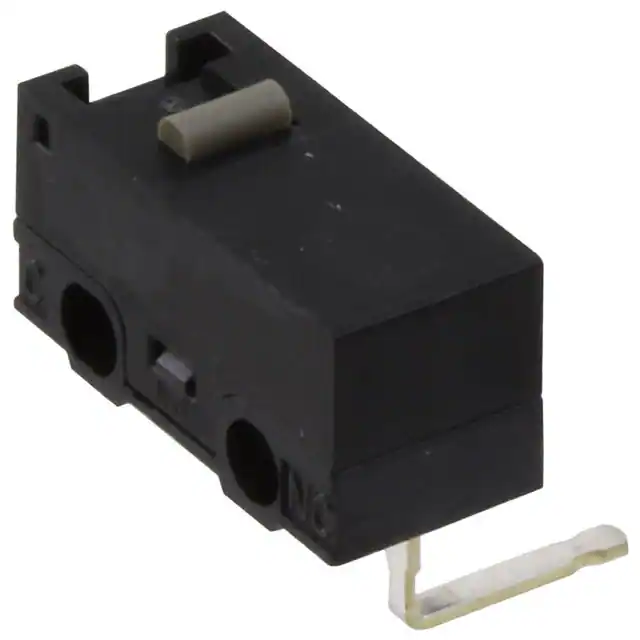

D2F-01-ASWITCH SNAP ACTION SPDT 0.1A 30V |
824 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
|
D2F-01F-ASWITCH SNAP ACTION SPDT 0.1A 30V |
450 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|

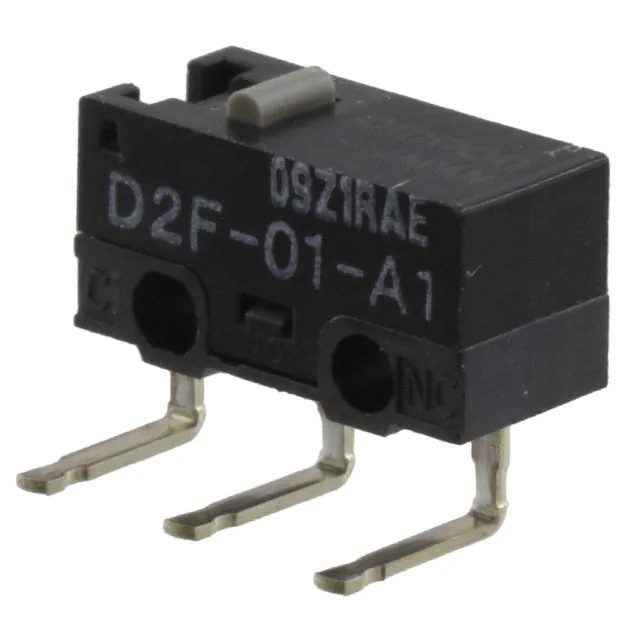

D2F-01-A1SWITCH SNAP ACTION SPDT 0.1A 30V |
373 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
ASQ11518SWITCH SNAP ACTION SPDT 0.1A 30V |
1,000 |
|
规格书 |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 153gf | - | 0.472" (12.0mm) | - | - | 0.110" (2.8mm) | -40°C ~ 85°C |
|
|
D2F-01F-A1SWITCH SNAP ACTION SPDT 0.1A 30V |
952 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|

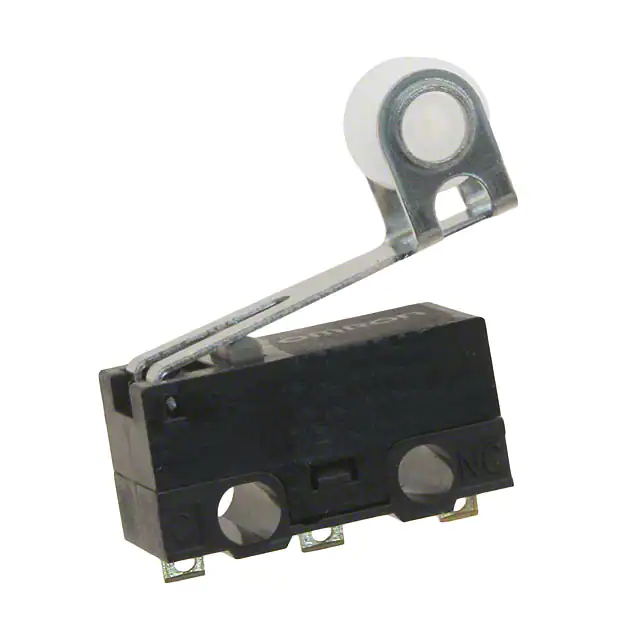

D2F-FL2-DSWITCH SNAP ACTION SPDT 1A 125V |
3,661 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 75gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SS-01GL2-FTSWITCH SNAP ACT SPDT 0.1A 125V |
557 |
|
规格书 |
SS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.571" (14.5mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V7-6B19E9-022SWITCH SNAP ACTION SPDT 11A 125V |
1,068 |
|
规格书 |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 215gf | 38gf | 0.600" (15.2mm) | 0.128" (3.25mm) | 0.030" (0.76mm) | 0.053" (1.35mm) | -40°C ~ 85°C |
|

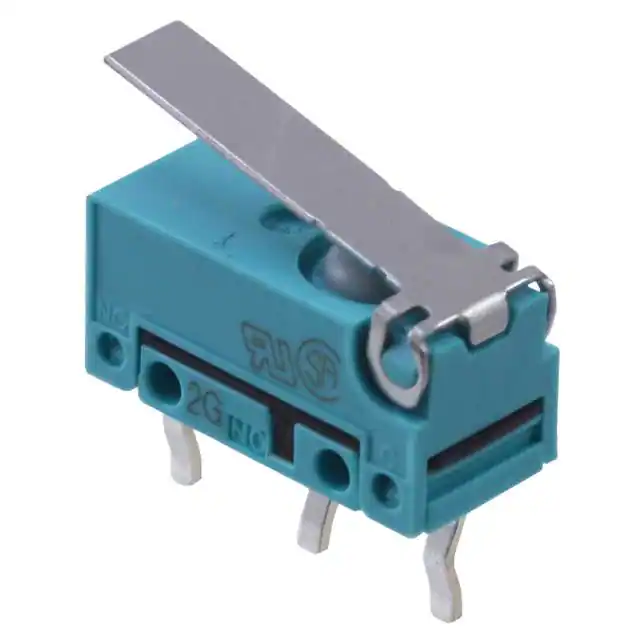

ABJ151261SWITCH SNAP ACT SPDT 0.1A 125V |
120 |
|
规格书 |
ABJ | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.268" (6.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
D2F-01L2-DSWITCH SNAP ACTION SPDT 0.1A 30V |
1,393 |
|
规格书 |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2HW-A201DSSWITCH SNAP ACT SPDT 0.1A 125V |
222 |
|
规格书 |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 76gf | 10gf | 0.409" (10.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
D2HW-BL231DLSWITCH SNAP ACT SPDT 0.1A 125V |
641 |
|
规格书 |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D3V-16-3C25SWITCH SNAP ACT SPST-NO 16A 250V |
163 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
V-152-1C5SWITCH SNAP ACTION SPDT 15A 250V |
128 |
|
规格书 |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D3V-16G4-3C5-KSWITCH SNAP ACT SPST-NO 16A 250V |
166 |
|
规格书 |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|

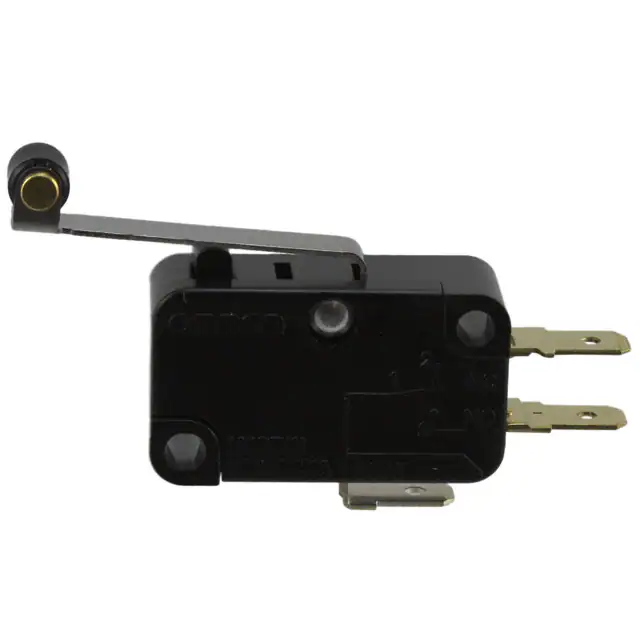

V-10G6-1C24-KSWITCH SNAP ACTION SPDT 10A 250V |
580 |
|
规格书 |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
